Products > Energy Storage Connector > Battery Storage Connector Right Angle 150A Orange 35mm² Unshielded Cable Z Key

FSP840180TZ-35U0A1RH

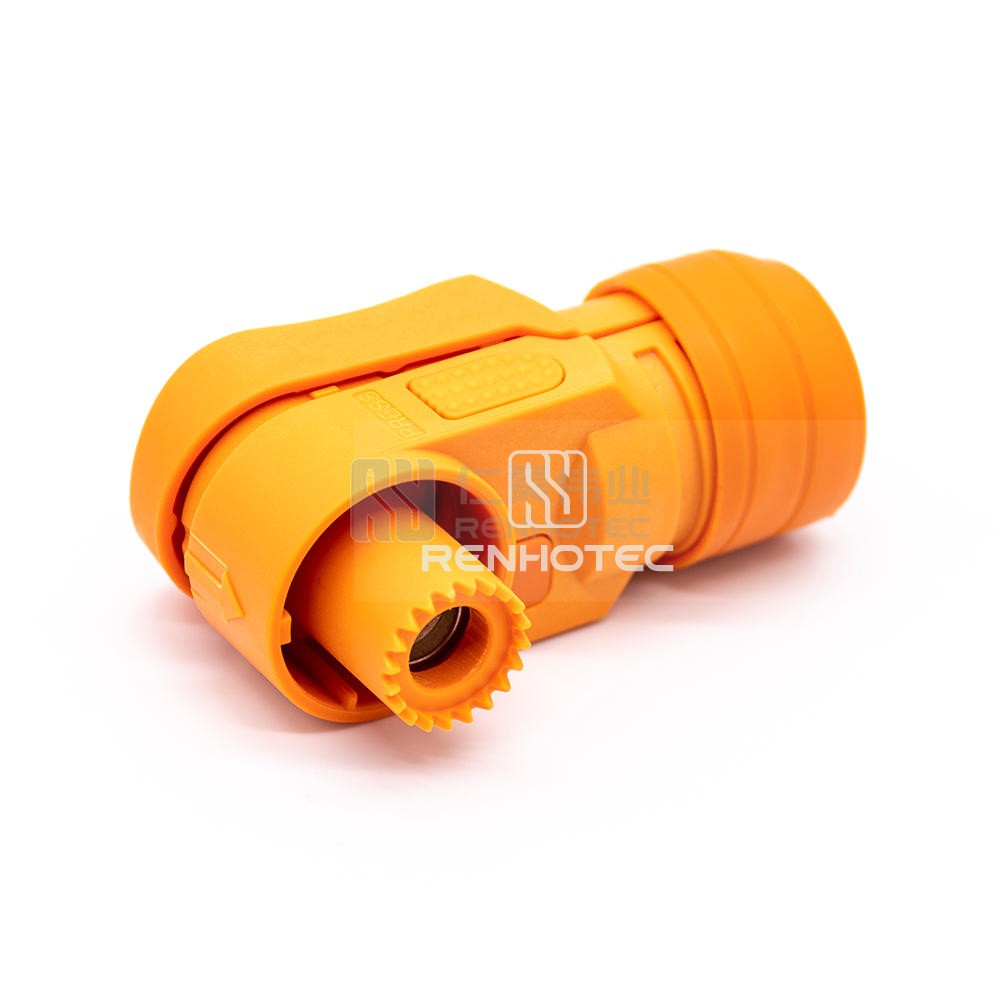

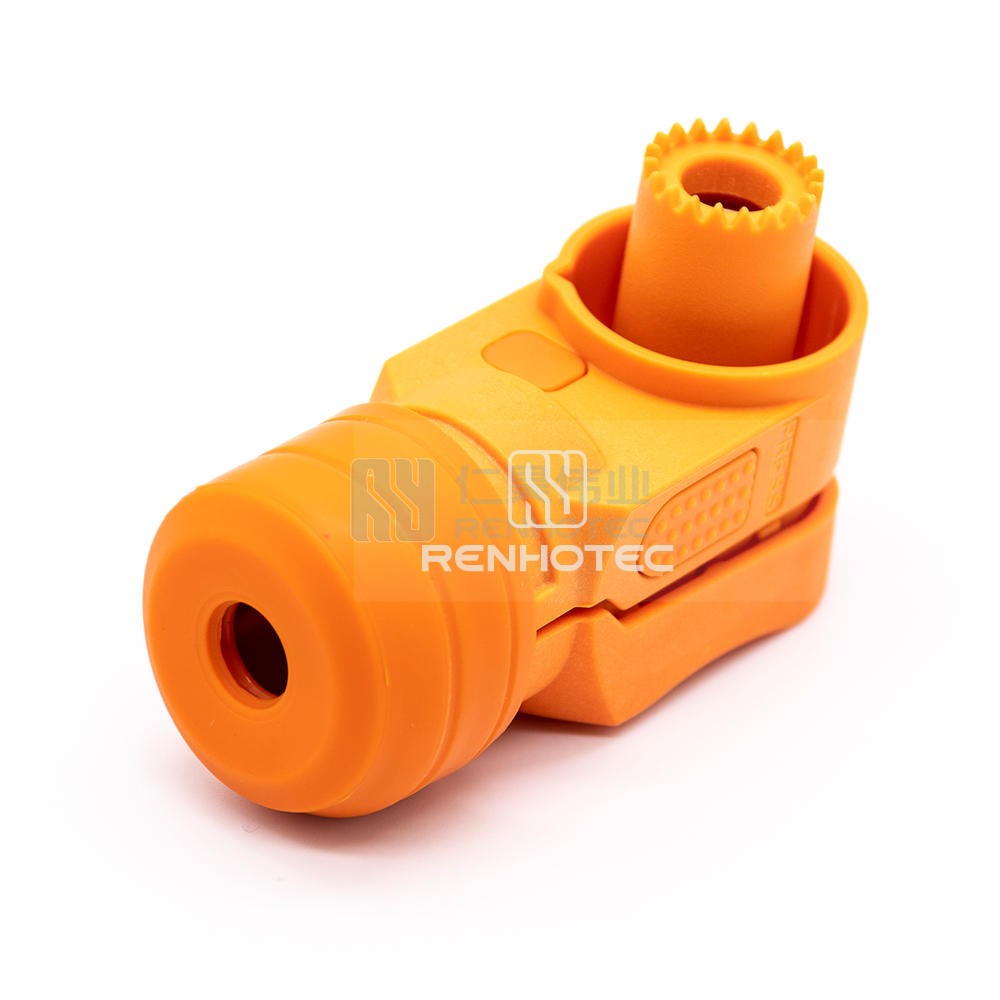

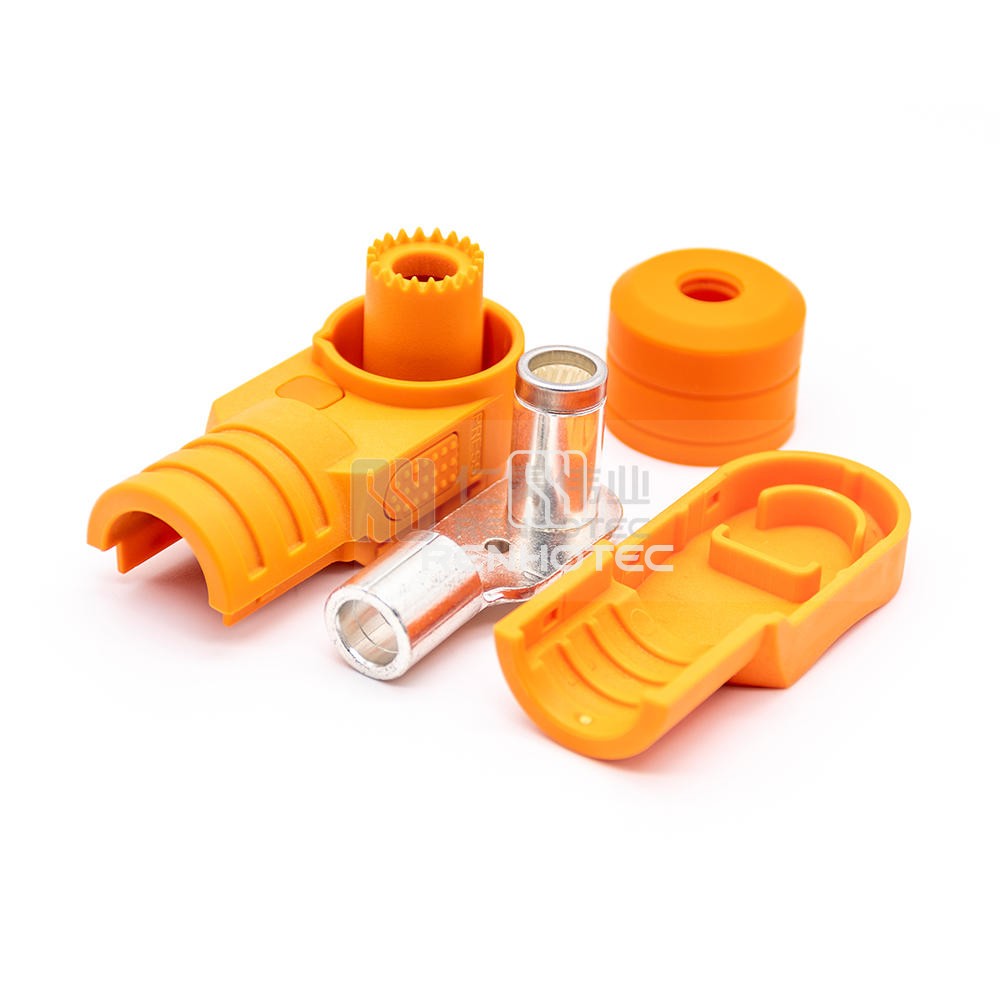

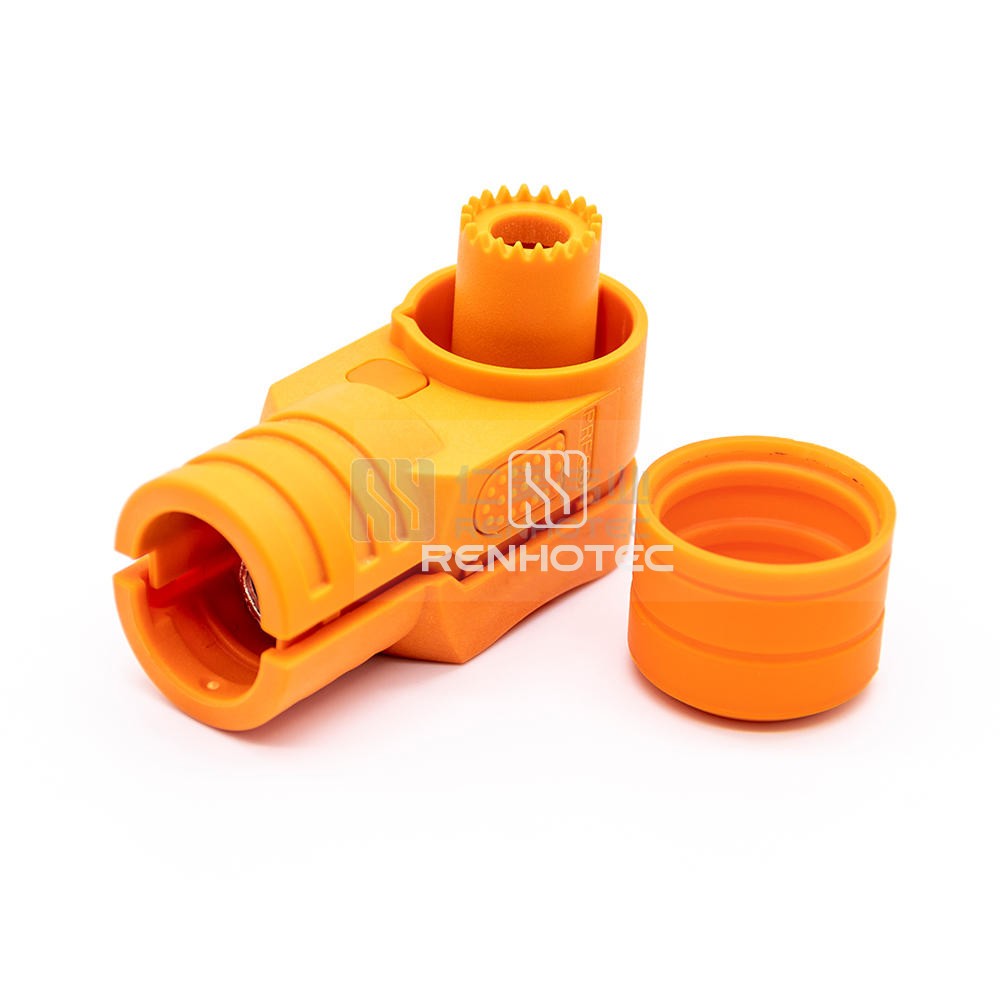

Battery Storage Connector Right Angle 150A Orange 35mm² Unshielded Cable Z Key

This Battery Storage Connector features a right-angle design, 150A capacity, vibrant orange color, and is suitable for use with 35mm² unshielded cables with a Z key. Get this high-quality connector for your battery storage needs.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current150A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range35mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
