Products > Energy Storage Connector > Battery Storage Connector Right Angle 200A Black 50mm² Unshielded Cable W Key

FSP840180TW-50U0B1RH

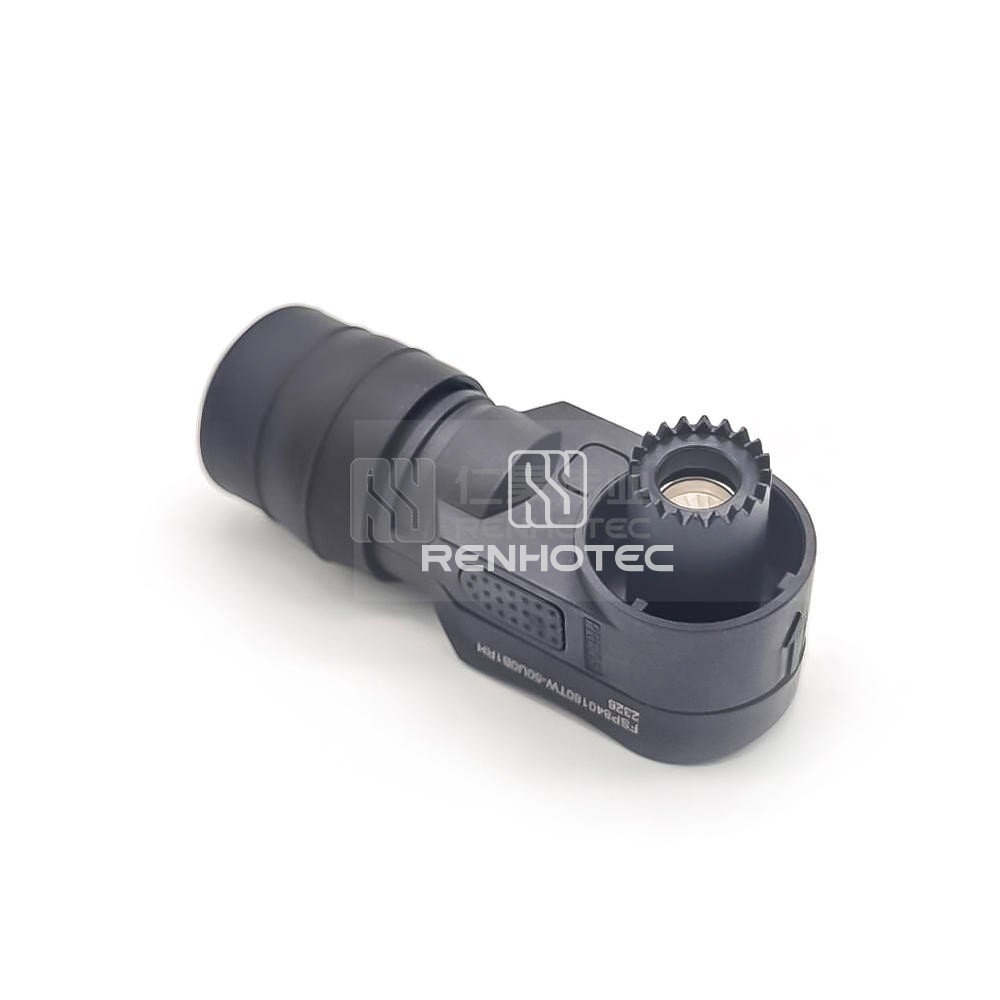

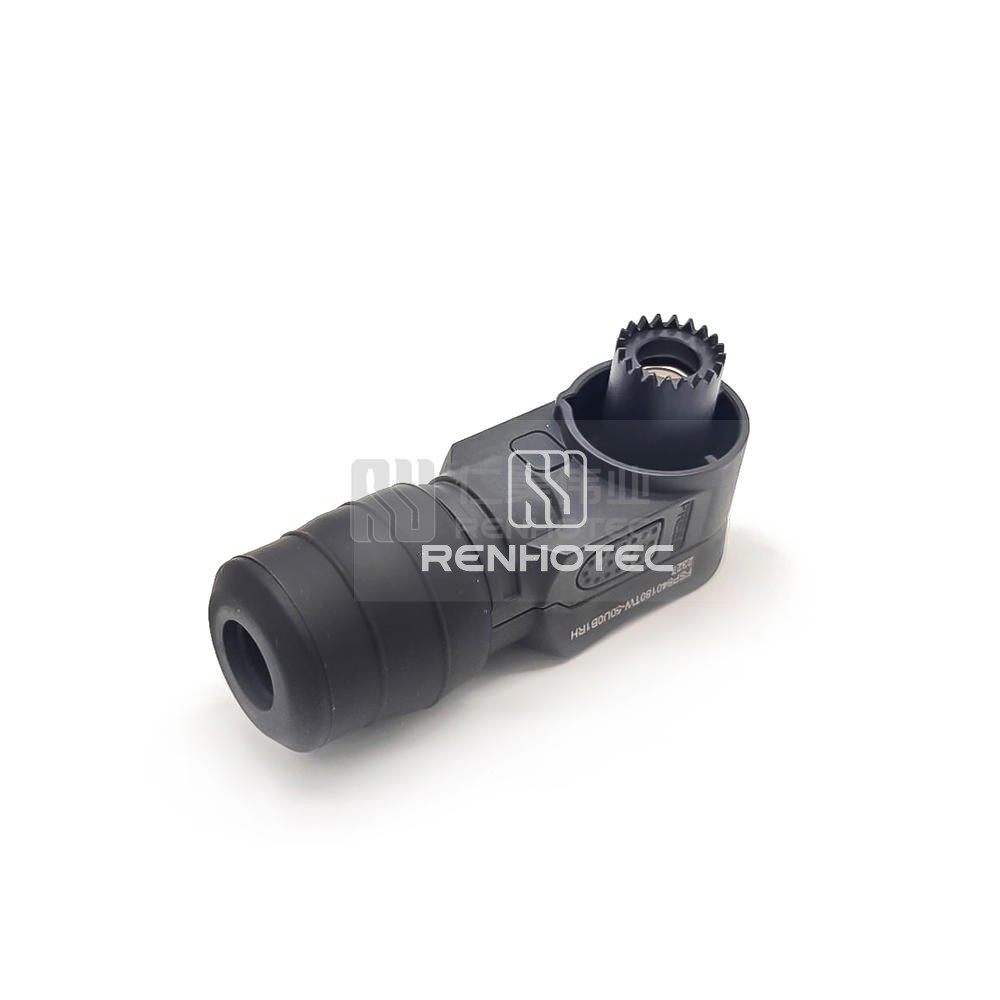

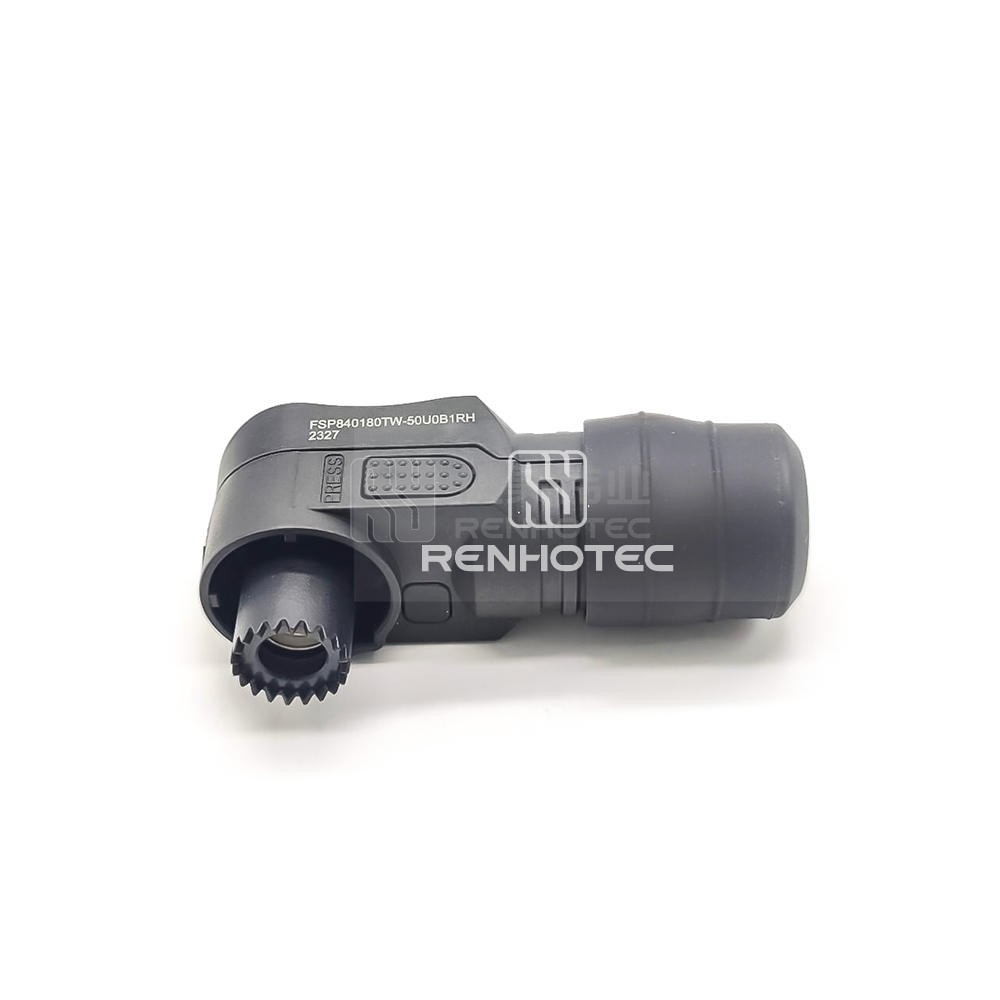

Battery Storage Connector Right Angle 200A Black 50mm² Unshielded Cable W Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Efficiently connect your battery storage with this right angle 200A connector. The black color and 50mm² unshielded cable ensure durability and reliability. Equipped with a convenient key for added security.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    KeyW
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range50mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
