Battery Storage Connector Right Angle 400A Orange 120mm² Unshielded Cable Z Key - FSP840114CZ-120U0A1RH
Battery Storage Connector Right Angle 400A Orange 120mm² Unshielded Cable Z Key - FSP840114CZ-120U0A1RH

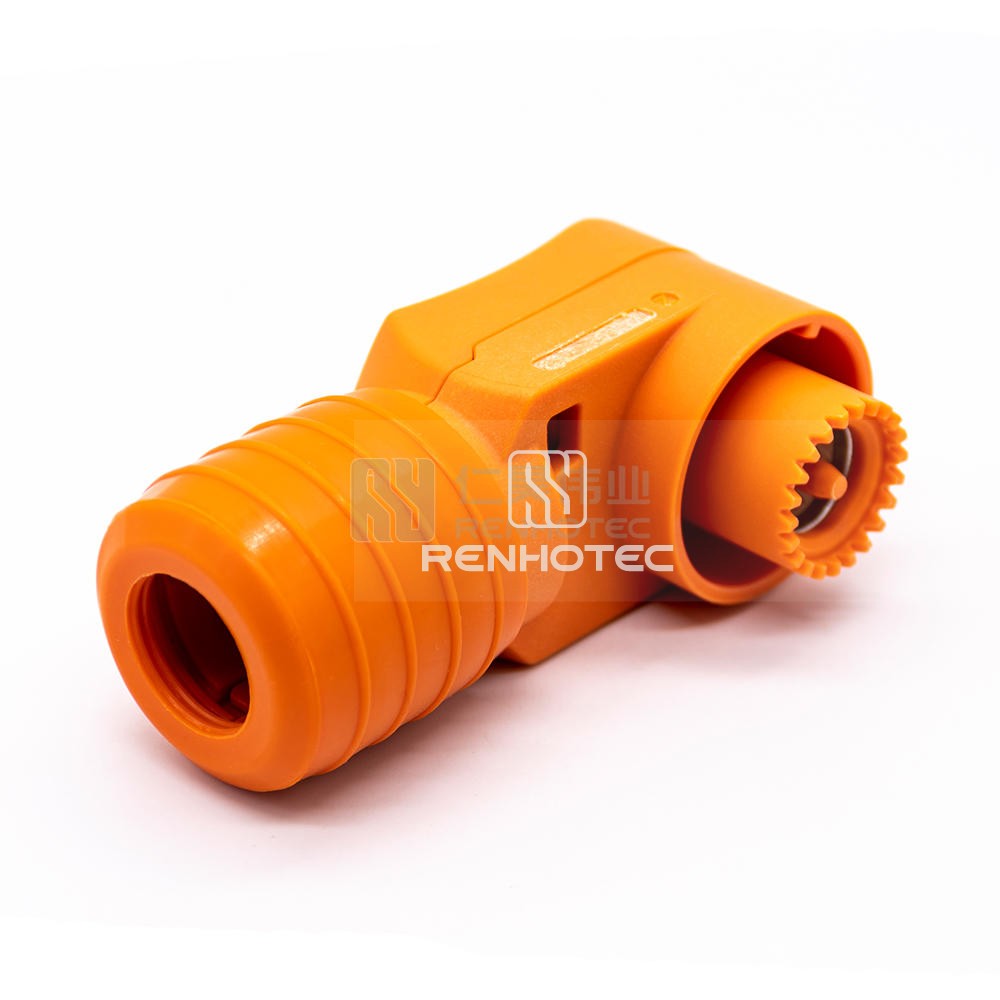

Battery Storage Connector Right Angle 400A Orange 120mm² Unshielded Cable Z Key product image

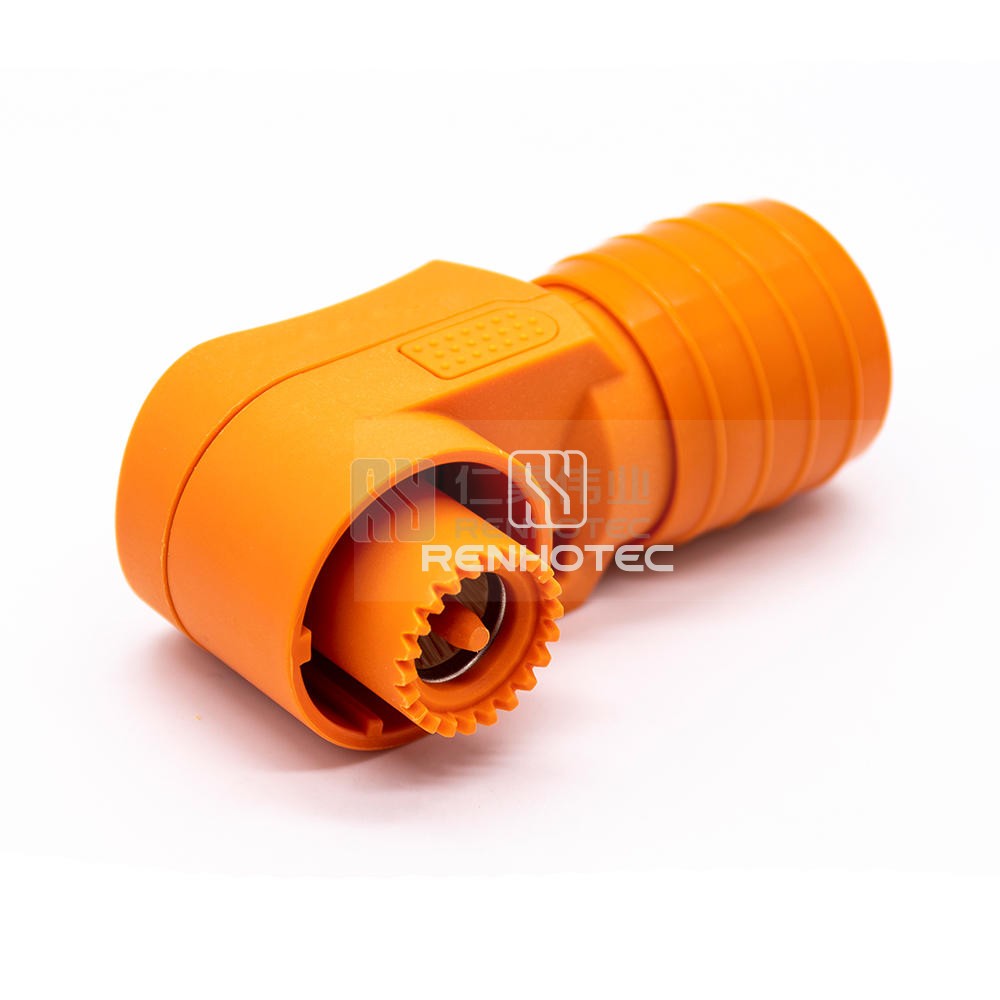

Battery Storage Connector Right Angle 400A Orange 120mm² Unshielded Cable Z Key product image

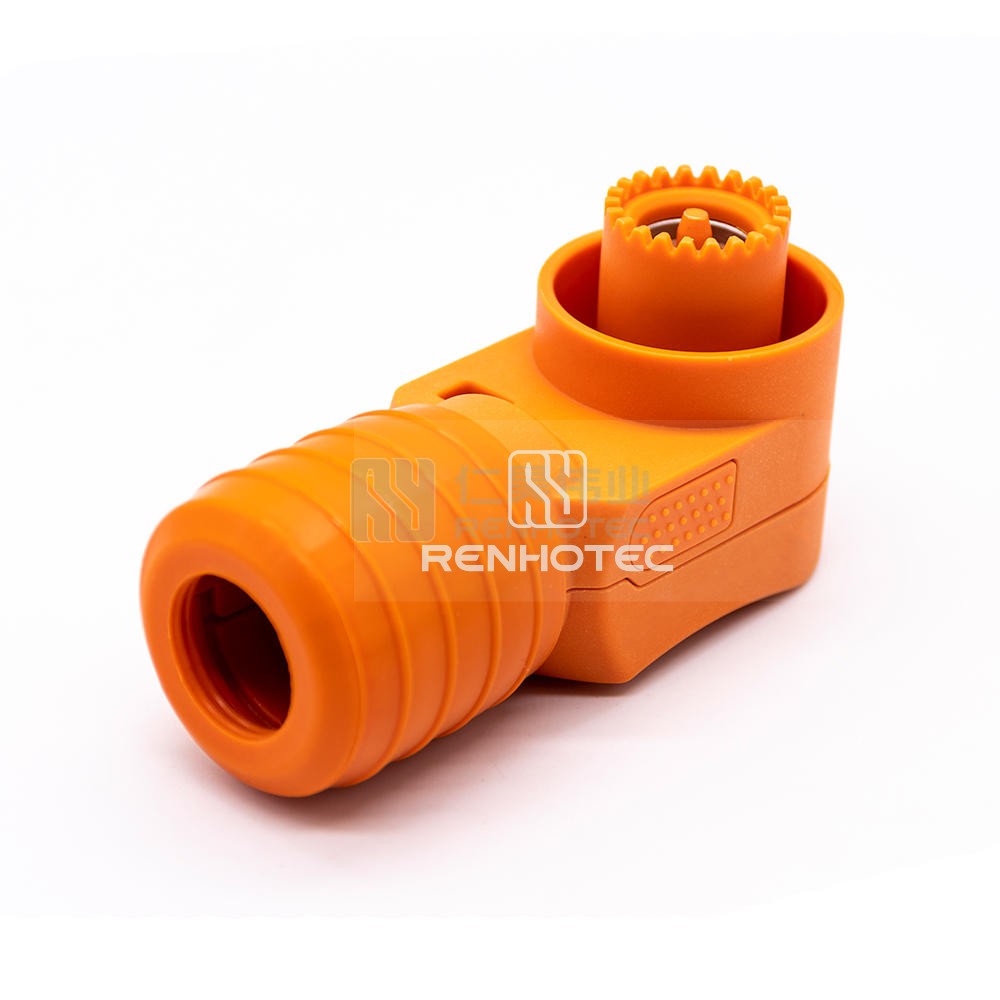

Battery Storage Connector Right Angle 400A Orange 120mm² Unshielded Cable Z Key product image

FSP840114CZ-120U0A1RH

Battery Storage Connector Right Angle 400A Orange 120mm² Unshielded Cable Z Key

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypePlug
    Number of Positions1
    KeyZ
    OrientationRight Angle
    Contact Size14mm
    Mounting TypeCable Type
    Contact TerminationCrimp
    Wire Gauge or Range120mm²
    ColorOrange
    Materials
    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver
    Electrical
    Rated Voltage1500V
    Rated Current400A
    ShieldingUnshielded
    Environmental
    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0

    Product excerpt

    This Battery Storage Connector features a right angle design with a 400A capacity, in a vibrant orange color. It is compatible with 120mm² unshielded cables, featuring a unique Z Key design for easy installation and security.

    Certification

    M.2022.206.C77197 CE Certificate Energy Storage Connectors Cable Download
    Renhotec Energy Storage Connector CE Certificate [EN] Download

    Catelog

    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
