Products > Energy Storage Connector > Battery Storage Connector Right Angle 480A Orange 150mm² Unshielded Cable Z Key
Battery Storage Connector Right Angle 480A Orange 150mm² Unshielded Cable Z Key - FSP840114CZ-150U0A1RH
Battery Storage Connector Right Angle 480A Orange 150mm² Unshielded Cable Z Key - FSP840114CZ-150U0A1RH

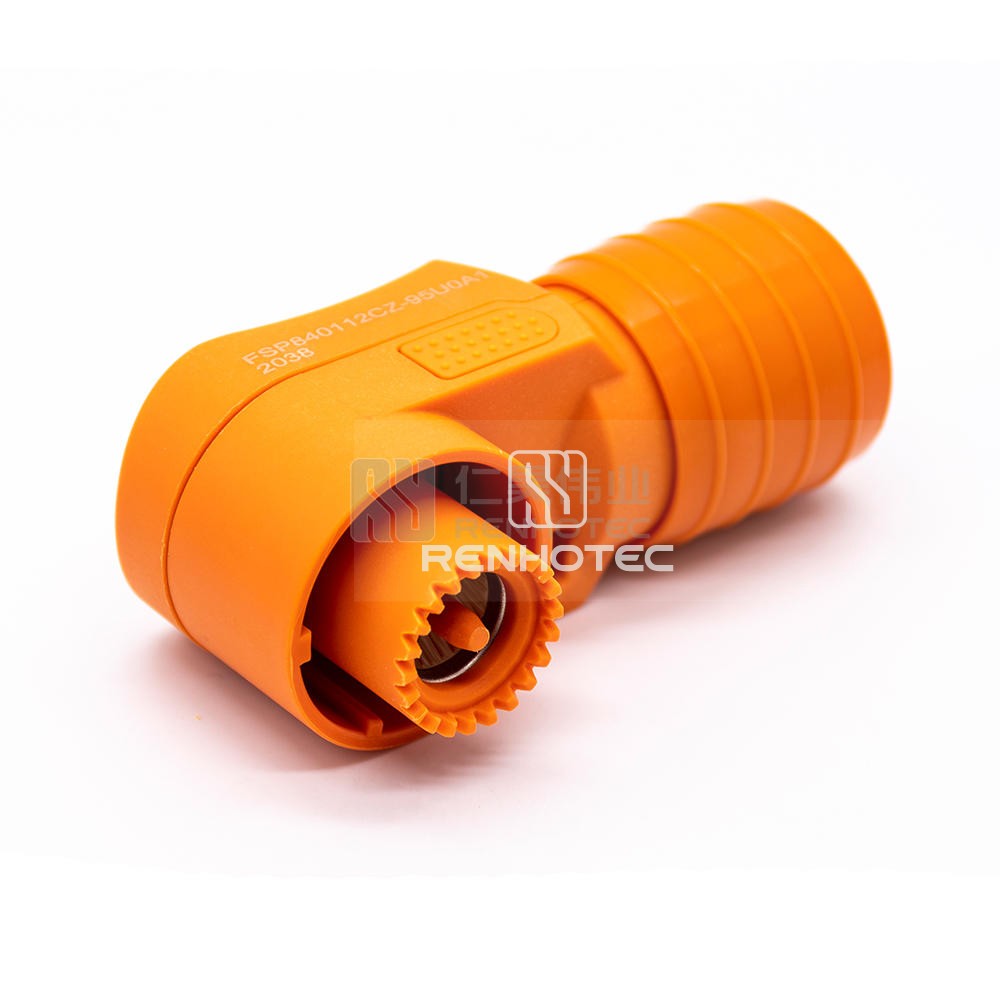

Battery Storage Connector Right Angle 480A Orange 150mm² Unshielded Cable Z Key product image

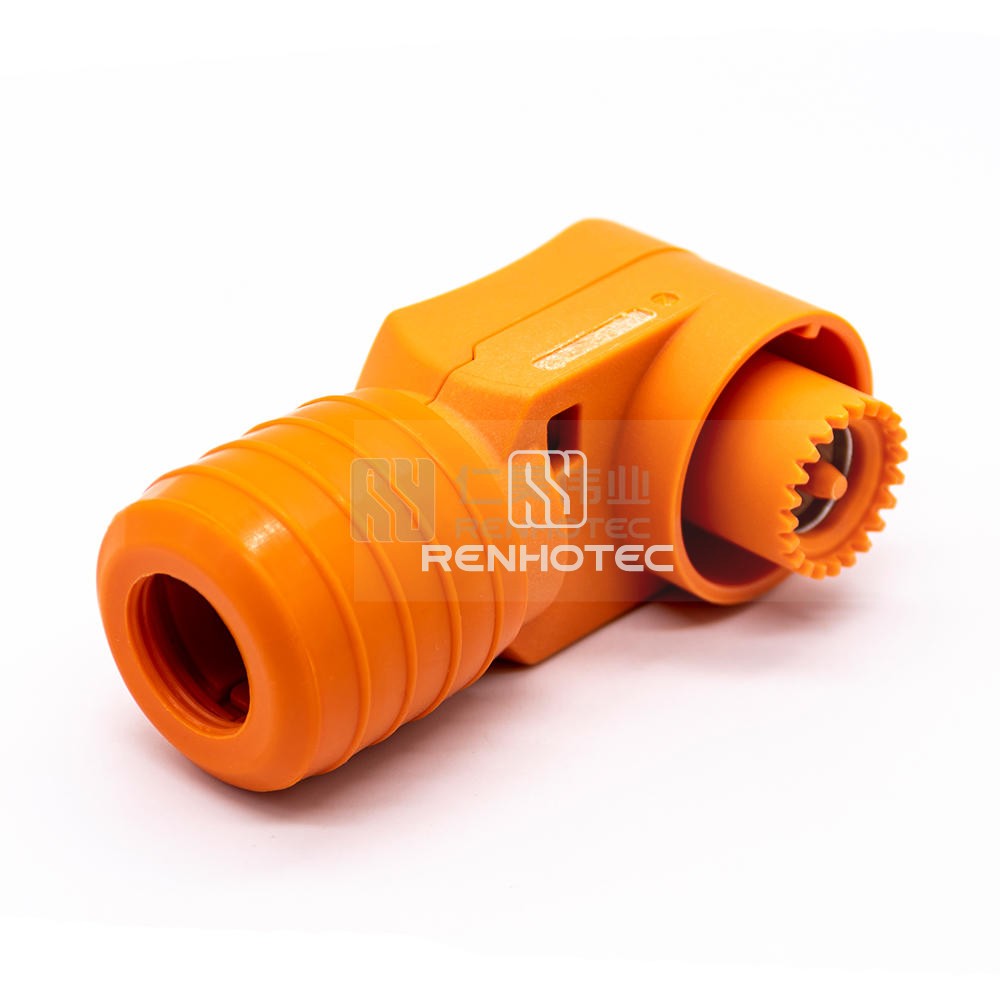

Battery Storage Connector Right Angle 480A Orange 150mm² Unshielded Cable Z Key product image

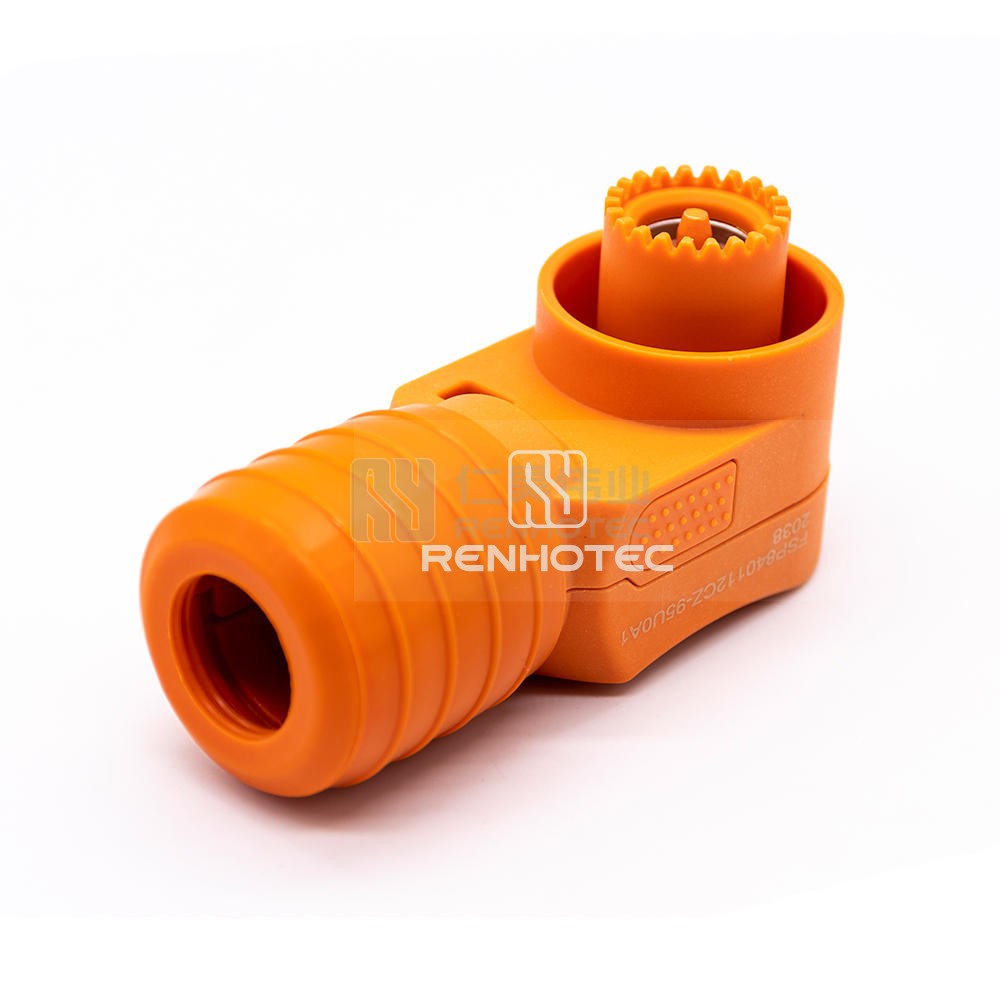

Battery Storage Connector Right Angle 480A Orange 150mm² Unshielded Cable Z Key product image

FSP840114CZ-150U0A1RH

Battery Storage Connector Right Angle 480A Orange 150mm² Unshielded Cable Z Key

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypePlug
    Number of Positions1
    KeyZ
    OrientationRight Angle
    Contact Size14mm
    Mounting TypeCable Type
    Contact TerminationCrimp
    Wire Gauge or Range150mm²
    ColorOrange
    Materials
    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver
    Electrical
    Rated Voltage1500V
    Rated Current480A
    ShieldingUnshielded
    Environmental
    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0

    Product excerpt

    Ensure secure and reliable connections with this Orange Battery Storage Connector. Right Angle design with 150mm² Unshielded Cable ensures optimal performance. Features 480A capacity with Z Key for easy installation.

    Certification

    M.2022.206.C77197 CE Certificate Energy Storage Connectors Cable Download
    Renhotec Energy Storage Connector CE Certificate [EN] Download

    Catelog

    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
