M12 8 Pin Male Straight Panel Mount Receptacle, A Code Front Fastened, Solder M12 - RHT-634-3423-08
M12 8 Pin Male Straight Panel Mount Receptacle, A Code Front Fastened, Solder M12 - RHT-634-3423-08

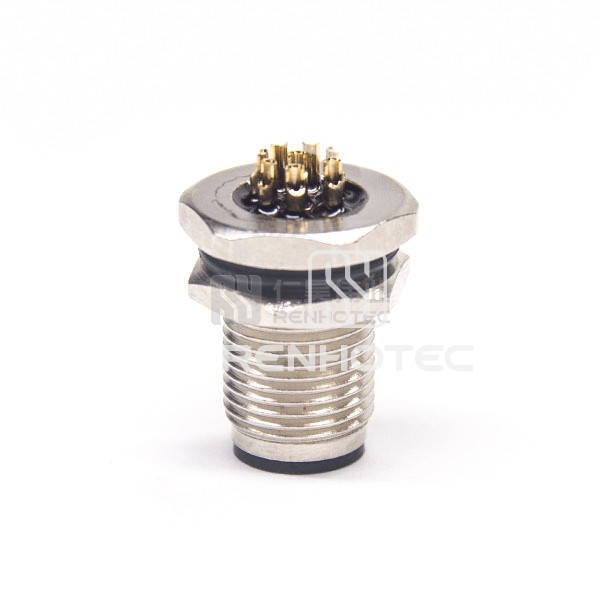

M12 8 Pin Male Straight Panel Mount Receptacle, A Code Front Fastened, Solder M12 product image

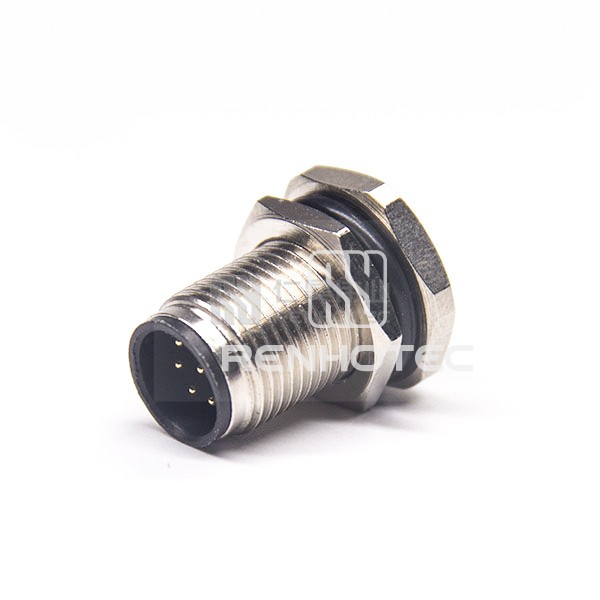

M12 8 Pin Male Straight Panel Mount Receptacle, A Code Front Fastened, Solder M12 product image

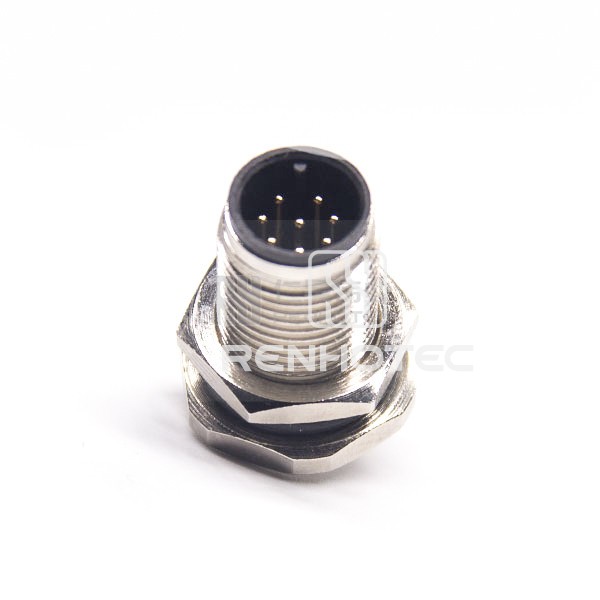

M12 8 Pin Male Straight Panel Mount Receptacle, A Code Front Fastened, Solder M12 product image

RHT-634-3423-08

M12 8 Pin Male Straight Panel Mount Receptacle, A Code Front Fastened, Solder M12

Number of Positions:

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypeReceptacle
Number of Positions8
Contact TypeMale Pin
KeyA
OrientationStraight
Shell SizeM12
Mounting TypePanel Mount
Mounting FeatureBulkhead - Front Fastened
Fastening TypeThreaded
Contact TerminationSolder
Materials
Shell MaterialCopper Alloy
Shell FinishZinc Plated
Contact MaterialCopper Alloy
Contact FinishGold
Electrical
Rated Voltage30V
Rated Current2A
ShieldingUnshielded
Environmental
Ingress ProtectionIP67
Operating Temperature-25°C ~ + 85°C

Product certification

Product excerpt

This M12 male panel mounting receptacle features 8 positions, A code, front fastened straight design with solder cup terminals. Perfect for secure and reliable connections in your electronic projects.
