Products > Sensor Connector > M16 Series > M16 7 Pin Female Straight Field Assembly Plug, A Code Screw Contacts
M16 7 Pin Female Straight Field Assembly Plug, A Code Screw Contacts - RHT-634-3386-07
M16 7 Pin Female Straight Field Assembly Plug, A Code Screw Contacts - RHT-634-3386-07

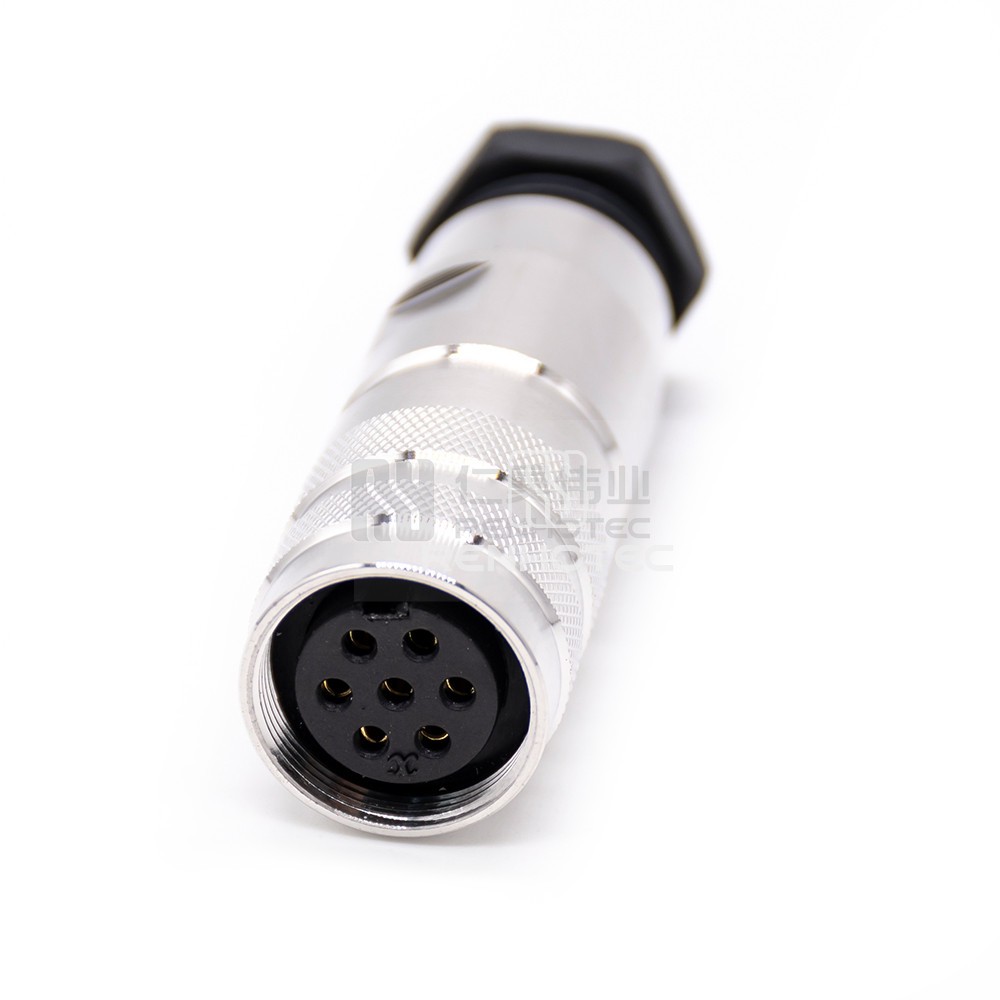

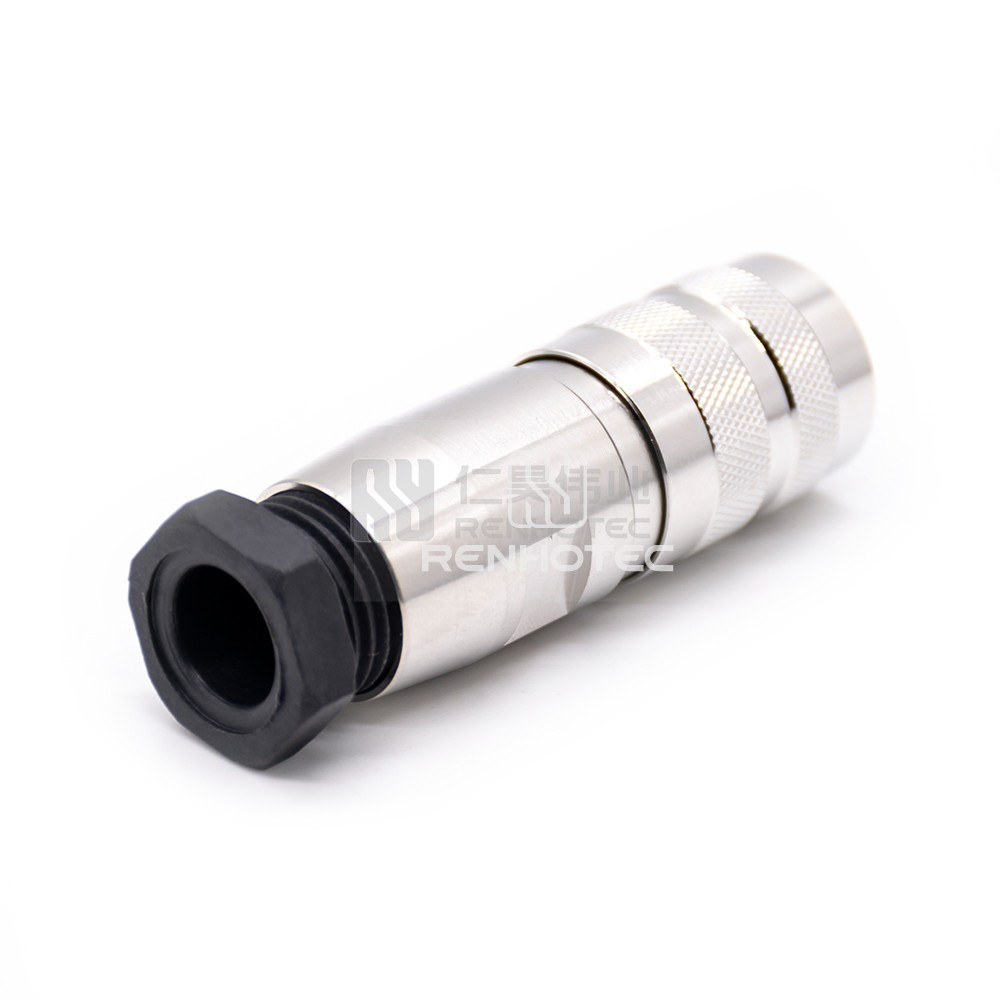

M16 7 Pin Female Straight Field Assembly Plug, A Code Screw Contacts product image
M16 7 Pin Female Straight Field Assembly Plug, A Code Screw Contacts product image
M16 7 Pin Female Straight Field Assembly Plug, A Code Screw Contacts product image

RHT-634-3386-07

M16 7 Pin Female Straight Field Assembly Plug, A Code Screw Contacts

Number of Positions:

2345567781214141619

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypePlug
    Number of Positions7
    Contact TypeFemale Pin
    KeyA
    OrientationStraight
    Shell SizeM16
    Mounting TypeCable Type
    Fastening TypeThreaded
    Contact TerminationInner Screw
    Materials
    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact MaterialCopper Alloy
    Contact FinishGold
    Electrical
    Rated Voltage125V
    Rated Current5A
    ShieldingShielded
    Environmental
    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Product certification

    ×

    Product excerpt

    High-quality M16 female straight plug circular connector with 7 female pin A Code screw contacts. Ideal for secure and reliable connections in various applications.

    Certification

    Renhotec REACH Test Report Download

    Catelog

    RENHOTEC M-Series Connector Catalog [EN][CN] Download
