Products > Circular Connector > M8 Male Panel Mount Receptacle 3 Pin A Code Shielded Right Angle PCB

RHT-634-1262-03

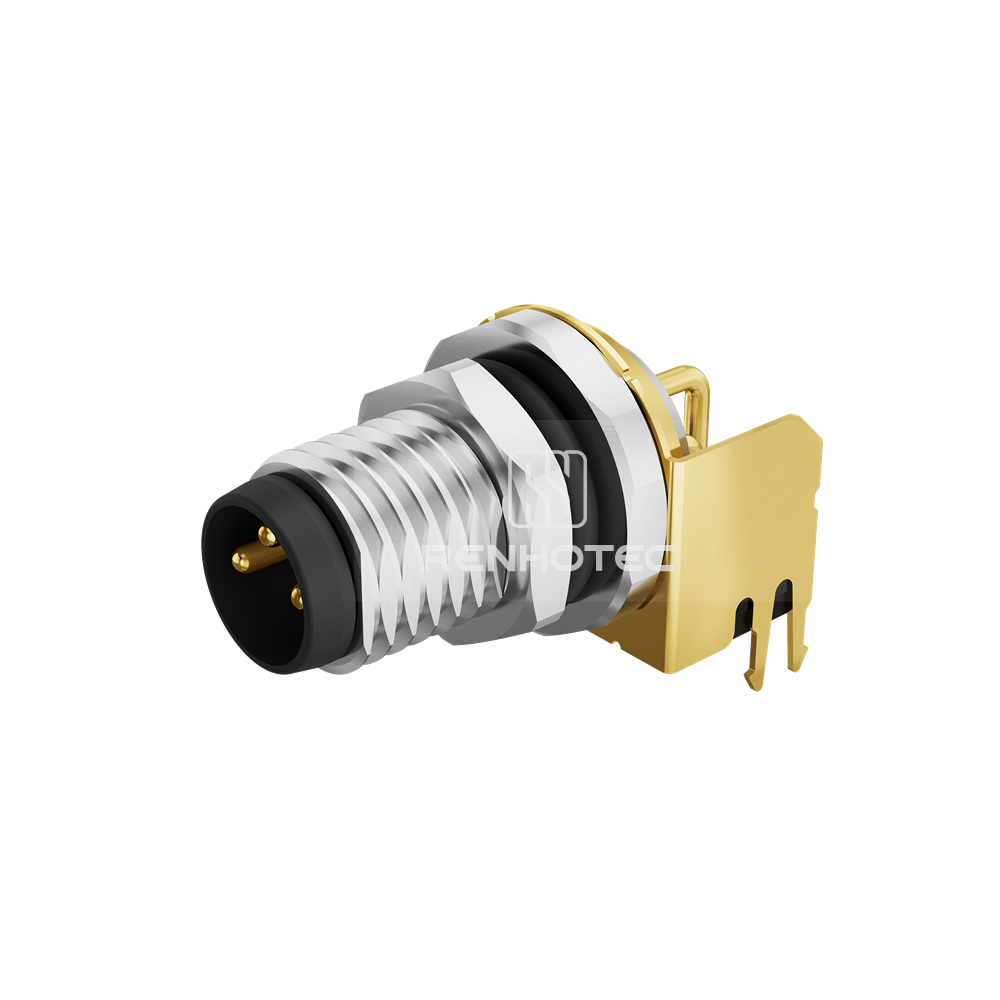

M8 Male Panel Mount Receptacle 3 Pin A Code Shielded Right Angle PCB

Color
  1. Silver
Number of Positions
  1. 3
  2. 4
  3. 5
  4. 6
  5. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality M8 male panel mount receptacle with 3 pins, featuring A code shielding and a right-angle PCB design. Ideal for secure and reliable connections in various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationRight Angle
    Contact TypeMale Pin
    Number of Positions3
    KeyA
    Contact TerminationThrough Hole

    Shell

    Shell SizeM8

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingShielded
    Rated Current3A
    Rated Voltage60V
