Products > Sensor Connector > M8 Male Panel Mount Receptacle 5 Pin B Code Shielded Right Angle PCB

RHT-634-1262-05

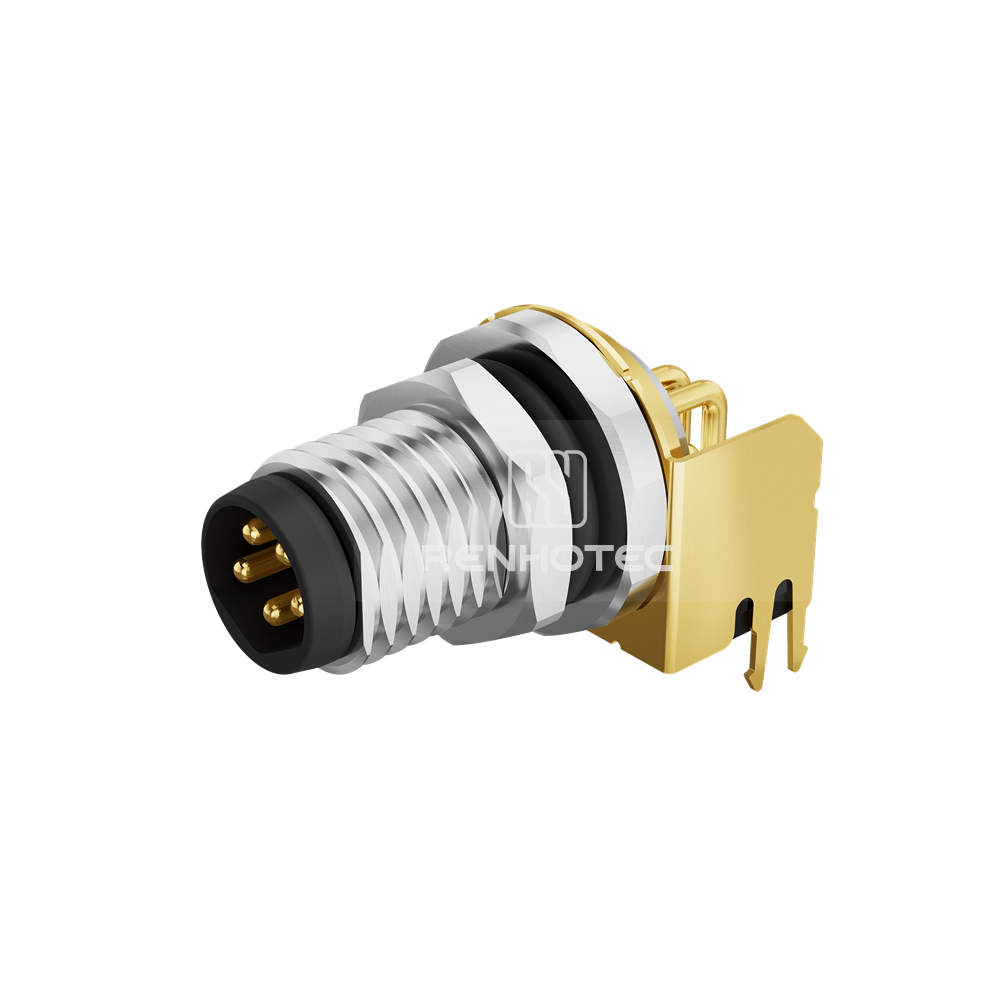

M8 Male Panel Mount Receptacle 5 Pin B Code Shielded Right Angle PCB

This M8 male panel mount receptacle features 5-pin B code shielded design, ideal for right angle PCB connections. Ensure secure and reliable connectivity for your applications.

Color
  1. Silver
Number of Positions
  1. 3
  2. 4
  3. 5
  4. 6
  5. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Material
    4. Environmental
    5. Electrical

    General

    Connector TypeReceptacle
    OrientationRight Angle
    Contact TypeMale Pin
    Number of Positions5
    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead
    KeyB
    Contact TerminationThrough Hole

    Shell

    Shell SizeM8

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingShielded
    Rated Current3A
    Rated Voltage60V
    Каталог разъемов RENHOTEC 2PM [EN][RU] Download
    RENHOTEC M-Series Connector Catalog [EN][CN] Download
    M8 M12 M16 Connector AGC07686211202-002 REACH Download
