M8 5 Pin Female Overmolded Cable Assemblies Single-Ended B Code - RHT-M8002-05
M8 5 Pin Female Overmolded Cable Assemblies Single-Ended B Code - RHT-M8002-05

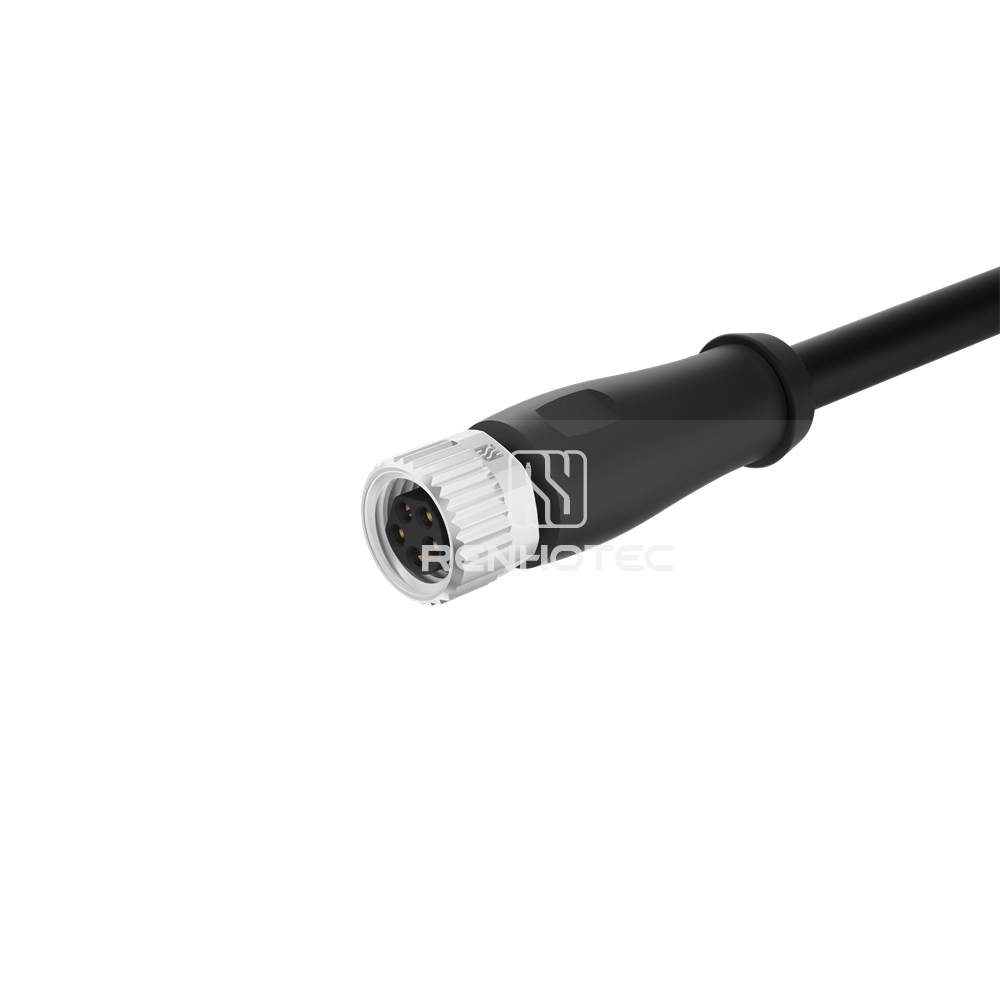

M8 5 Pin Female Overmolded Cable Assemblies Single-Ended B Code product image

RHT-M8002-05

M8 5 Pin Female Overmolded Cable Assemblies Single-Ended B Code

Number of Positions:

34568

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Number of Positions5
    Contact TypeFemale Pin
    KeyB
    OrientationStraight
    Fastening TypeThreaded
    Wire Gauge or Range24AWG
    Materials
    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Electrical
    Rated Voltage30V
    Rated Current3A
    ShieldingUnshielded
    Environmental
    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Product certification

    ×

    Product excerpt

    1. M8 5-pin female connector with B code for secure signal or power transmission
    2. Single-side injection molded for enhanced durability and protection
    3. Ideal for automation, sensors, and industrial control applications
    4. Provides reliable and stable connections in harsh industrial environments
    5. Built for long-lasting performance in demanding conditions

    Certification

    Renhotec REACH Test Report Download

    Catelog

    RENHOTEC M-Series Connector Catalog [EN][CN] Download
    Drawing for M8 Single-side Injection Molded Cable Female Download
