Mini Change 7/8" Female Panel Mount Receptacle Front Fastened Unshielded PCB Through Hole Straight 5 Pin - Renhotec

Circular Connector > Mini Change 7/8" Female Panel Mount Receptacle Front Fastened Unshielded PCB Through Hole Straight 5 Pin

78012-5P

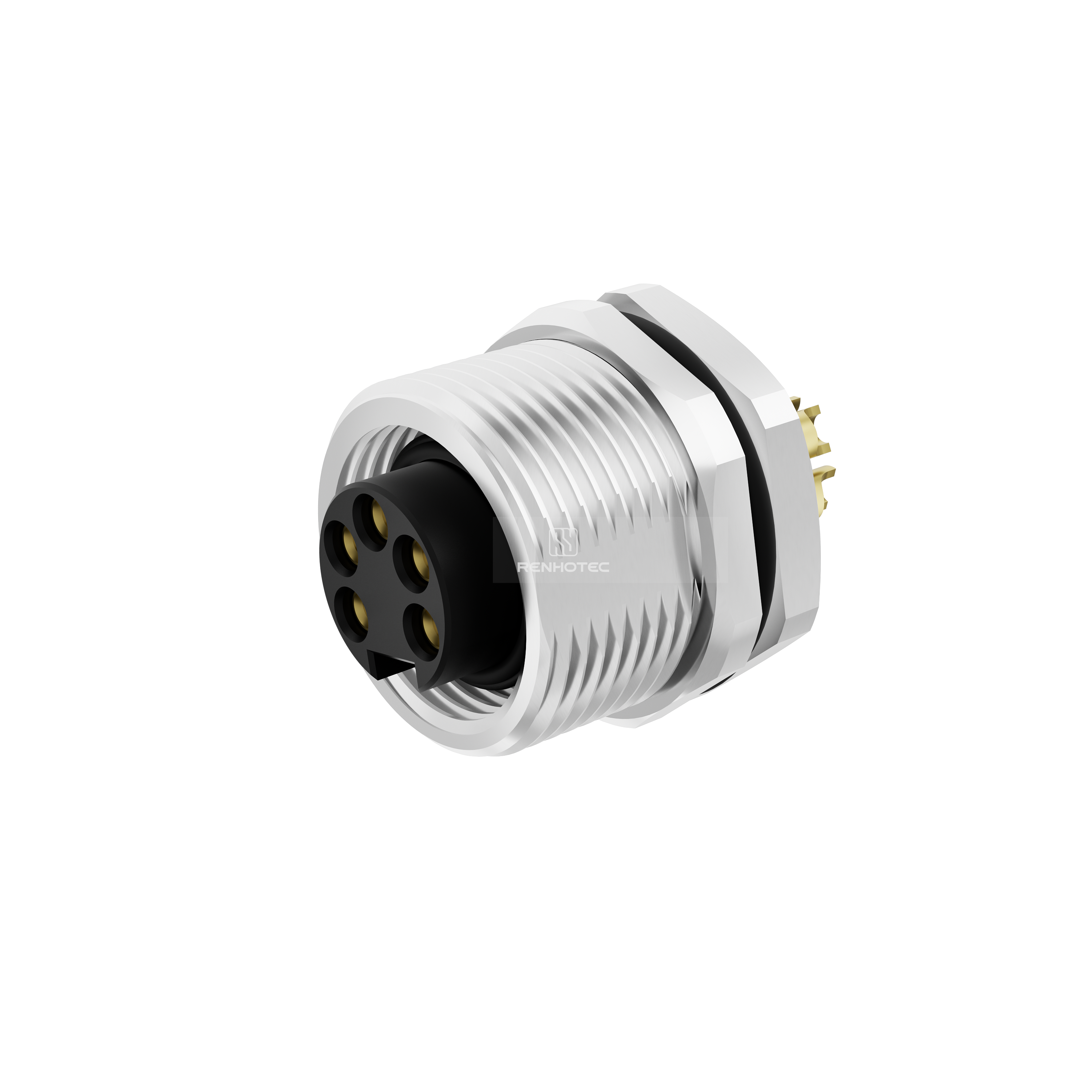

Mini Change 7/8" Female Panel Mount Receptacle Front Fastened Unshielded PCB Through Hole Straight 5 Pin

Color:

Silver

Number of Positions:

3 4 5

Get a Quote

Overview
Technical data
Certification
Download

Product excerpt

7/8" female panel mount receptacle, 5-pin, unshielded
Front fastened for quick and secure installation
PCB through-hole straight design ensures stable connections
Suitable for industrial automation, sensors, and power distribution systems
Durable design for reliable operation in demanding environments

GeneralMaterialMechanicalEnvironmentalElectrical

General
Connector Type	Receptacle
Orientation	Straight
Contact Type	Female Pin
Number of Positions	5
Color	Silver
Contact Termination	Through Hole

Material
Shell Material	Copper Alloy
Shell Finish	Zinc Plated
Contact Finish	Gold
Contact Material	Copper Alloy

Mechanical
Wire Gauge or Range	6~8mm
Fastening Type	Threaded
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Front Fastened

Environmental
Ingress Protection	IP67
Operating Temperature	-25°C ~ + 80°C

Electrical
Shielding	Unshielded
Rated Current	9A
Rated Voltage	300V

Certification

Drawing for Mini Change 7/8″ Female Panel Mount Receptacle Front Fastened Unshielded PCB Through Hole Straight
