Products > Energy Storage Connector > Power Entry Connector 125A Receptacle Busbar Teminal(M6 screw) Orange Z Key

FSPC22160Z-M6ARH

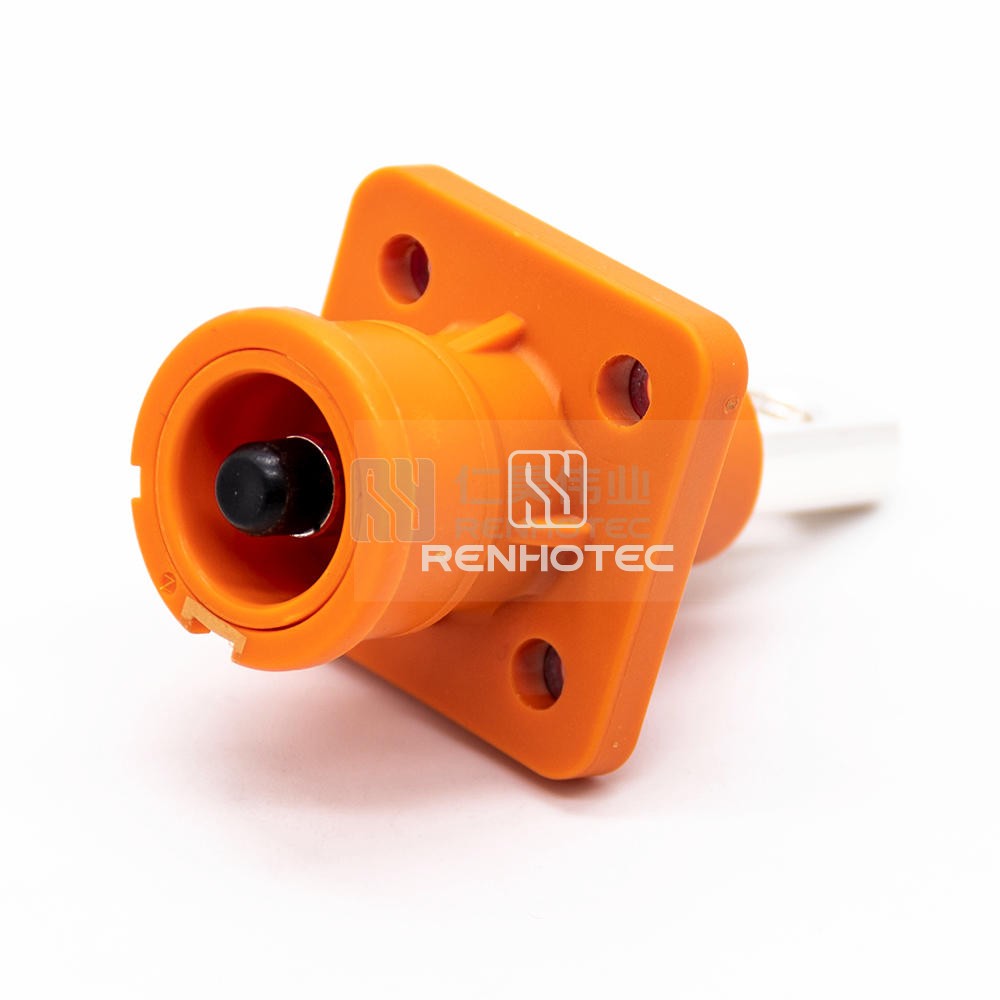

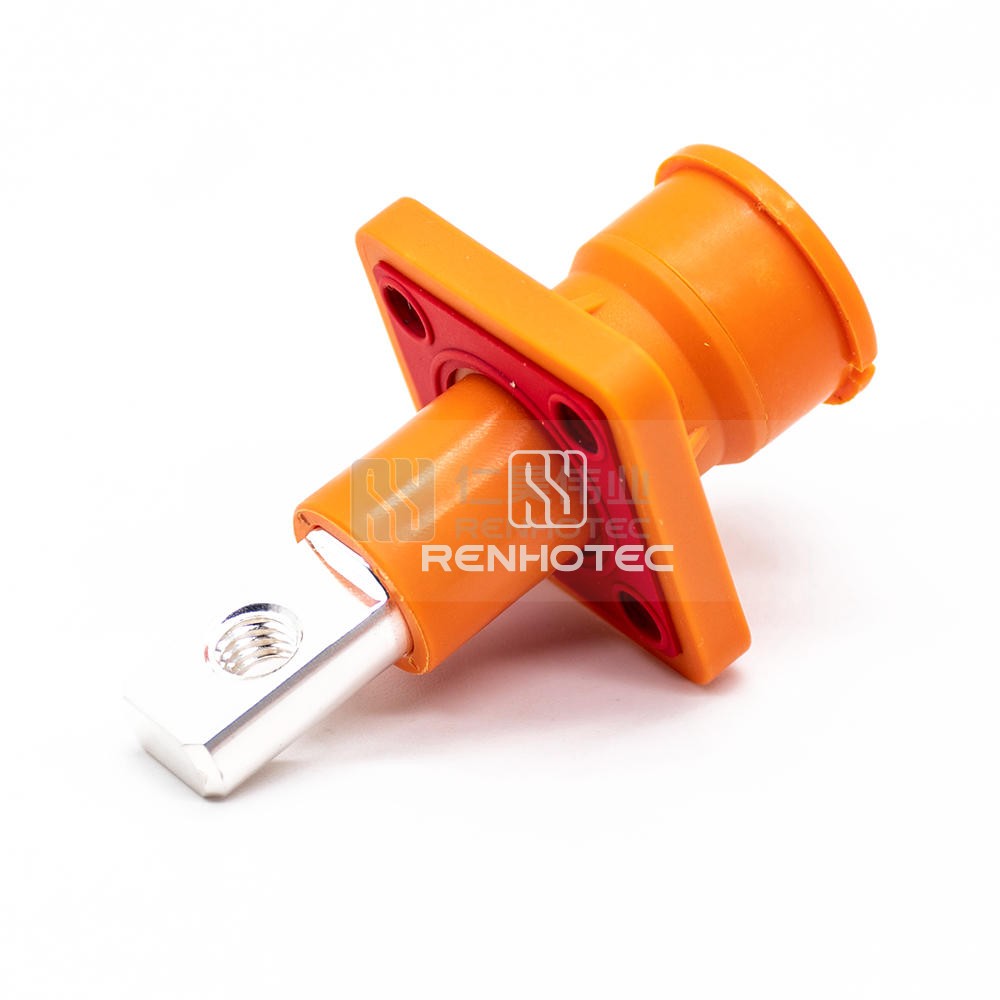

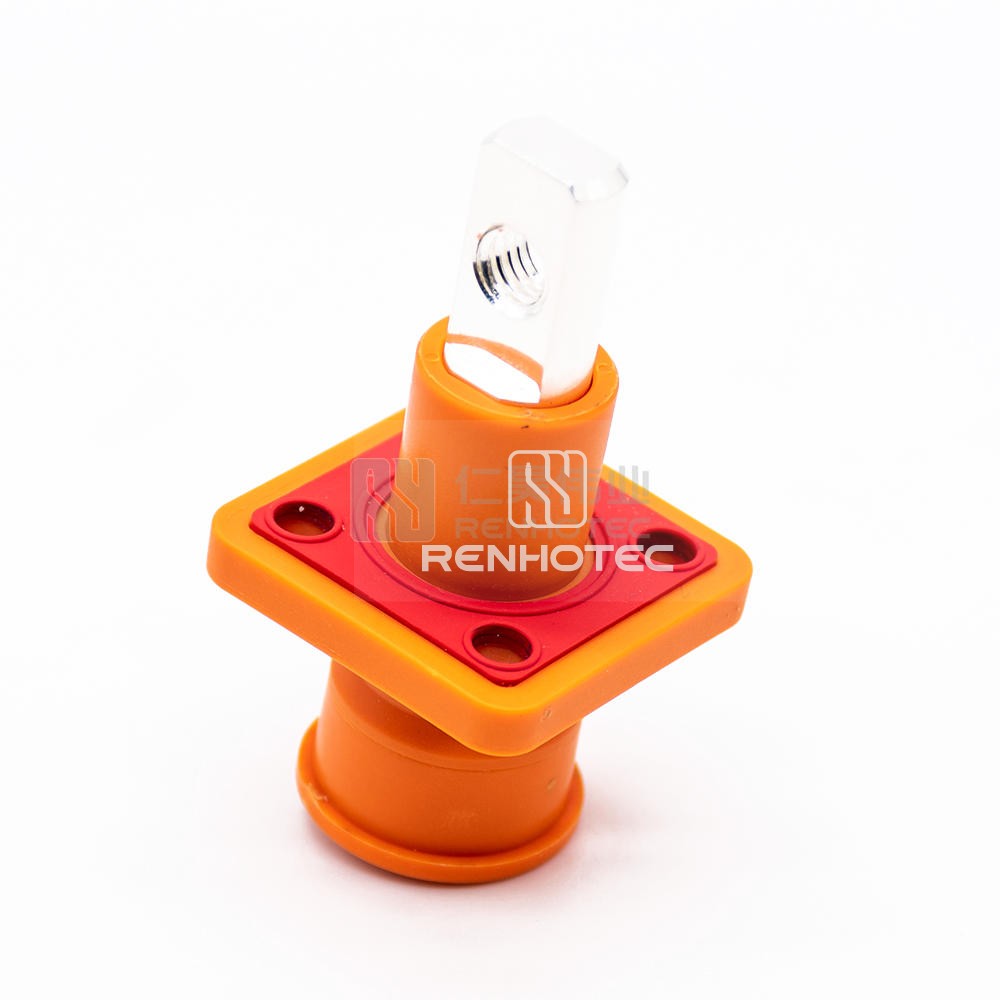

Power Entry Connector 125A Receptacle Busbar Teminal(M6 screw) Orange Z Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Enhance your power connections with this 125A receptacle busbar terminal featuring M6 screw and an orange Z key for secure and reliable operation.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size6mm
    Contact TerminationBusbar
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage600V
    Rated Current125A
    ShieldingUnshielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFlange

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
