Products > Energy Storage Connector > Power Entry Connector 200A Receptacle Busbar Teminal Black N Key
- Overview
- Technical data
- Catalog

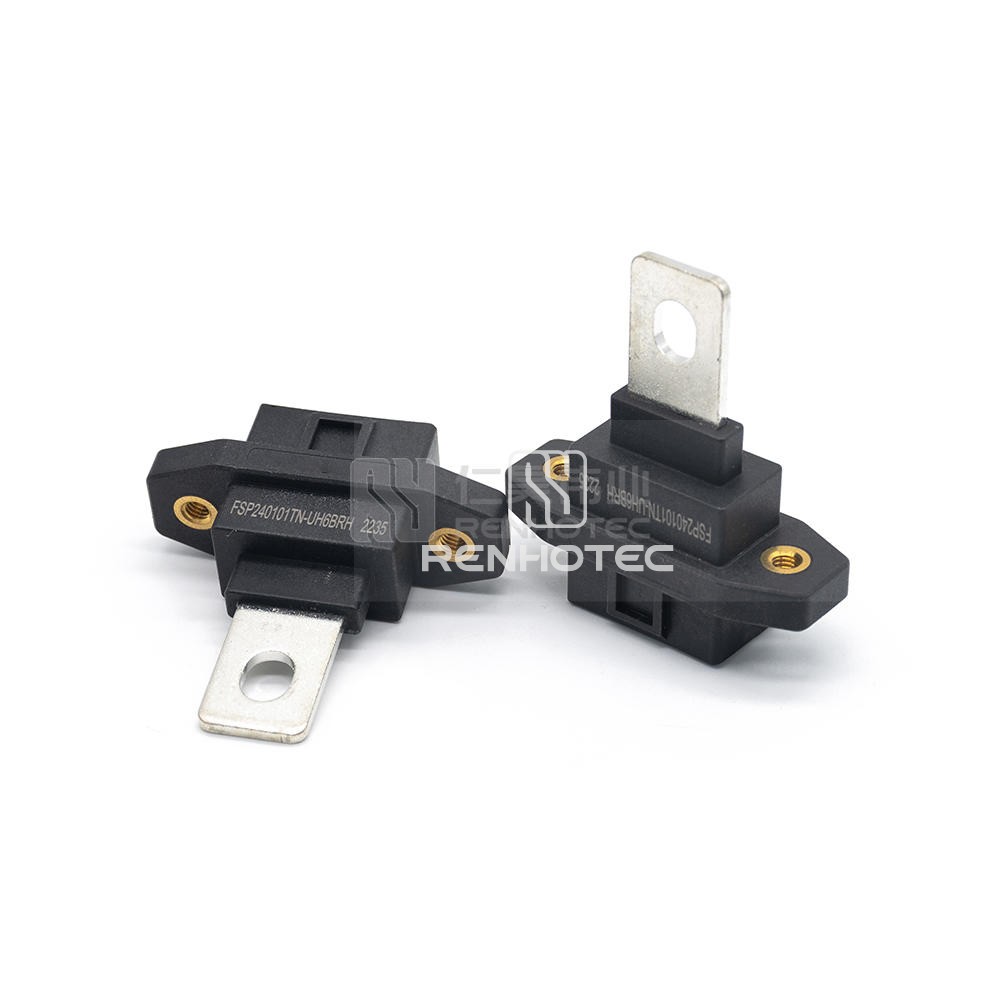

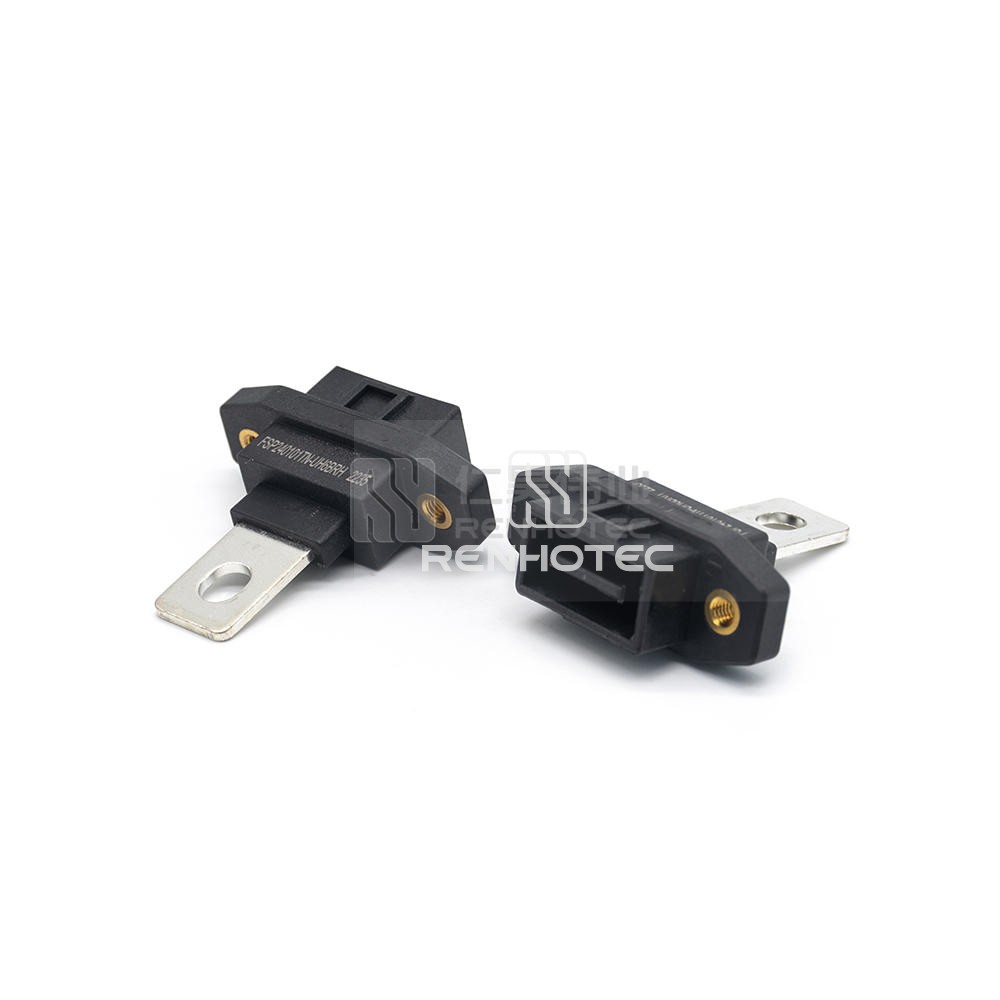

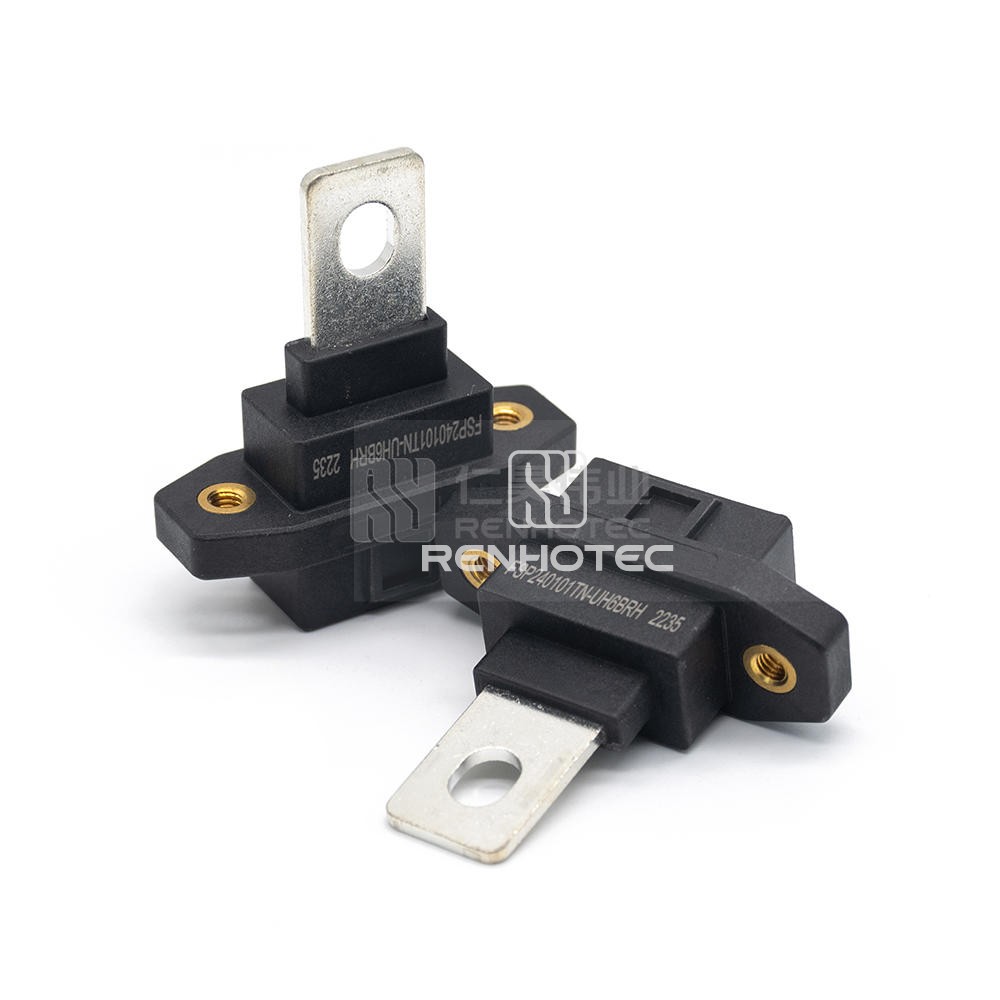

This Power Entry Connector features a 200A receptacle with a busbar terminal, designed in a sleek black color with an N key for secure connections. Ensure high power handling capabilities with this reliable and convenient component.
General
| Connector Type | Receptacle |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Termination | Busbar |
| Key | N |
| Color | Black |
Electrical
| Rated Voltage | 1000V |
| Rated Current | 200A |
| Shielding | Unshielded |
Mechanical
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
Material
| Shell Material | PA66 |
| Contact Material | T2 |
| Contact Finish | Silver |
Environmental
| Ingress Protection | IP20 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
