Products > Energy Storage Connector > Side Entry Plastic Power Connector 200A Receptacle with Busbar Orange W Key
- Overview
- Technical data
- Catalog

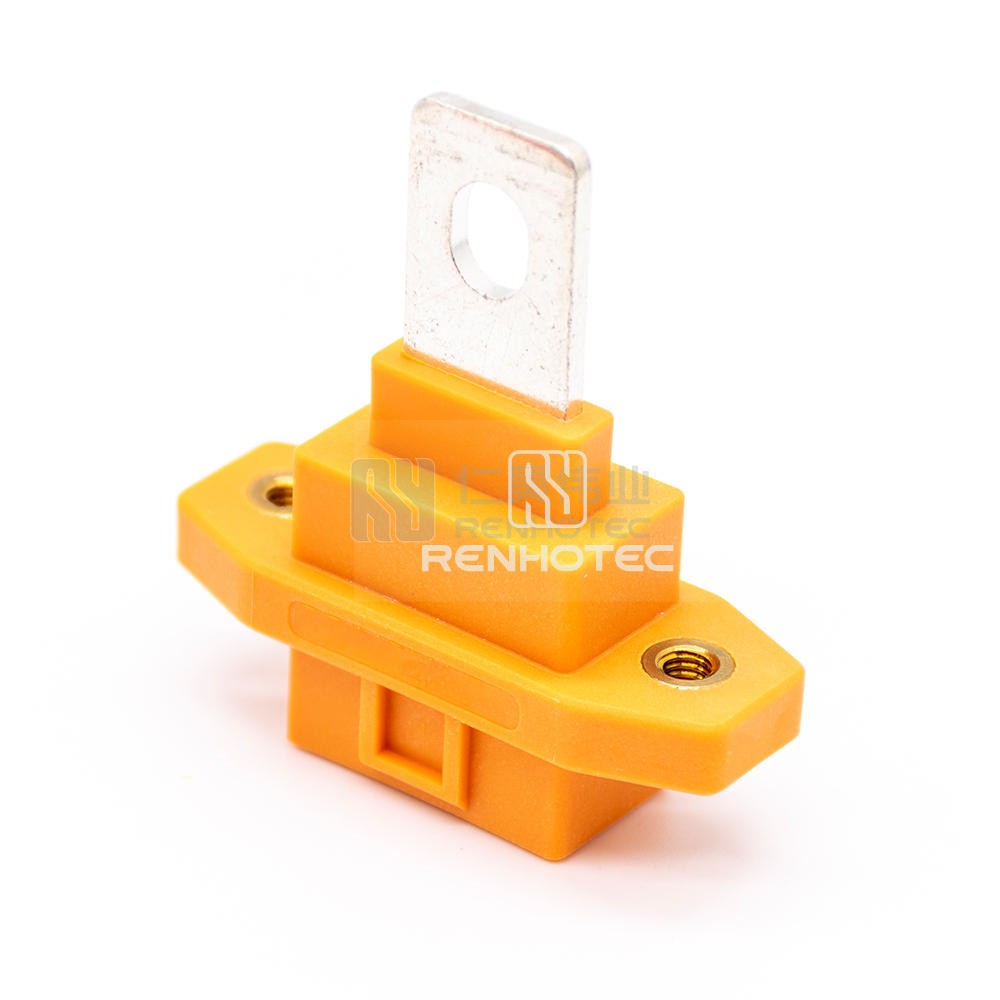

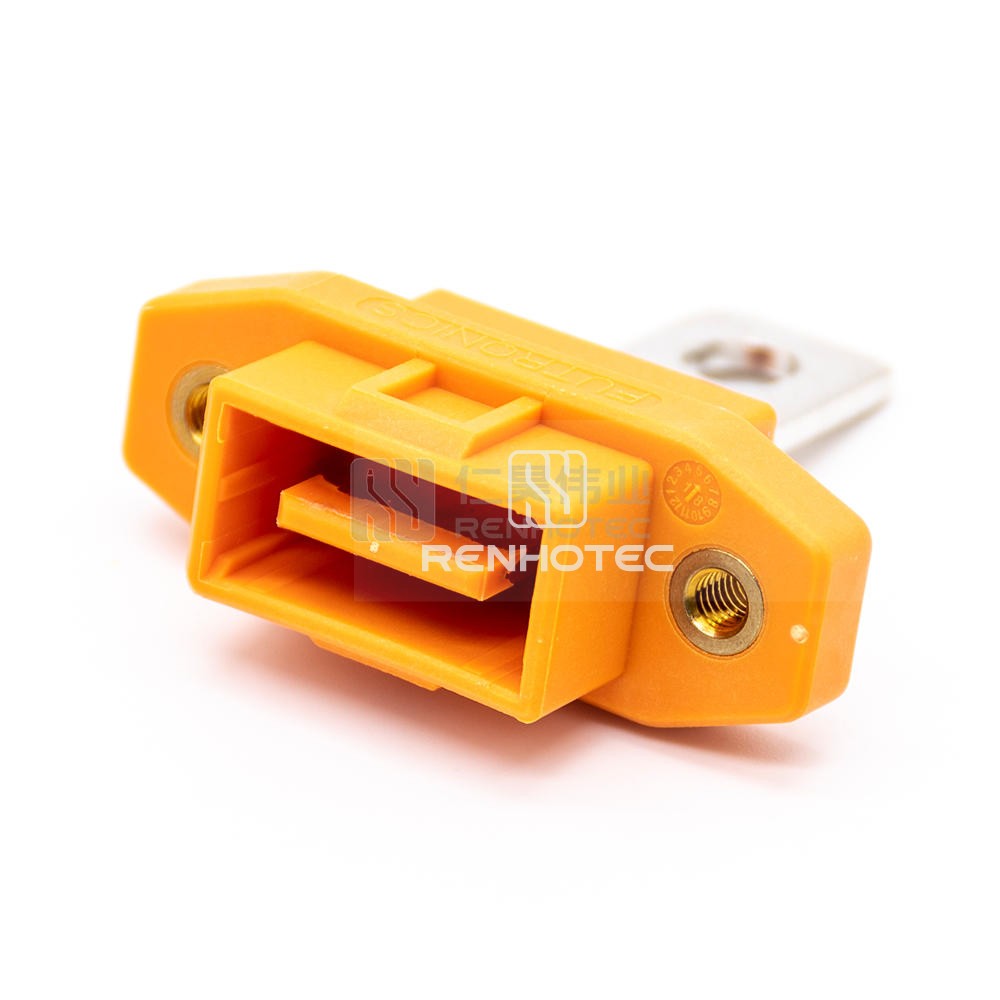

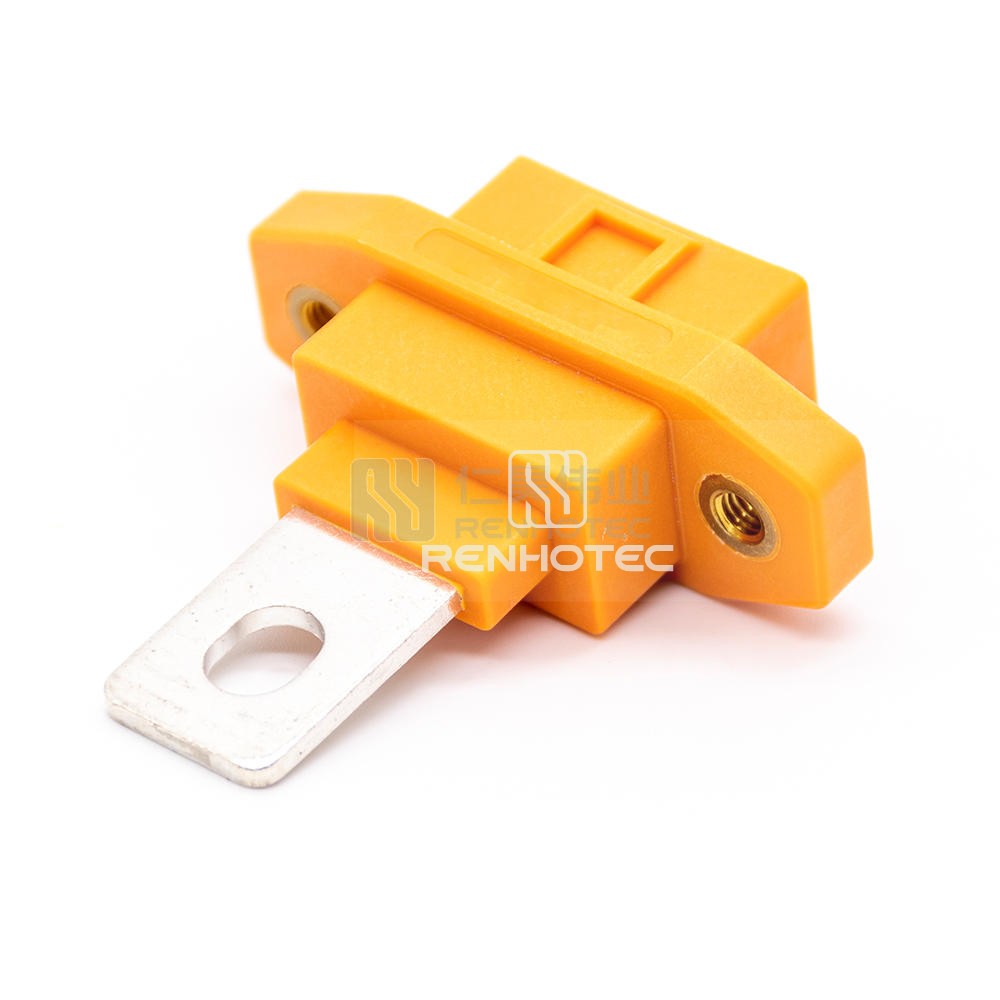

This Side Entry Plastic Power Connector features a 200A Receptacle with Busbar in vibrant Orange color and a convenient W Key design. The perfect solution for your power connection needs.
General
| Connector Type | Receptacle |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Termination | Busbar |
| Key | W |
| Color | Orange |
Electrical
| Rated Voltage | 1000V |
| Rated Current | 200A |
| Shielding | Unshielded |
Mechanical
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
Material
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
Environmental
| Ingress Protection | IP20 |
| Operating Temperature | -40°C ~ + 85°C |
| Flammability | UL94 V-0 |
