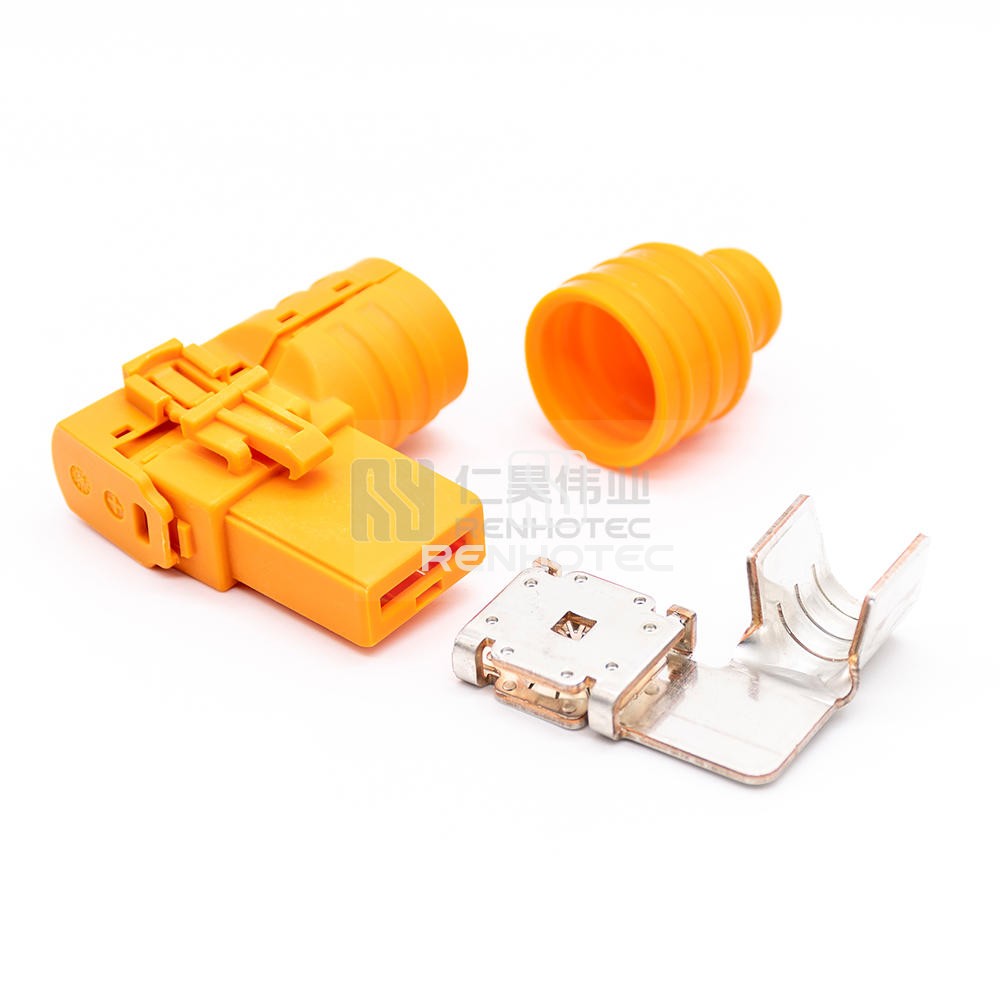

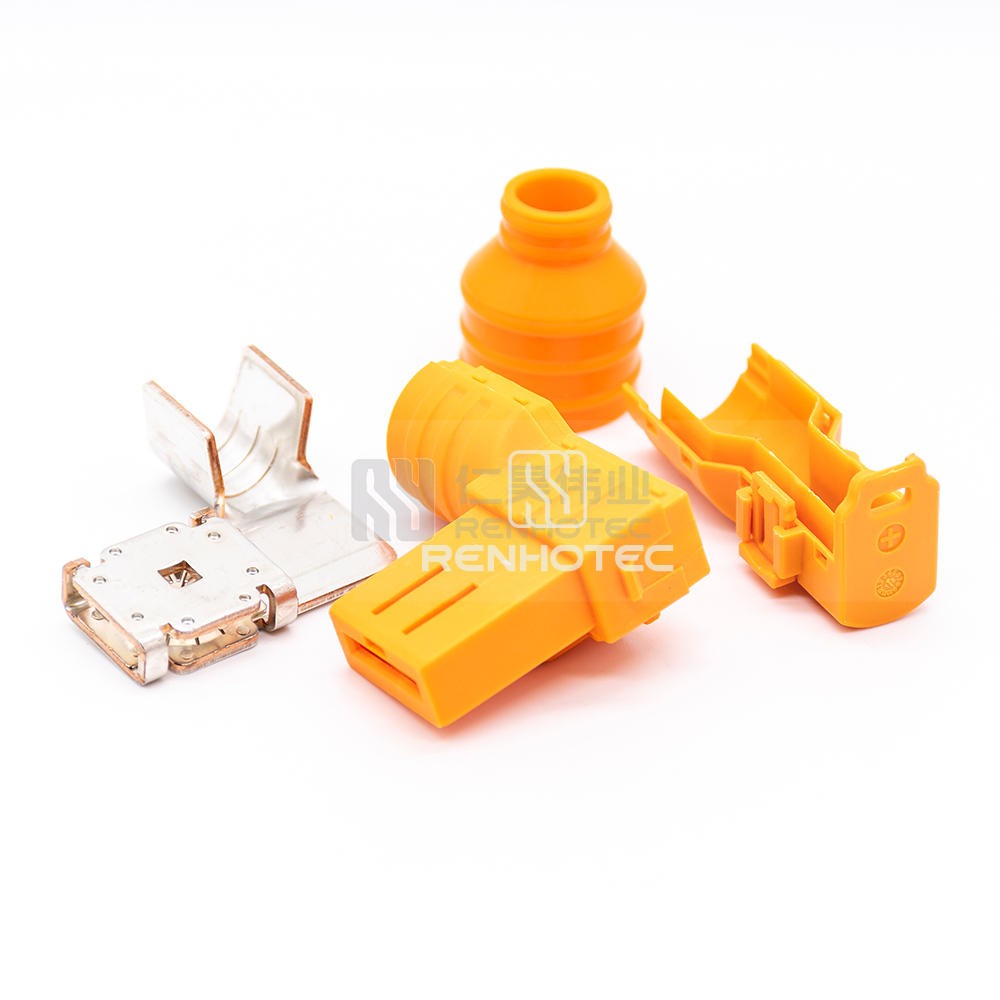

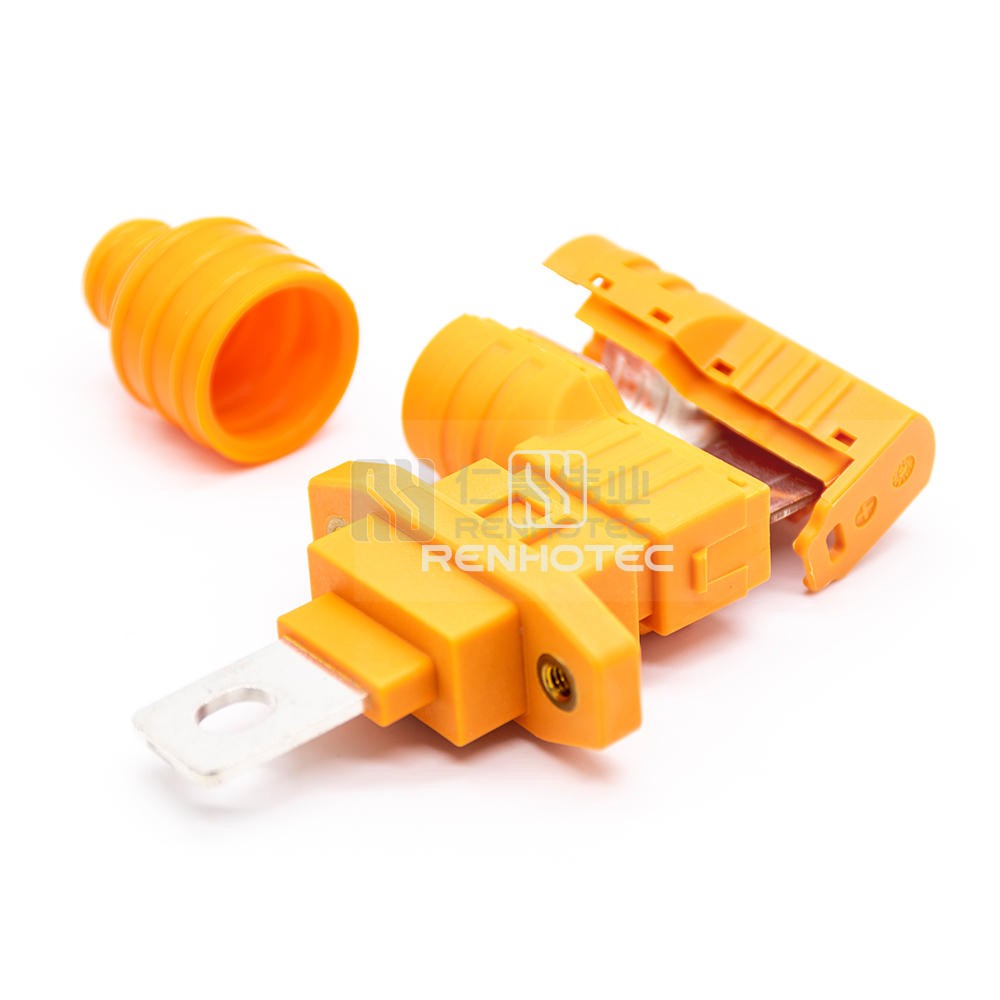

Designed for high-power applications, this side entry plastic power connector features a right-angle cable plug with a 150A capacity suitable for 35mm² unshielded cables. The vibrant orange color ensures visibility, while the included key provides extra security.
General
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Termination | Crimp |
| Key | W |
| Color | Orange |
Electrical
| Rated Voltage | 1000V |
| Rated Current | 150A |
| Shielding | Unshielded |
Mechanical
| Mounting Type | Cable Type |
| Wire Gauge or Range | 35mm² |
Material
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
Environmental
| Ingress Protection | IP20 |
| Operating Temperature | -40°C ~ + 85°C |
| Flammability | UL94 V-0 |
