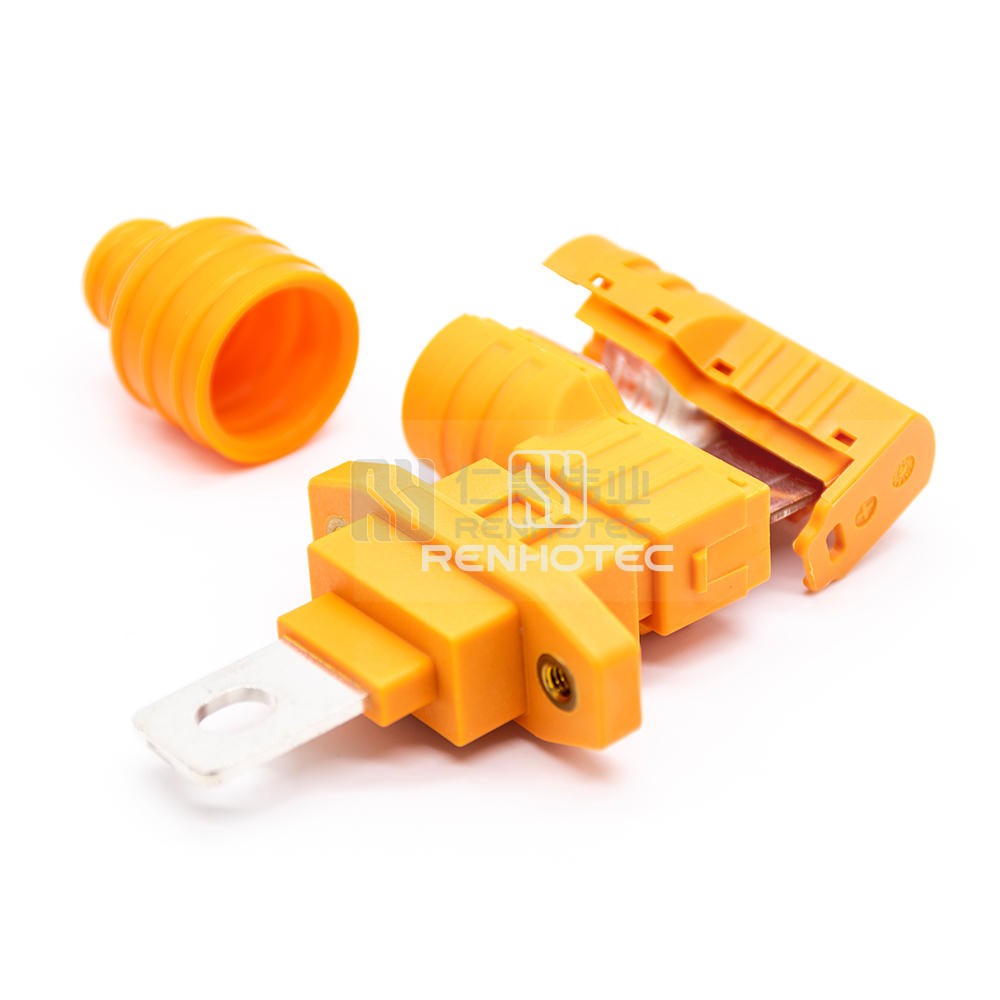

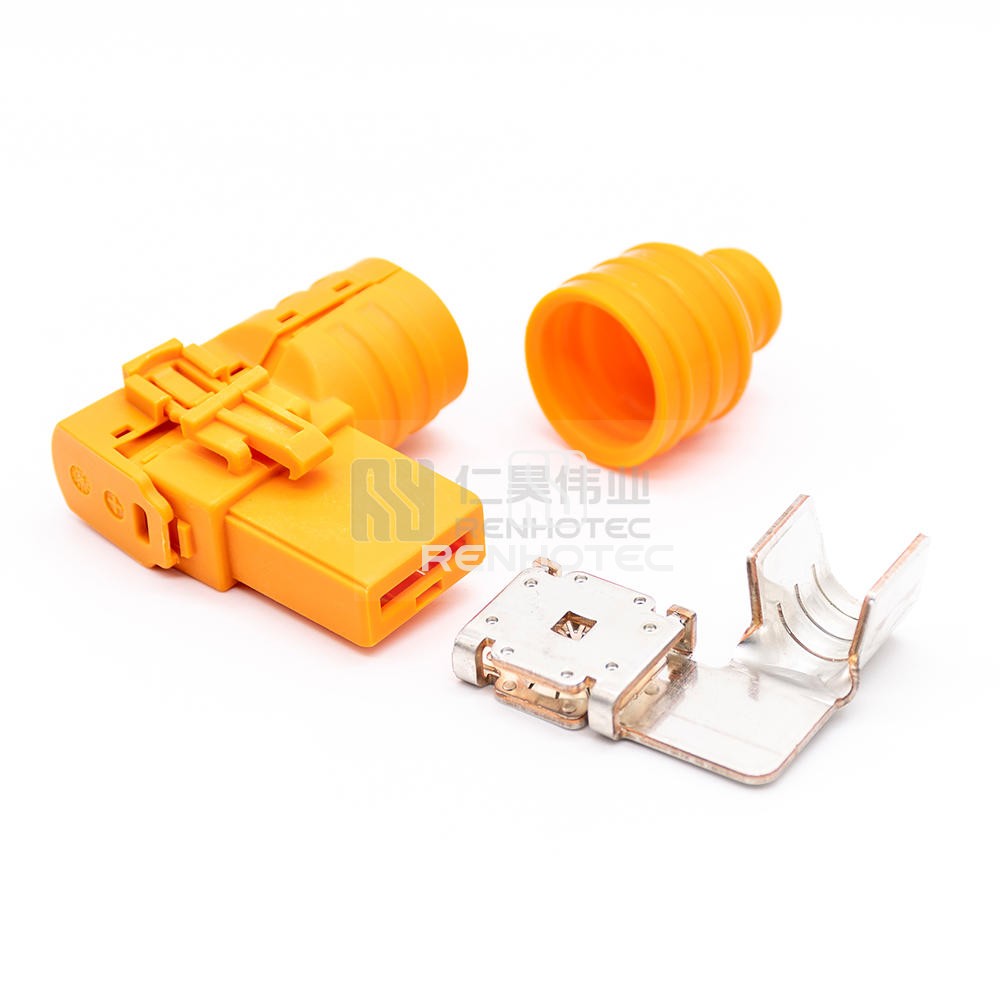

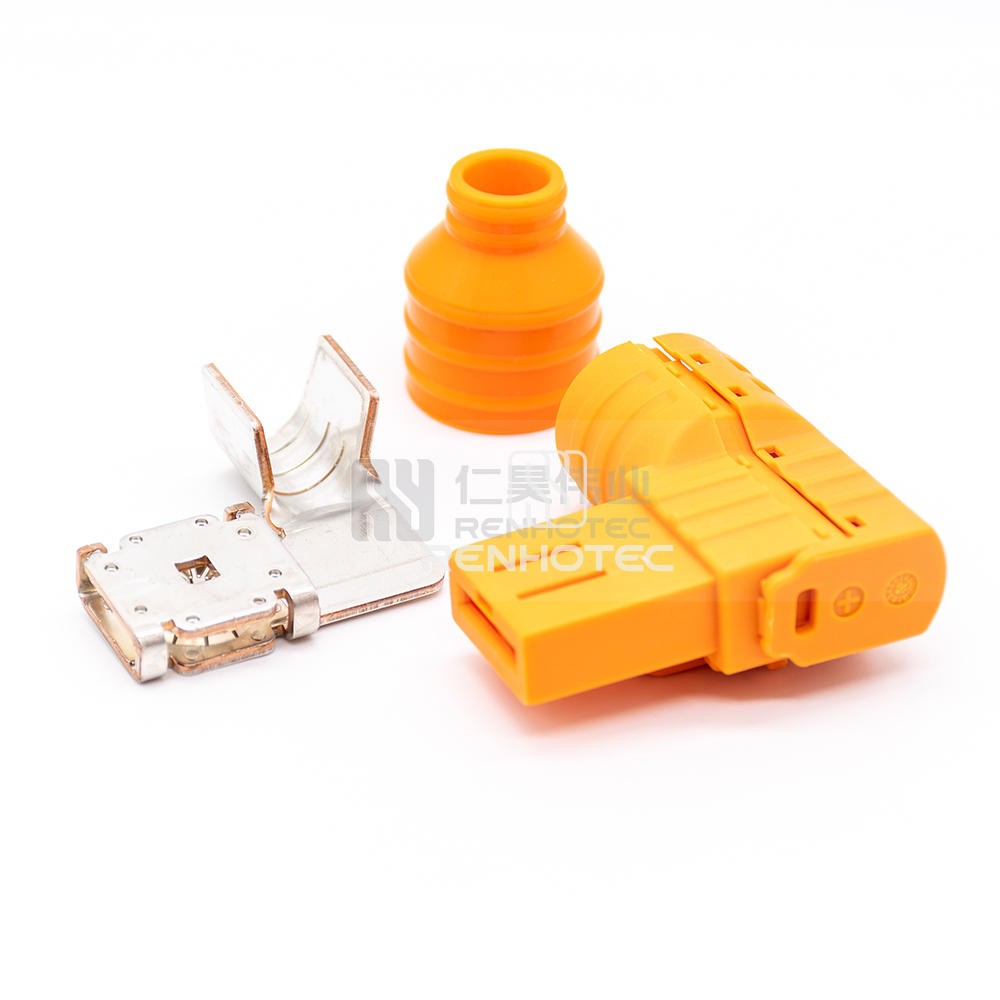

This high-quality side entry plastic power connector features a 200A capacity, right angle cable plug design for convenient use. It is compatible with 50mm² unshielded cables and comes in a vibrant orange color with a key for added security.
General
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Termination | Crimp |
| Key | W |
| Color | Orange |
Electrical
| Rated Voltage | 1000V |
| Rated Current | 200A |
| Shielding | Unshielded |
Mechanical
| Mounting Type | Cable Type |
| Wire Gauge or Range | 50mm² |
Material
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
Environmental
| Ingress Protection | IP20 |
| Operating Temperature | -40°C ~ + 85°C |
| Flammability | UL94 V-0 |
