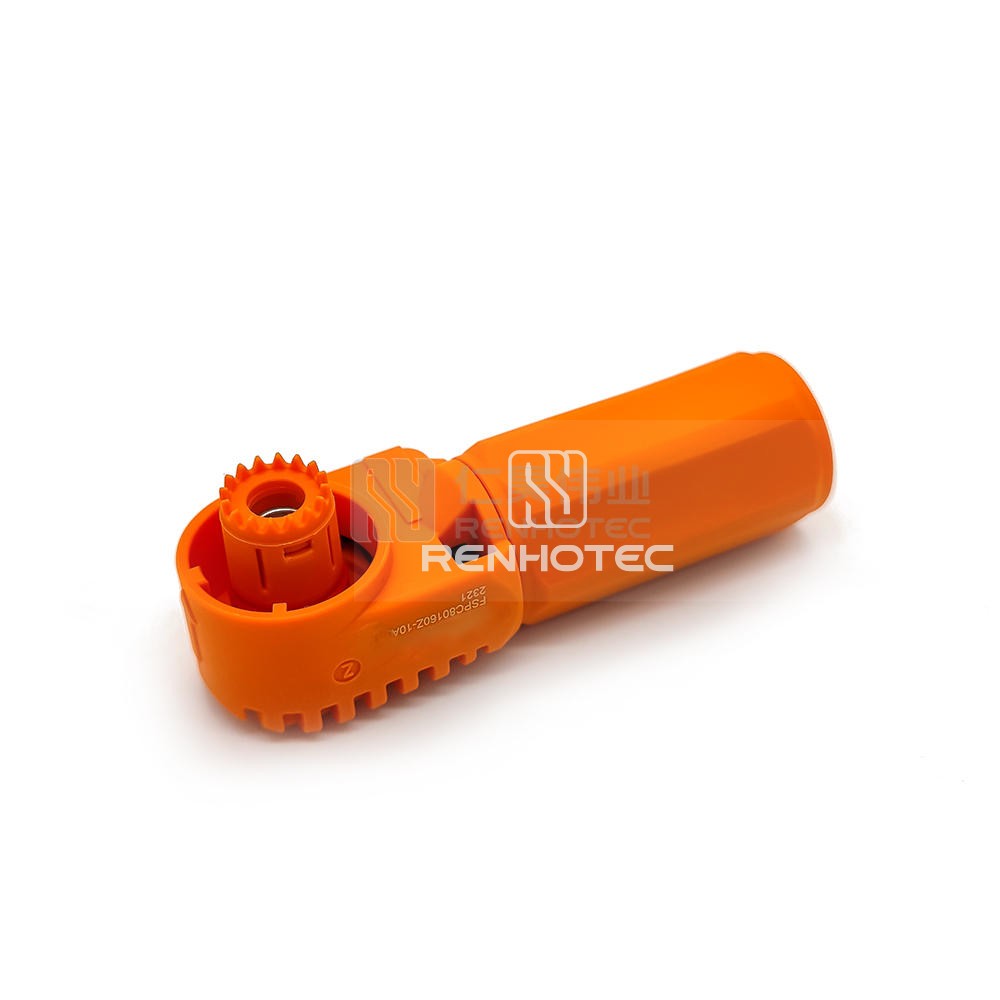

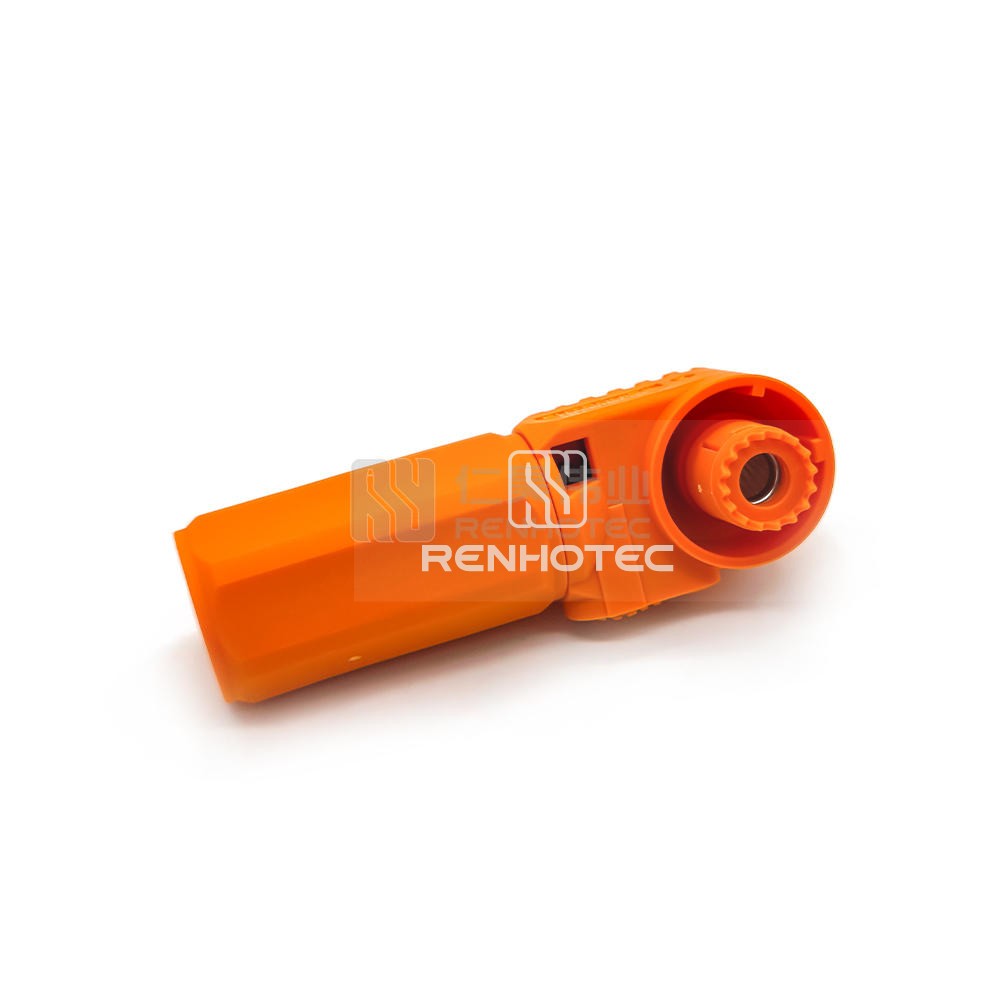

Waterproof Battery Storage Connector 70A Orange 10mm² Unshielded Cable Z Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    Keep your electrical connections secure with this waterproof battery storage connector. Featuring a high capacity of 70A, orange color for easy identification, and a sturdy 10mm² unshielded cable with Z key design for reliable power transmission.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage600V
    Rated Current70A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range10mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
