Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 100A Black 16mm² Unshielded Cable

FSP800160TW-16U0B1RH

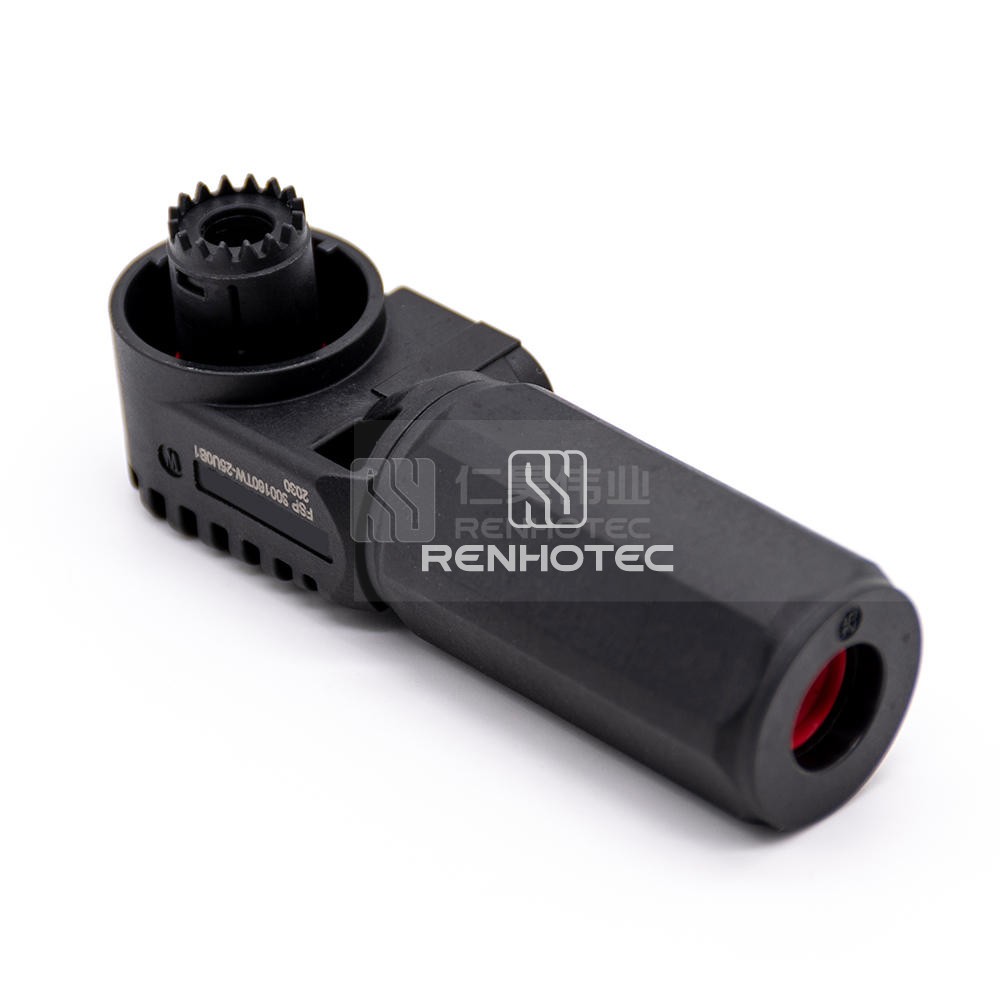

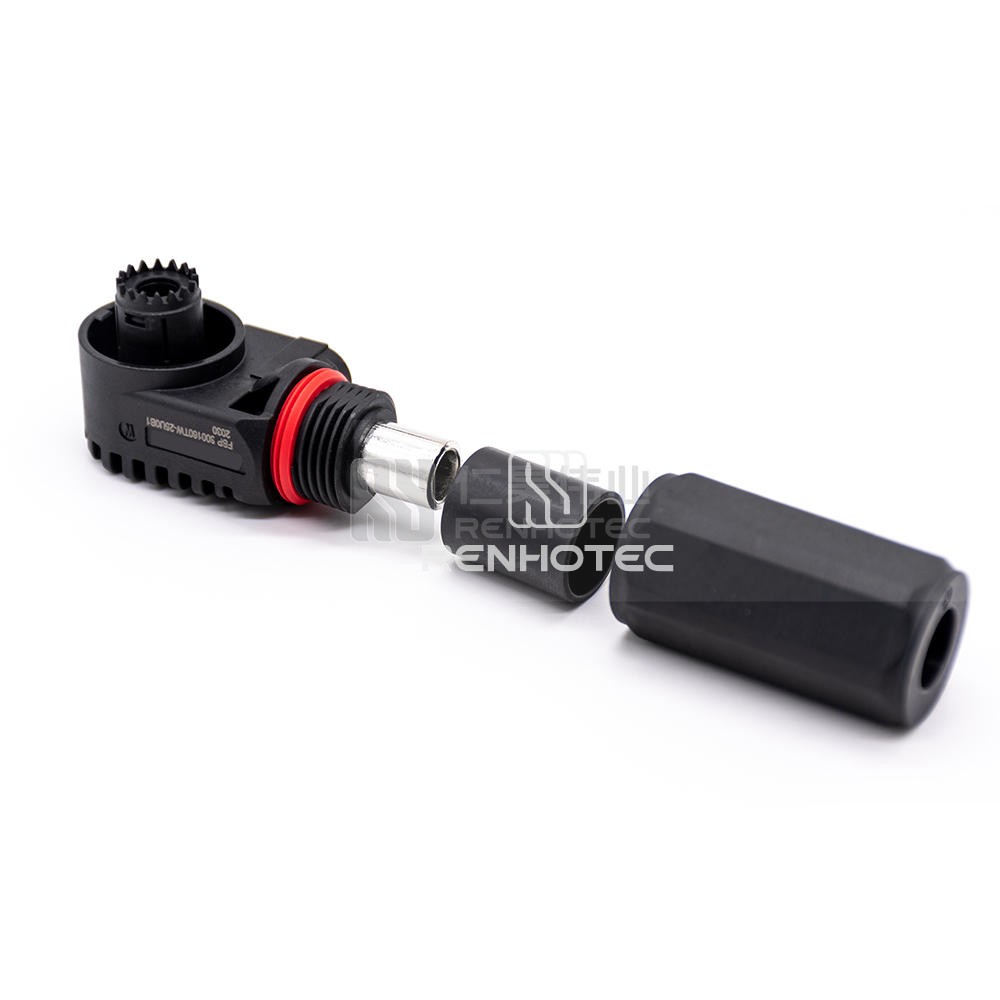

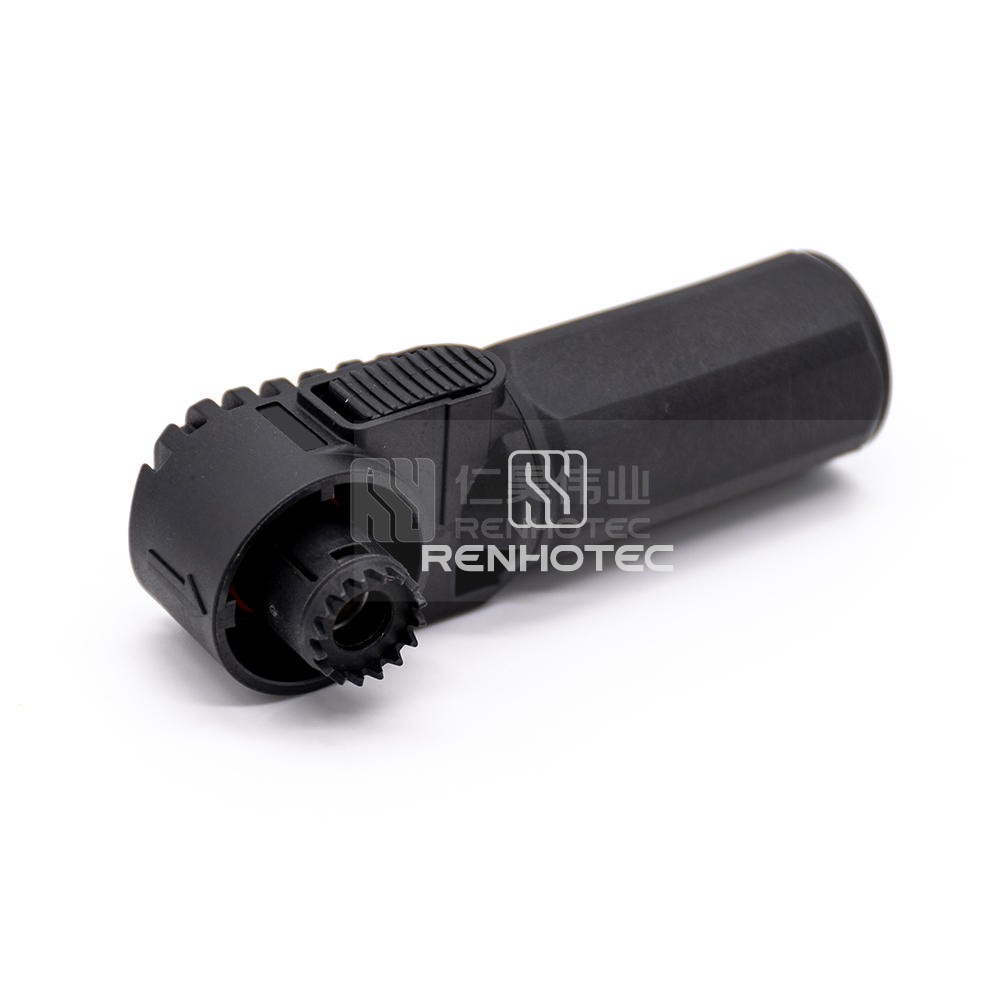

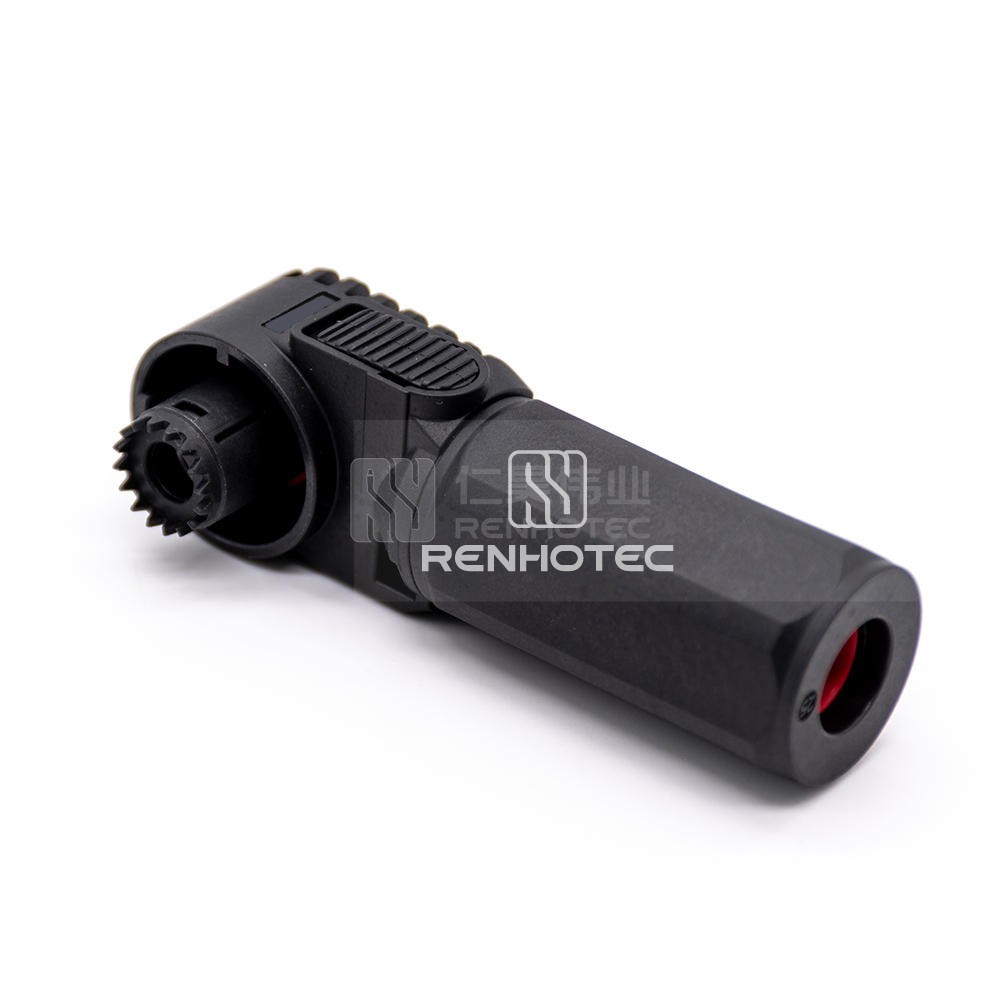

Waterproof Battery Storage Connector Right Angle 100A Black 16mm² Unshielded Cable

This waterproof battery storage connector features a right-angle design, capable of handling 100A current. The black 16mm² unshielded cable ensures reliable and efficient power transmission while offering protection against water damage.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyW
    ColorBlack

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
