Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 100A Orange 16mm² Unshielded Cable Z Key

FSP800160TZ-16U0A2RH

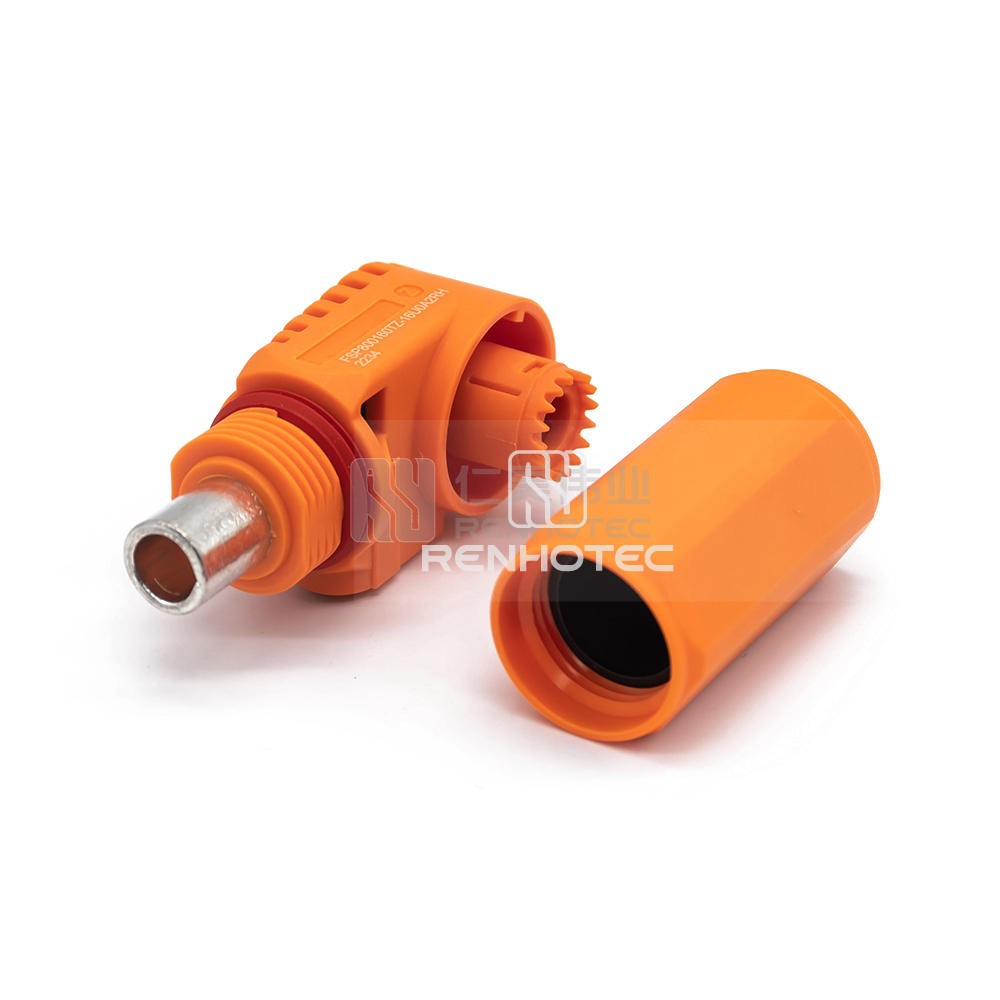

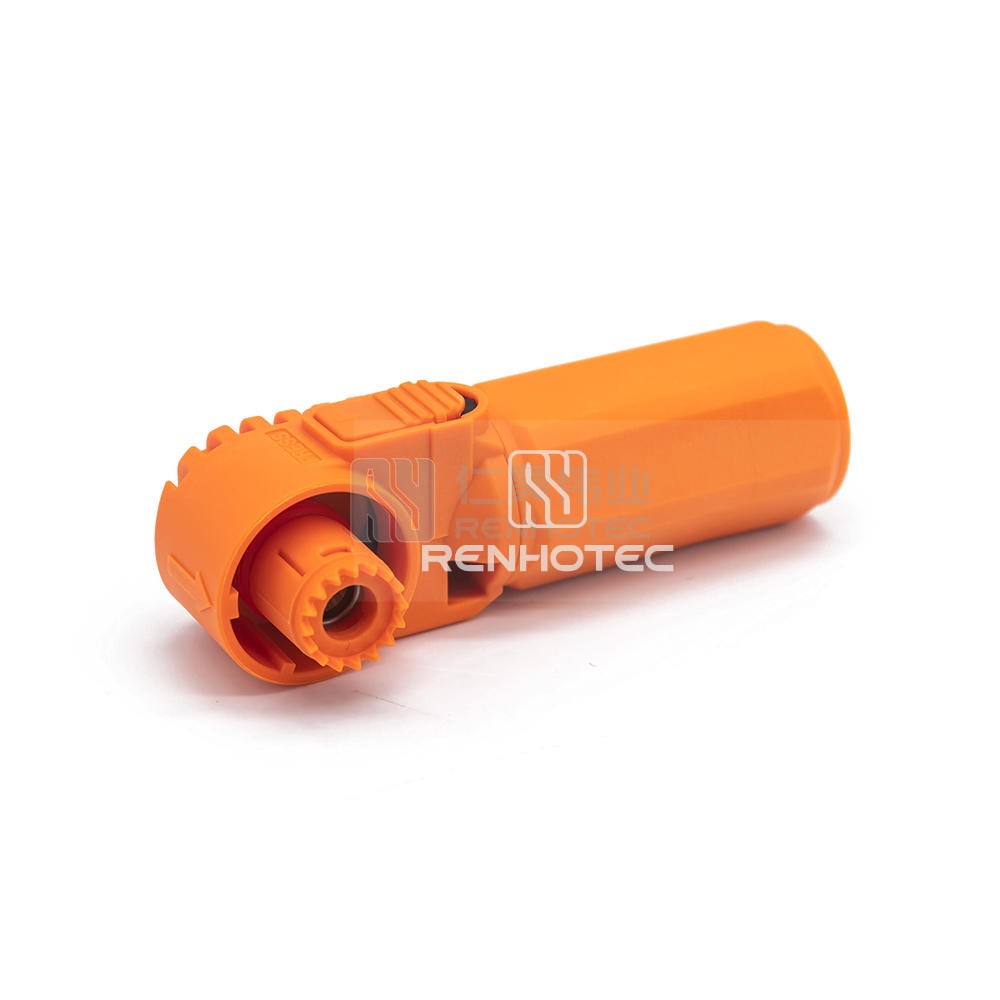

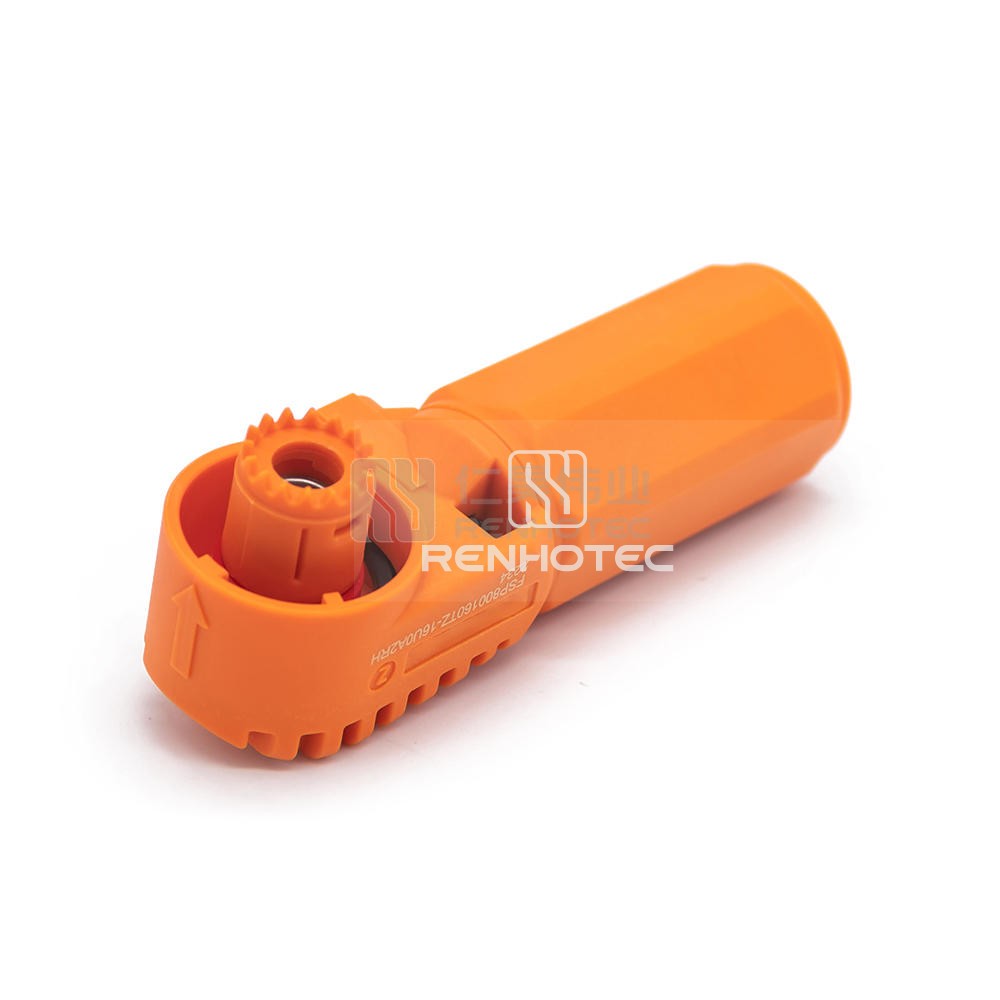

Waterproof Battery Storage Connector Right Angle 100A Orange 16mm² Unshielded Cable Z Key

This waterproof battery storage connector features a right-angle design with a 100A capacity. Ideal for use with 16mm² unshielded cables, it ensures secure and reliable connections. The Z key design offers added convenience and ease of use.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
