Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 100A Orange 16mm² Unshielded Cable Z Key

FSPC80160Z-16A1RH

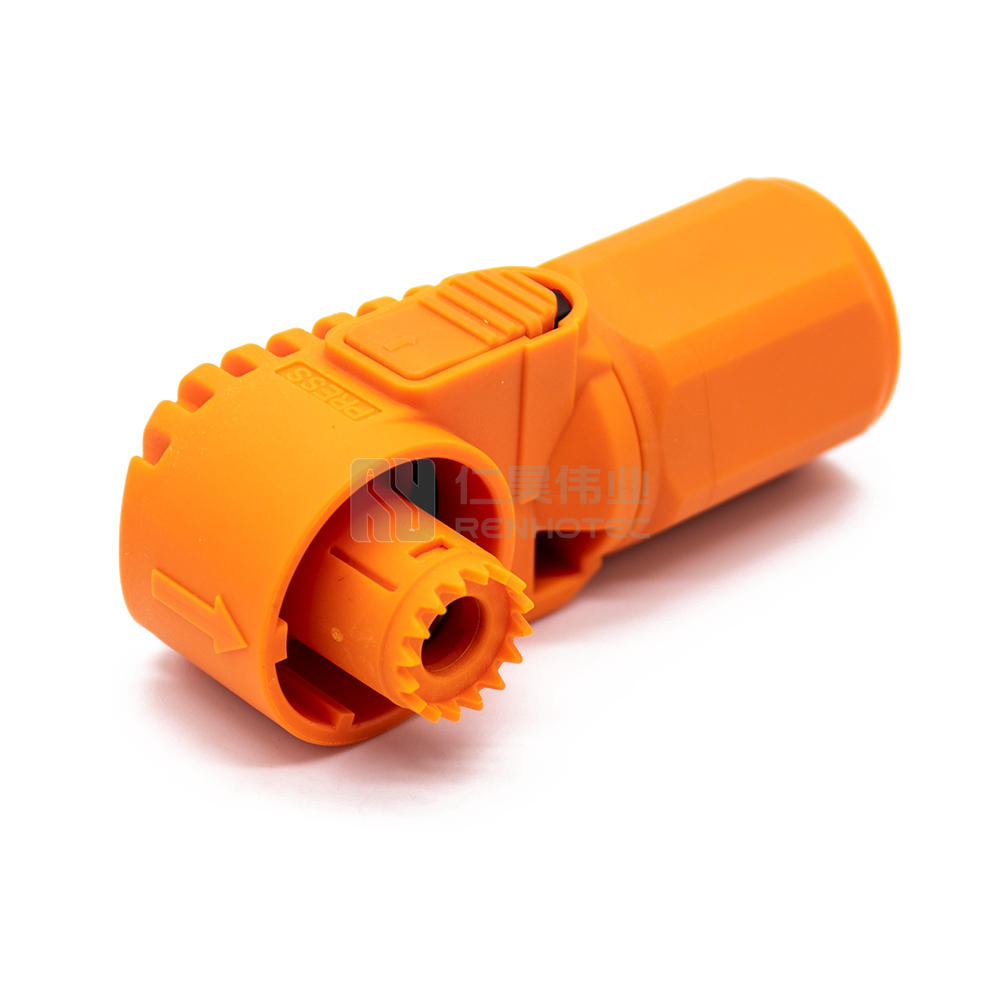

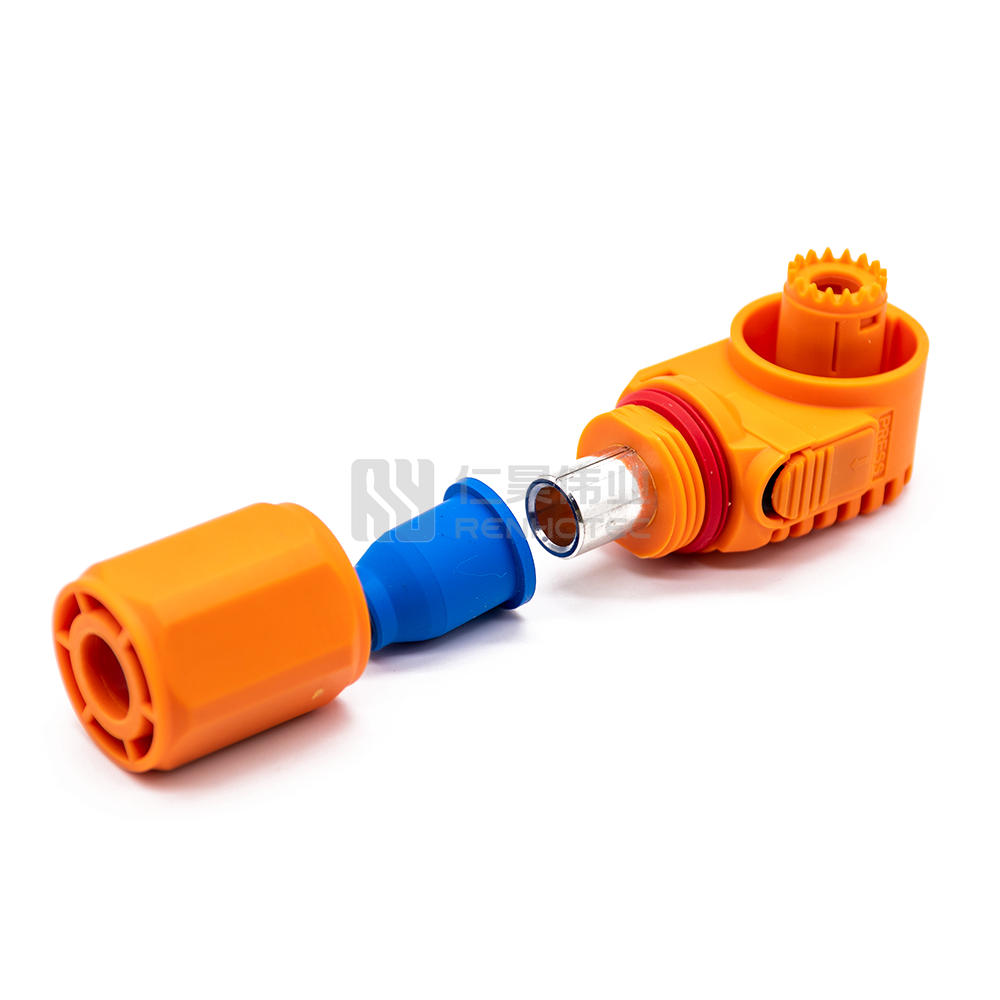

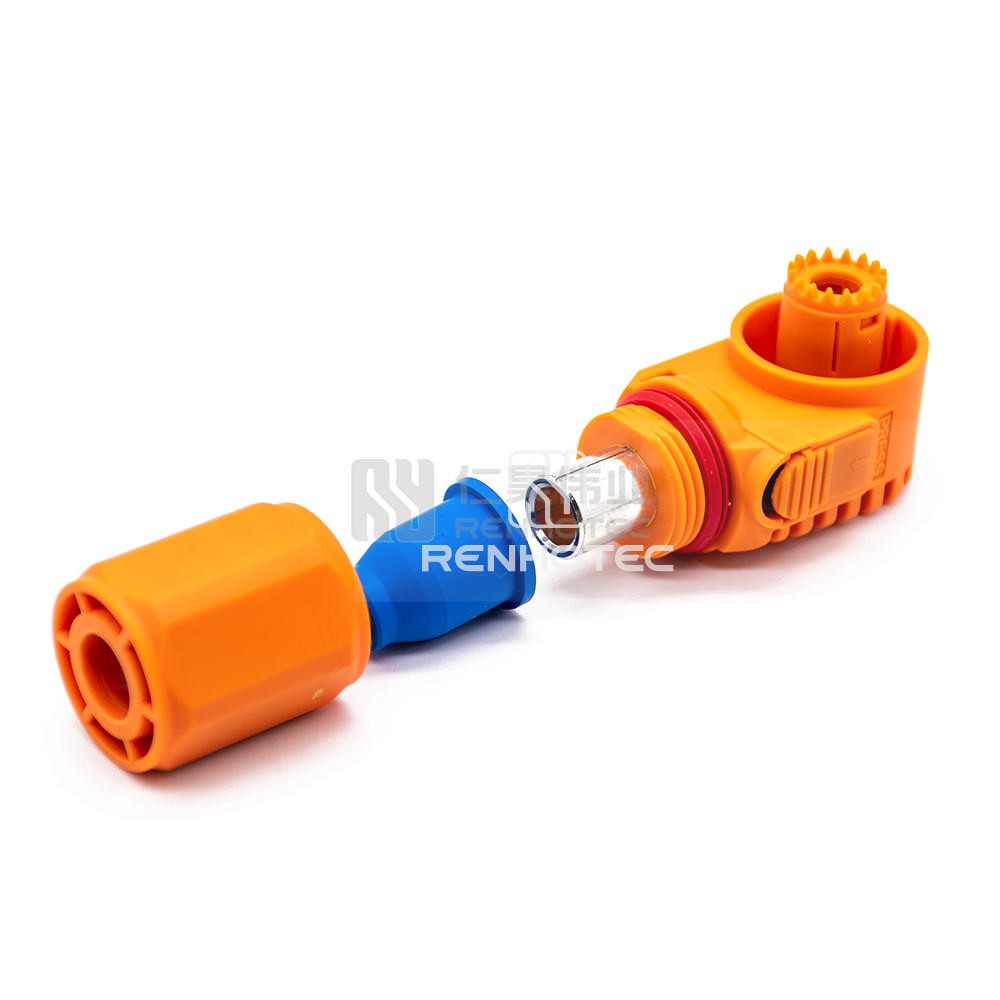

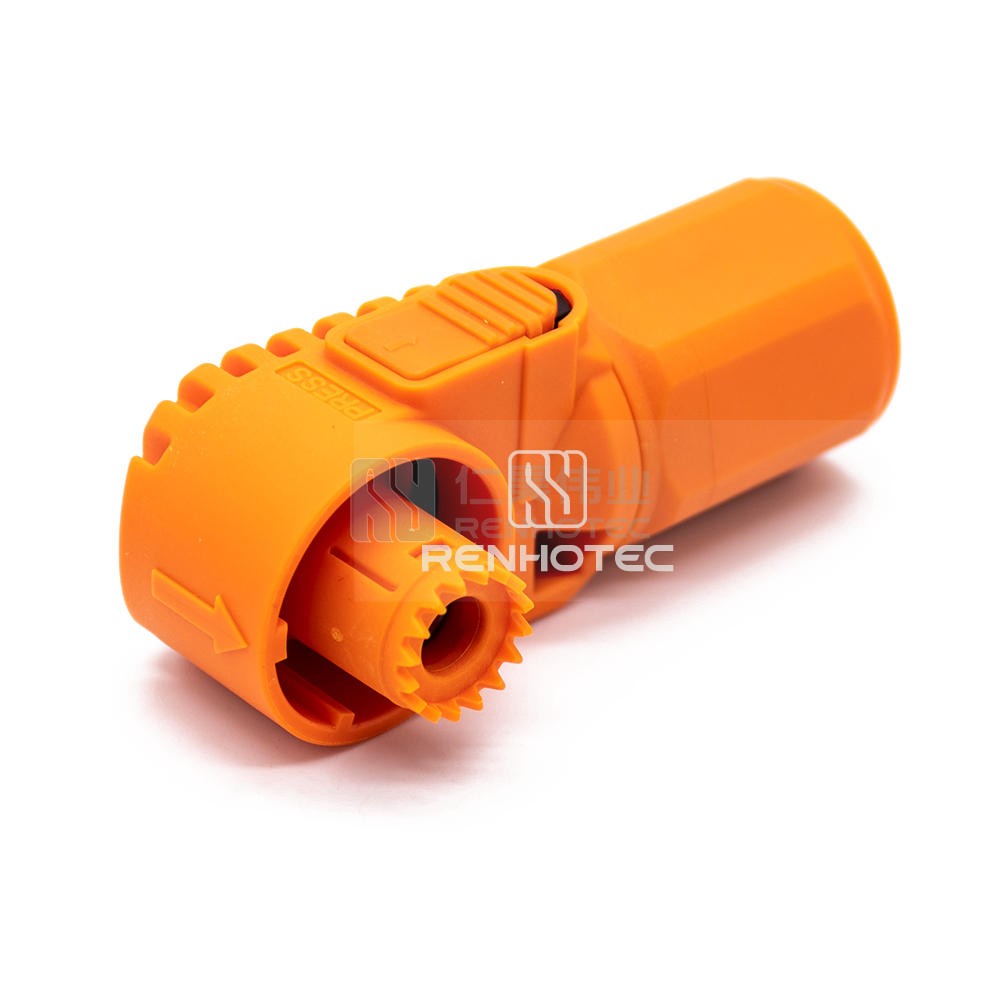

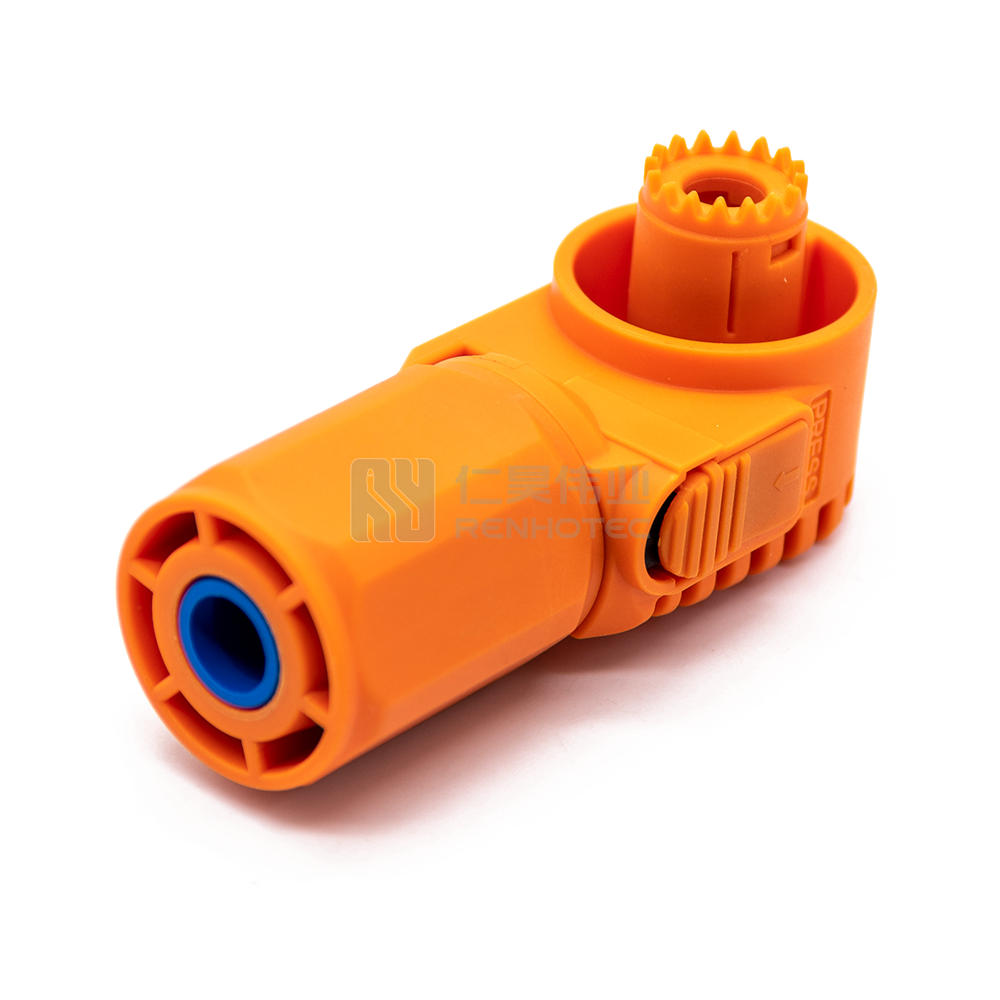

Waterproof Battery Storage Connector Right Angle 100A Orange 16mm² Unshielded Cable Z Key

This waterproof battery storage connector features a right-angle design with a high capacity of 100A, suitable for 16mm² unshielded cables. The orange color ensures visibility, and the Z key design provides secure connections. Ideal for various applications where a reliable power connection is crucial.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage600V
    Rated Current100A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
