Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 125A 25mm² Unshielded Cable W Key

FSPC80160W-25B1RH

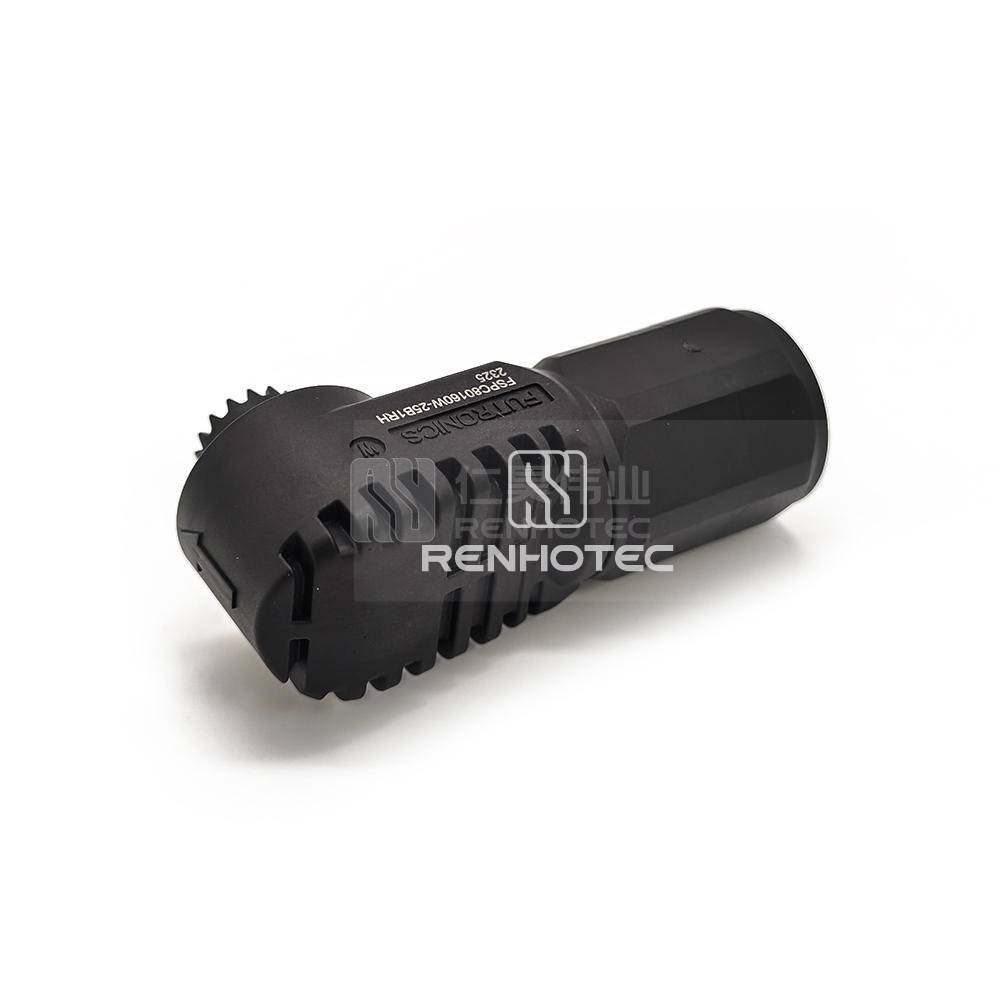

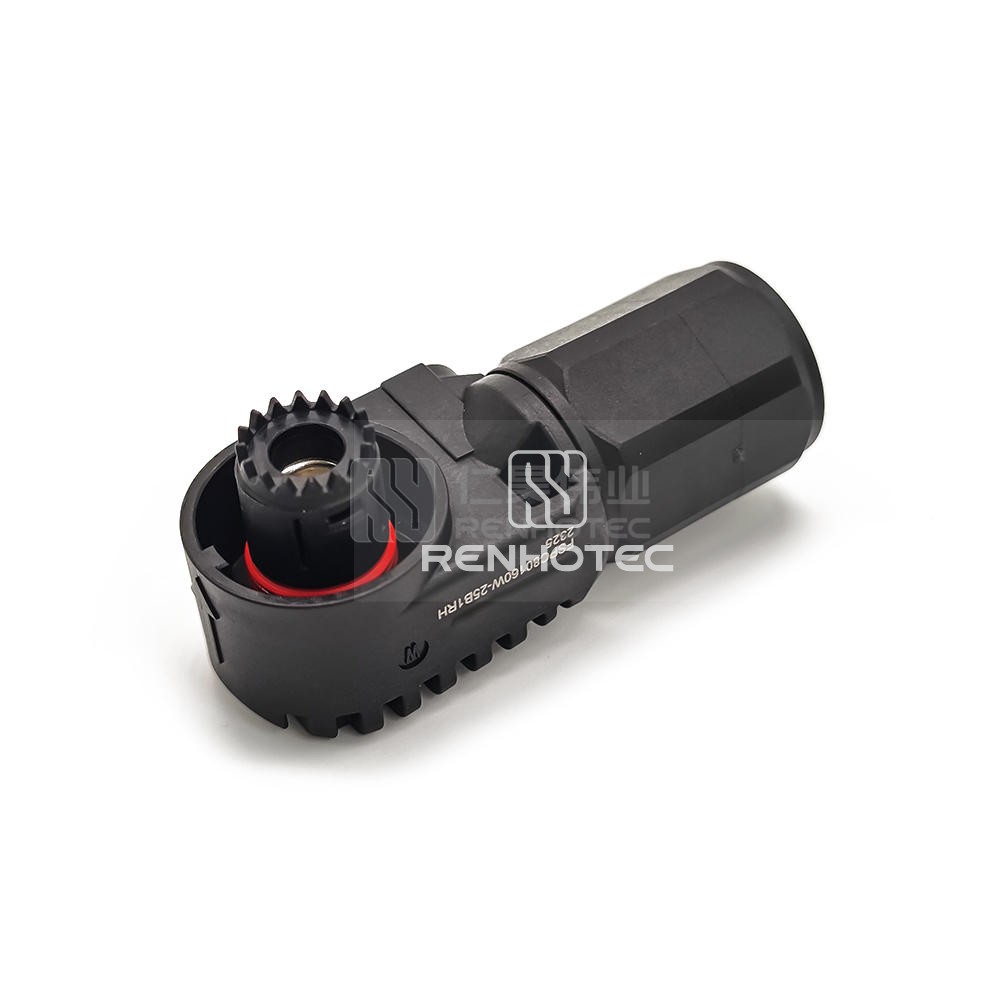

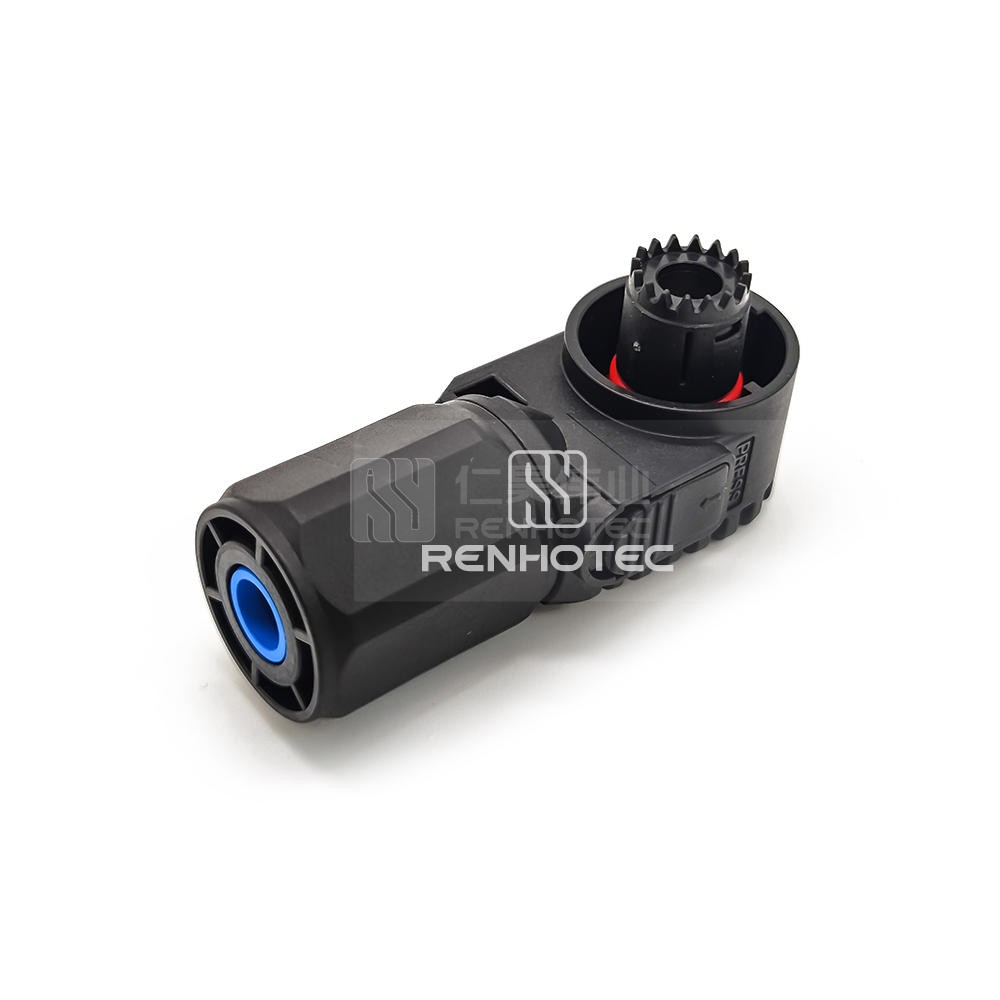

Waterproof Battery Storage Connector Right Angle 125A 25mm² Unshielded Cable W Key

Keep your battery connections secure and dry with this waterproof connector. Featuring a 125A capacity and 25mm² unshielded cable, this connector also includes a key for added security.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyW
    ColorBlack

    Electrical

    Rated Voltage600V
    Rated Current125A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
