FSP800180TZ-35U0A2RH

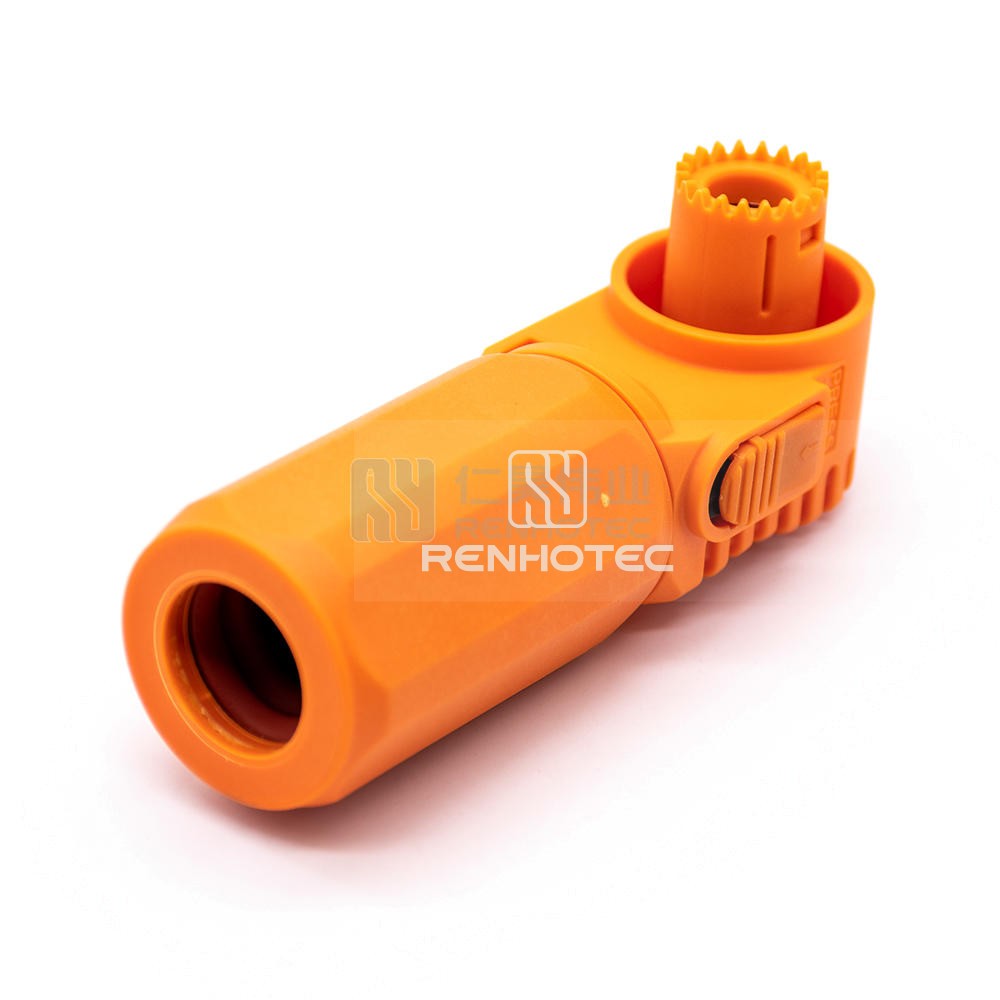

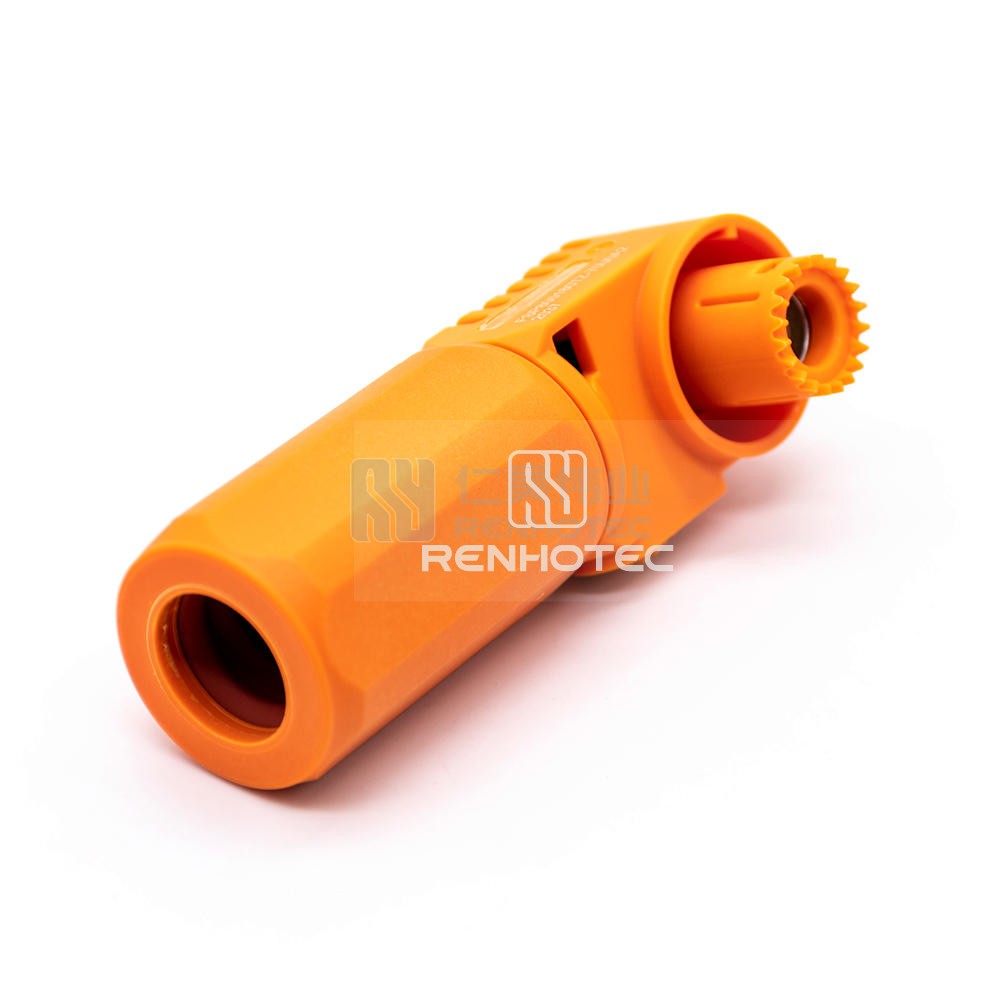

Waterproof Battery Storage Connector Right Angle 150A Orange 35mm² Unshielded Cable Z Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    This Waterproof Battery Storage Connector features a durable right-angle design with a 150A capacity, vibrant orange color, 35mm² unshielded cable for enhanced performance, and a convenient Z key for easy connectivity. Ideal for applications requiring a secure and reliable power connection in challenging environments.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current150A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range35mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
