FSP800180TZ-35U0R2RH

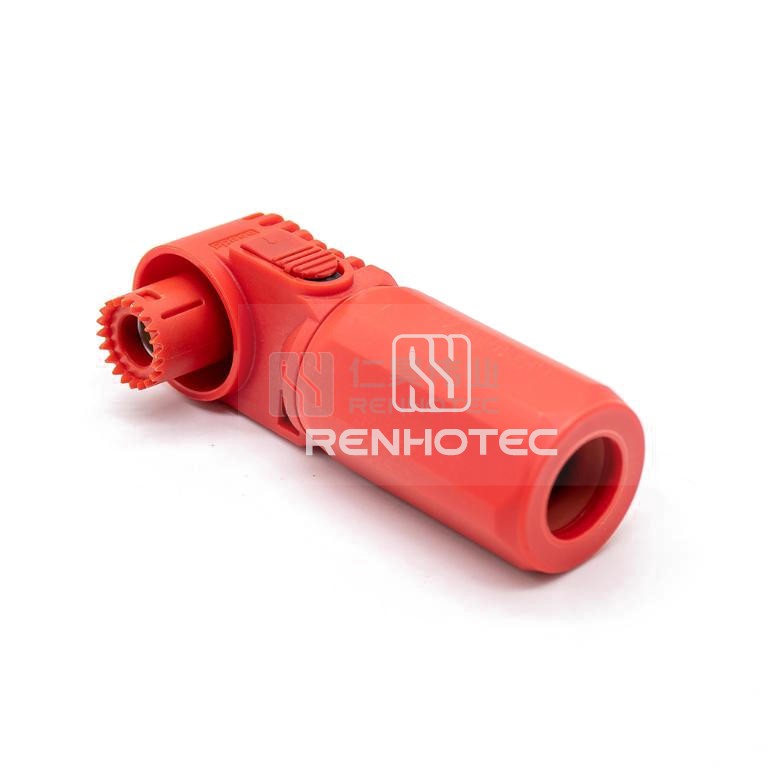

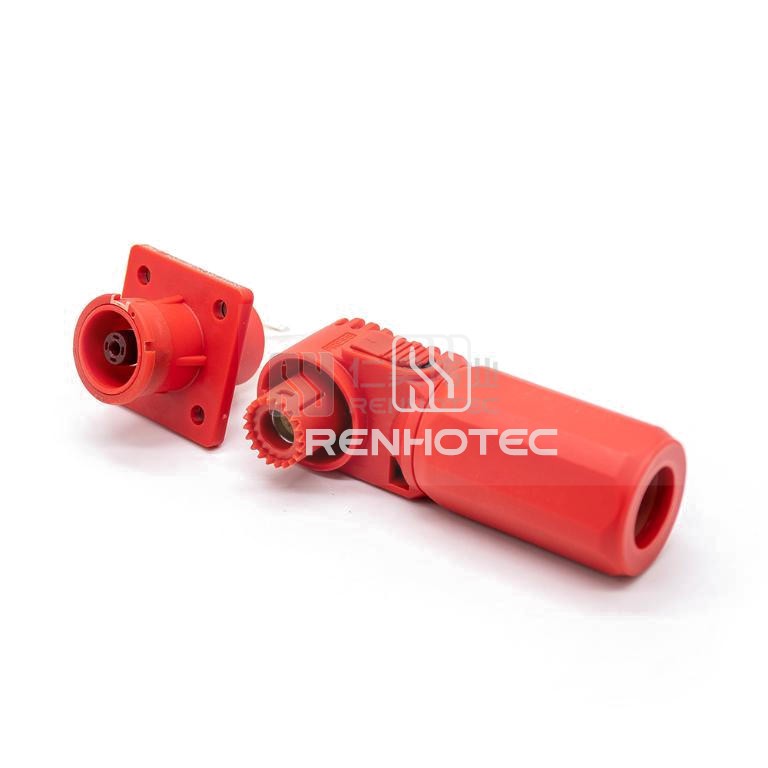

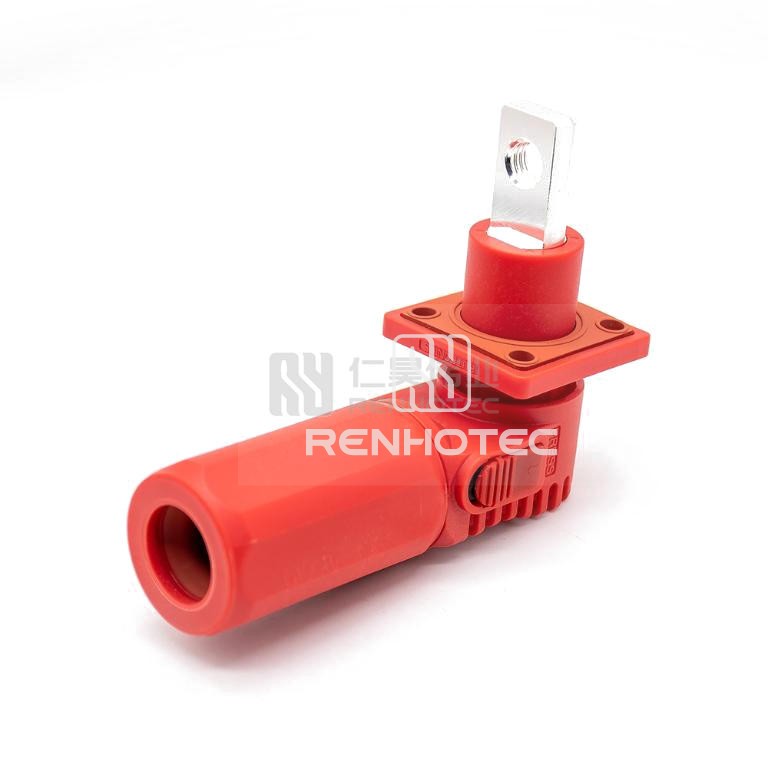

Waterproof Battery Storage Connector Right Angle 150A Red 35mm² UnShielded Cable Z Key

Ensure a secure and waterproof connection with this versatile 150A red connector featuring a right angle design. The unshielded cable with Z key offers easy installation and reliable performance. Ideal for battery storage applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current150A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range35mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
