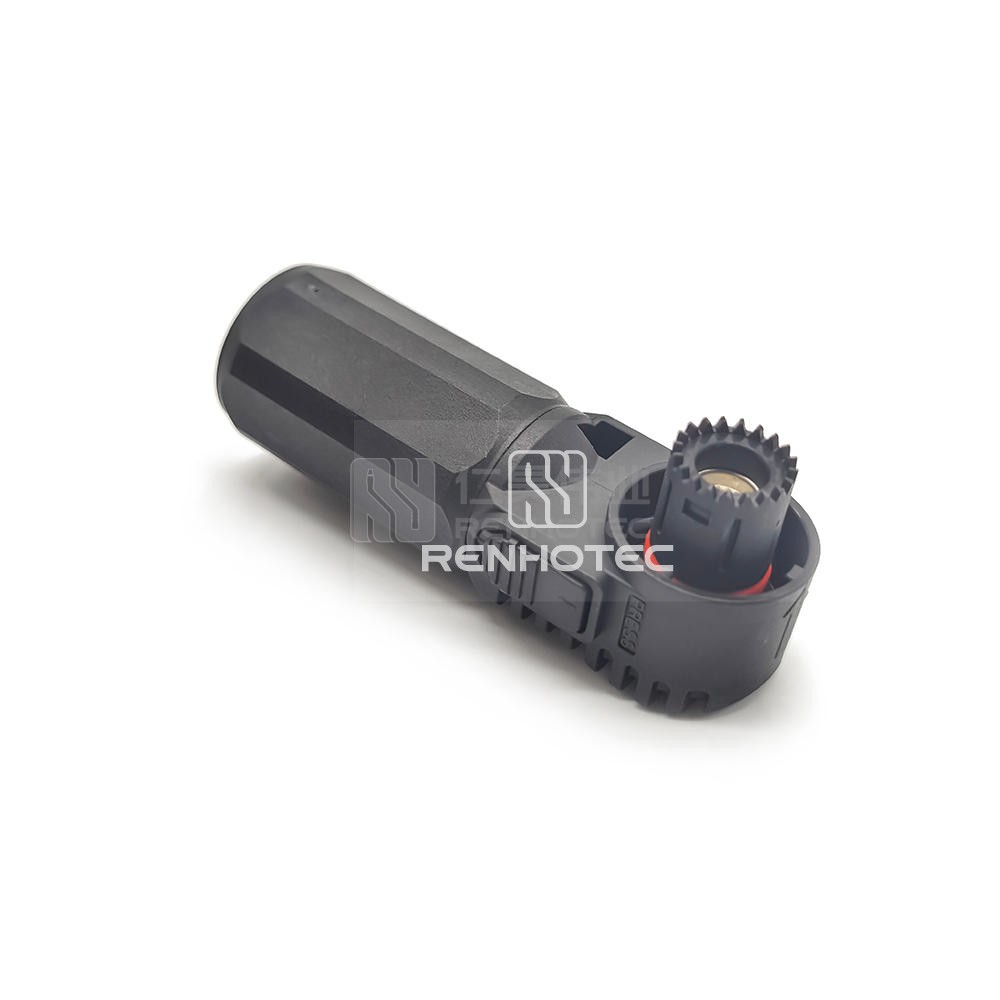

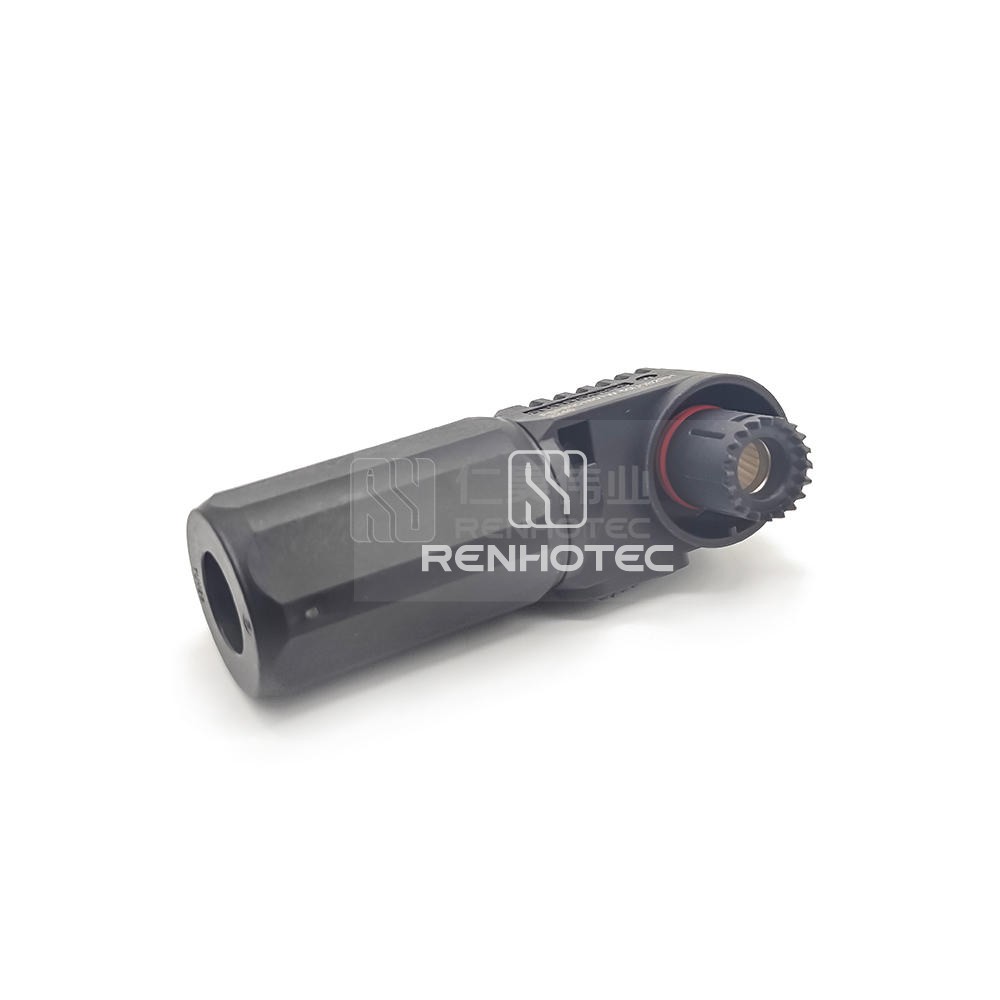

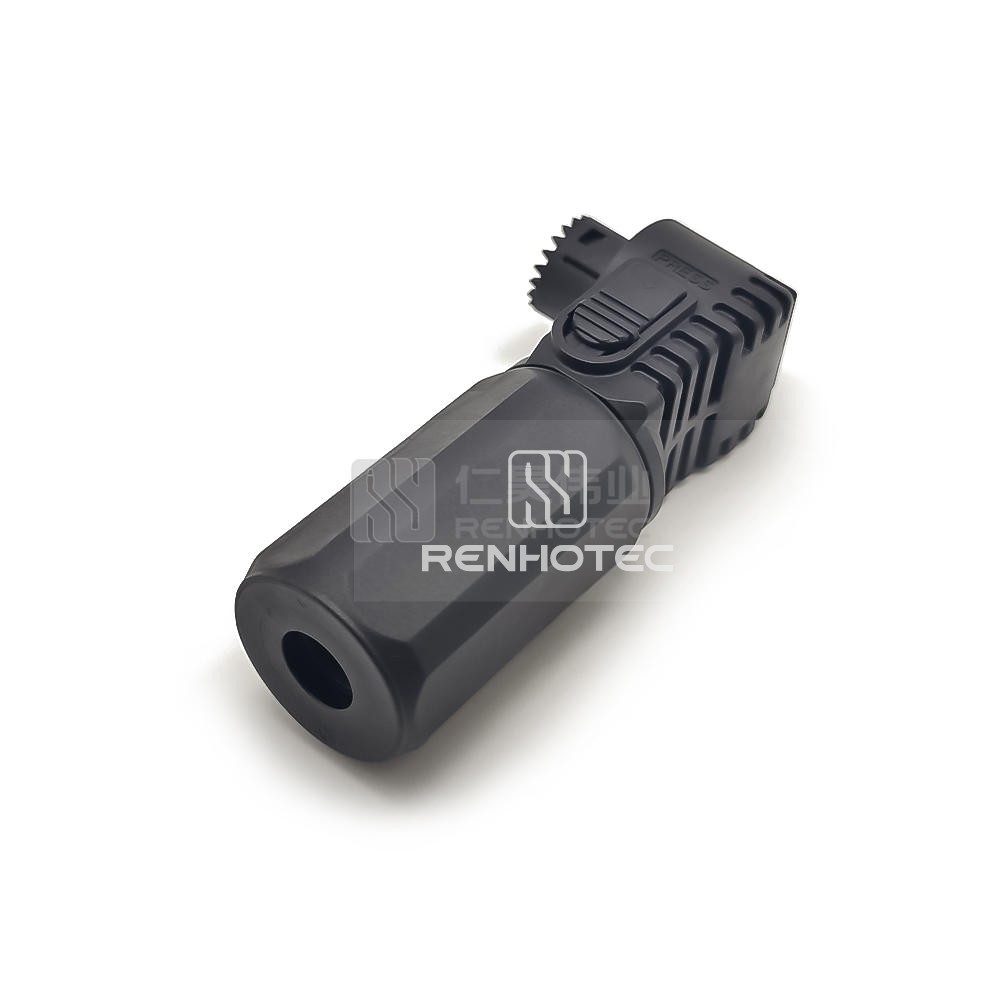

Ensure a secure and reliable connection with this waterproof battery storage connector. Featuring a right angle design, capable of handling up to 200A, with a black 50mm² unshielded cable and included key for added convenience.
General
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Crimp |
Key | W |
Color | Black |
Features | Waterproof |
Electrical
Rated Voltage | 1000V |
Rated Current | 200A |
Shielding | Unshielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
