Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 200A Orange 50mm² Unshielded Cable Z Key

FSP800180TZ-50U0A2RH

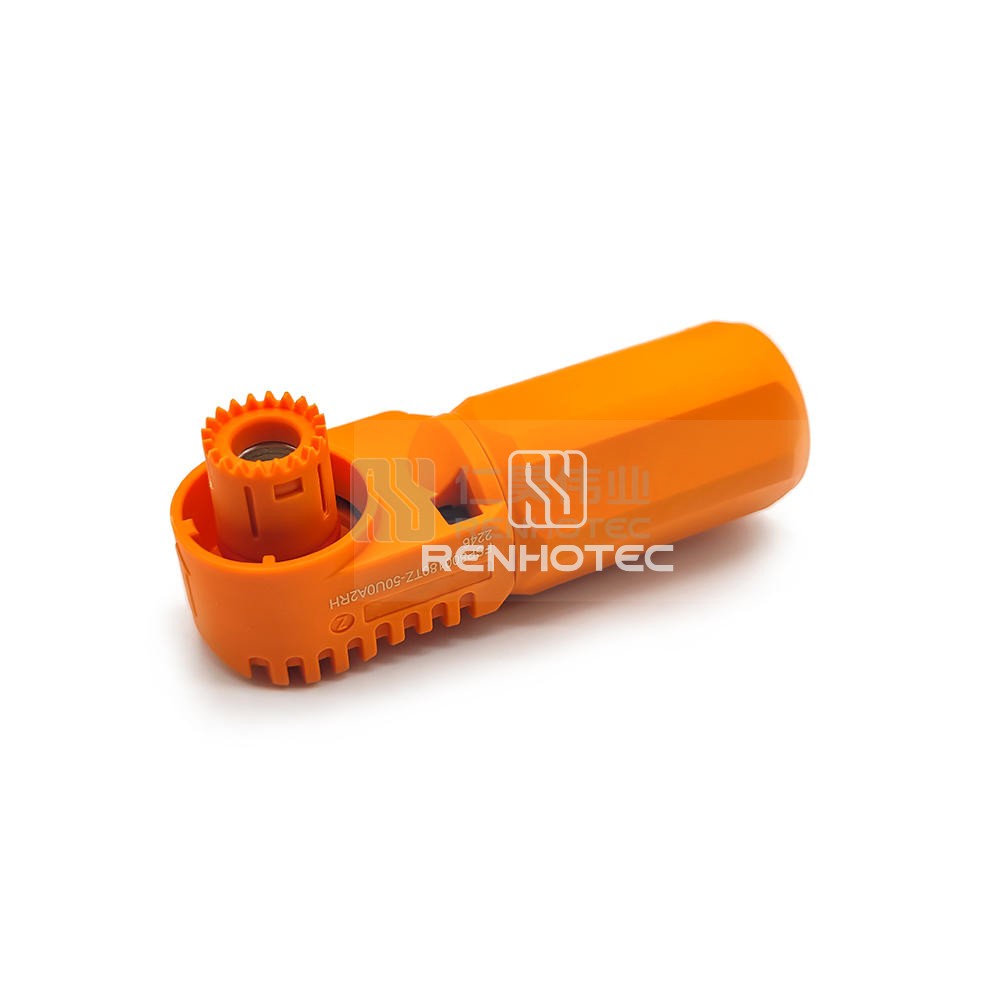

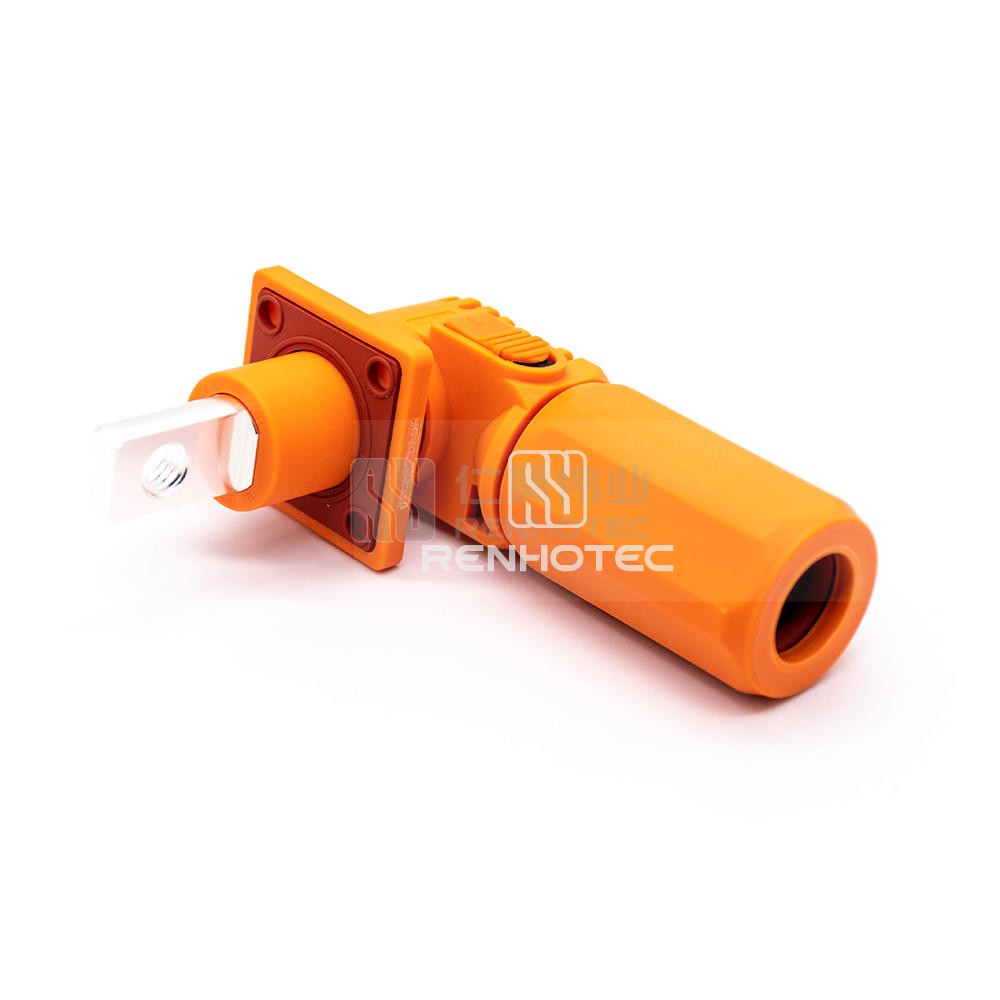

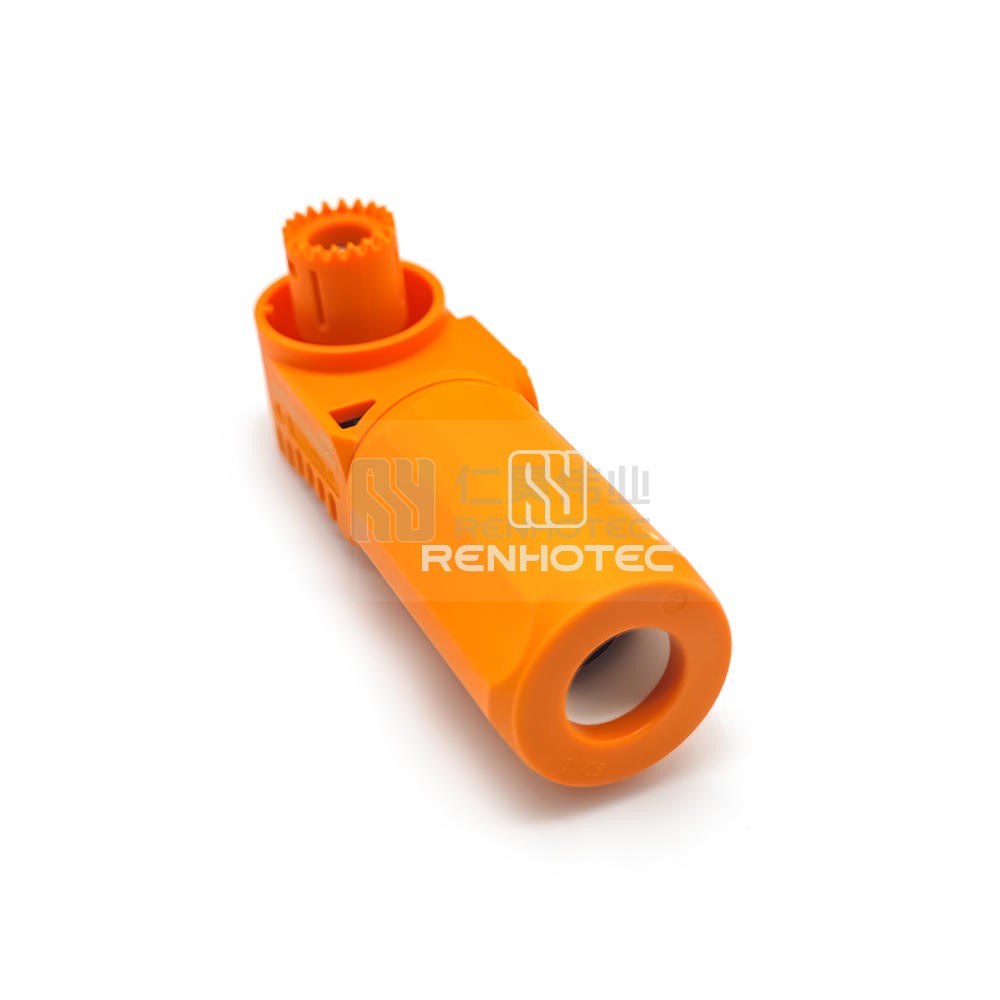

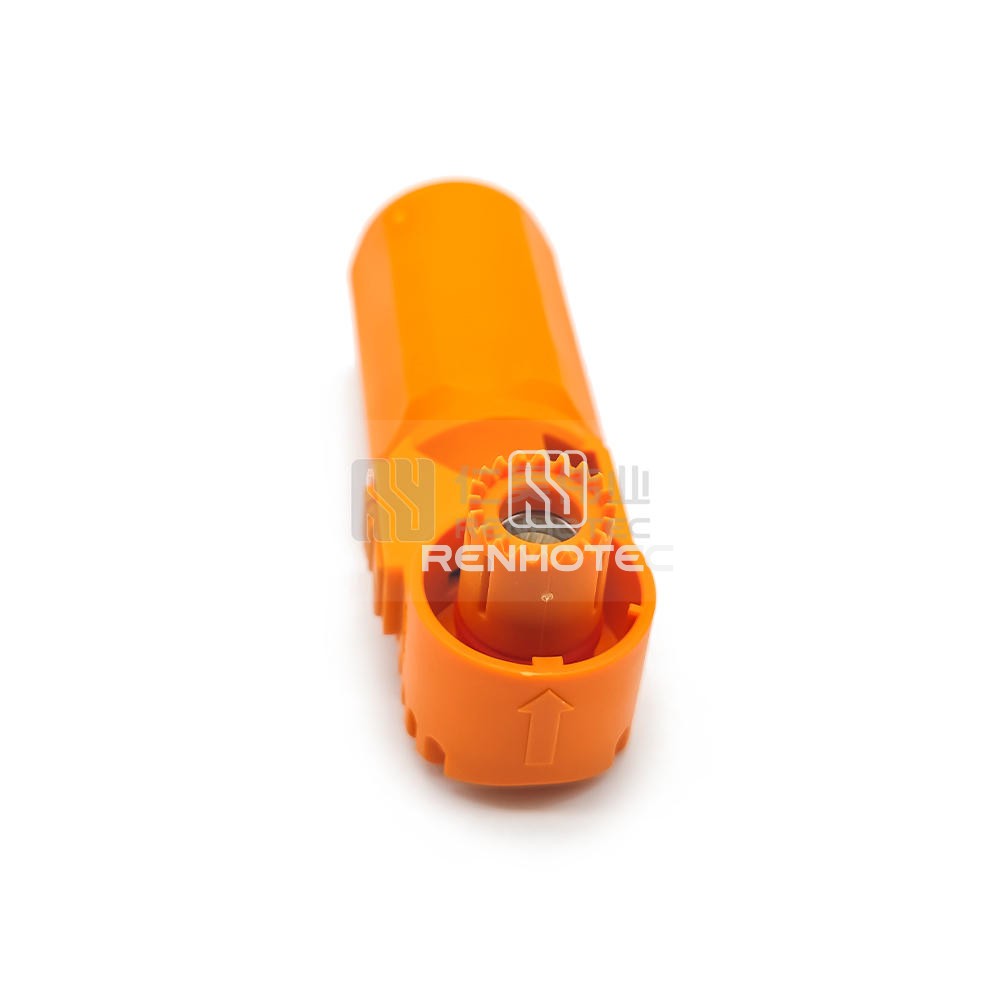

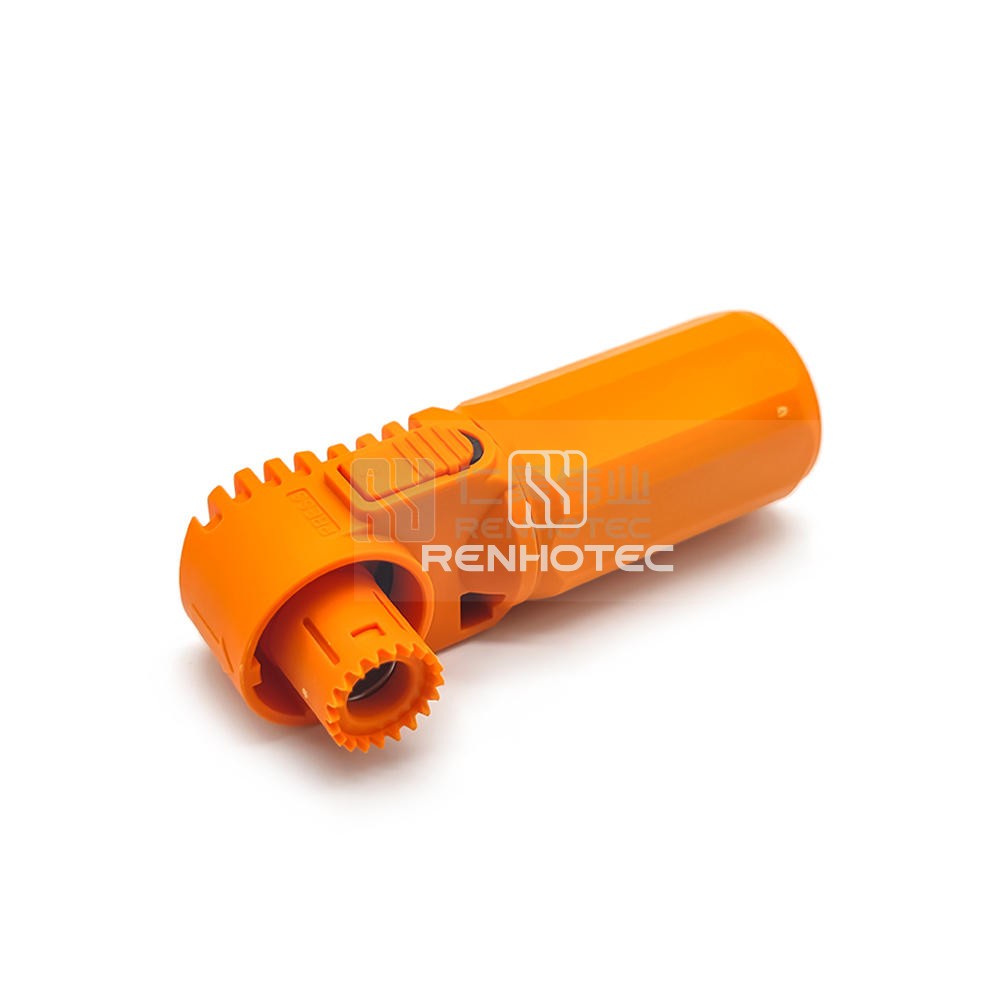

Waterproof Battery Storage Connector Right Angle 200A Orange 50mm² Unshielded Cable Z Key

Ensure secure and reliable power connections with this waterproof battery storage connector. Featuring a right-angle design, 200A capacity, and sturdy 50mm² unshielded cable, this connector is ideal for various applications. The Z key adds extra security to prevent incorrect connections, making it a must-have for your electrical needs.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range50mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
