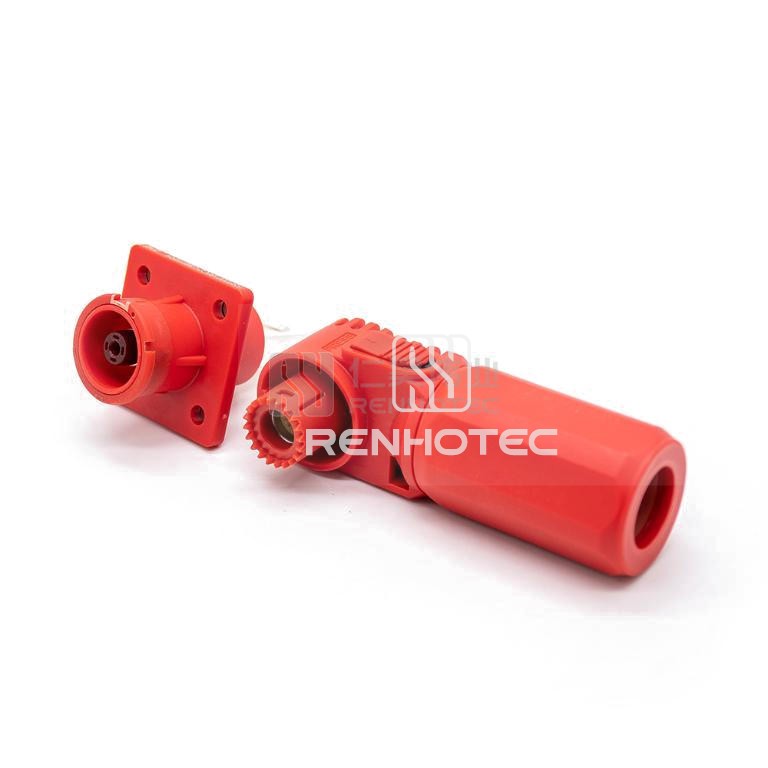

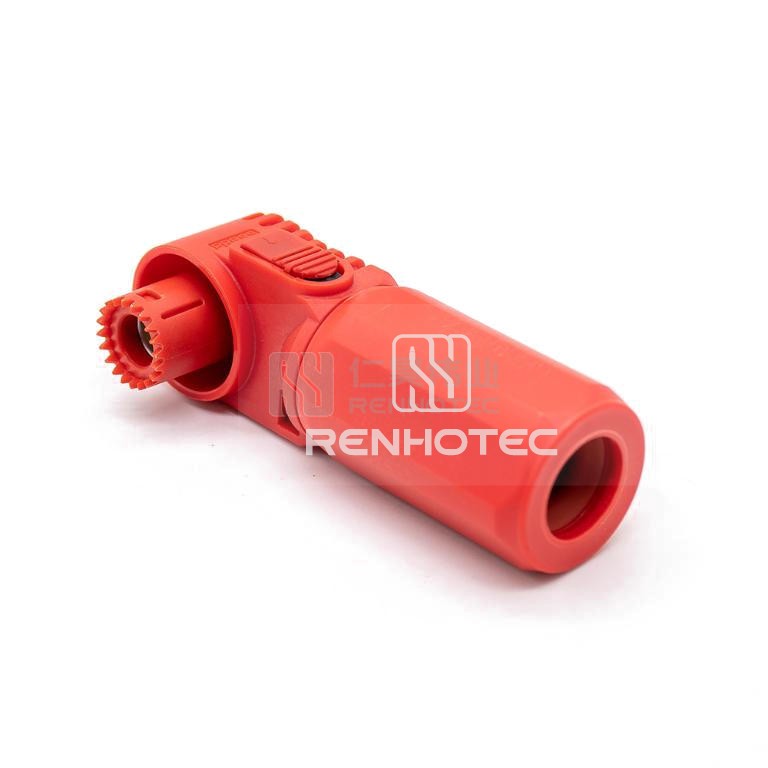

Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 200A Red 50mm² UnShielded Cable Z Key
- Overview
- Technical data
- Catalog
Ensure secure and reliable connections with this Waterproof Battery Storage Connector featuring a Right Angle design, 200A capacity, 50mm² UnShielded Cable, and Z Key for easy installation. Perfect for a variety of applications where durability and performance are key.
General
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Crimp |
Key | Z |
Color | Red |
Electrical
Rated Voltage | 1000V |
Rated Current | 200A |
Shielding | Unshielded |
Mechanical
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
