Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 250A Orange 70mm2 Unshielded Cable Z Key

FSP800180TZ-70U0A2RH

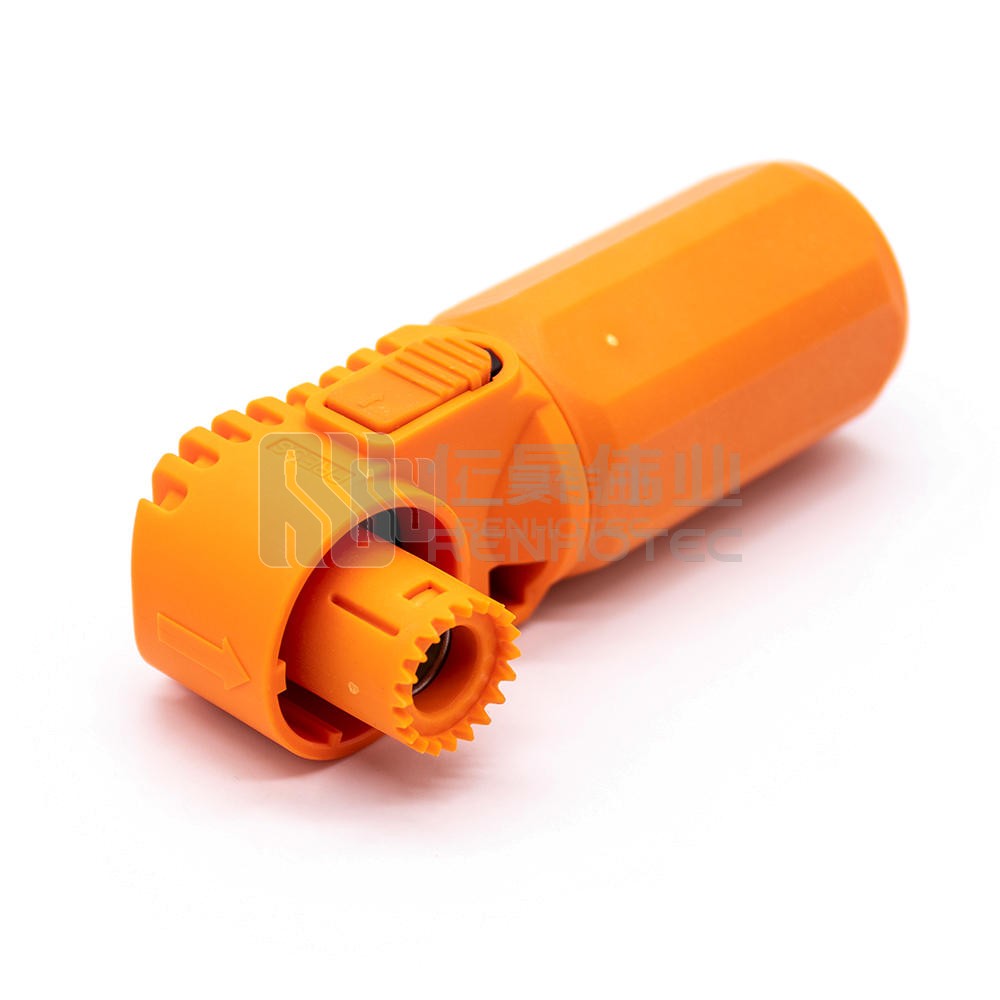

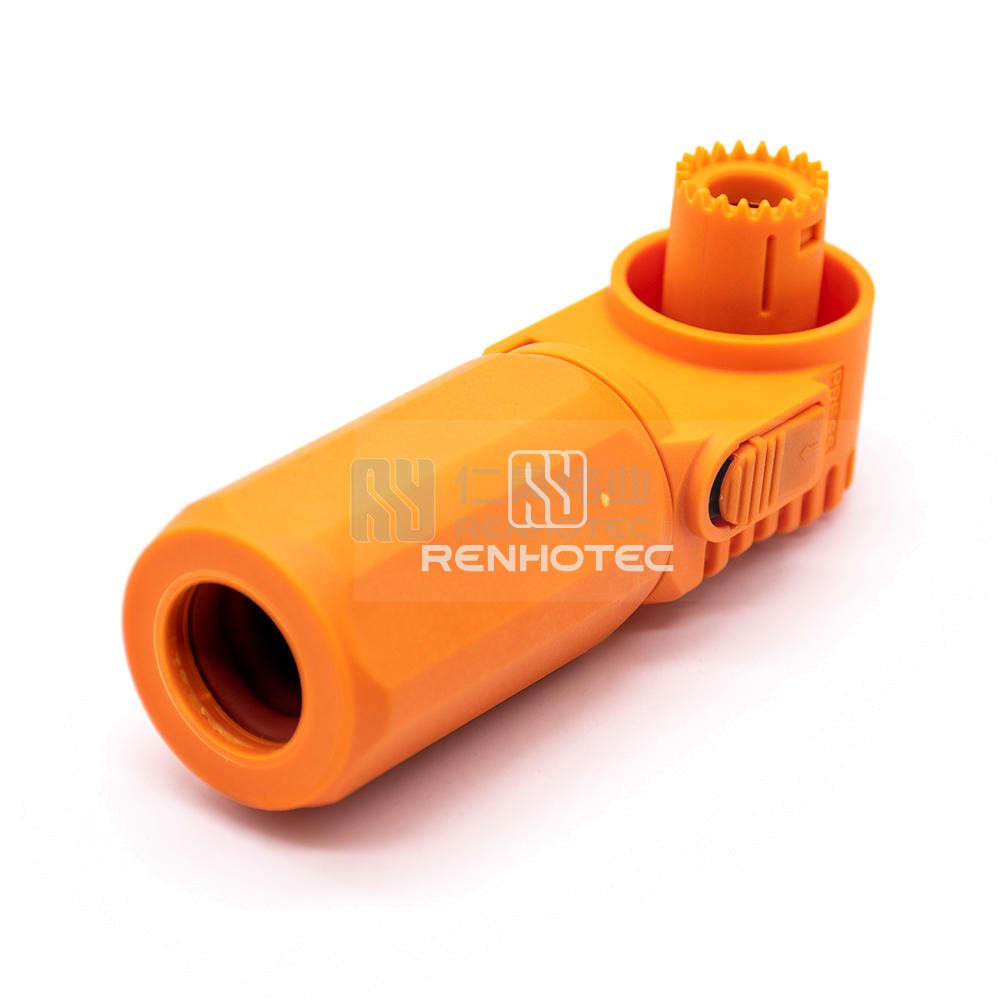

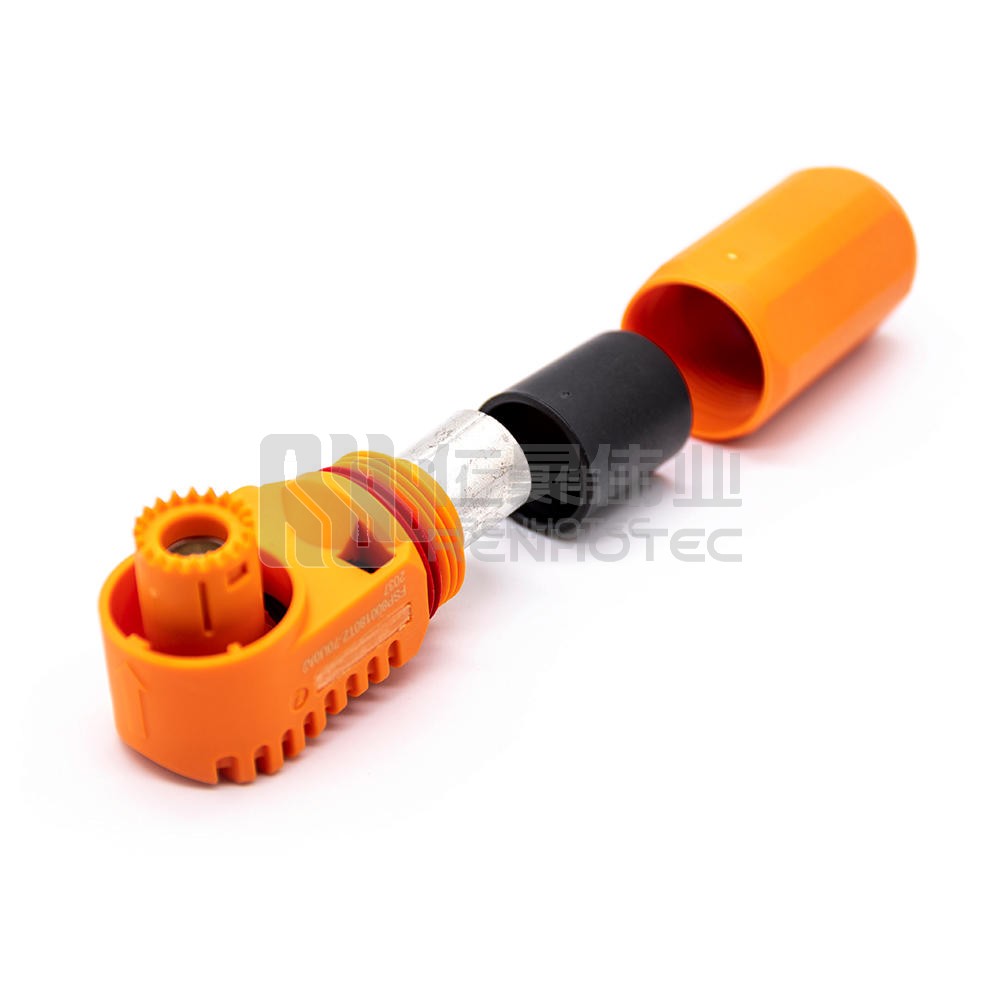

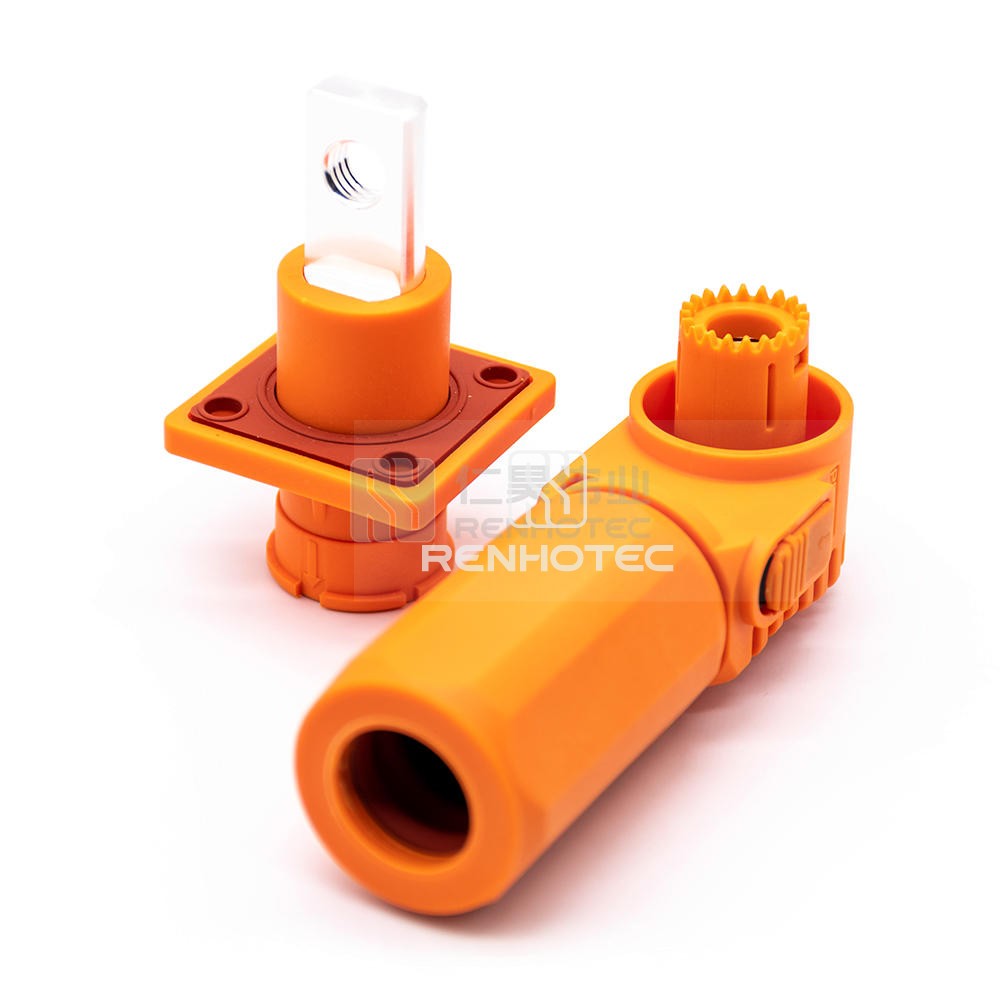

Waterproof Battery Storage Connector Right Angle 250A Orange 70mm2 Unshielded Cable Z Key

This high-quality waterproof battery storage connector features a convenient right-angle design, can handle up to 250A, and is equipped with a Z key for easy installation. The 70mm2 unshielded cable ensures reliable performance and durability, making it an ideal choice for your electrical connections.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current250A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
