Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 250A Red 70mm2 UnShielded Cable Z Key

FSP800180TZ-70U0R2RH

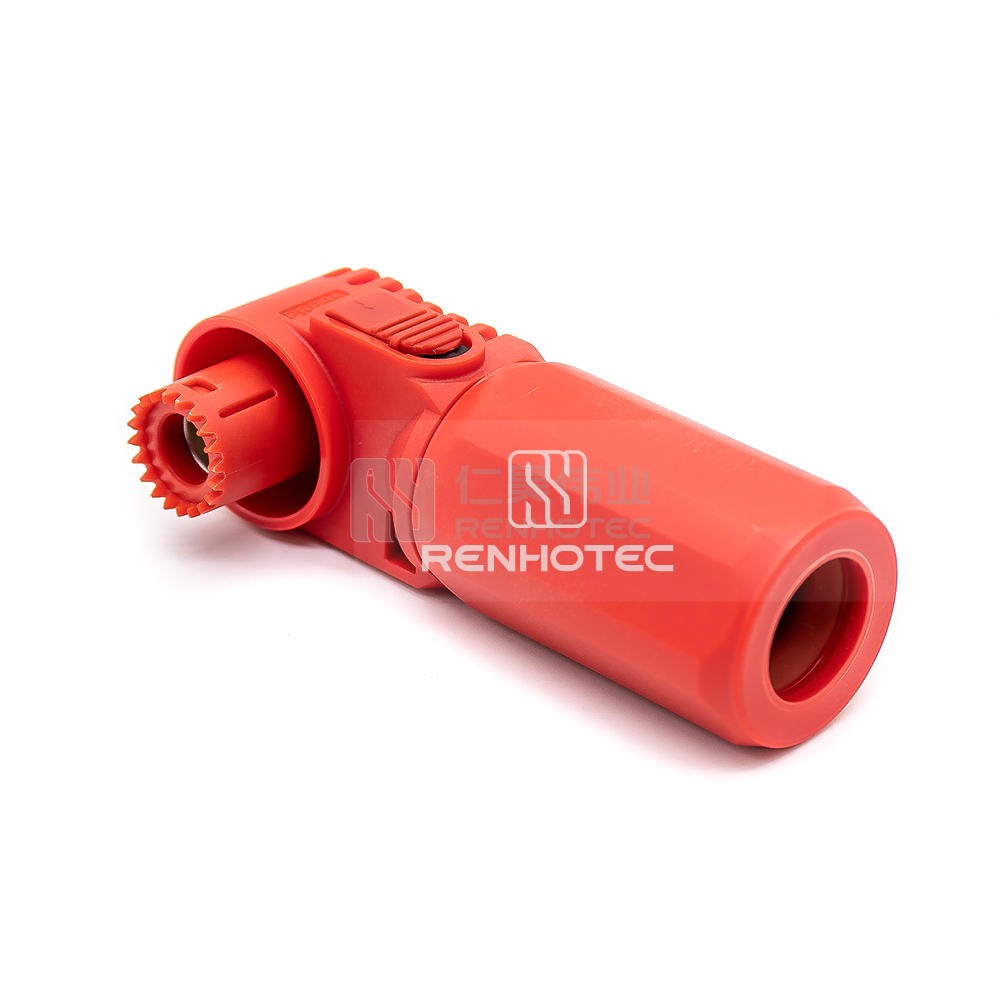

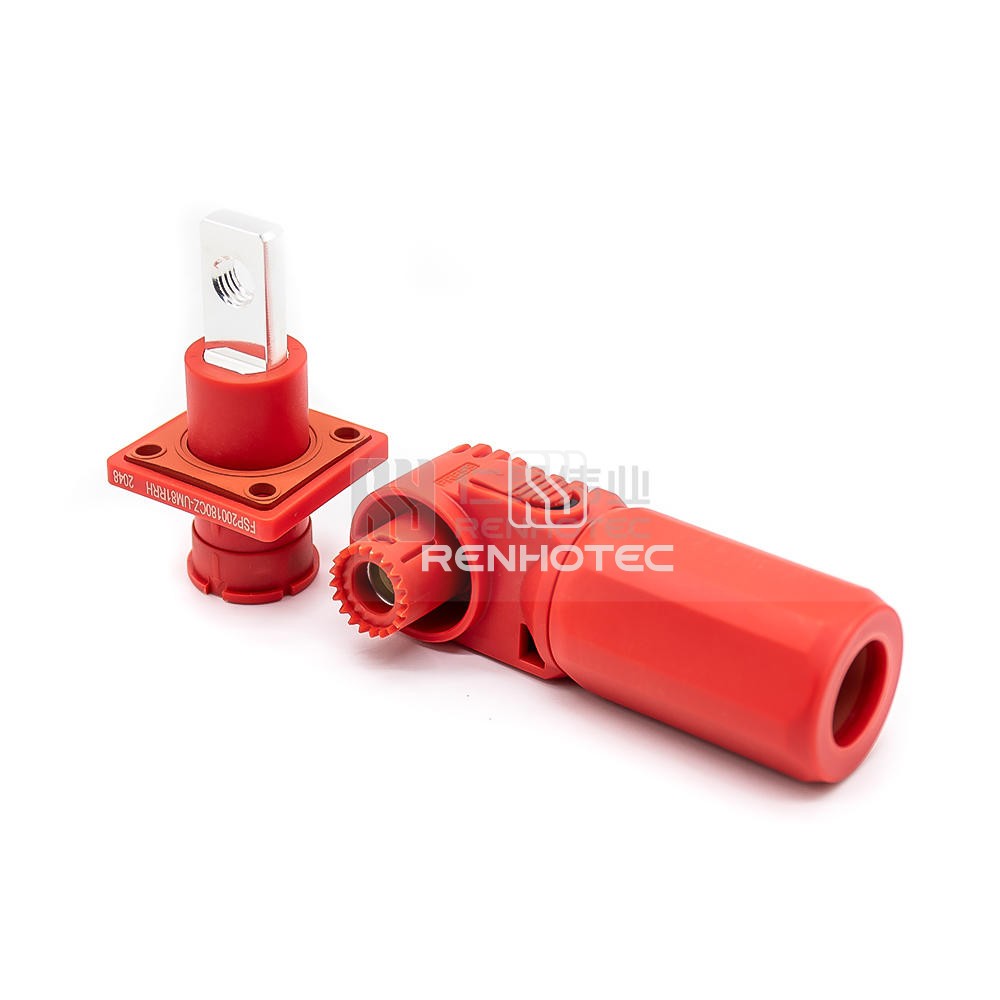

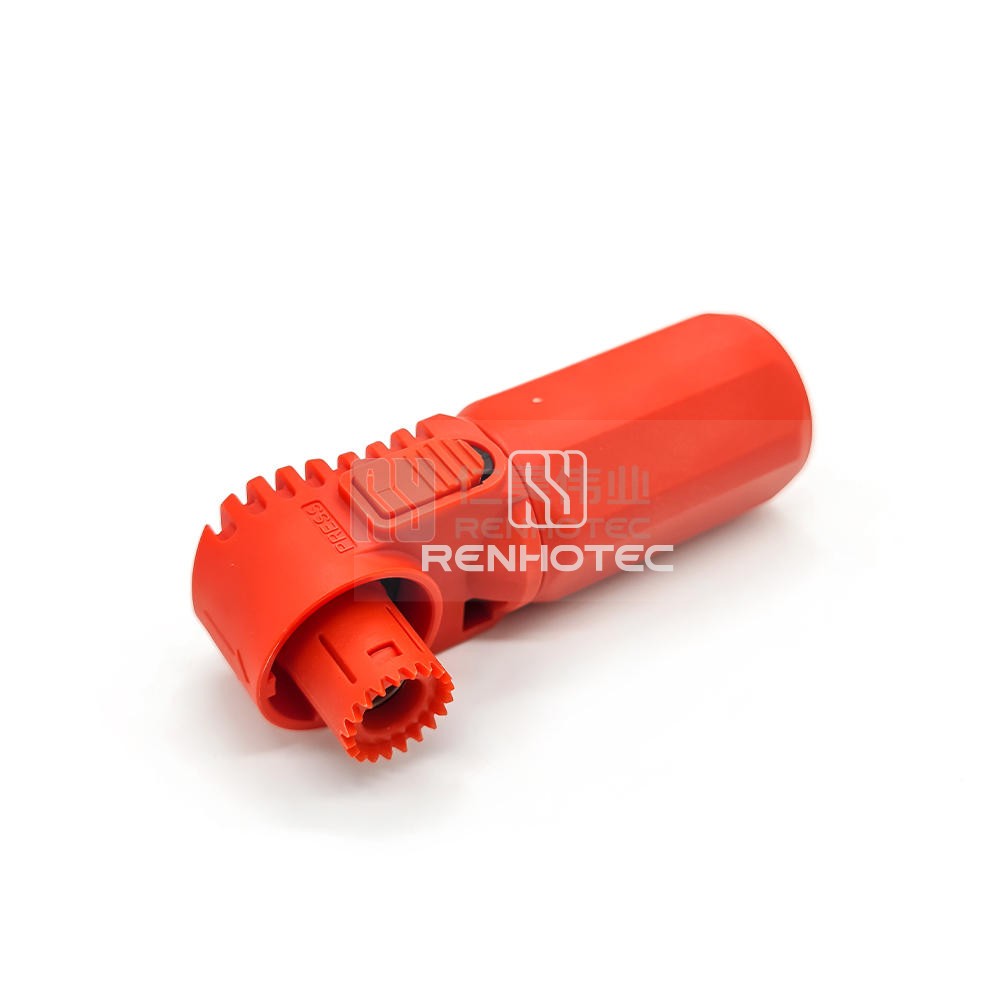

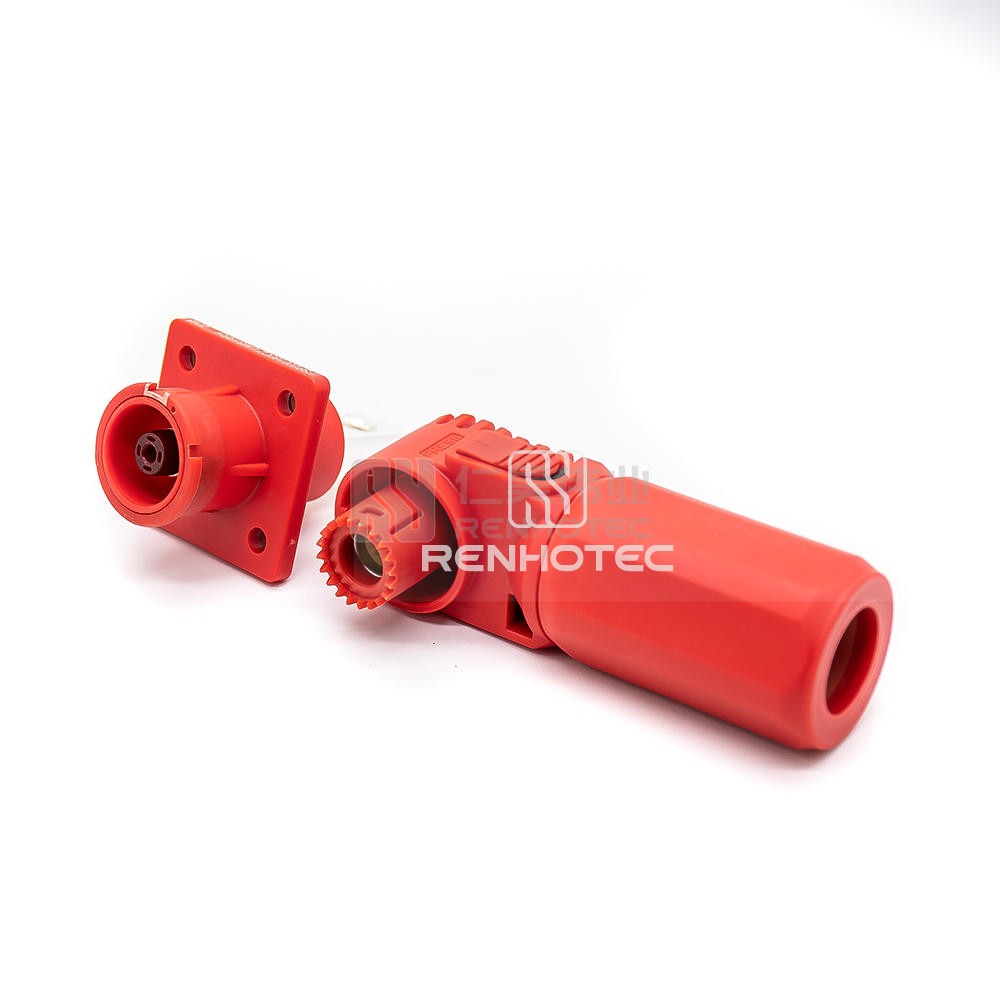

Waterproof Battery Storage Connector Right Angle 250A Red 70mm2 UnShielded Cable Z Key

This waterproof battery storage connector features a right angle design with a high capacity of 250A. The red 70mm2 unshielded cable with Z key ensures secure and reliable connections. Ideal for various applications where durability and performance are essential.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current250A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
