Products > Energy Storage Connector > Waterproof Battery Storage Connector Right Angle 80A Orange 16mm² UnShielded Cable W Key

FSP840101TW-16U0HRH
Waterproof Battery Storage Connector Right Angle 80A Orange 16mm² UnShielded Cable W Key

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

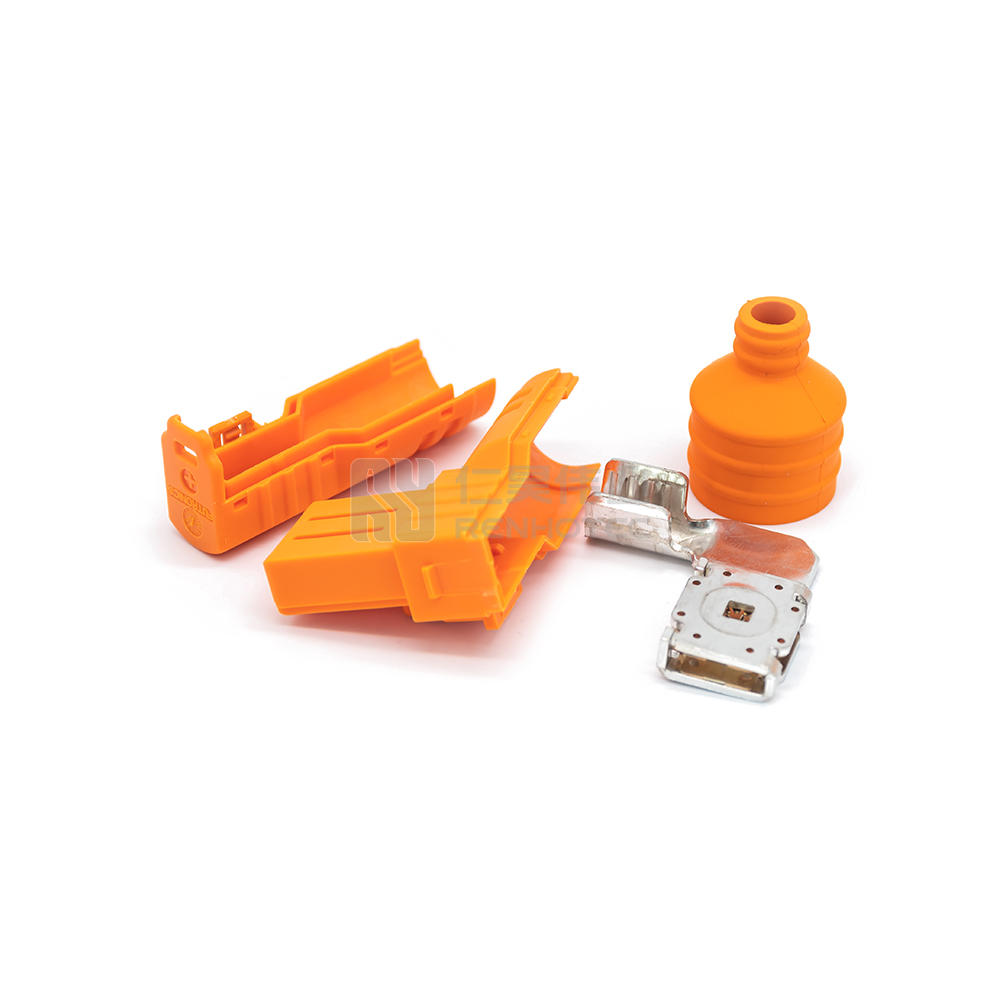

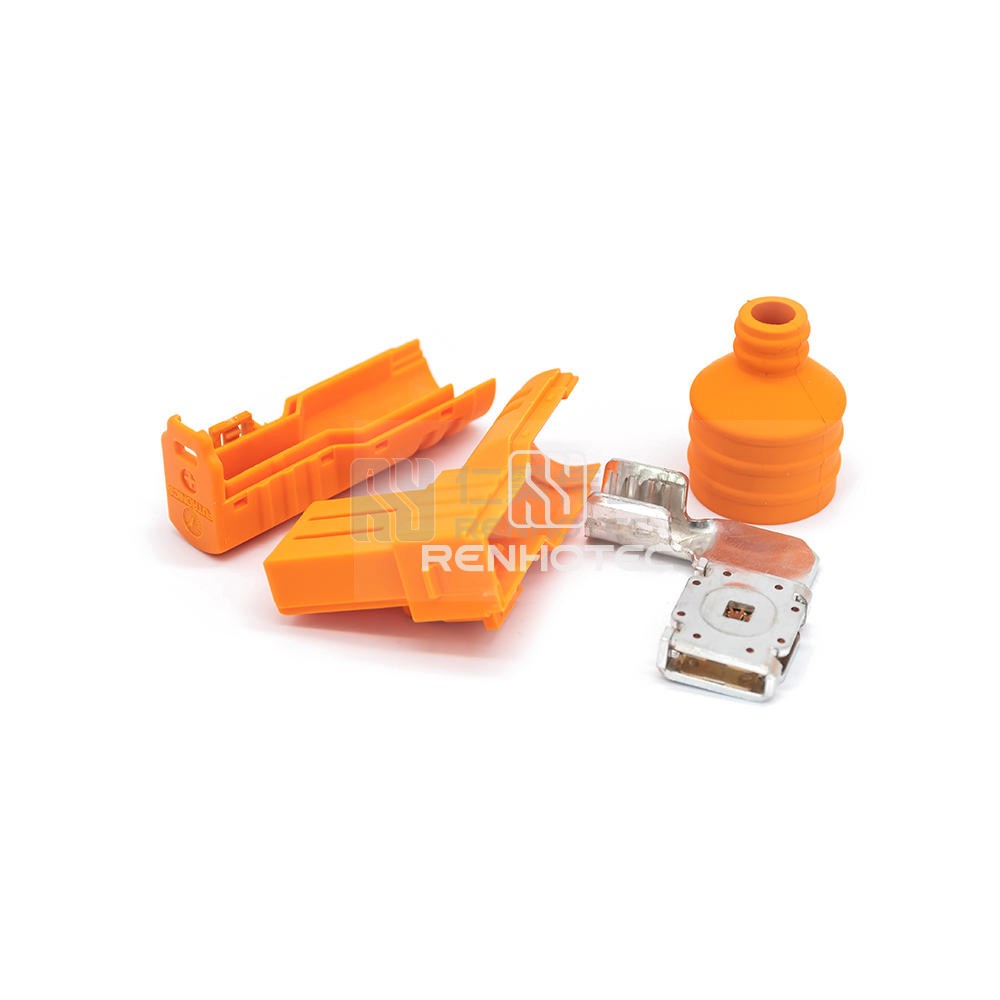

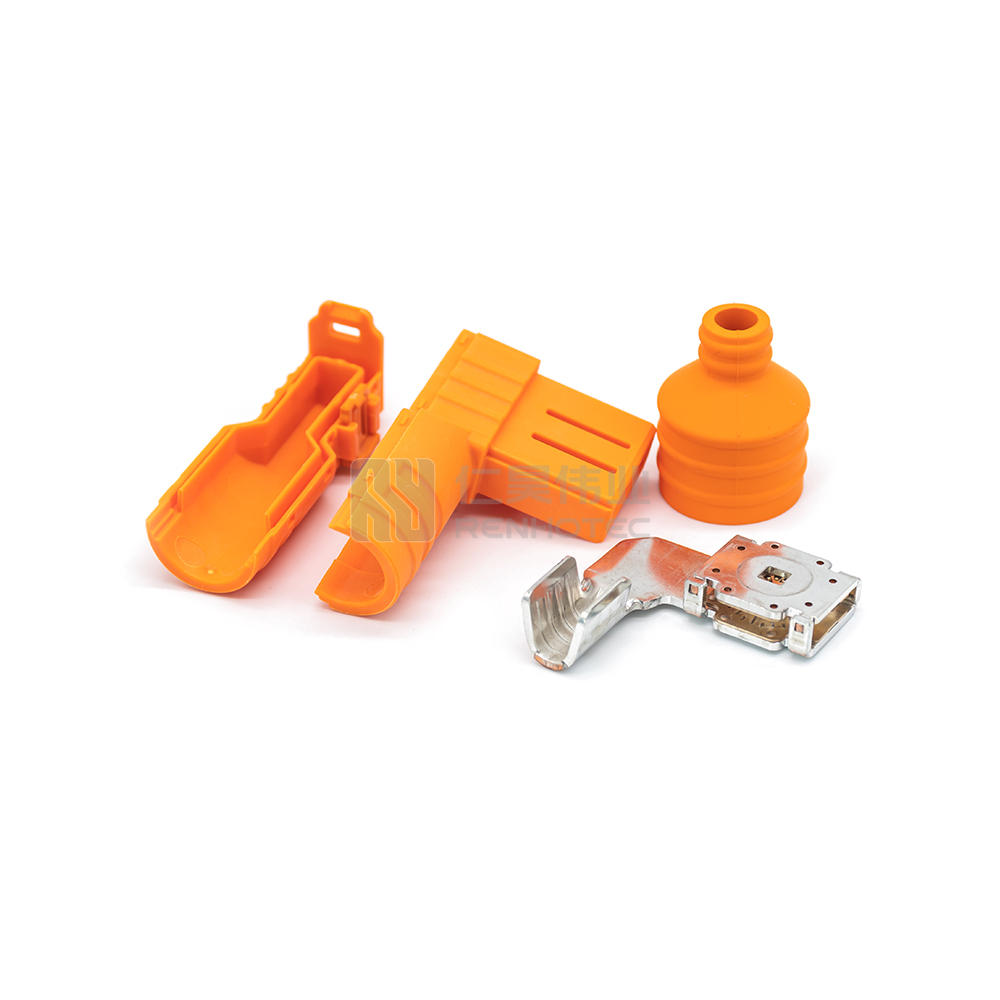

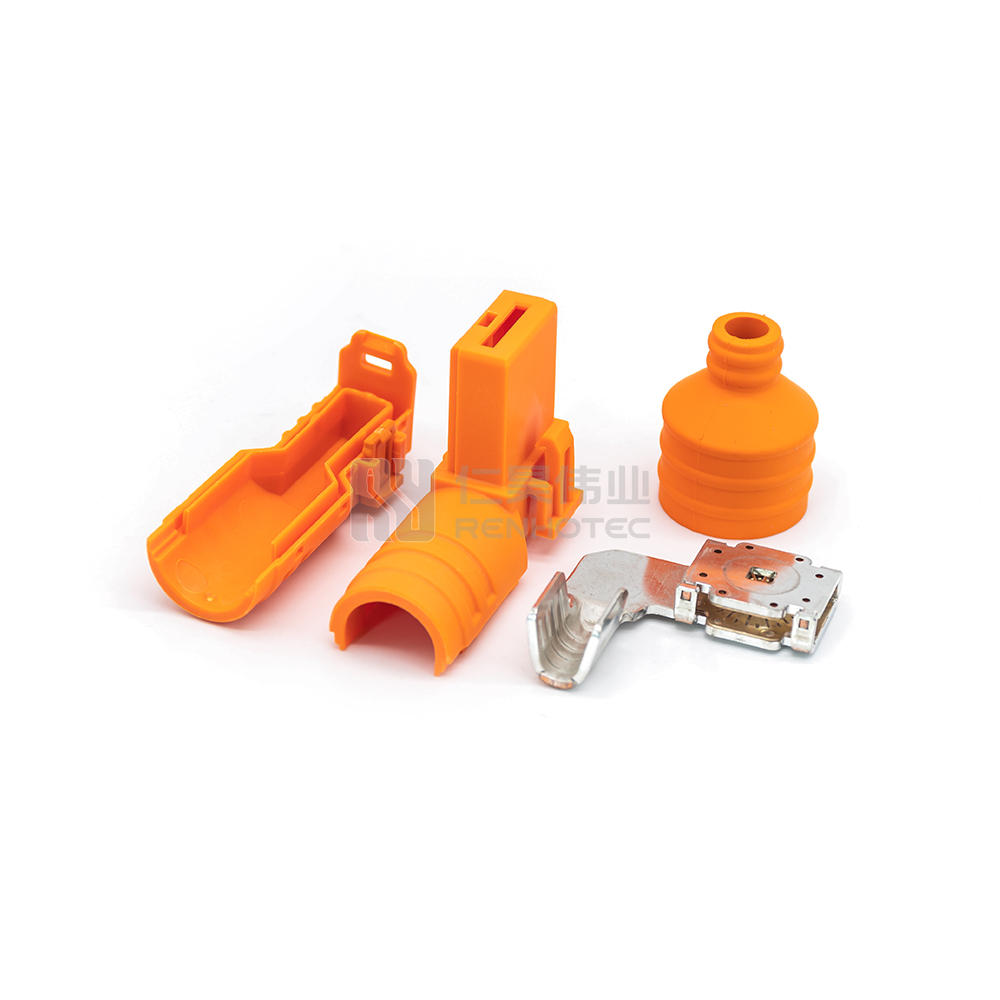

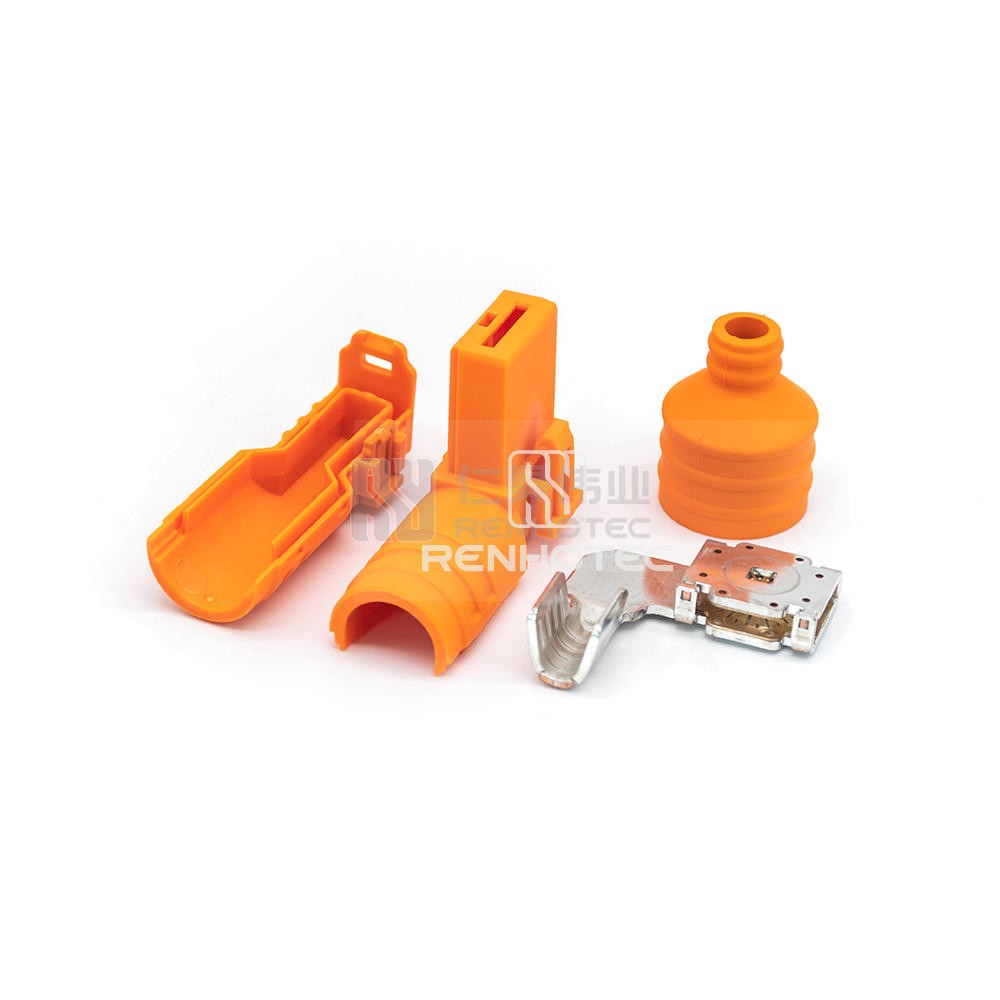

    This waterproof battery storage connector features a right angle design with an 80A capacity. The orange 16mm² unshielded cable ensures reliable power connectivity. Comes with a key for added security.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact TerminationCrimp
    KeyW
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current80A
    ShieldingUnshielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range16mm²

    Material

    Shell MaterialPA66
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP20
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
