FSPC80160W-16BRH

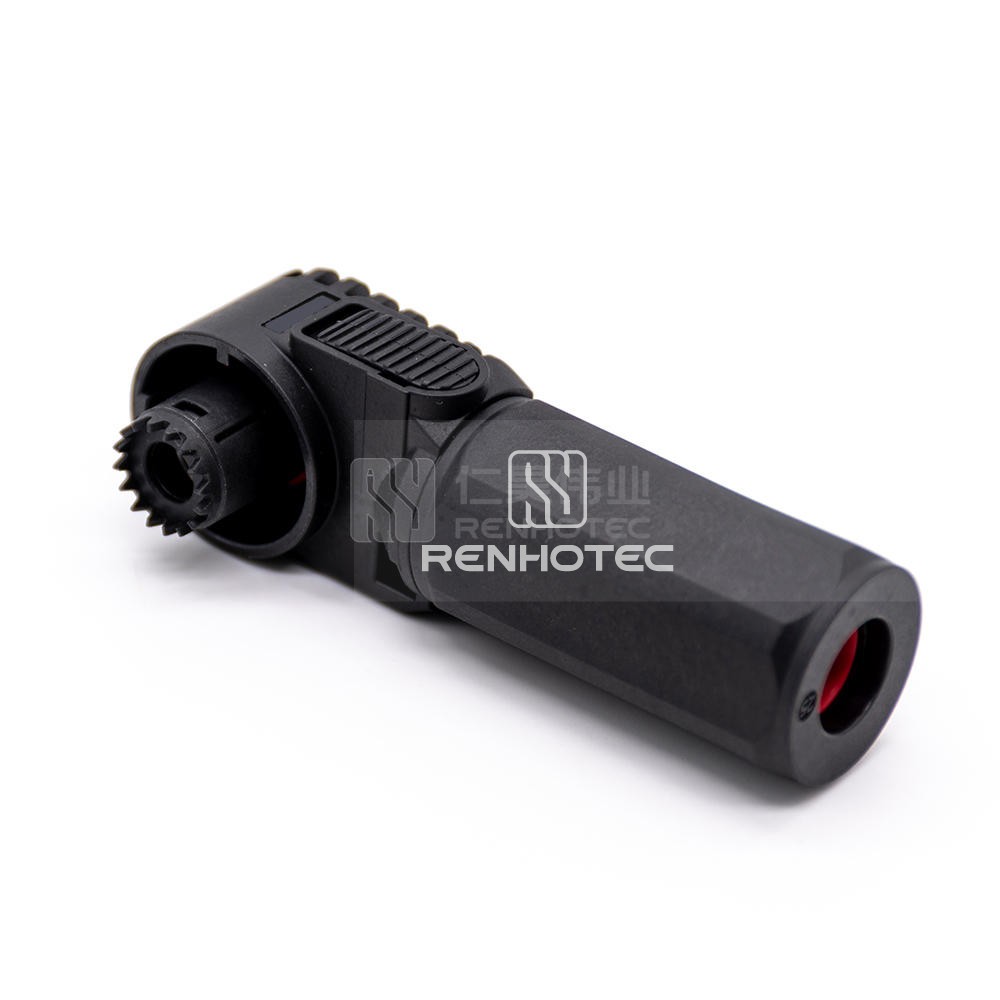

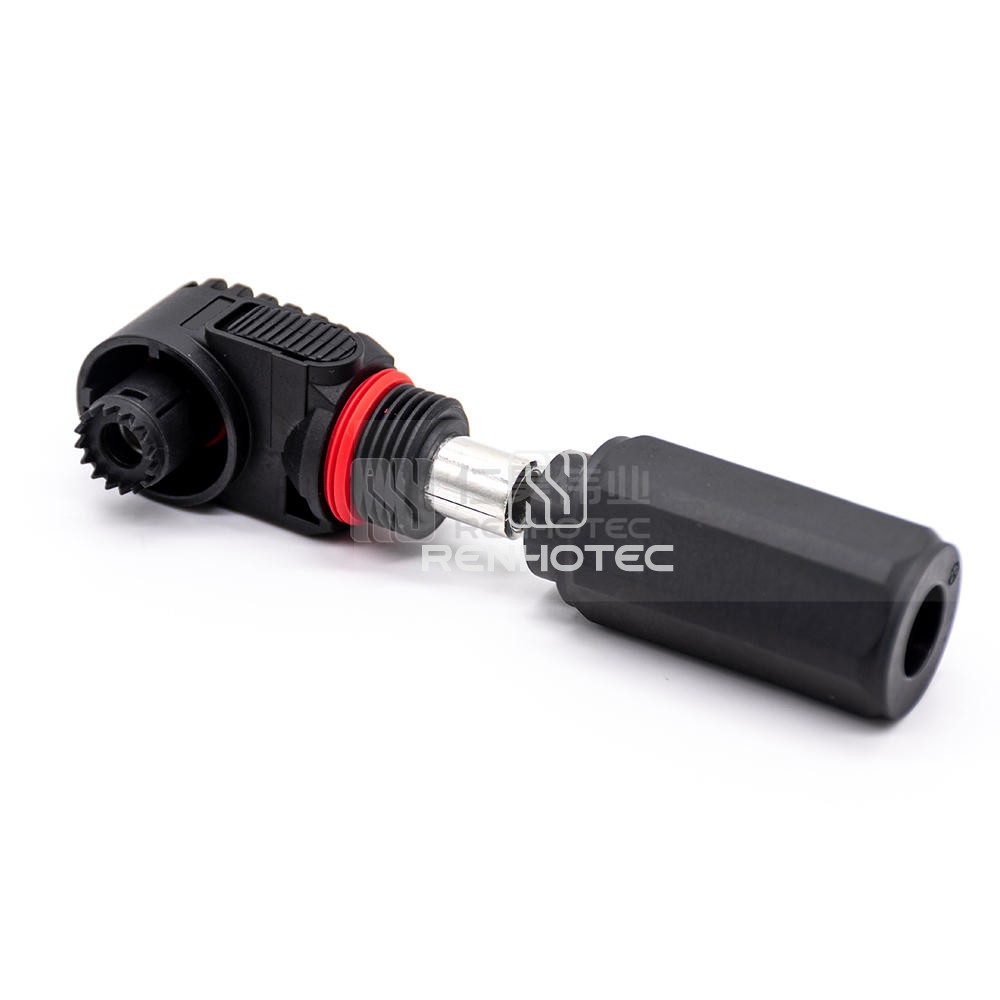

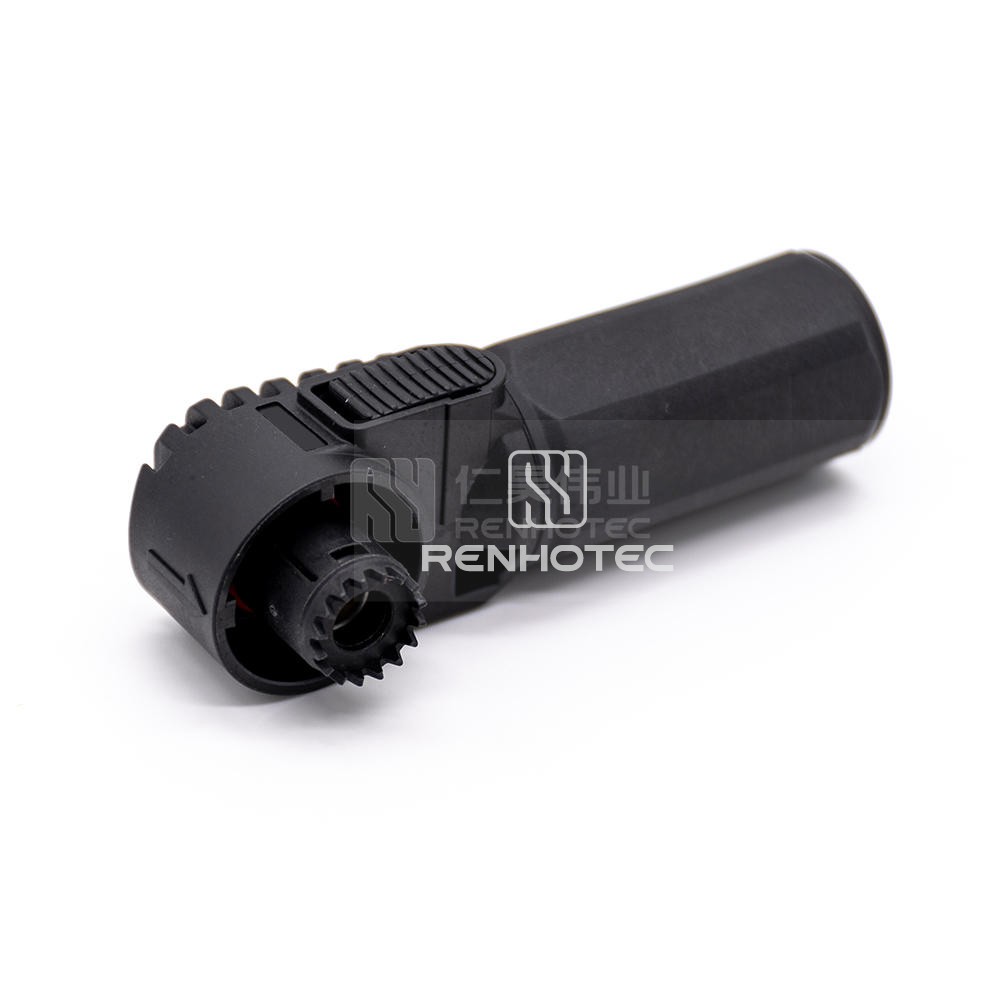

Waterproof Battery Storage Connector Right Angled 80A Black 16mm² Unshielded Cable W Key

Securely connect your battery with this waterproof right-angled connector featuring 80A capacity. Made for 16mm² unshielded cables, it provides a reliable connection with added convenience of a key.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyW
    ColorBlack

    Electrical

    Rated Voltage600V
    Rated Current80A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range16mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
