Products > Energy Storage Connector > Waterproof Battery Storage Connector Straight 120A Orange 25mm² Unshielded Cable Z Key

FSP600180CZ-25U0A2RH

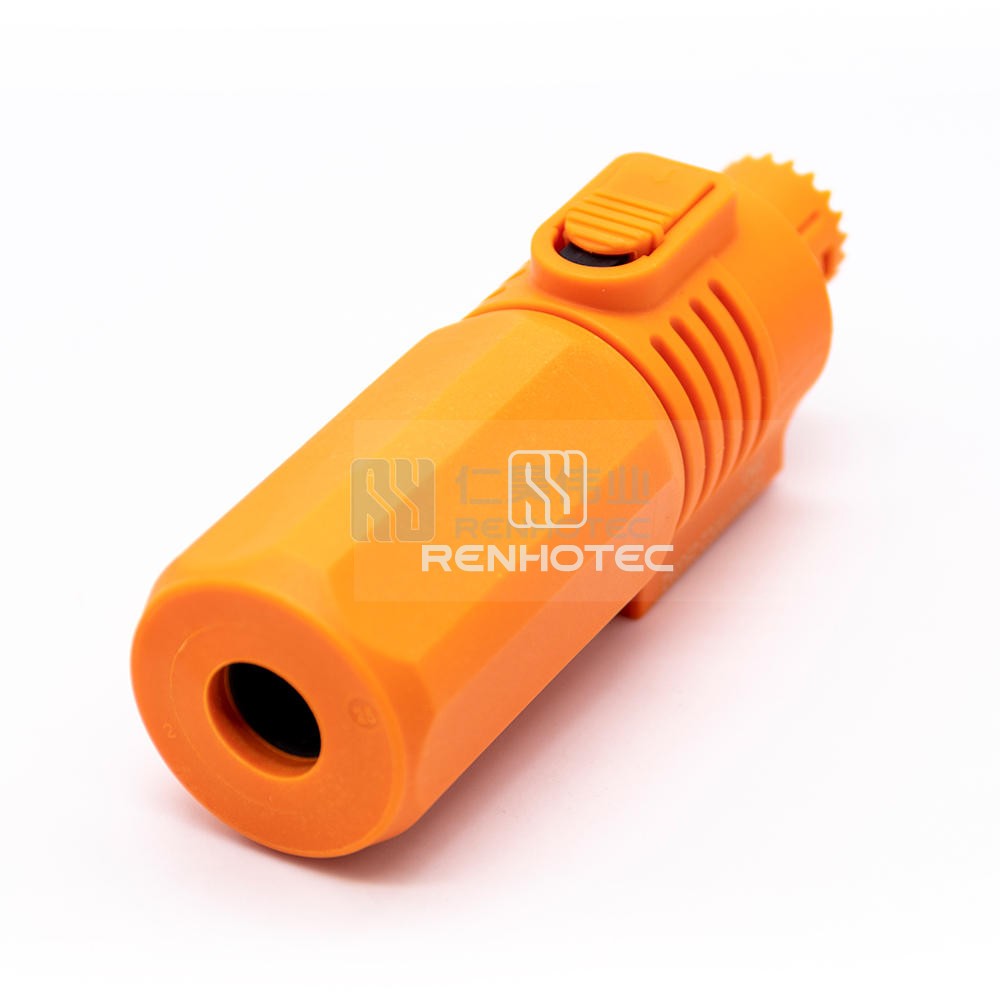

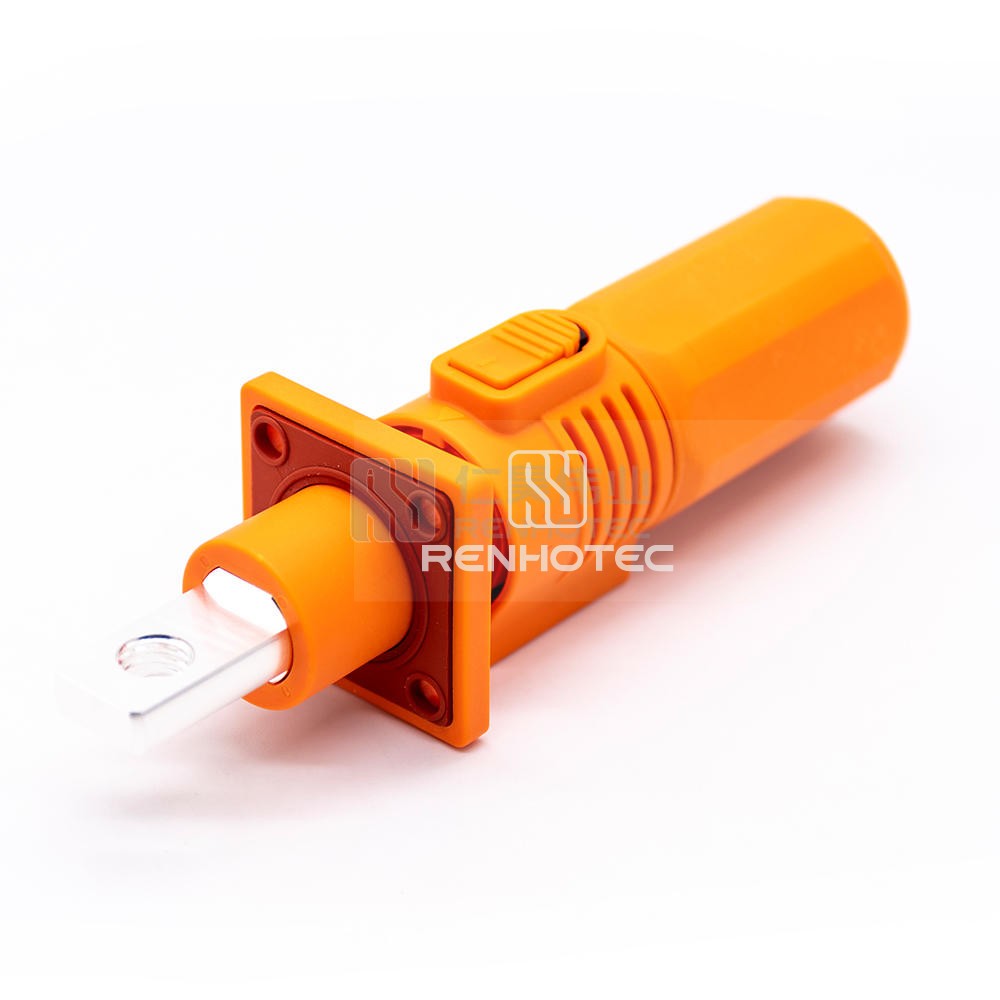

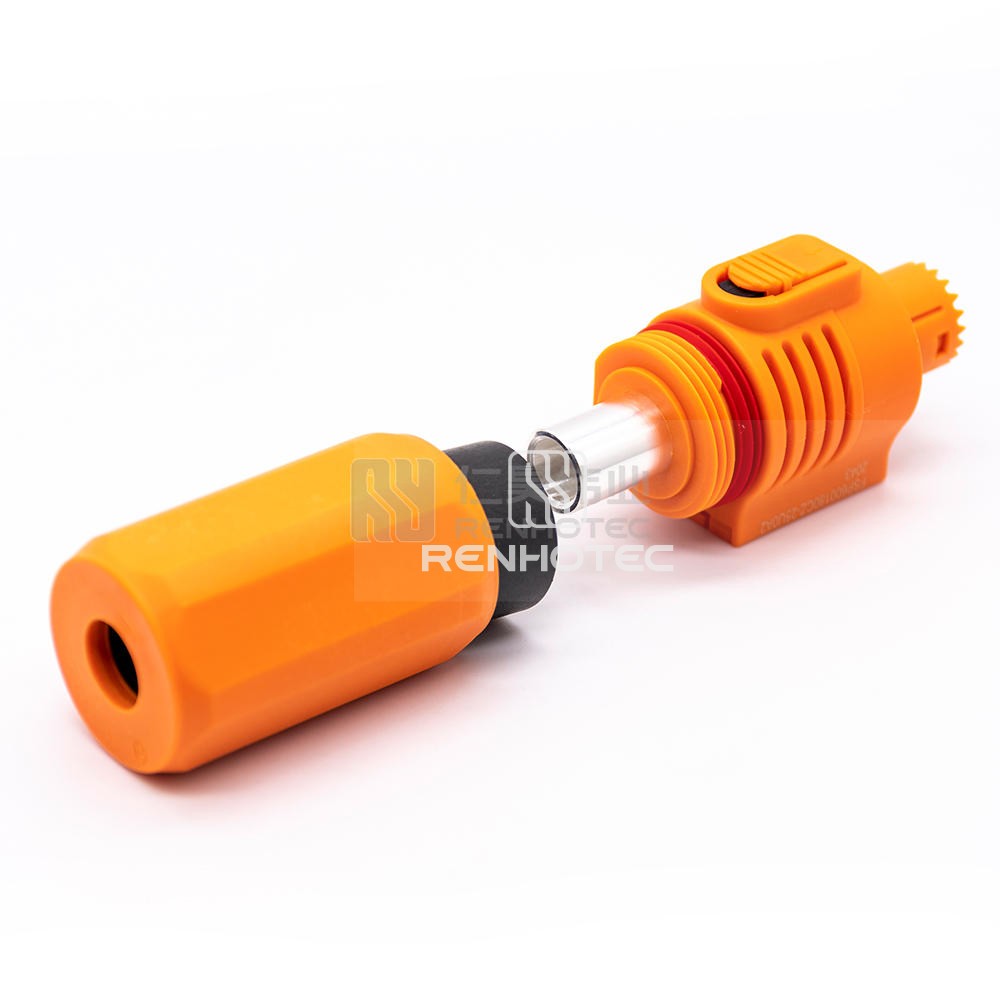

Waterproof Battery Storage Connector Straight 120A Orange 25mm² Unshielded Cable Z Key

This waterproof battery storage connector features a straight design, can handle up to 120A, and comes with an orange 25mm² unshielded cable with a Z Key for easy connections. Convenient and durable for various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyZ
    ColorOrange

    Electrical

    Rated Voltage1000V
    Rated Current120A
    ShieldingUnshielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC Battery Storage Connector Catalog [EN] Download
    RENHOTEC EV Product Catalog [EN] Download
