Products > Energy Storage Connector > 8.0mm Power Entry Connector 200A Receptacle Busbar Teminal(M8 screw) Red

RHT-S008-T01-RD

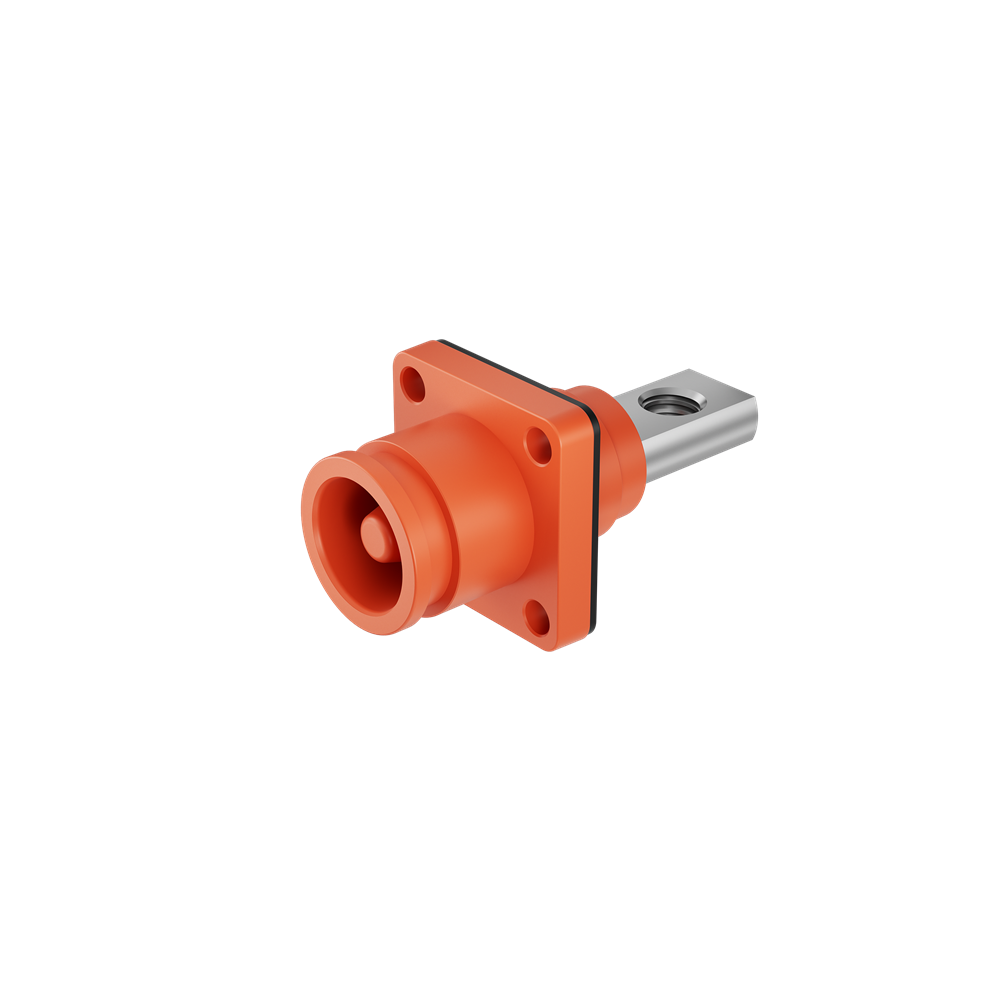

8.0mm Power Entry Connector 200A Receptacle Busbar Teminal(M8 screw) Red

Enhance your electrical connections with this high-quality 8.0mm Power Entry Connector featuring a 200A receptacle, busbar terminal with M8 screw attachment in a vibrant red color. Ensure reliable power distribution and secure connections for your applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Material
    4. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size8mm
    Contact TerminationBusbar
    Mounting TypePanel Mount
    Mounting FeatureFlange
    ColorRed

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingUnshielded

    Material

    Shell MaterialNylon
    Contact MaterialT2
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP54
    Operating Temperature-40°C ~ + 125°C
