M12 4 Pin Female Straight Field Assembly Plug, D Code Screw Contacts PG9 - RHT-634-3371-4D-PG9
M12 4 Pin Female Straight Field Assembly Plug, D Code Screw Contacts PG9 - RHT-634-3371-4D-PG9

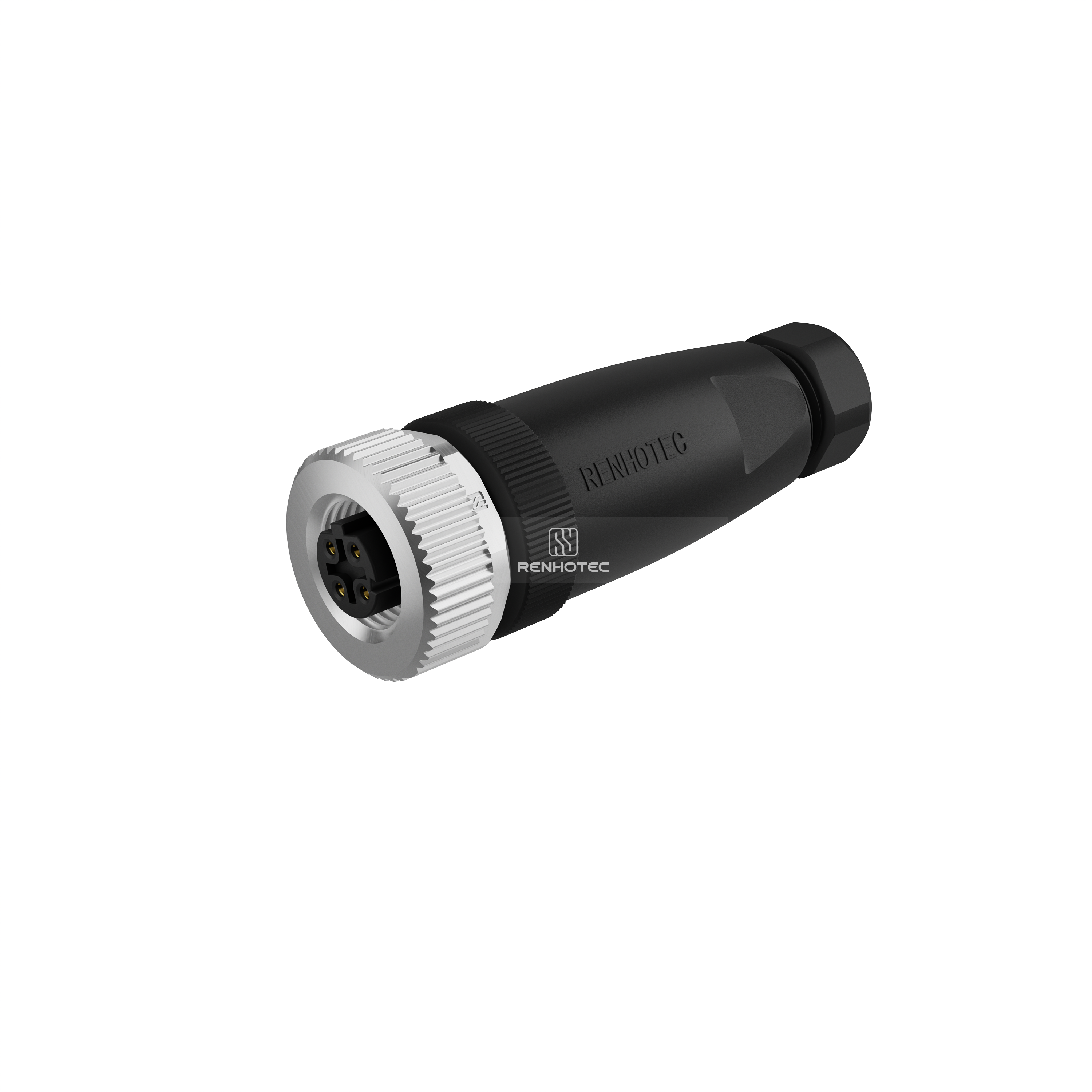

M12 4 Pin Female Straight Field Assembly Plug, D Code Screw Contacts PG9 product image

RHT-634-3371-4D-PG9

M12 4 Pin Female Straight Field Assembly Plug, D Code Screw Contacts PG9

Number of Positions:

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypePlug
Number of Positions4
Contact TypeFemale Pin
KeyD
OrientationStraight
Shell SizeM12
Mounting TypeCable Type
Fastening TypeThreaded
Contact TerminationOuter Screw
Materials
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishGold
Electrical
Rated Voltage250V
Rated Current4A
ShieldingUnshielded
Environmental
Ingress ProtectionIP67
Operating Temperature-25°C ~ + 85°C
