Products > Sensor Connector > M12 Series > M12 A Coded > M12 6 Pin Male Right Angle Panel Mount Receptacle, A Code Front Fastened, PCB M15 ,Nylon Shell
M12 6 Pin Male Right Angle Panel Mount Receptacle, A Code Front Fastened, PCB M15 ,Nylon Shell - RHT-634-3515-06
M12 6 Pin Male Right Angle Panel Mount Receptacle, A Code Front Fastened, PCB M15 ,Nylon Shell - RHT-634-3515-06

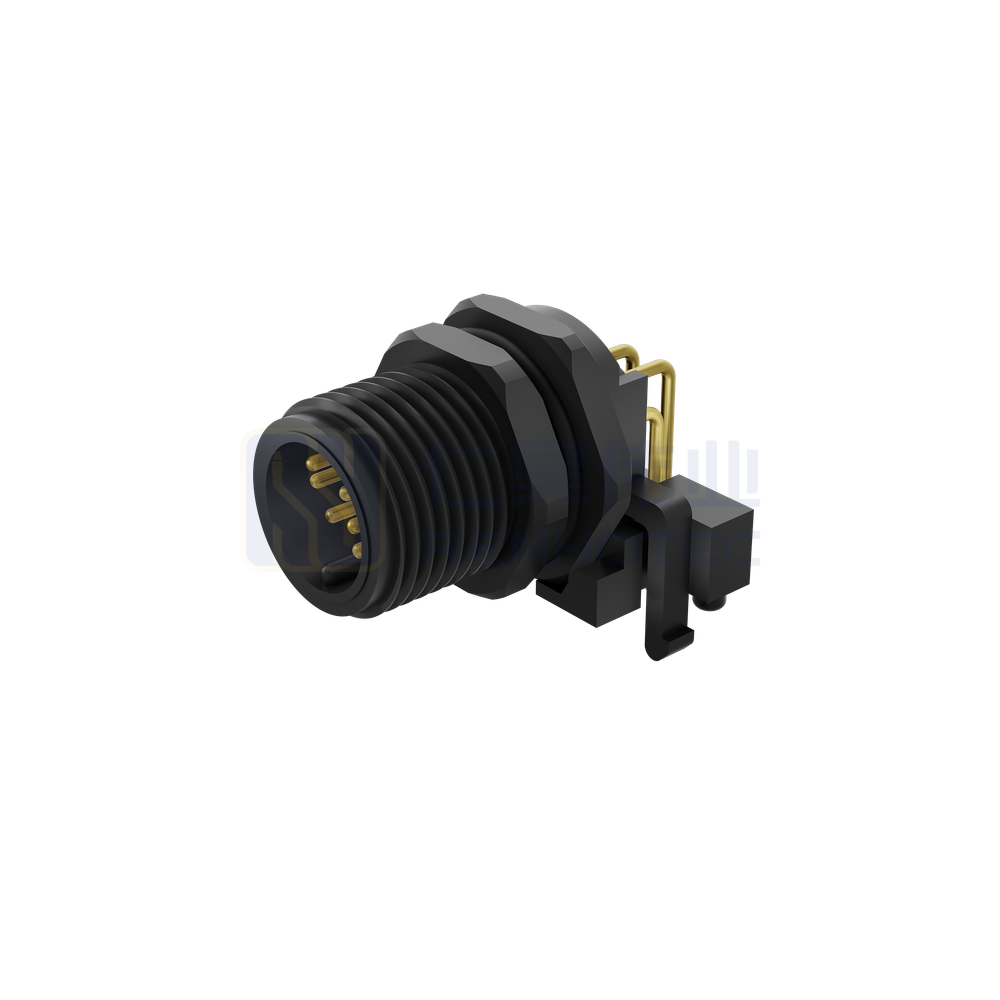

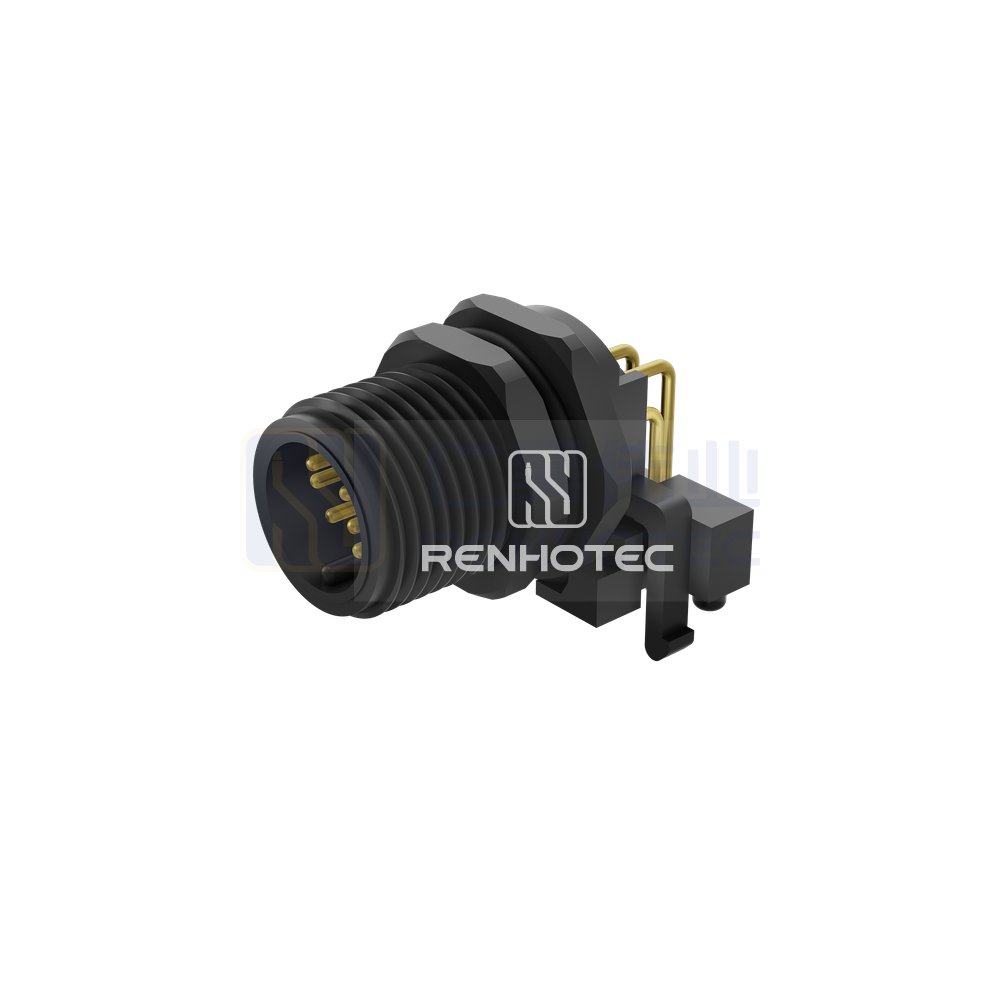

M12 6 Pin Male Right Angle Panel Mount Receptacle, A Code Front Fastened, PCB M15 ,Nylon Shell product image

RHT-634-3515-06

M12 6 Pin Male Right Angle Panel Mount Receptacle, A Code Front Fastened, PCB M15 ,Nylon Shell

Number of Positions:

2344D55B681217

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypeReceptacle
    Number of Positions6
    Contact TypeMale Pin
    KeyA
    OrientationStraight
    Shell SizeM12
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Front Fastened
    Fastening TypeThreaded
    Contact TerminationThrough Hole
    Materials
    Shell MaterialNylon
    Contact MaterialCopper Alloy
    Contact FinishGold
    Electrical
    Rated Voltage30V
    Rated Current2A
    ShieldingUnshielded
    Environmental
    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Product certification

    ×

    Product excerpt

    Certification

    Renhotec REACH Test Report Download

    Catelog

    RENHOTEC M-Series Connector Catalog [EN][CN] Download
