Sensor Connector > M16 Series > M16 12 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder Cup

M16 12 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder Cup - RHT-634-3084-12

M16 12 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder Cup product image

RHT-634-3084-12

M16 12 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder Cup

Name: M16 12 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder Cup
Brand: Renhotec
SKU: RHT-634-3084-12

Number of Positions:

2 3 4 5 7 8 12 14 16 19 24

Get a Quote

Technical data
Overview
Certification
Download

General Materials Electrical Environmental

General
Connector Type	Receptacle
Number of Positions	12
Contact Type	Female Pin
Key	A
Orientation	Straight
Shell Size	M16
Mounting Type	Panel Mount
Fastening Type	Threaded
Contact Termination	Solder Cup

Materials
Shell Material	Copper Alloy
Shell Finish	Zinc Plated
Contact Material	Copper Alloy
Contact Finish	Gold

Electrical
Rated Voltage	60V
Rated Current	3A
Shielding	Unshielded

Environmental
Ingress Protection	IP67
Operating Temperature	-25°C ~ + 85°C

Product certification

Product excerpt

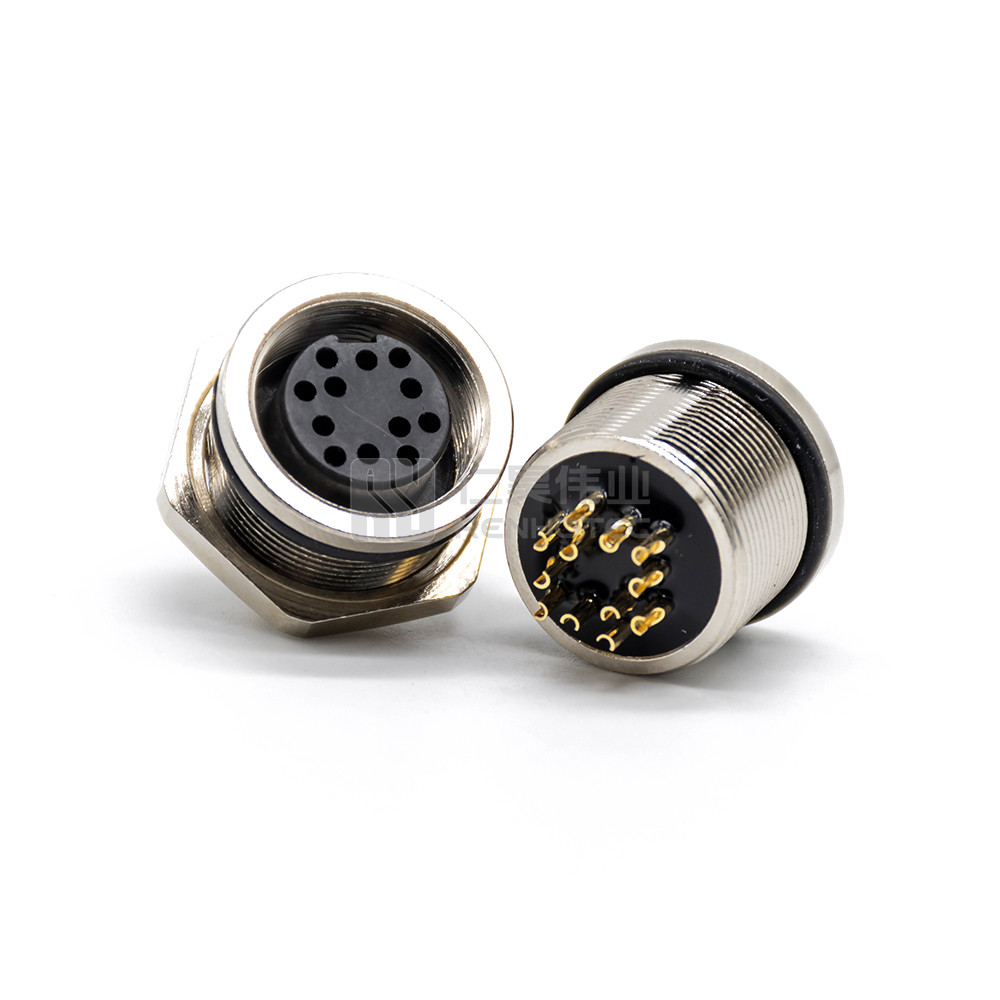

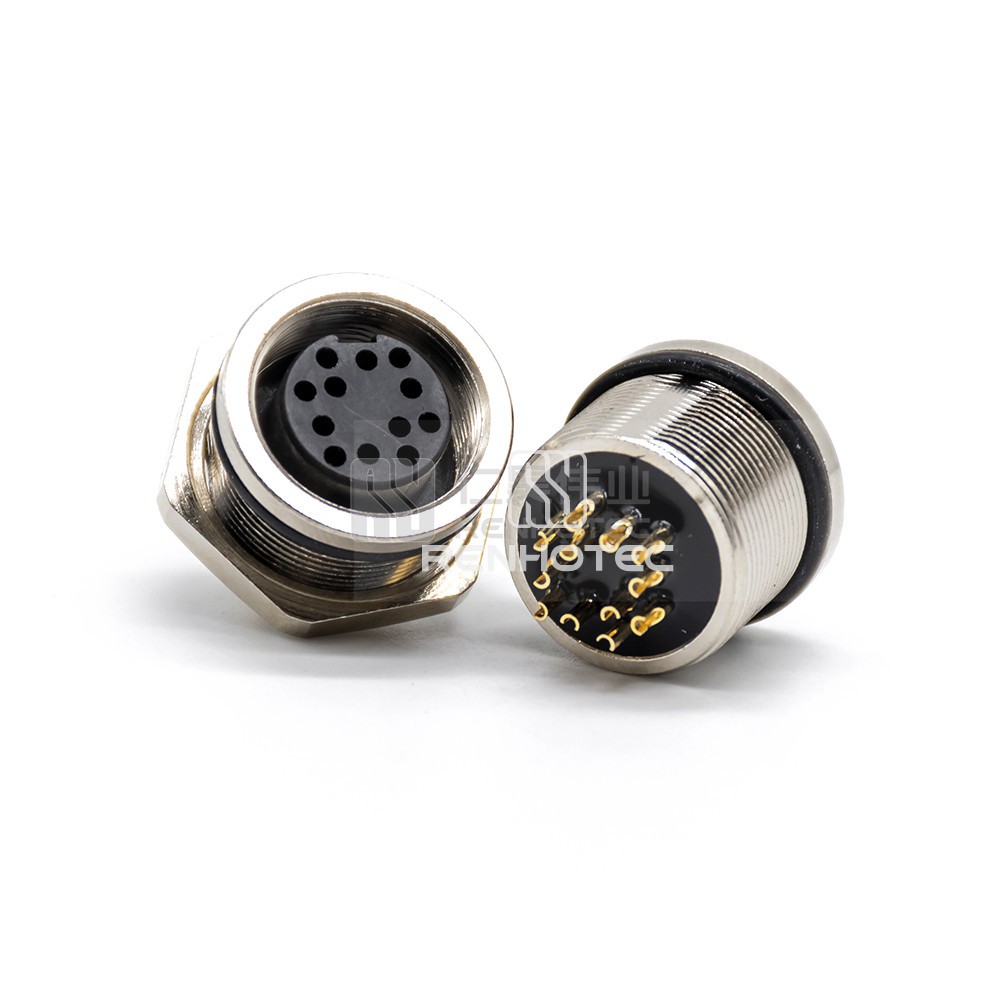

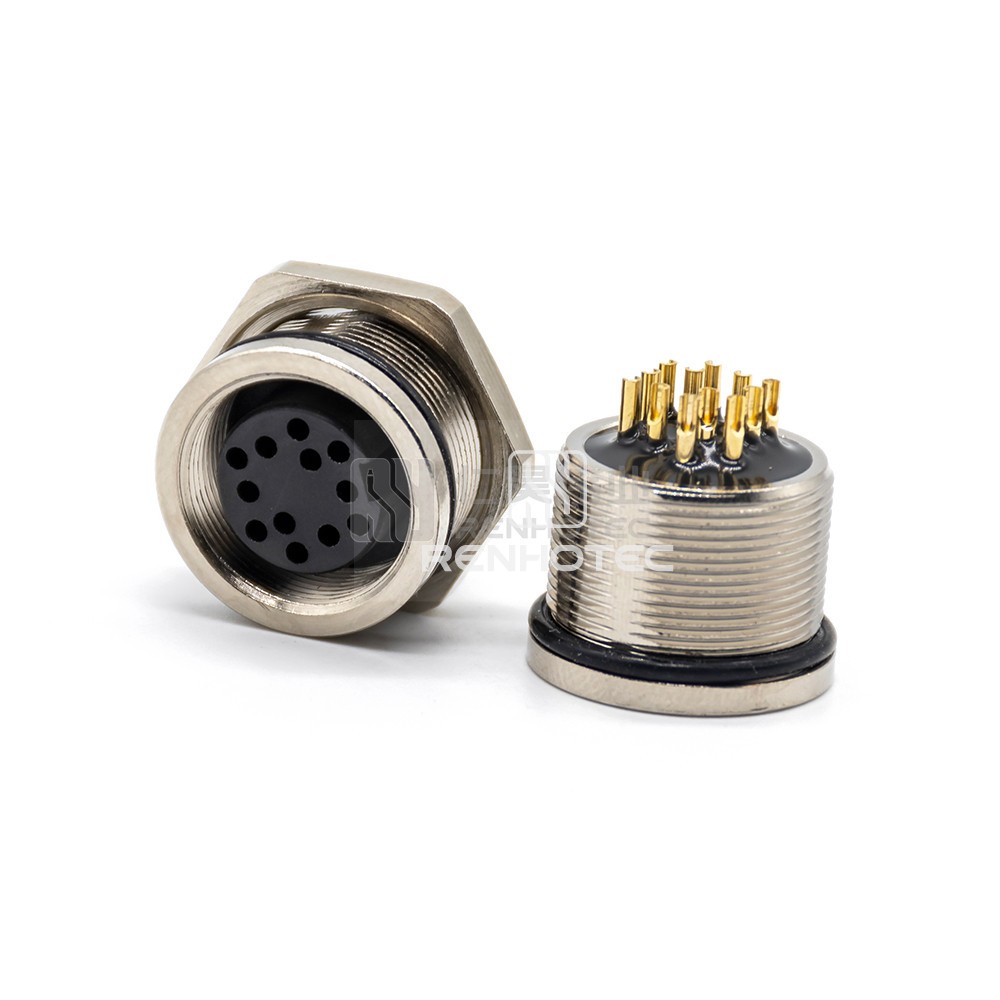

This M16 female panel mounting socket features 12Pos A code front fastened straight solder connections. Ideal for secure and reliable electrical connections in various applications.
