RK-12-S-02-R-0

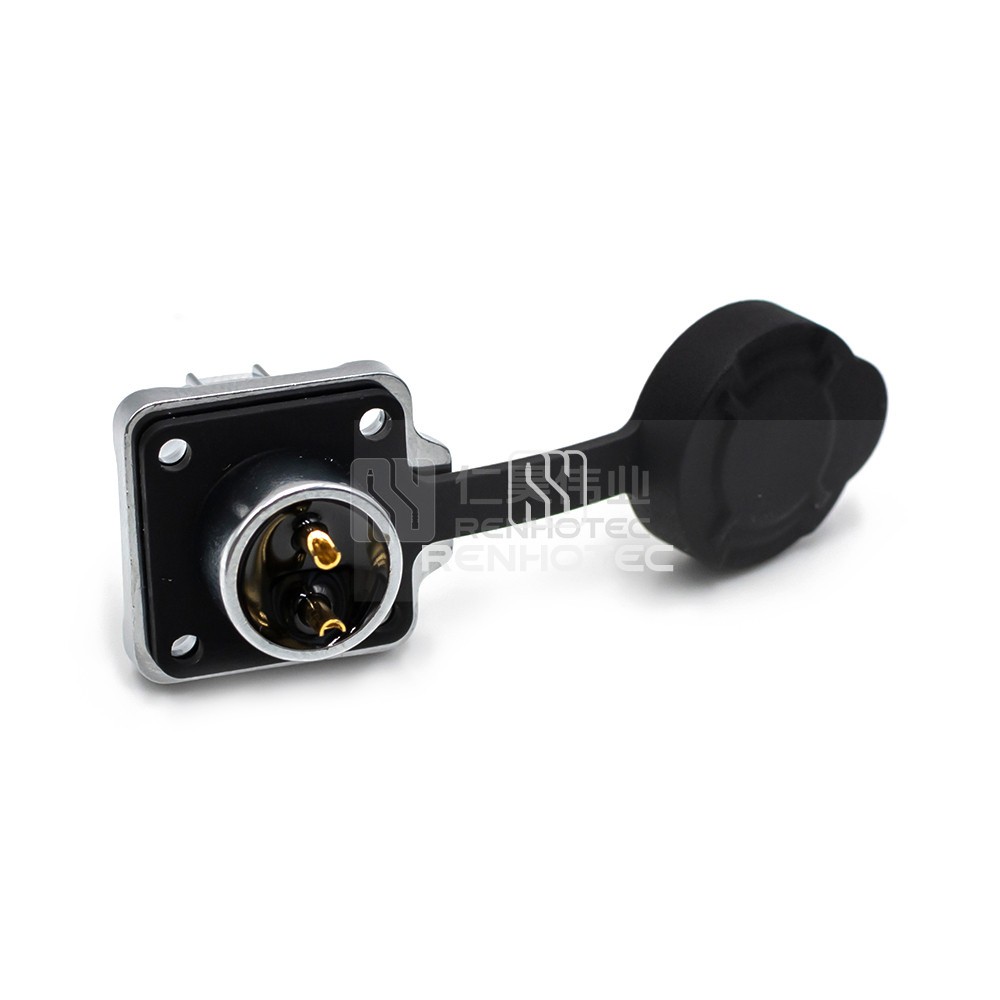

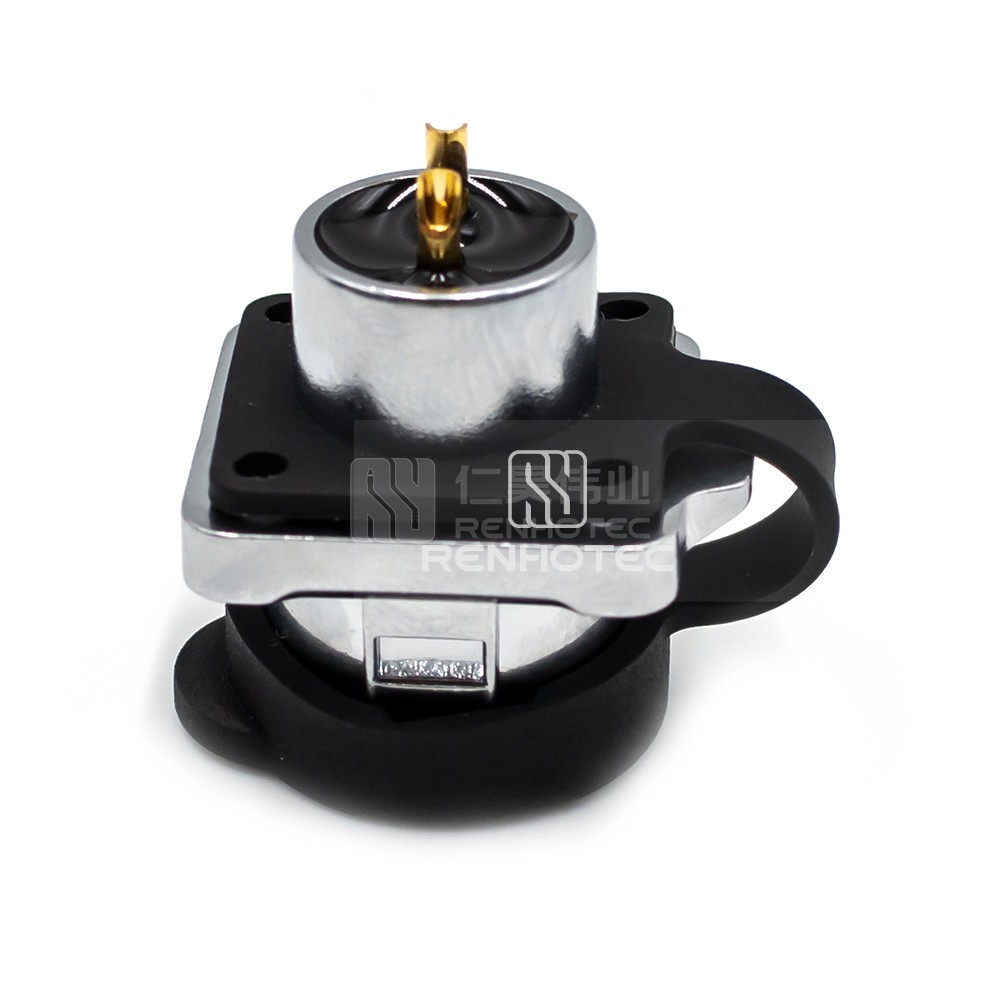

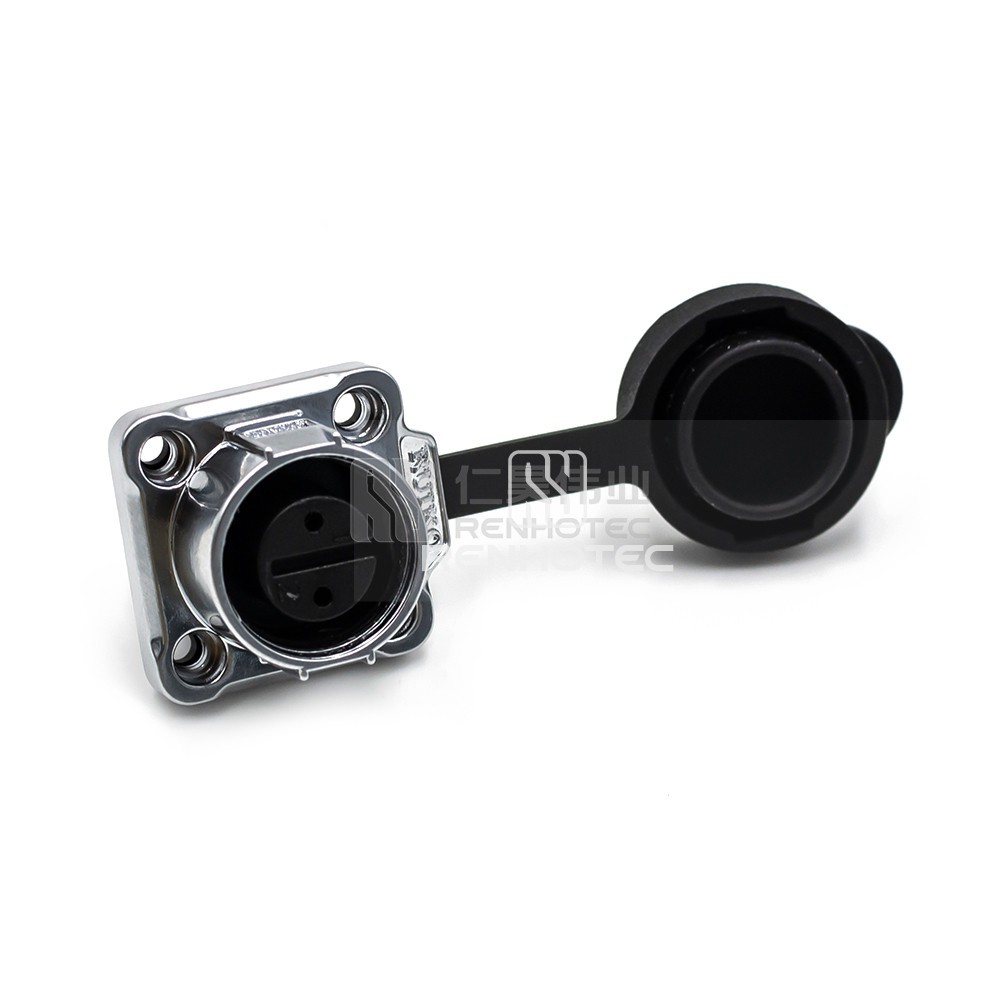

12 Series Power Waterproof Connector Formal 2 Pin Receptacle

This 12 Series Power Waterproof Connector Formal 2 Pin Receptacle is designed for reliable and secure power connections in various applications. The waterproof design ensures protection against water and moisture, making it ideal for outdoor use.

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 6
  6. 7
  7. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions2
    Fastening TypePush-Pull
    Mounting TypePanel Mount
    Contact TerminationSolder

    Mechanical

    Wire Gauge or Range22-20AWG/0.3mm²-0.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage250V
    Rated Current5A

    Environmental

    Operating Temperature-40°C ~ + 80°C
