12 Series Power Waterproof Connector Formal 4 Pin Receptacle - RK-12-S-04-R-0
12 Series Power Waterproof Connector Formal 4 Pin Receptacle - RK-12-S-04-R-0

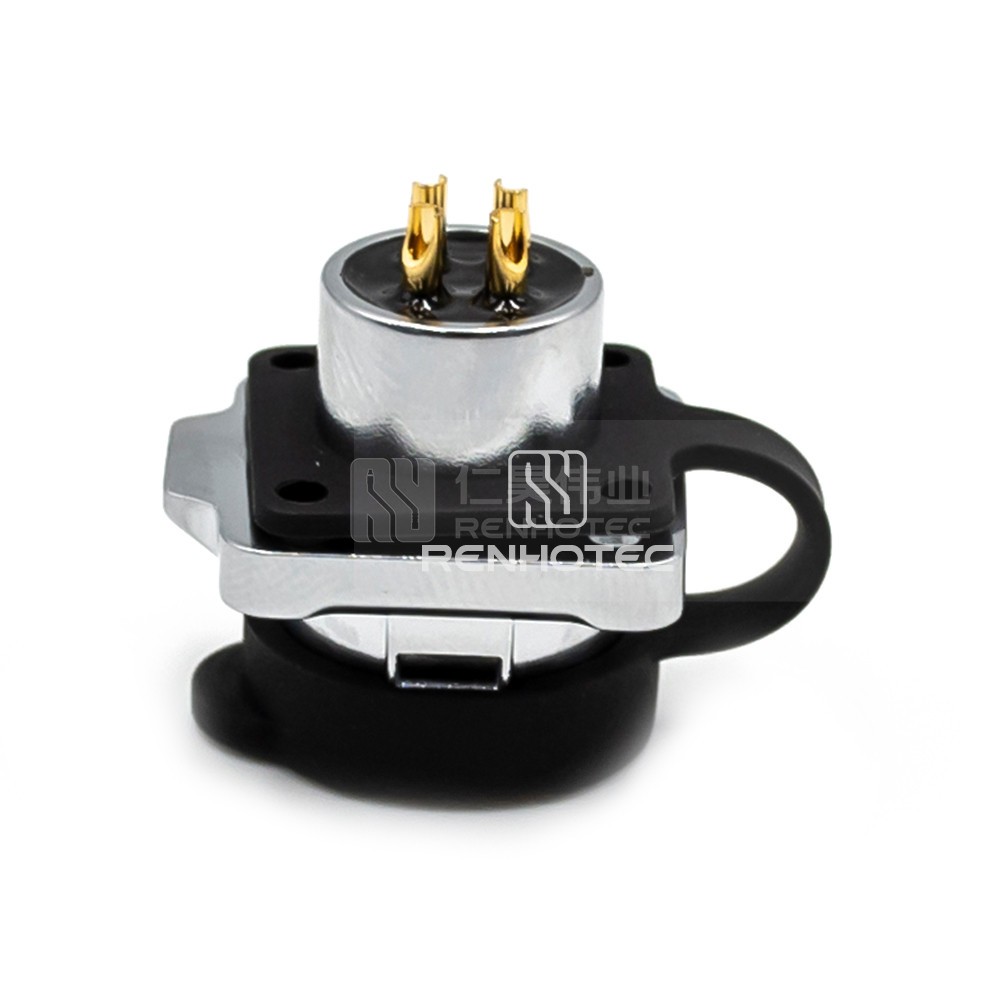

12 Series Power Waterproof Connector Formal 4 Pin Receptacle product image

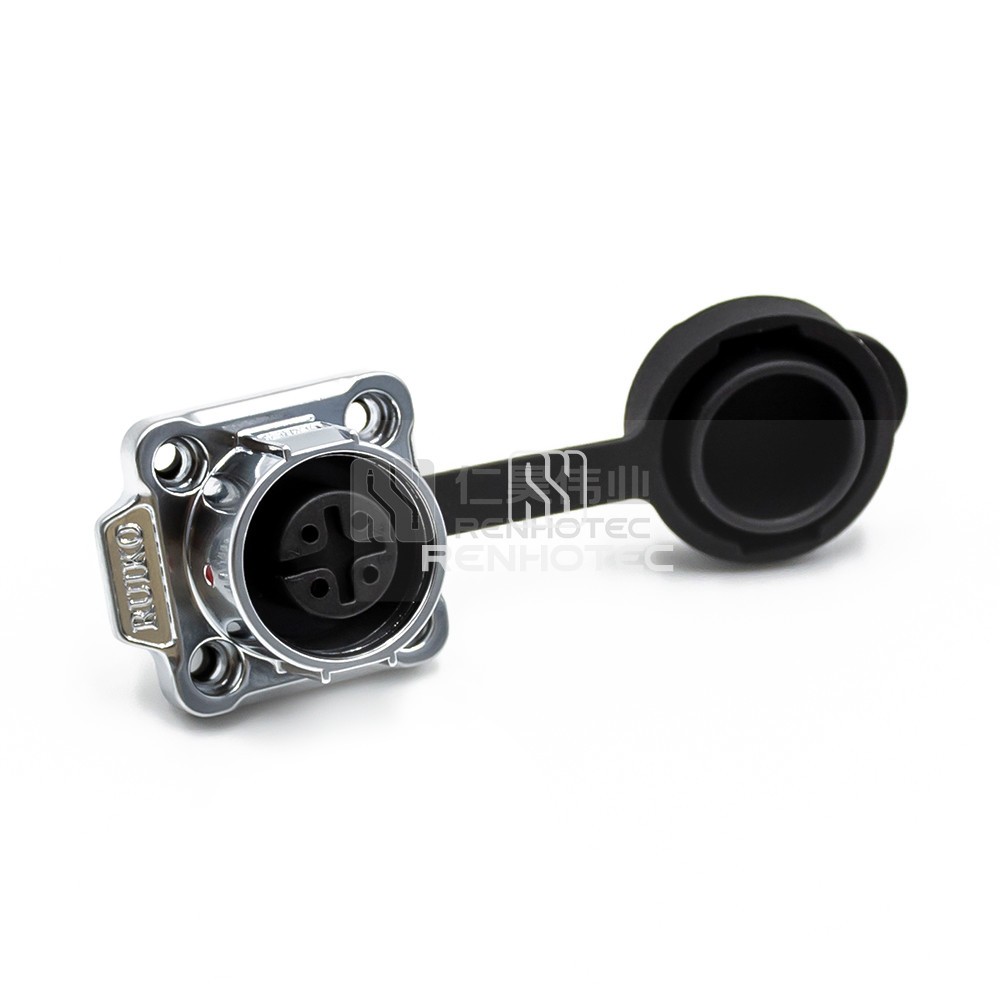

12 Series Power Waterproof Connector Formal 4 Pin Receptacle product image

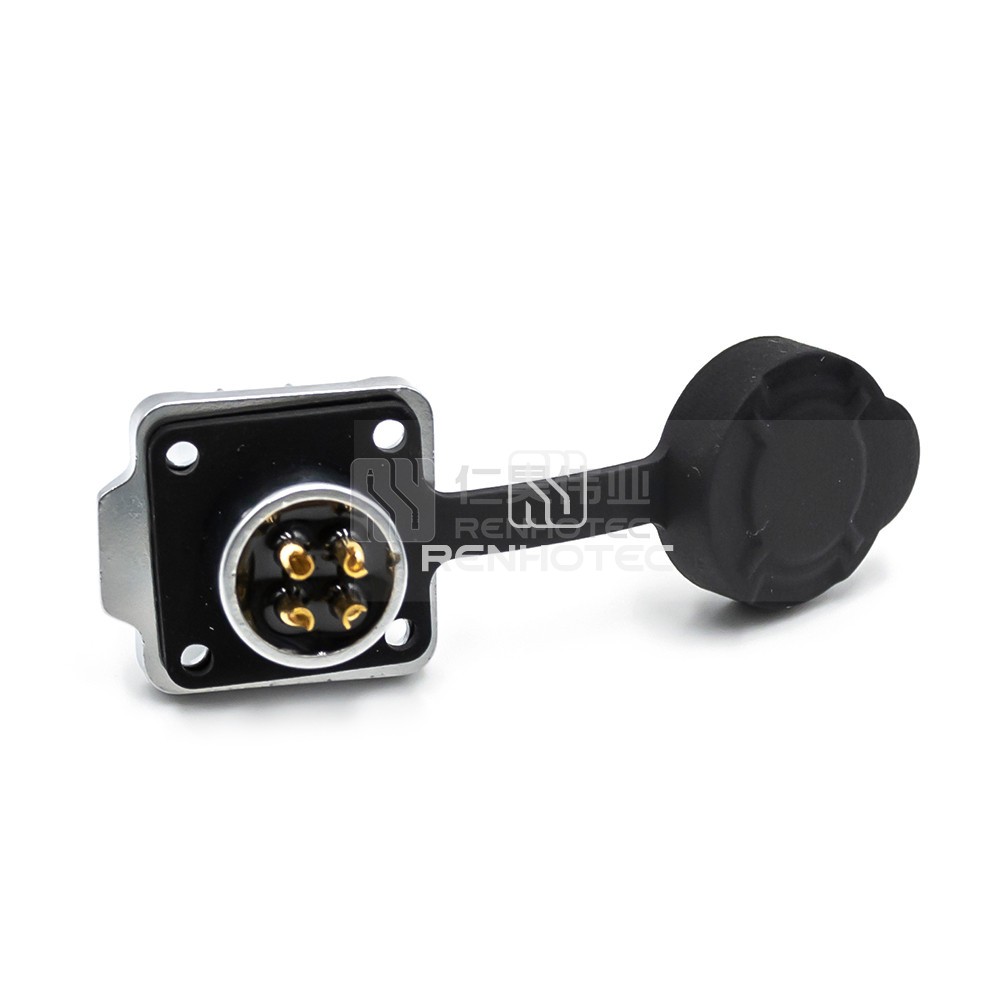

12 Series Power Waterproof Connector Formal 4 Pin Receptacle product image

RK-12-S-04-R-0

12 Series Power Waterproof Connector Formal 4 Pin Receptacle

Number of Positions:

2345678

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypeReceptacle
    Number of Positions4
    Contact TypeFemale Pin
    OrientationStraight
    Mounting TypePanel Mount
    Fastening TypePush-Pull
    Contact TerminationSolder
    Wire Gauge or Range0.3mm²-0.5mm²/22-20AWG
    Materials
    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Insulating MaterialPA66
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Electrical
    Rated Voltage250V
    Rated Current5A
    Environmental
    Operating Temperature-40°C ~ + 80°C

    Product excerpt

    Get reliable power connection with this 12 Series waterproof connector receptacle featuring 4 pins. Perfect for formal applications.
