RK-12-S-08-R-0

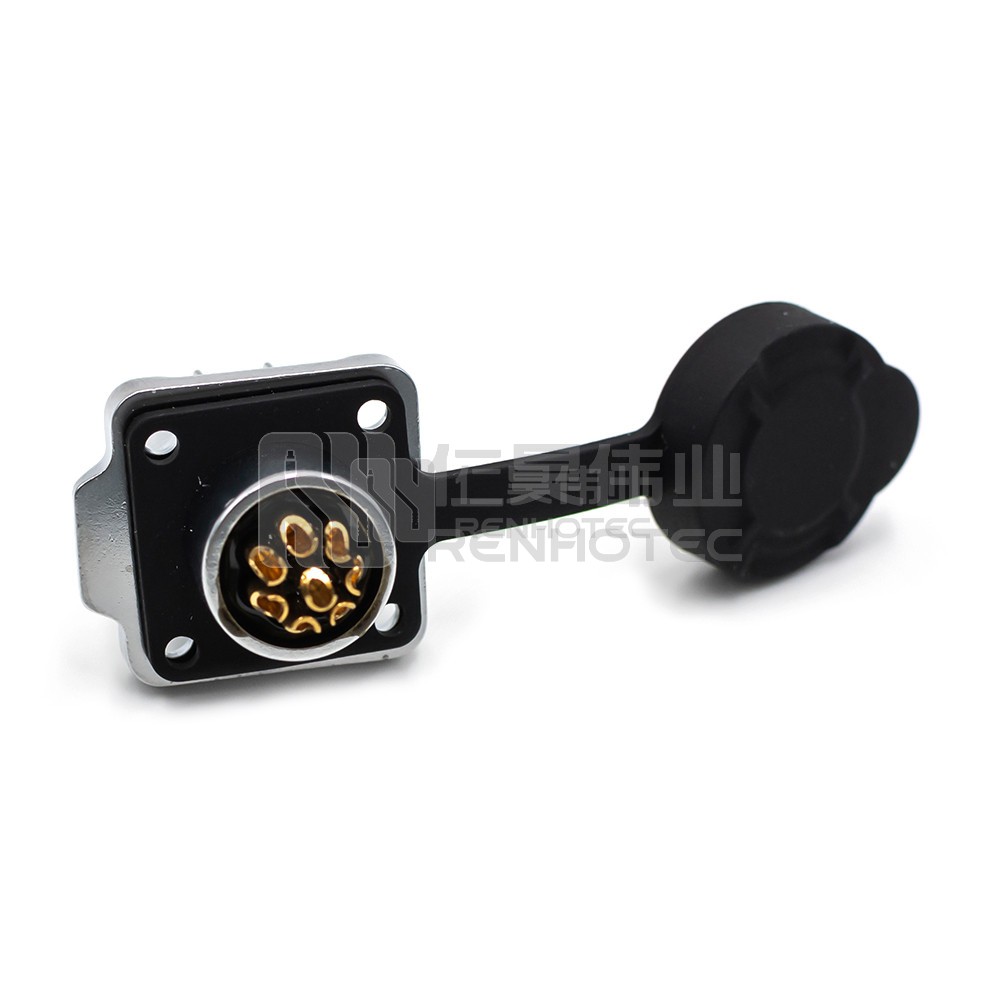

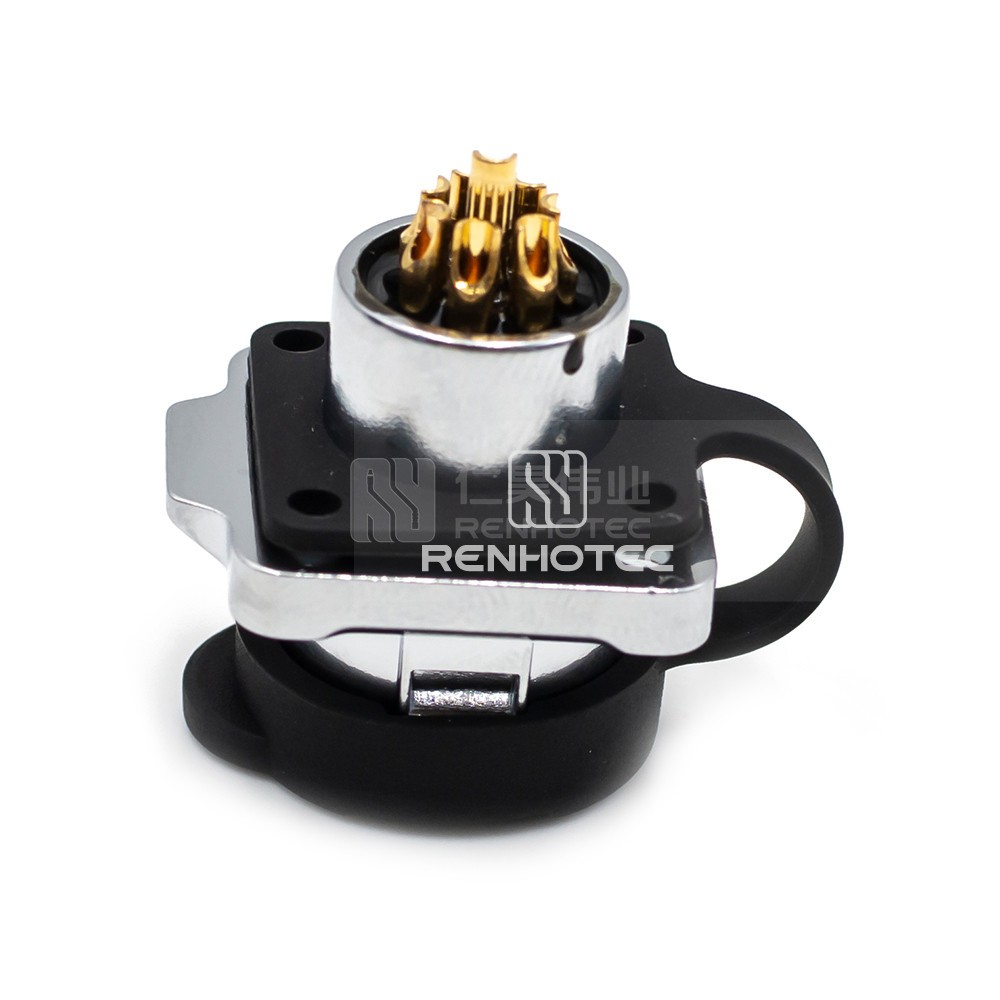

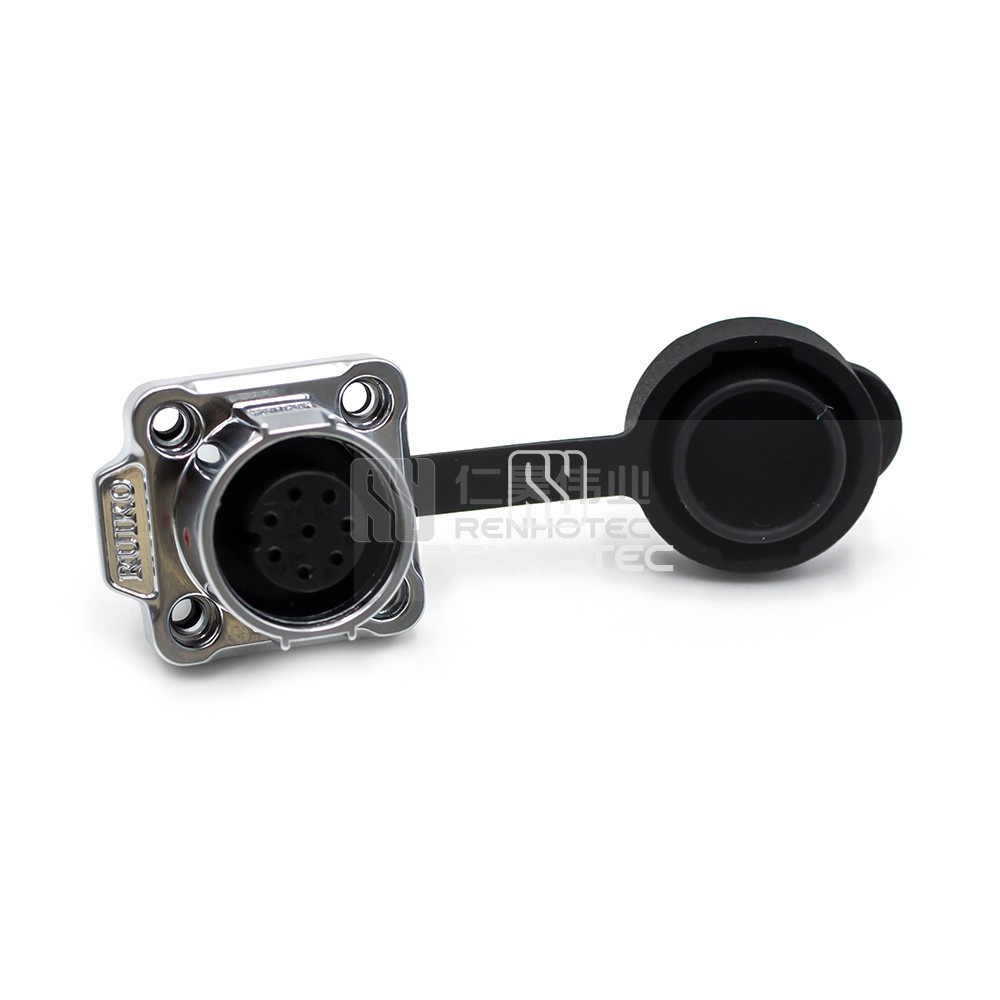

12 Series Power Waterproof Connector Formal 8 Pin Receptacle

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 6
  6. 7
  7. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Find high-quality 12 Series Power Waterproof Connector Formal 8 Pin Receptacle with superior waterproofing for secure connections. Ideal for various electrical applications.

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions8
    Contact TerminationSolder

    Mechanical

    Fastening TypePush-Pull
    Mounting TypePanel Mount
    Wire Gauge or Range24-22AWG/0.2mm²-0.3mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage200V
    Rated Current3A

    Environmental

    Operating Temperature-40°C ~ + 80°C
