Products > Waterproof Connector > 12 Series Power Waterproof Connector Formal 5 Pin Plug

RK-12-P-05-P-0

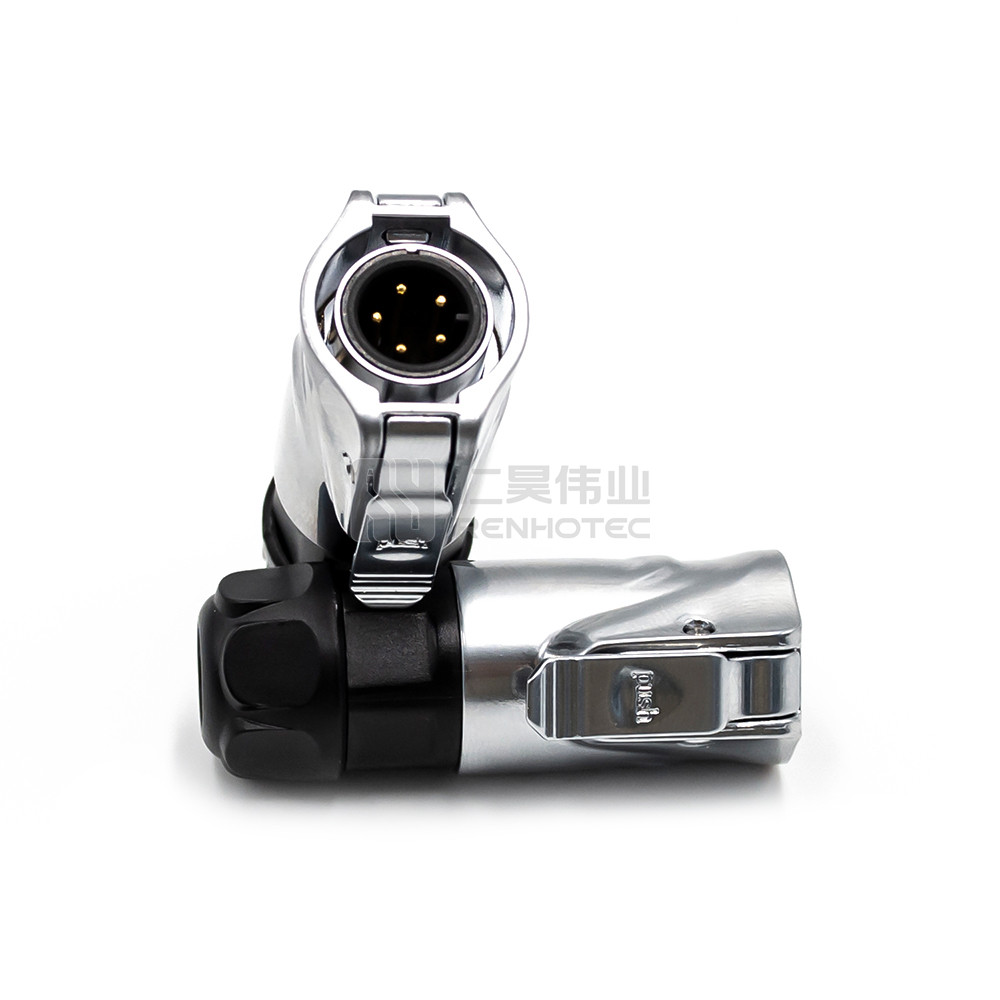

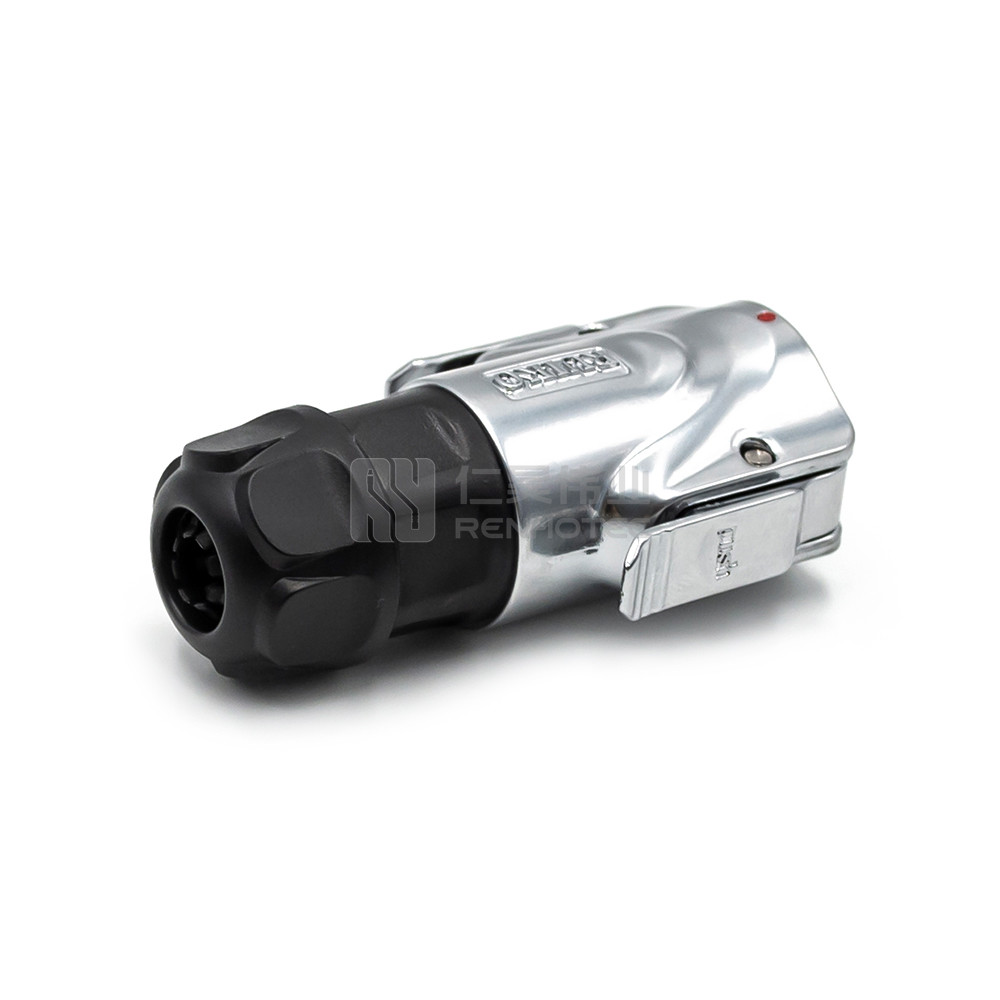

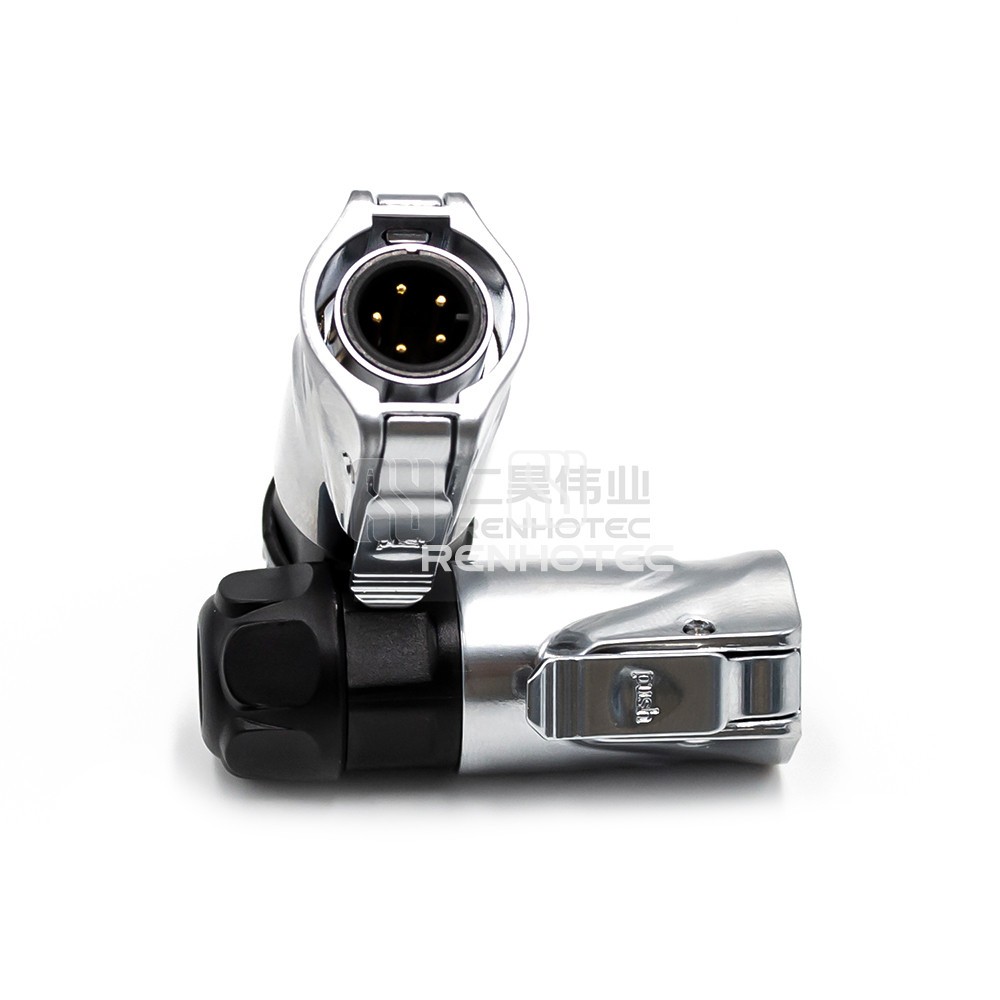

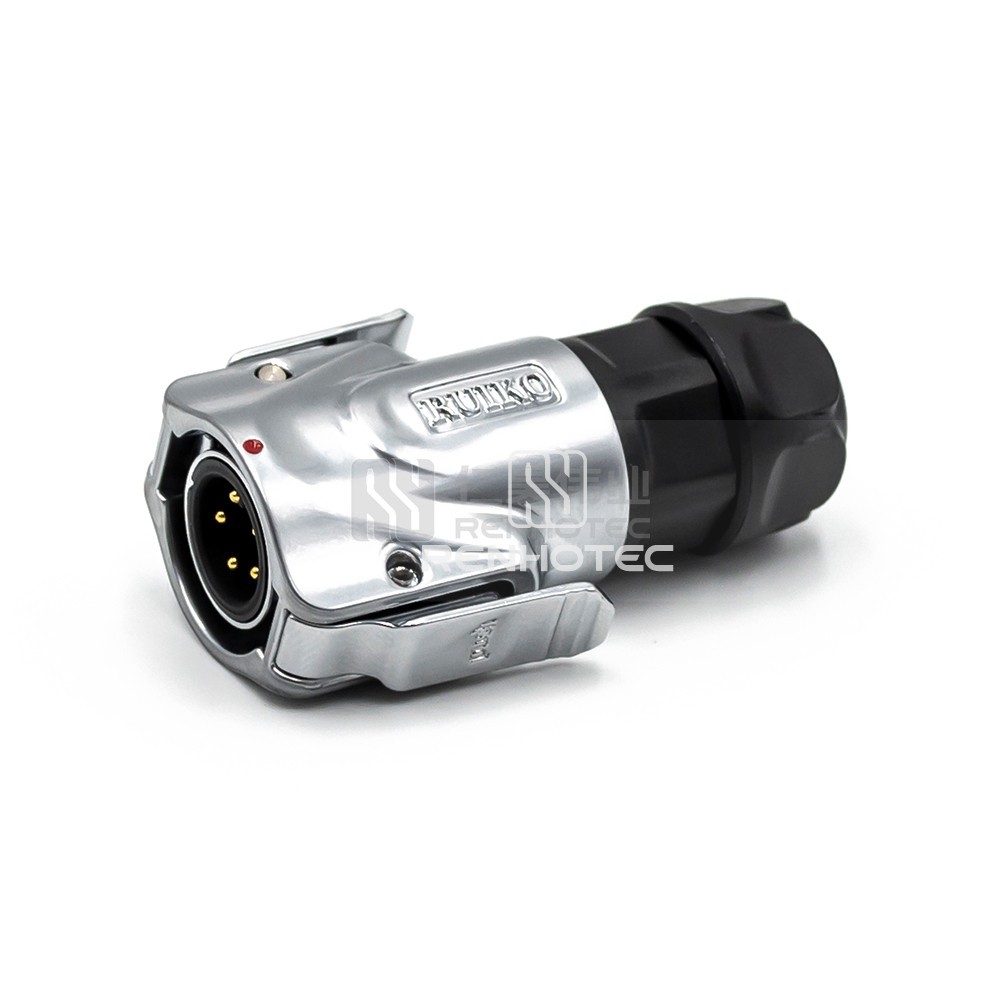

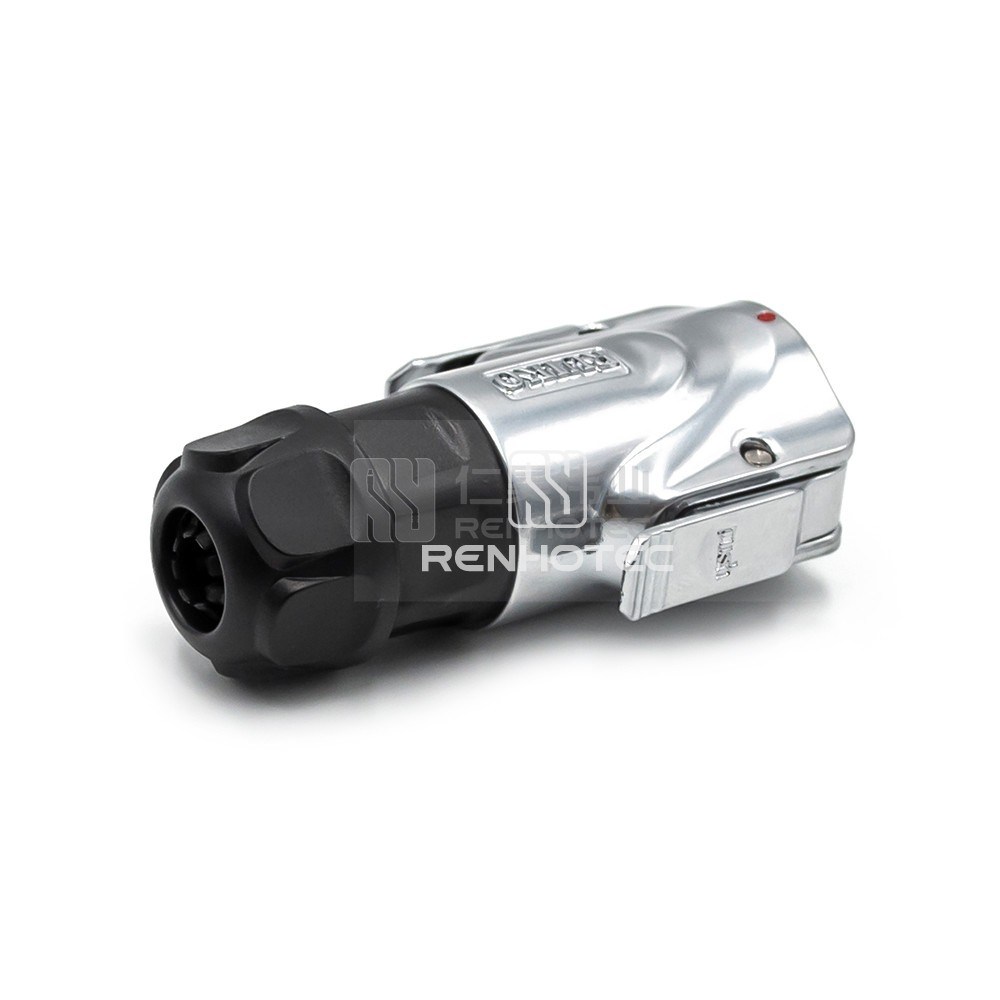

12 Series Power Waterproof Connector Formal 5 Pin Plug

High-quality 5 pin plug from the 12 Series Power Waterproof Connector Formal. Designed for reliable and durable connections in various applications. Waterproof construction ensures protection in outdoor and industrial environments.

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 6
  6. 7
  7. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions5
    Fastening TypePush-Pull
    Mounting TypeCable Type
    Contact TerminationSolder

    Mechanical

    Wire Gauge or Range22-20AWG/0.3mm²-0.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage250V
    Rated Current5A

    Environmental

    Operating Temperature-40°C ~ + 80°C
