Products > Waterproof Connector > 12 Series Power Waterproof Connector Formal 8 Pin Plug

RK-12-P-08-P-0

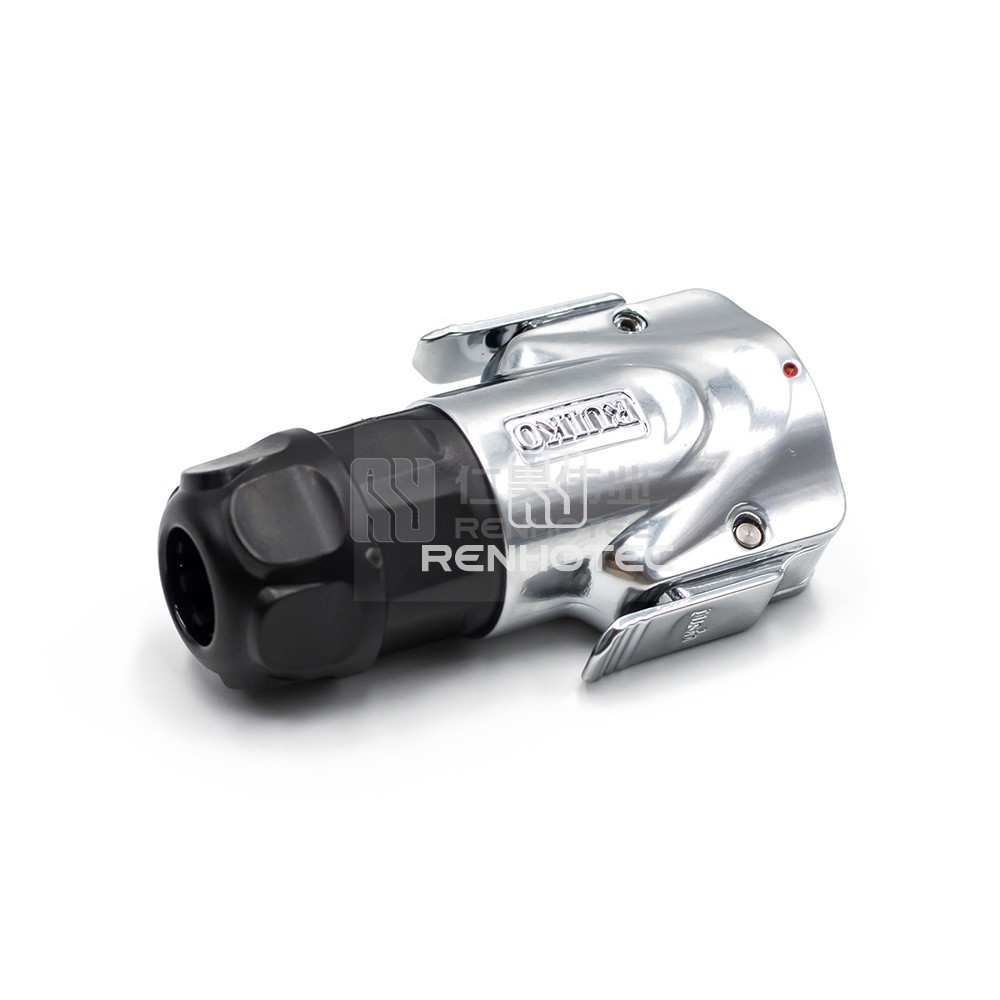

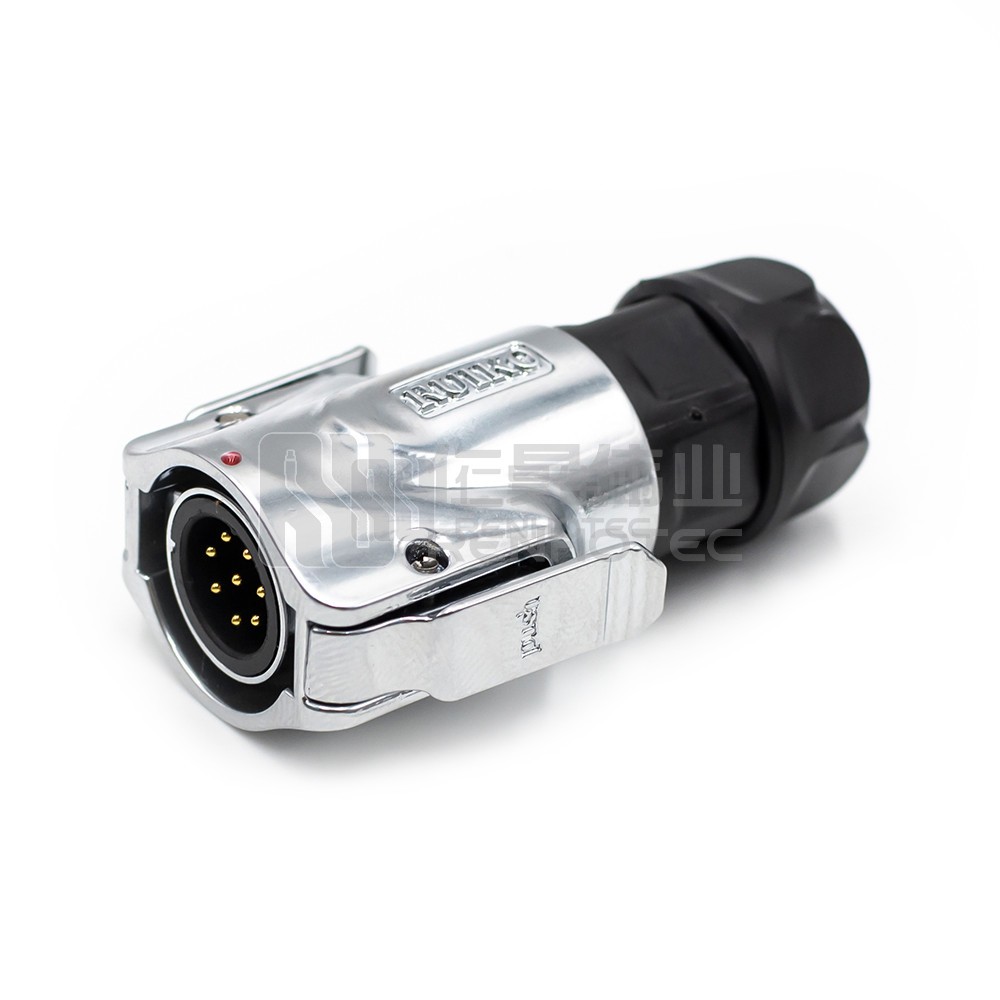

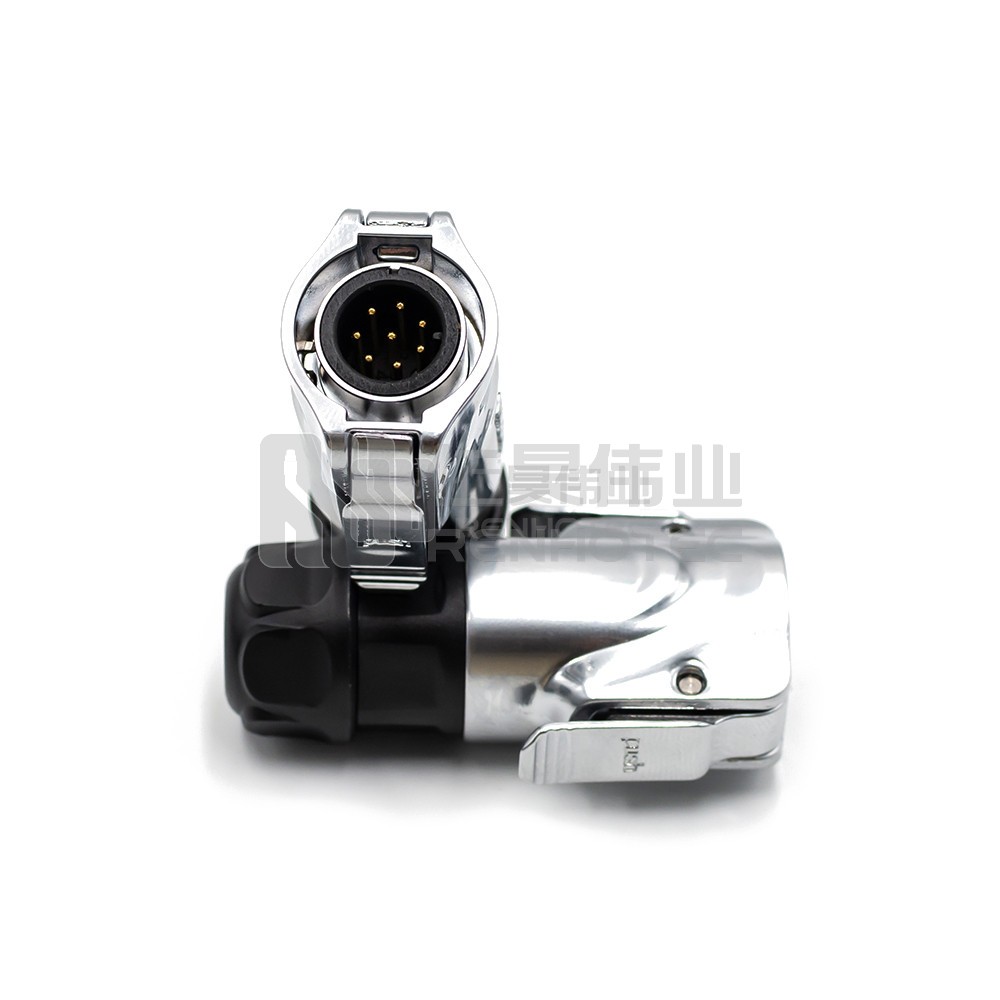

12 Series Power Waterproof Connector Formal 8 Pin Plug

High-quality 12 Series power waterproof connector plug with 8 pins. Ensures secure and reliable connections in formal settings.

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 6
  6. 7
  7. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions8
    Fastening TypePush-Pull
    Mounting TypeCable Type
    Contact TerminationSolder

    Mechanical

    Wire Gauge or Range24-22AWG/0.2mm²-0.3mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage200V
    Rated Current3A

    Environmental

    Operating Temperature-40°C ~ + 80°C
