Products > Waterproof Connector > 12 Series Power Waterproof Connector Formal 6 Pin Plug

RK-12-P-06-P-0

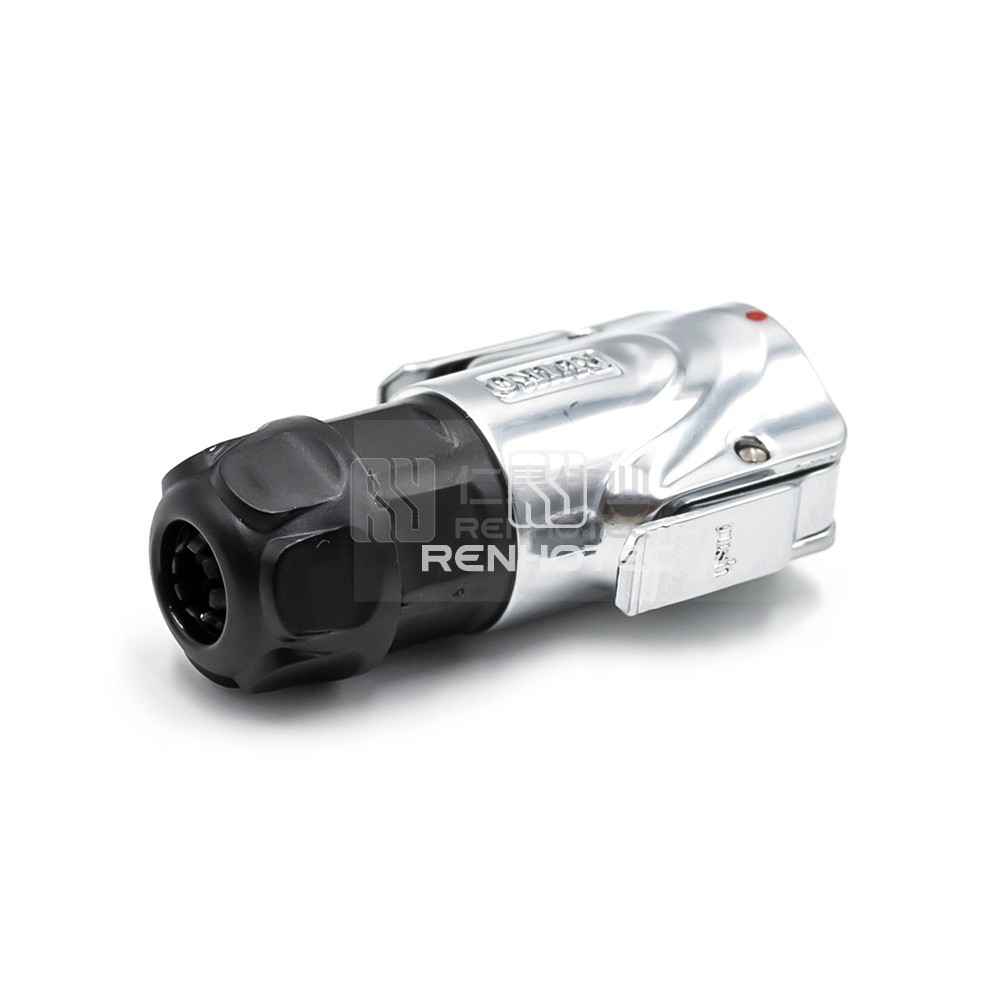

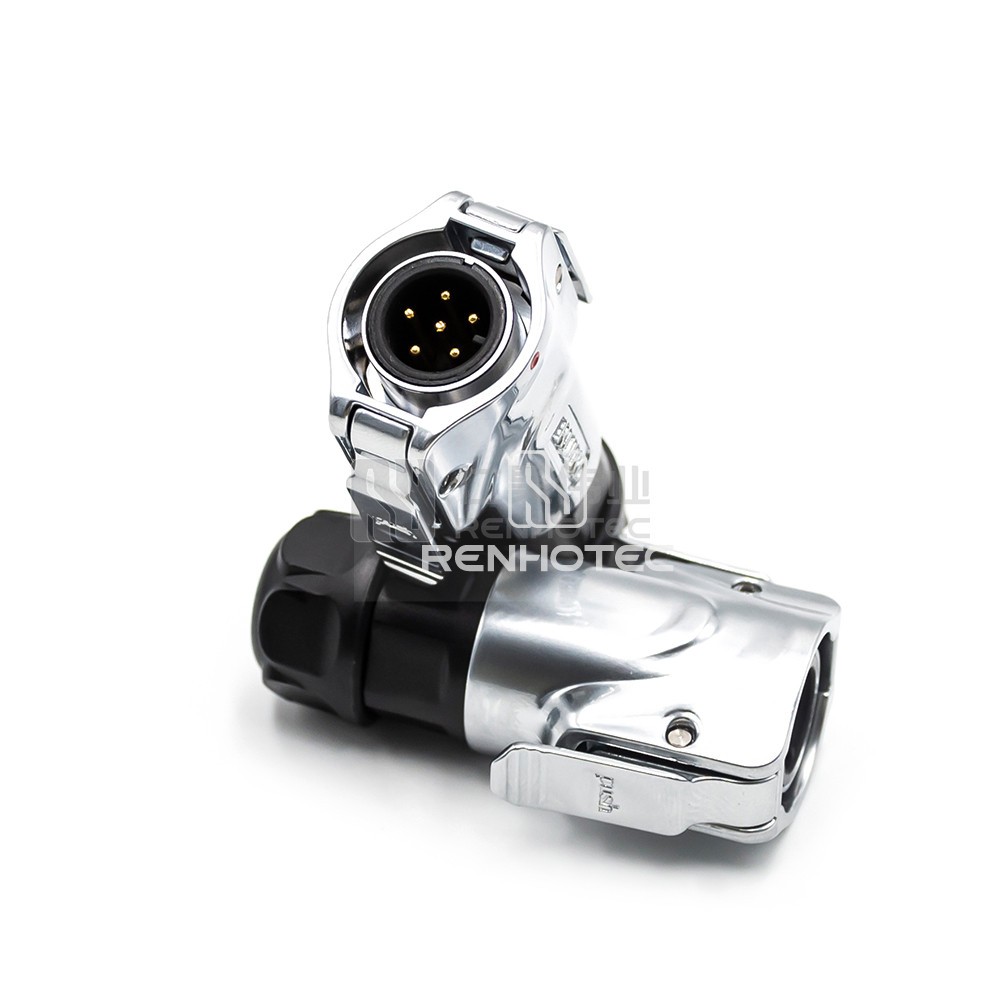

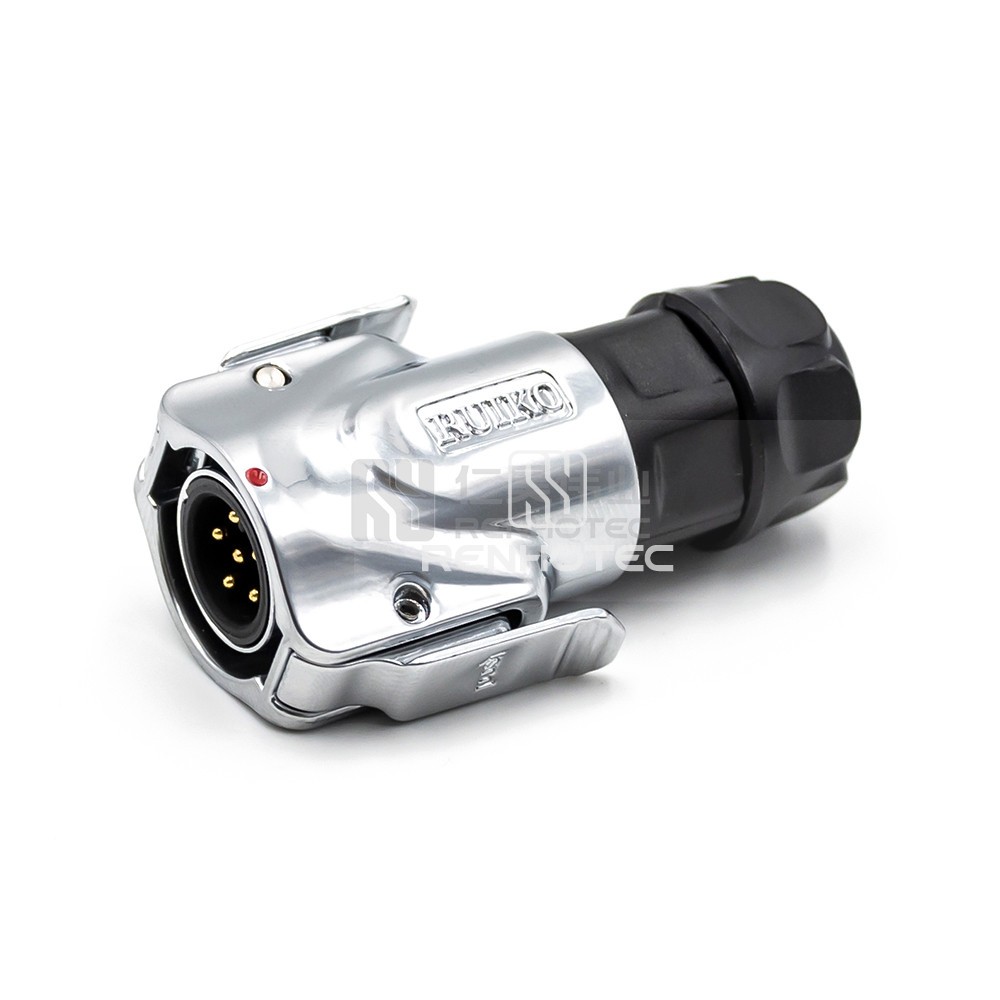

12 Series Power Waterproof Connector Formal 6 Pin Plug

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 6
  6. 7
  7. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Ensure reliable waterproof connections with the 12 Series Power Waterproof Connector Formal 6 Pin Plug. Ideal for a range of applications, this connector offers secure and sturdy connectivity.

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions6
    Contact TerminationSolder

    Mechanical

    Fastening TypePush-Pull
    Mounting TypeCable Type
    Wire Gauge or Range22-20AWG/0.3mm²-0.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage250V
    Rated Current5A

    Environmental

    Operating Temperature-40°C ~ + 80°C
