12 Series Power Waterproof Connector Formal 7 Pin Plug - RK-12-P-07-P-0
12 Series Power Waterproof Connector Formal 7 Pin Plug - RK-12-P-07-P-0

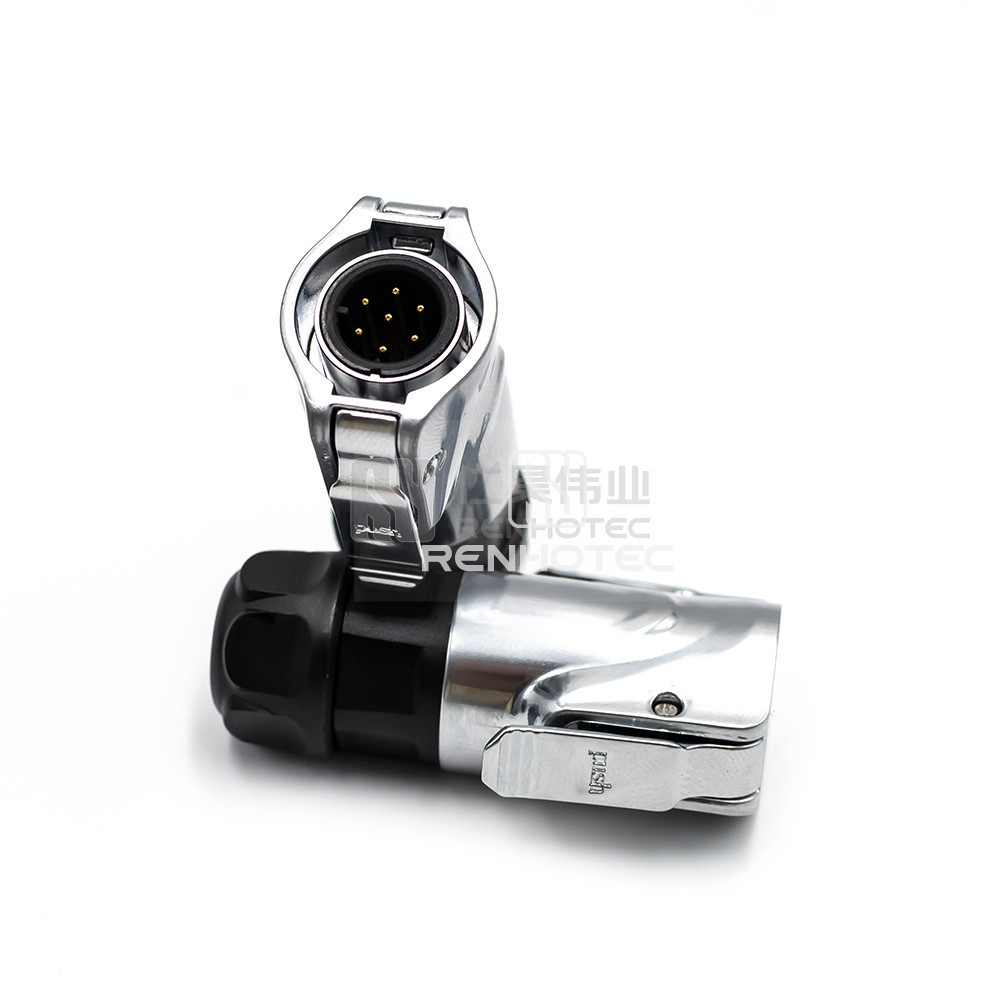

12 Series Power Waterproof Connector Formal 7 Pin Plug product image

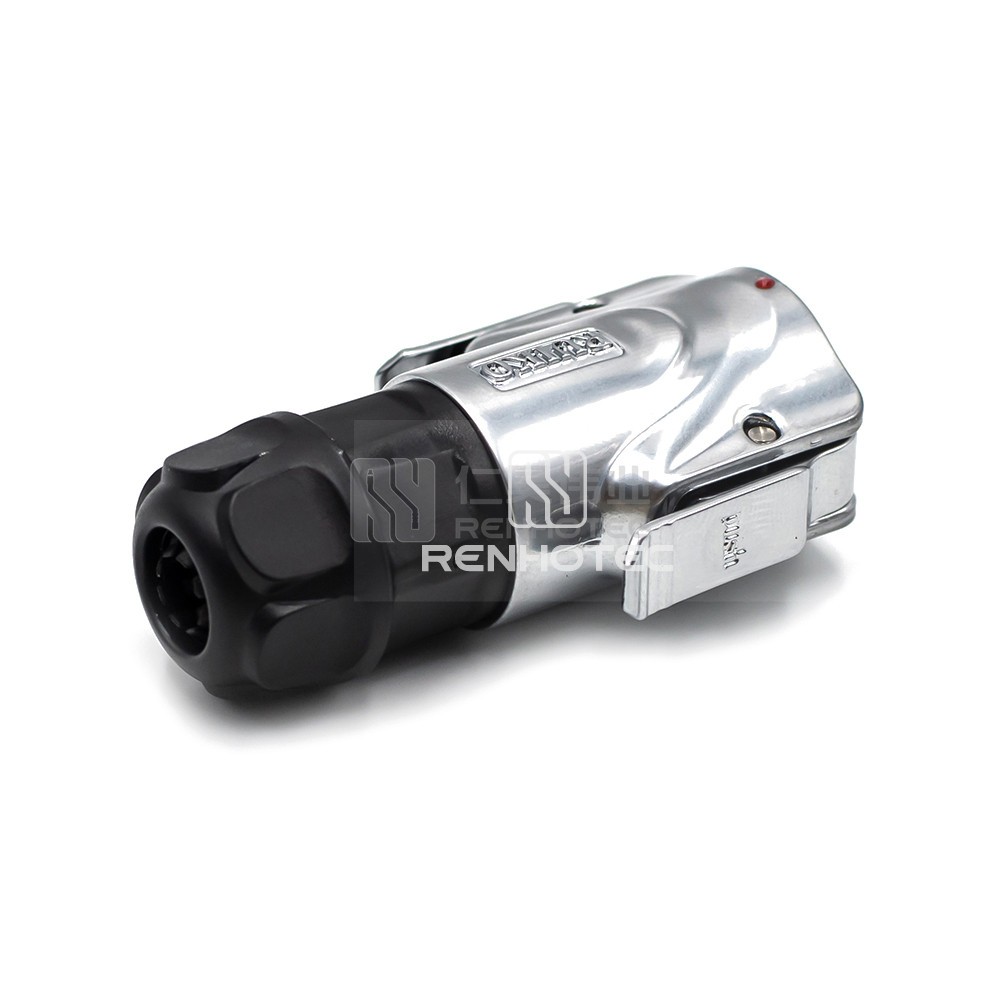

12 Series Power Waterproof Connector Formal 7 Pin Plug product image

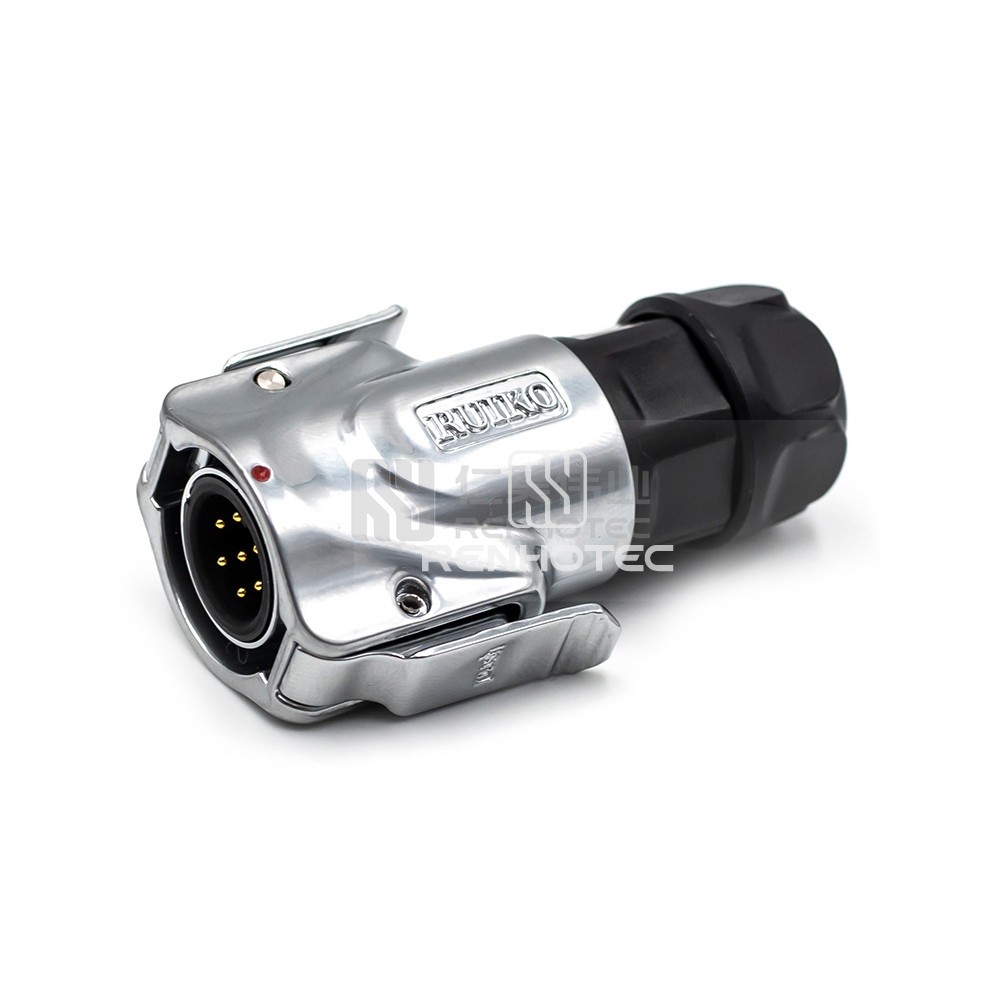

12 Series Power Waterproof Connector Formal 7 Pin Plug product image

RK-12-P-07-P-0

12 Series Power Waterproof Connector Formal 7 Pin Plug

Number of Positions:

2345678

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypePlug
    Number of Positions7
    Contact TypeMale Pin
    OrientationStraight
    Mounting TypeCable Type
    Fastening TypePush-Pull
    Contact TerminationSolder
    Wire Gauge or Range0.2mm²-0.3mm²/24-22AWG
    Materials
    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Insulating MaterialPA66
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Electrical
    Rated Voltage200V
    Rated Current3A
    Environmental
    Operating Temperature-40°C ~ + 80°C

    Product excerpt

    Ensure a secure and reliable connection with this 12 Series Power Waterproof Connector Formal 7 Pin Plug. Ideal for applications requiring waterproofing, this connector is designed for durability and performance.
