Products > Waterproof Connector > 16 Series All-metal Waterproof Connector are Formally Installed with 3 Pin Receptacles
16 Series All-metal Waterproof Connector are Formally Installed with 3 Pin Receptacles - RK-16-S-03-R-0
16 Series All-metal Waterproof Connector are Formally Installed with 3 Pin Receptacles - RK-16-S-03-R-0

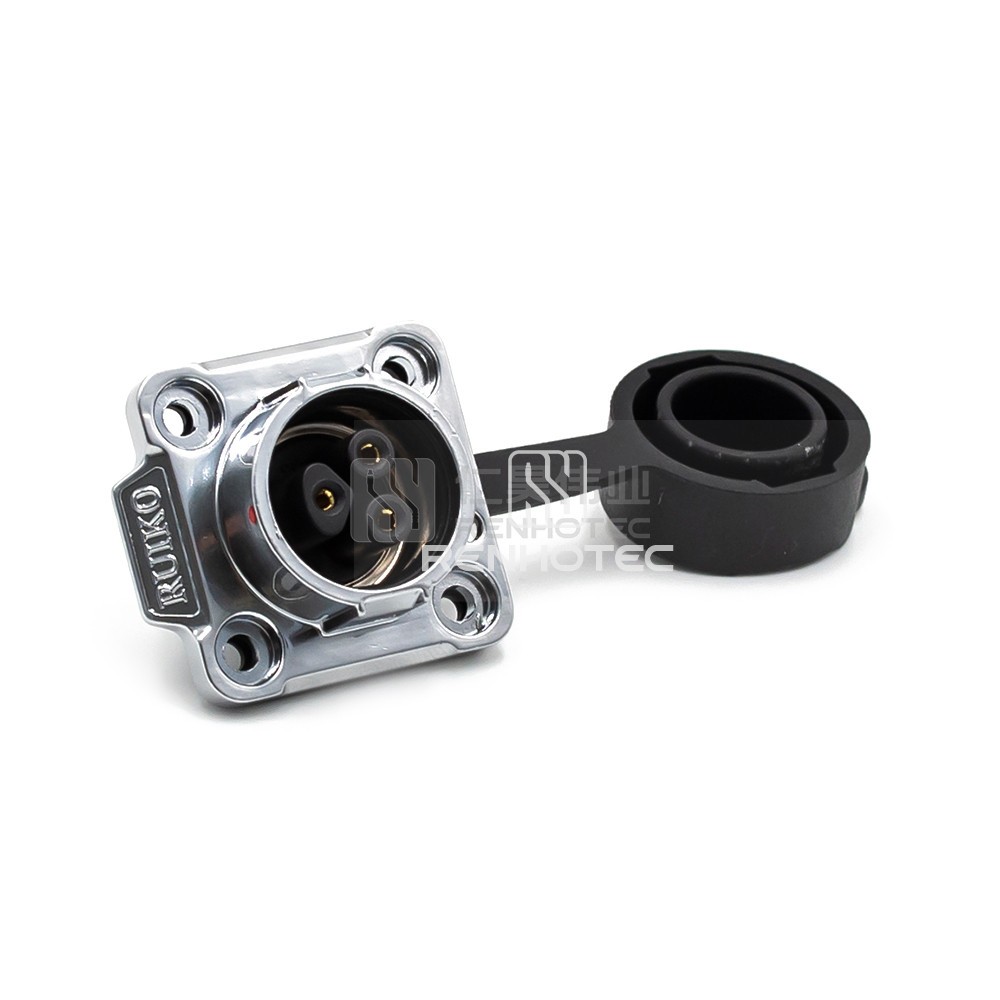

16 Series All-metal Waterproof Connector are Formally Installed with 3 Pin Receptacles product image

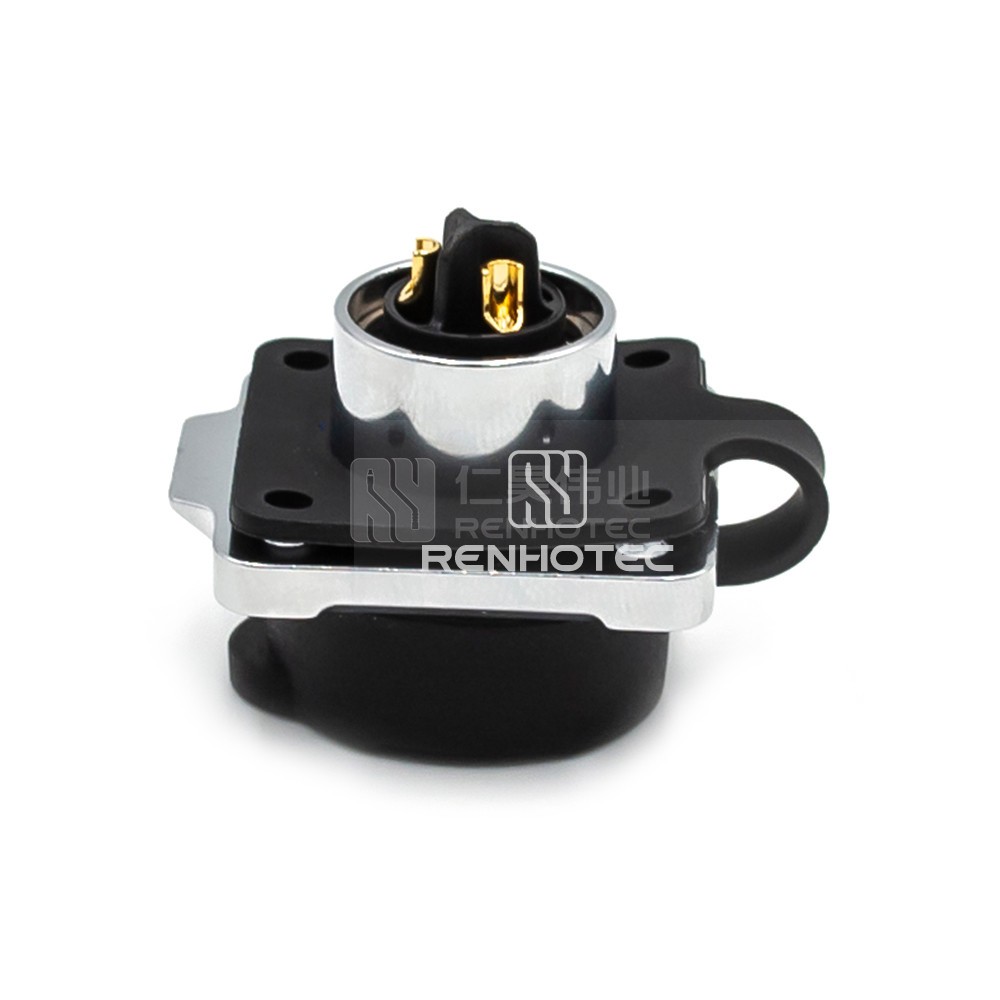

16 Series All-metal Waterproof Connector are Formally Installed with 3 Pin Receptacles product image

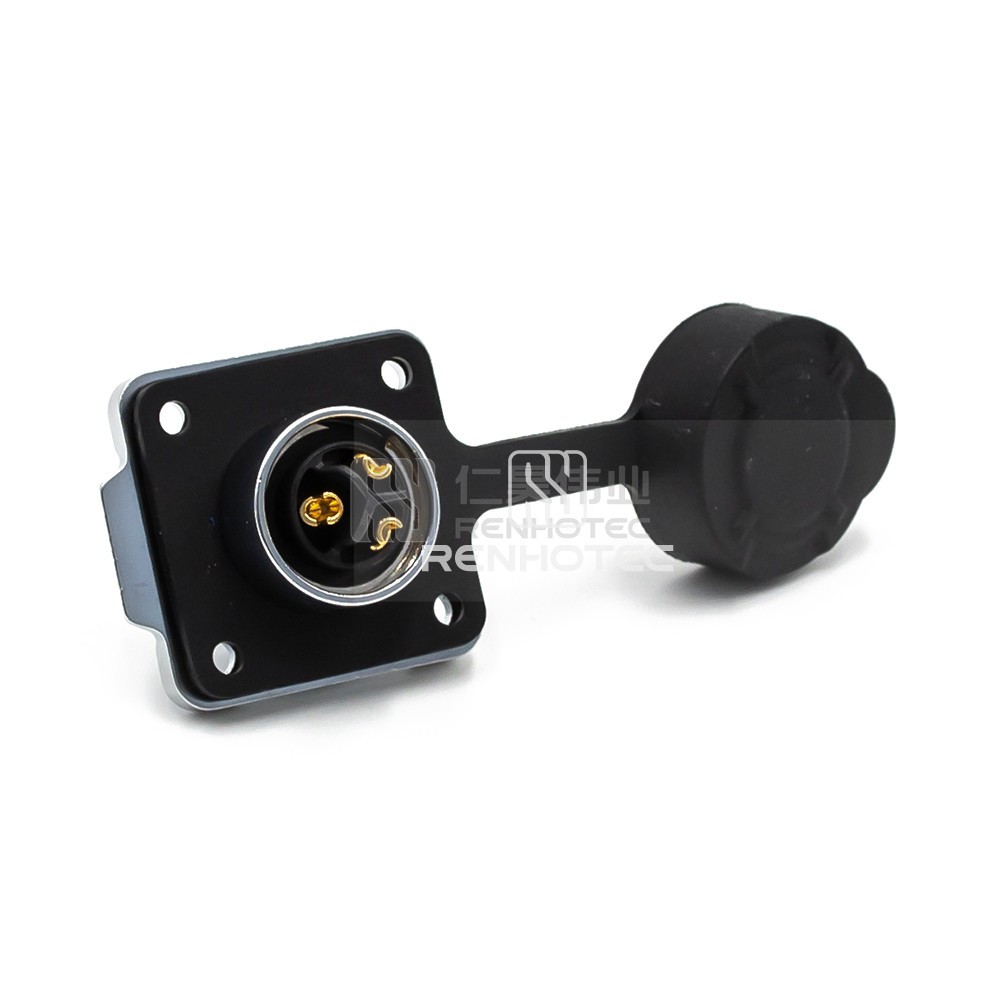

16 Series All-metal Waterproof Connector are Formally Installed with 3 Pin Receptacles product image

RK-16-S-03-R-0

16 Series All-metal Waterproof Connector are Formally Installed with 3 Pin Receptacles

Number of Positions:

2345789

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypeReceptacle
    Number of Positions3
    Contact TypeFemale Pin
    OrientationStraight
    Mounting TypePanel Mount
    Fastening TypePush-Pull
    Contact TerminationSolder
    Wire Gauge or Range1.0mm²-1.5mm²/18-16AWG
    Materials
    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Insulating MaterialPA66
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Electrical
    Rated Voltage400V
    Rated Current10A
    Environmental
    Operating Temperature-40°C ~ + 80°C

    Product excerpt

    High-quality 16 Series all-metal waterproof connector designed for formal installation with 3 pin receptacles. Ensure secure and reliable connections in wet or harsh environments.
