RK-16-S-08-R-0

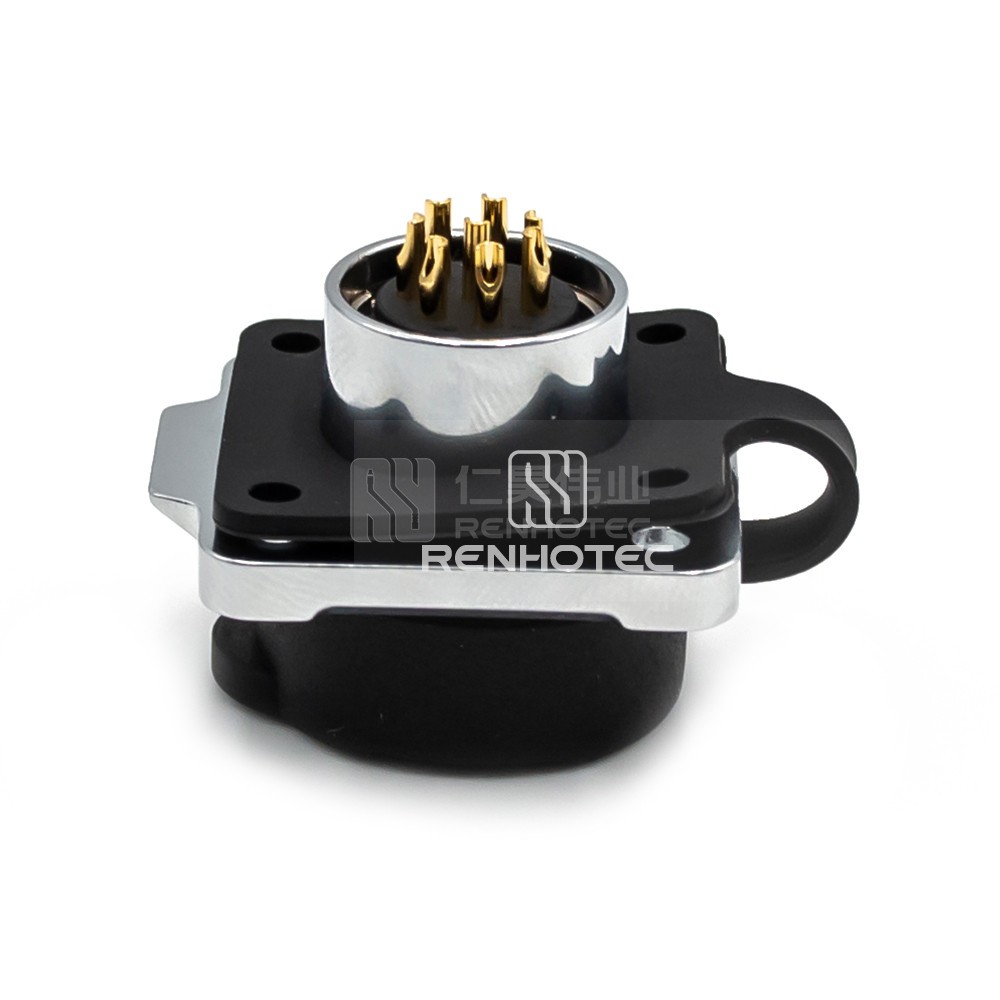

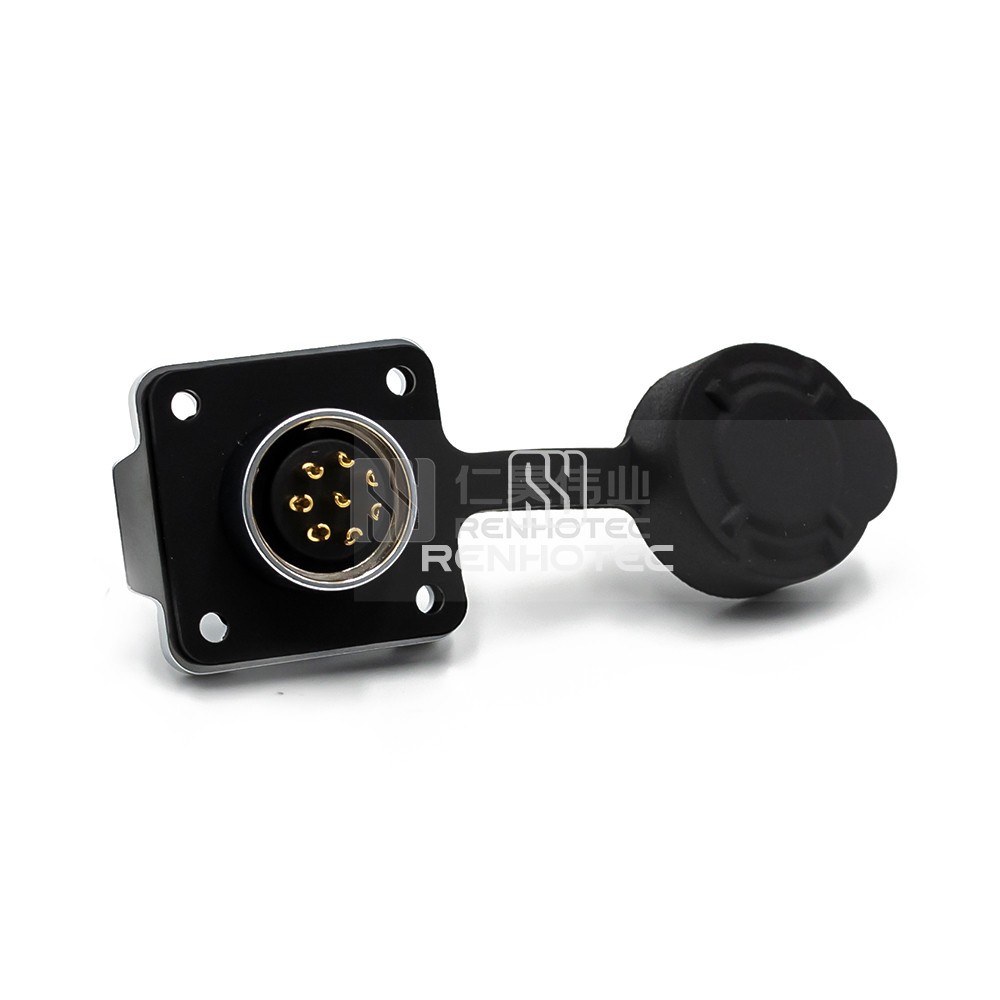

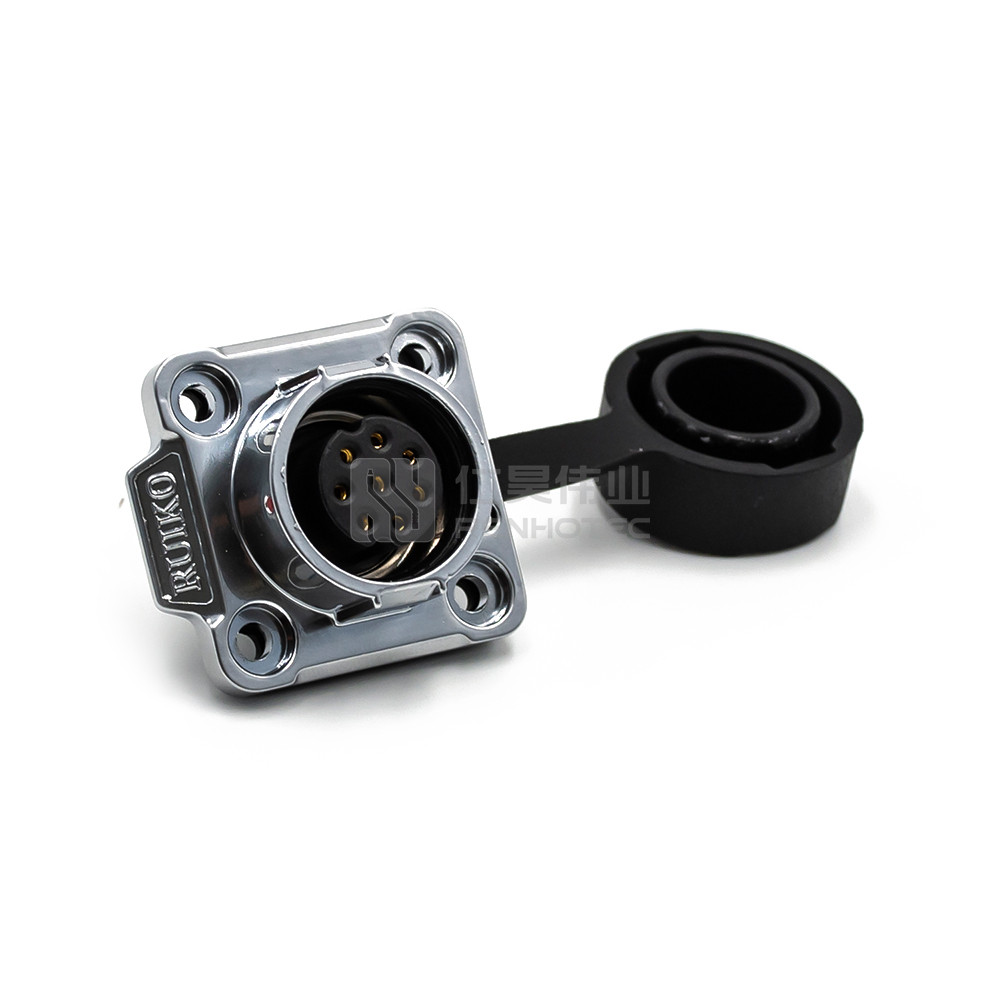

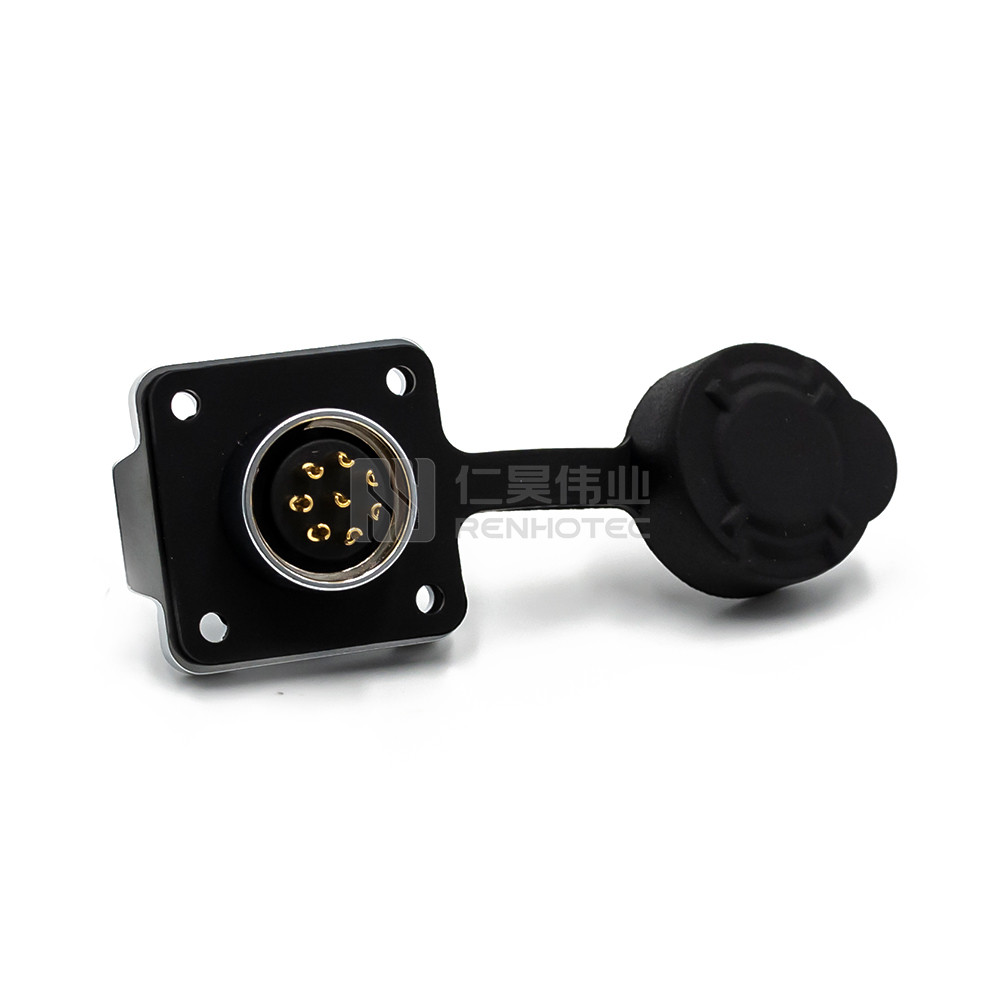

16 Series All-metal Waterproof Connector are Formally Installed with 8 Pin Receptacles

Ensure seamless connectivity with these all-metal waterproof connectors featuring 8 pin receptacles. Perfect for formal installations.

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 7
  6. 8
  7. 9
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions8
    Fastening TypePush-Pull
    Mounting TypePanel Mount
    Contact TerminationSolder

    Mechanical

    Wire Gauge or Range22-20AWG/0.3mm²-0.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage250V
    Rated Current5A

    Environmental

    Operating Temperature-40°C ~ + 80°C
