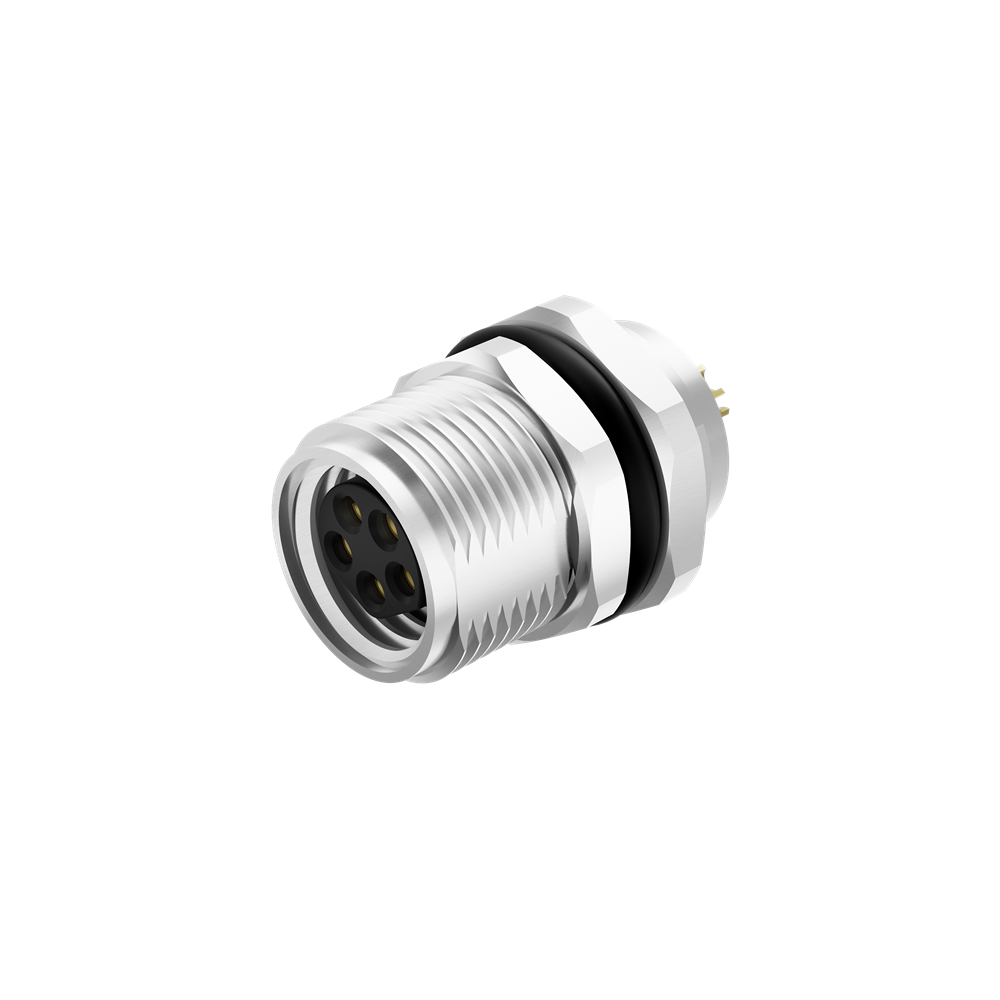

High-quality M8 female panel mount receptacle with 5 pins, B code front fastened design. Features a straight solder cup and open hole for easy installation. Compatible with M10 connectors.
General
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 5 |
Key | B |
Contact Termination | Solder Cup |
Shell
Shell Size | M8 |
Mechanical
Fastening Type | Threaded |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Material
Shell Material | Copper Alloy |
Shell Finish | Zinc Plated |
Contact Finish | Gold |
Contact Material | Copper Alloy |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -25°C ~ + 85°C |
Electrical
Shielding | Unshielded |
Rated Current | 1.5A |
Rated Voltage | 30V |
