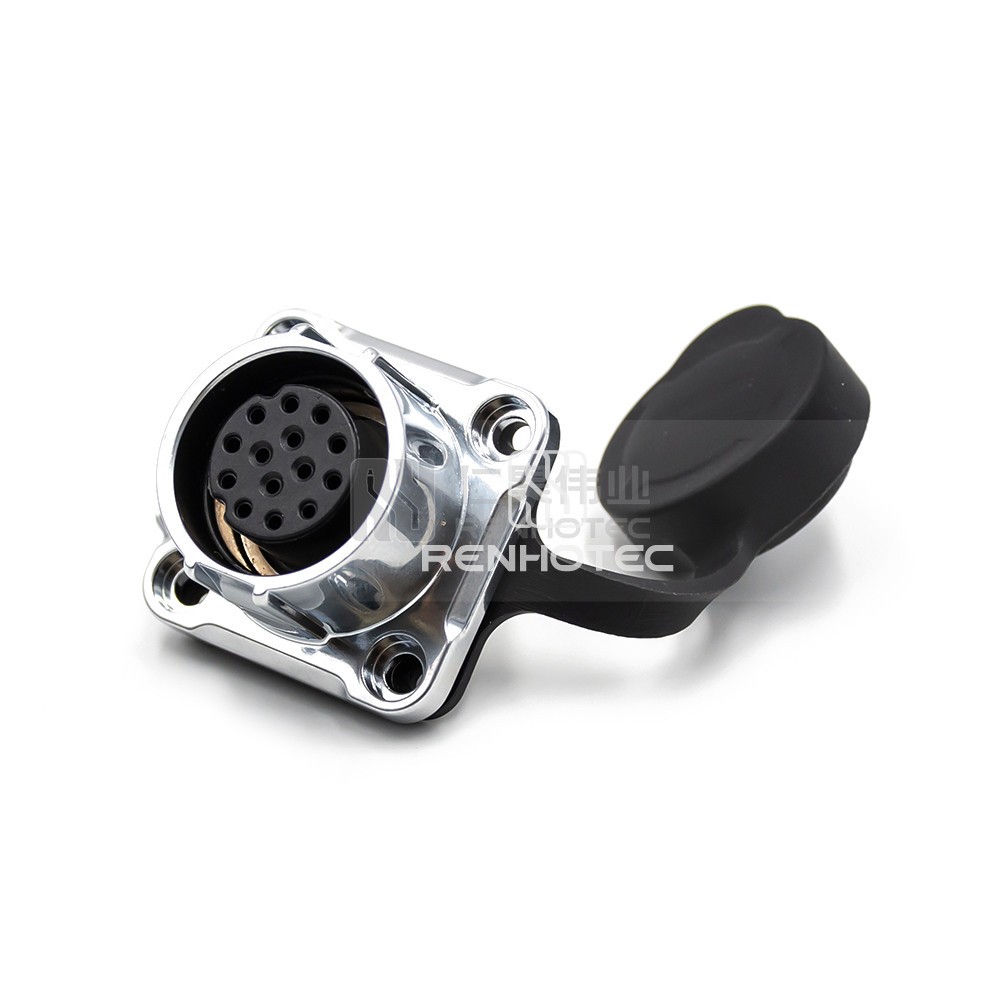

Durable and waterproof 14 pin receptacle connector from the 20 Series.
General
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 14 |
Contact Termination | Solder |
Mechanical
Fastening Type | Push-Pull |
Mounting Type | Panel Mount |
Wire Gauge or Range | 22-20AWG/0.3mm²-0.5mm² |
Material
Shell Material | Zinc Alloy |
Shell Finish | Chrome Plated |
Contact Material | Phosphor Bronze |
Contact Finish | Gold |
Insulating Material | PA66 |
Electrical
Rated Voltage | 200V |
Rated Current | 5A |
Environmental
Operating Temperature | -40°C ~ + 80°C |
