RK-20-S-05-R-0

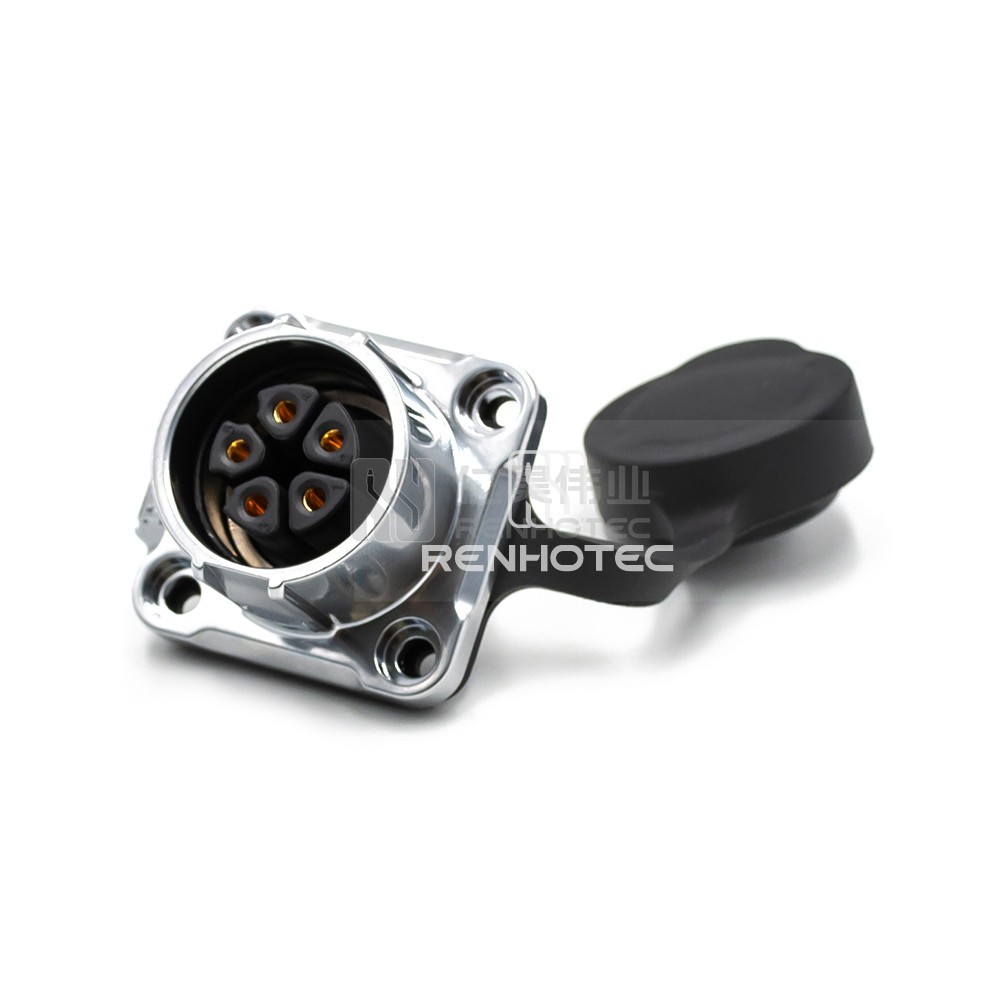

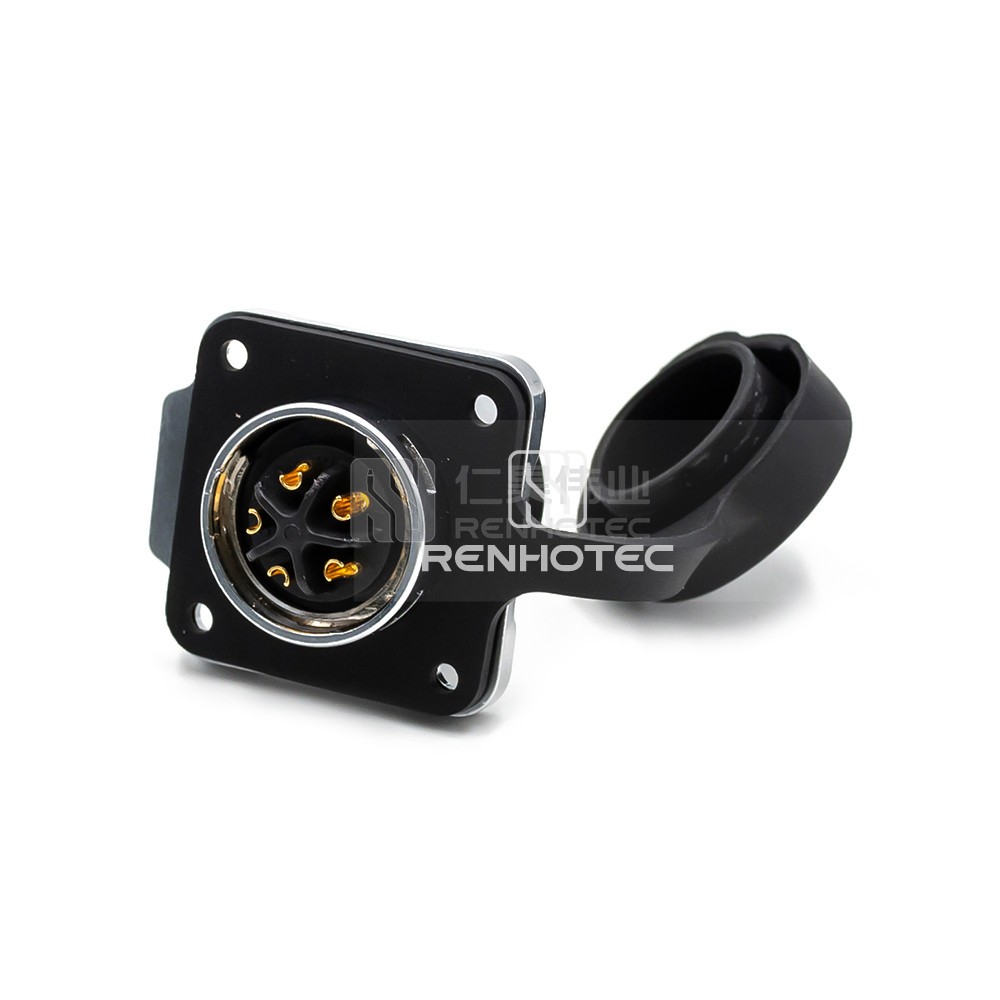

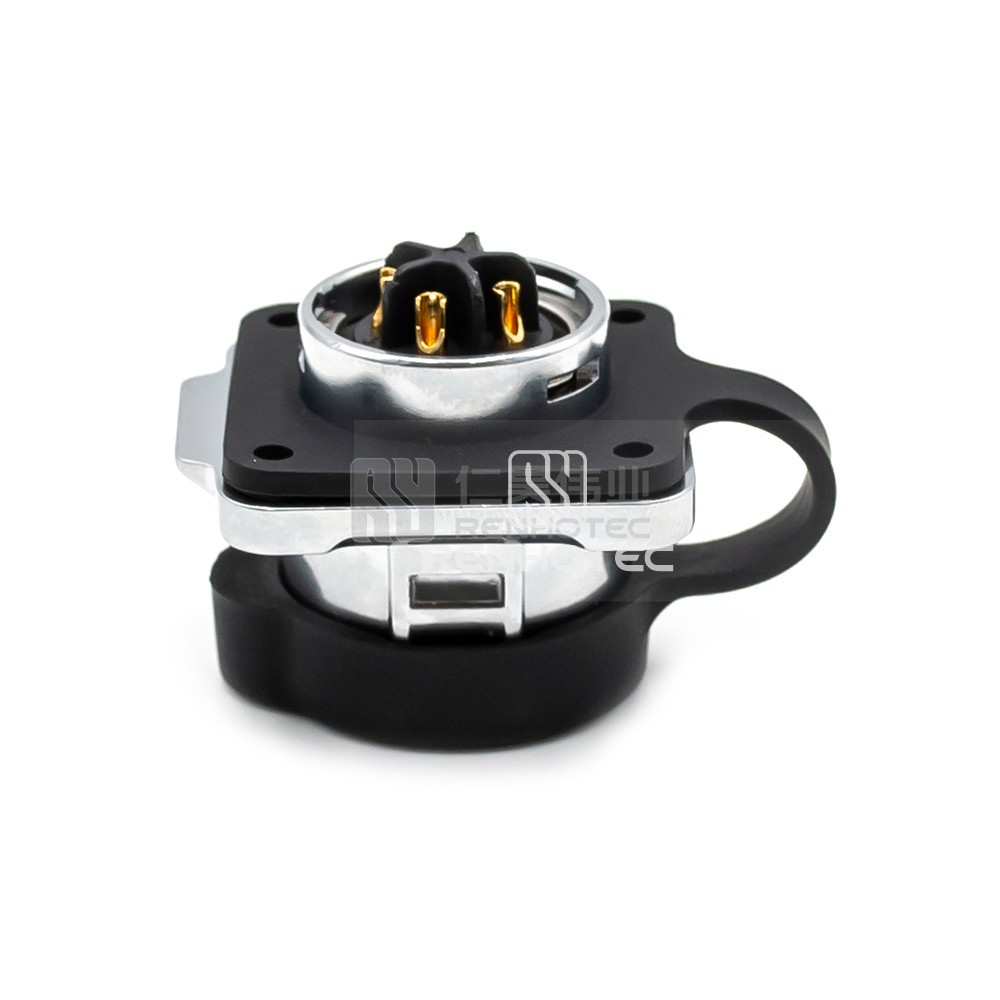

20 Series Full Metal Power Waterproof Connector 5 Pin Receptacle

Color:

Silver

Number of Positions:

2 3 4 5 7 9 12 14

Get a Quote

Overview
Technical data
Certification
Download

Product excerpt

Durable and waterproof 20 Series 5-pin receptacle connector for power applications.

GeneralMaterialMechanicalEnvironmentalElectrical

General
Connector Type	Receptacle
Orientation	Straight
Contact Type	Female Pin
Number of Positions	5
Contact Termination	Solder

Material
Shell Material	Zinc Alloy
Shell Finish	Chrome Plated
Contact Material	Phosphor Bronze
Contact Finish	Gold
Insulating Material	PA66

Mechanical
Fastening Type	Push-Pull
Mounting Type	Panel Mount
Wire Gauge or Range	18-16AWG/1.0mm²-1.5mm²

Environmental
Operating Temperature	-40°C ~ + 80°C

Electrical
Rated Voltage	250V
Rated Current	12A
