Products > Waterproof Connector > 20 Series Full Metal Power Waterproof Connector 7 Pin Receptacle

RK-20-S-07-R-0

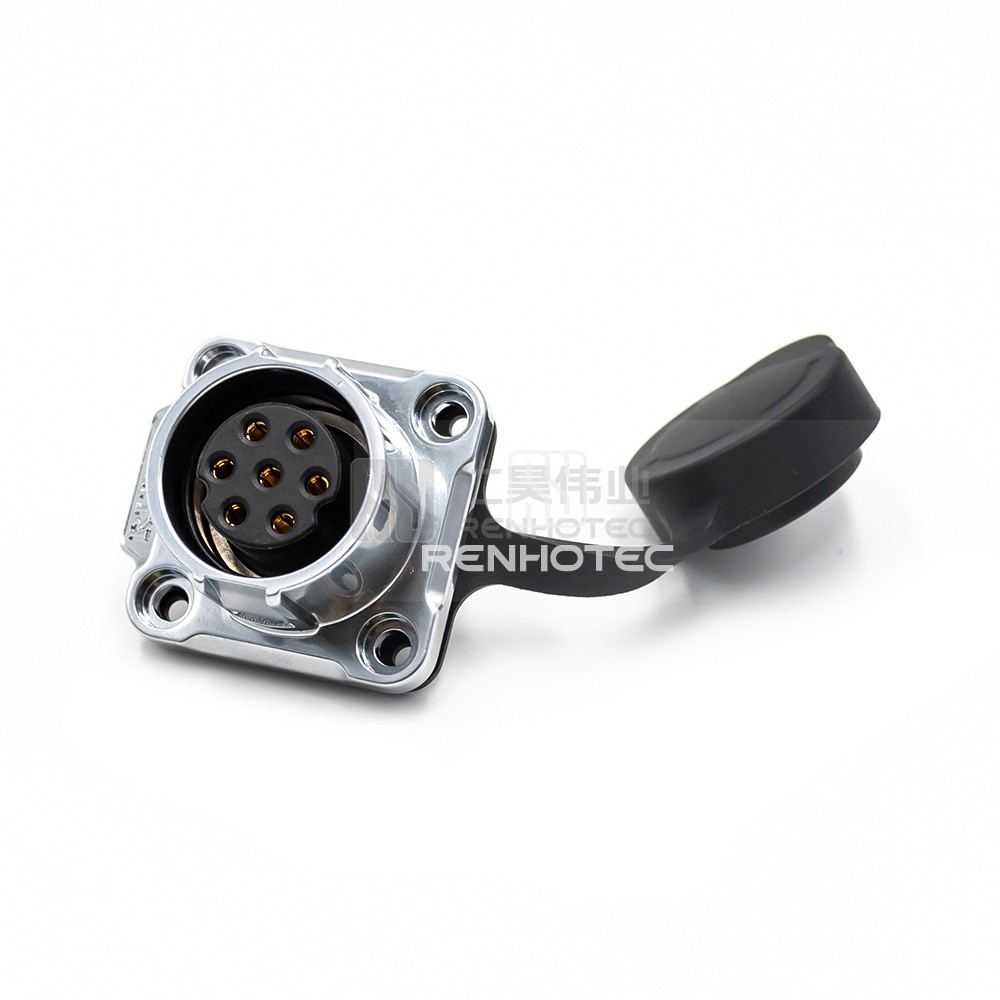

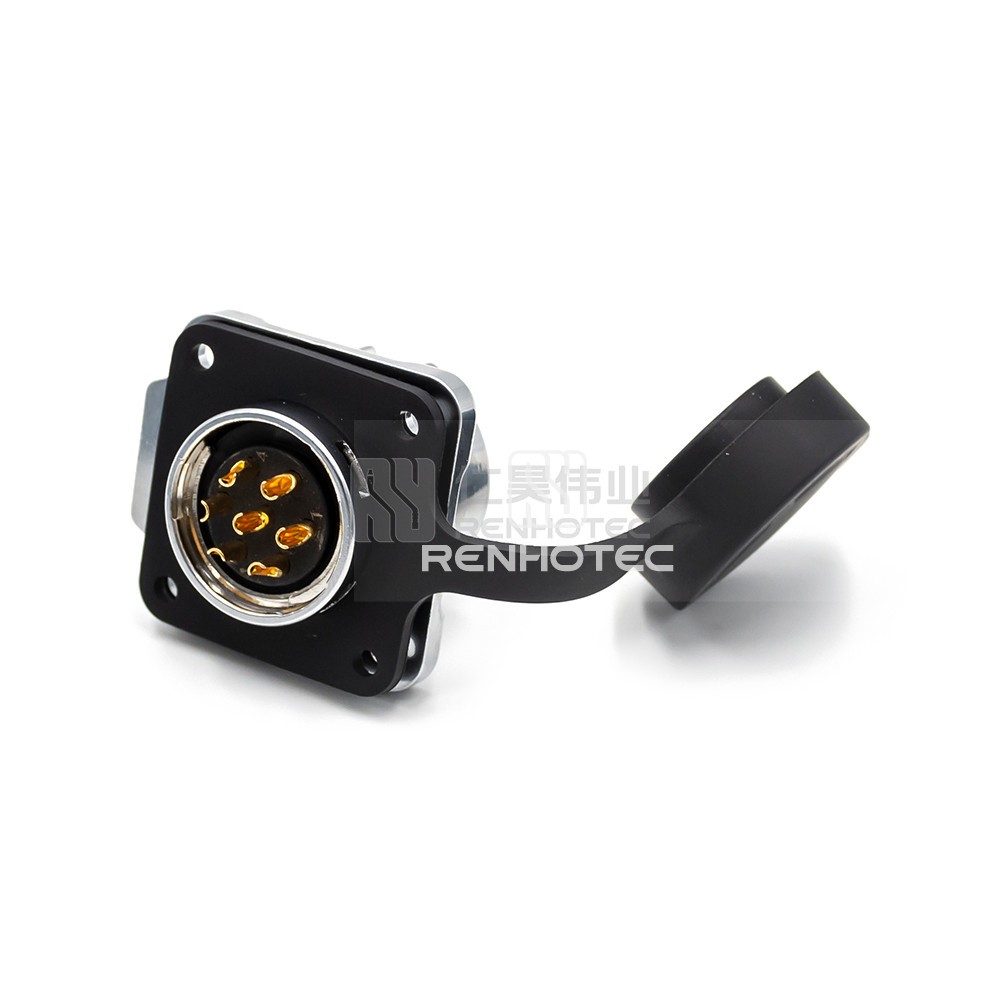

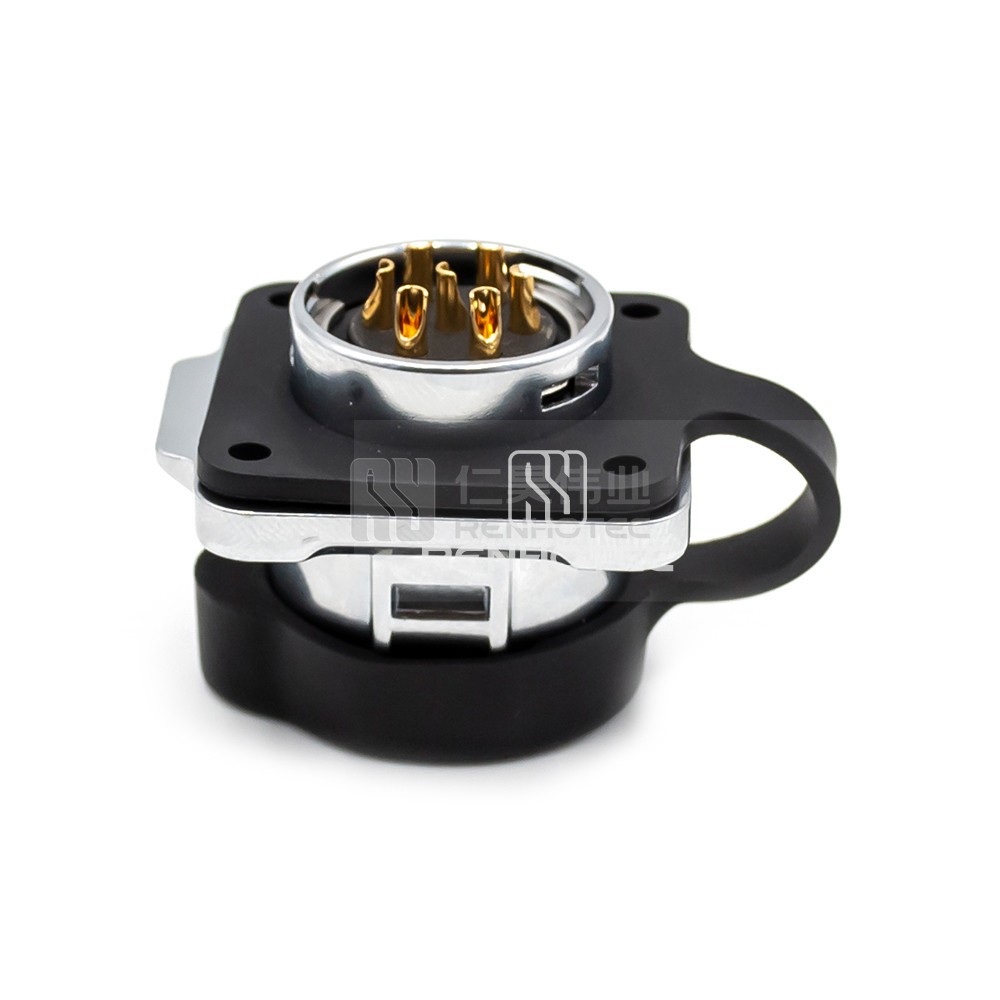

20 Series Full Metal Power Waterproof Connector 7 Pin Receptacle

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 7
  6. 9
  7. 12
  8. 14
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Durable and reliable 7 pin receptacle waterproof connector for power applications.

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions7
    Contact TerminationSolder

    Mechanical

    Fastening TypePush-Pull
    Mounting TypePanel Mount
    Wire Gauge or Range18-16AWG/1.0mm²-1.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage250V
    Rated Current12A

    Environmental

    Operating Temperature-40°C ~ + 80°C
