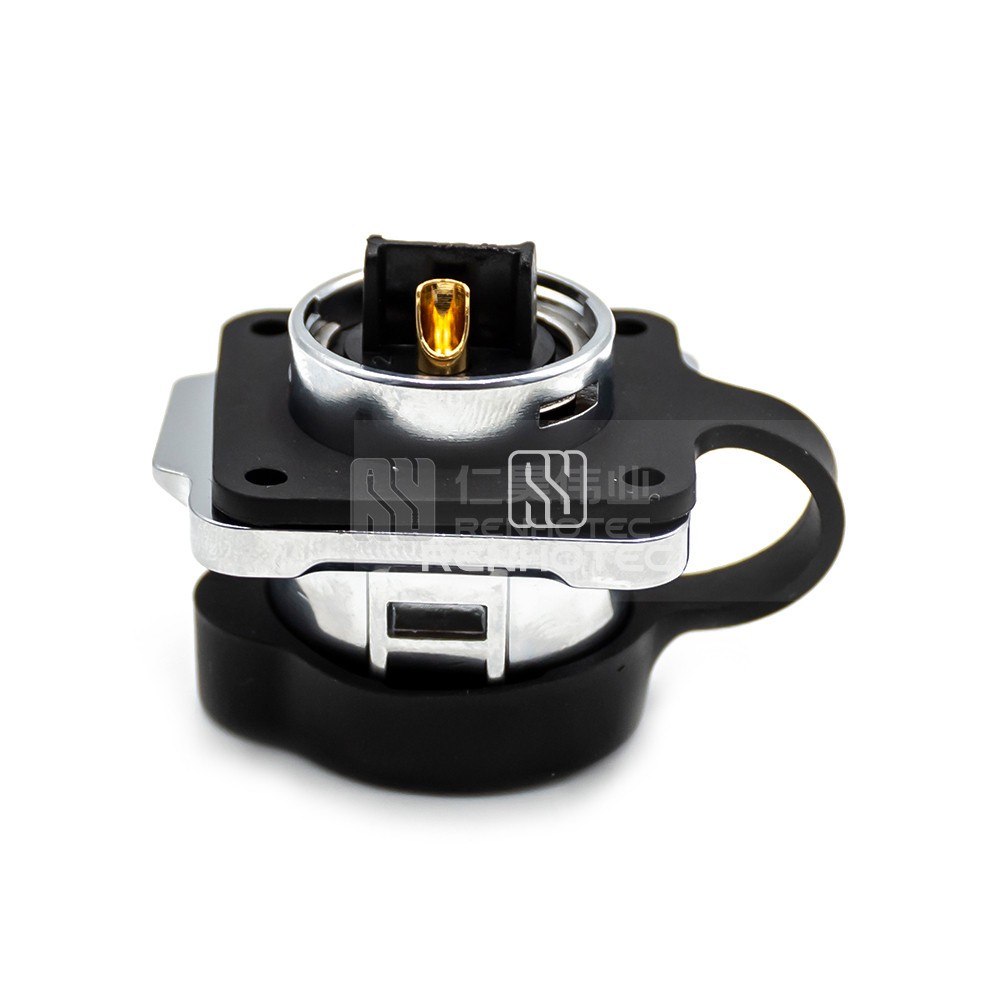

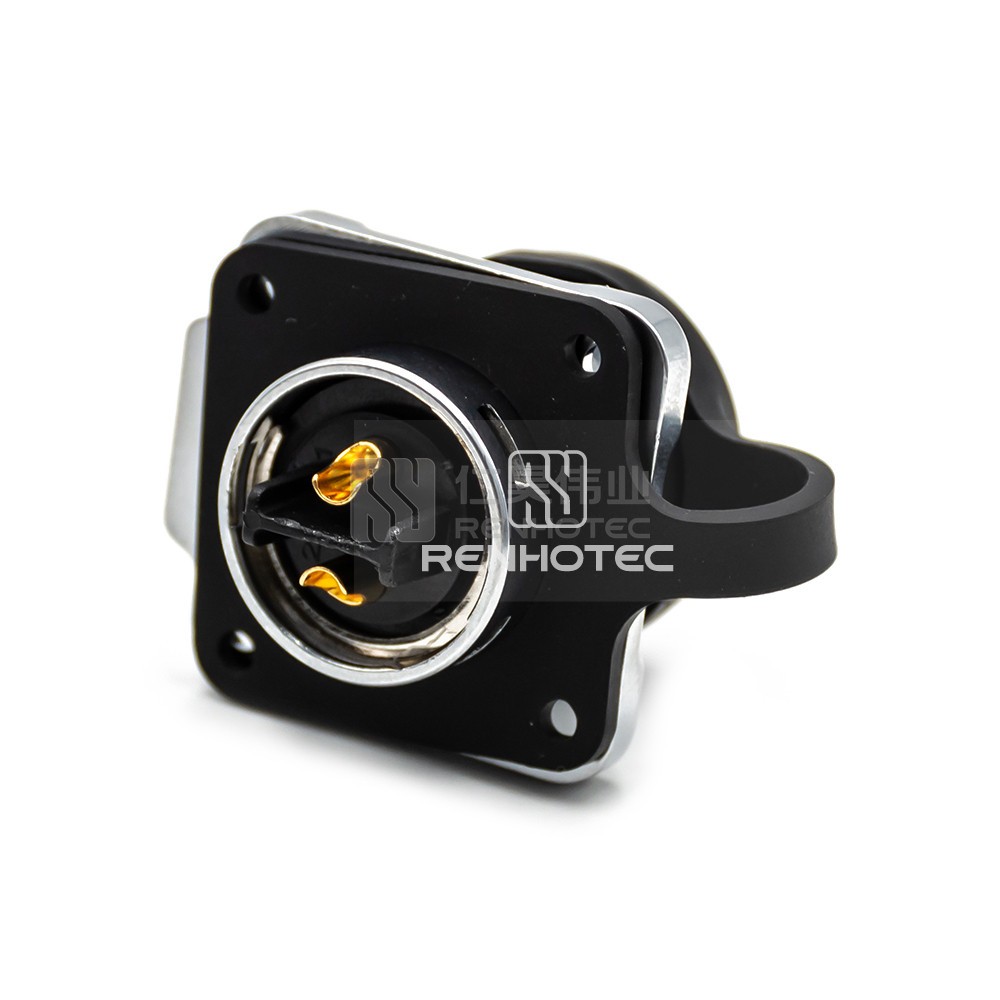

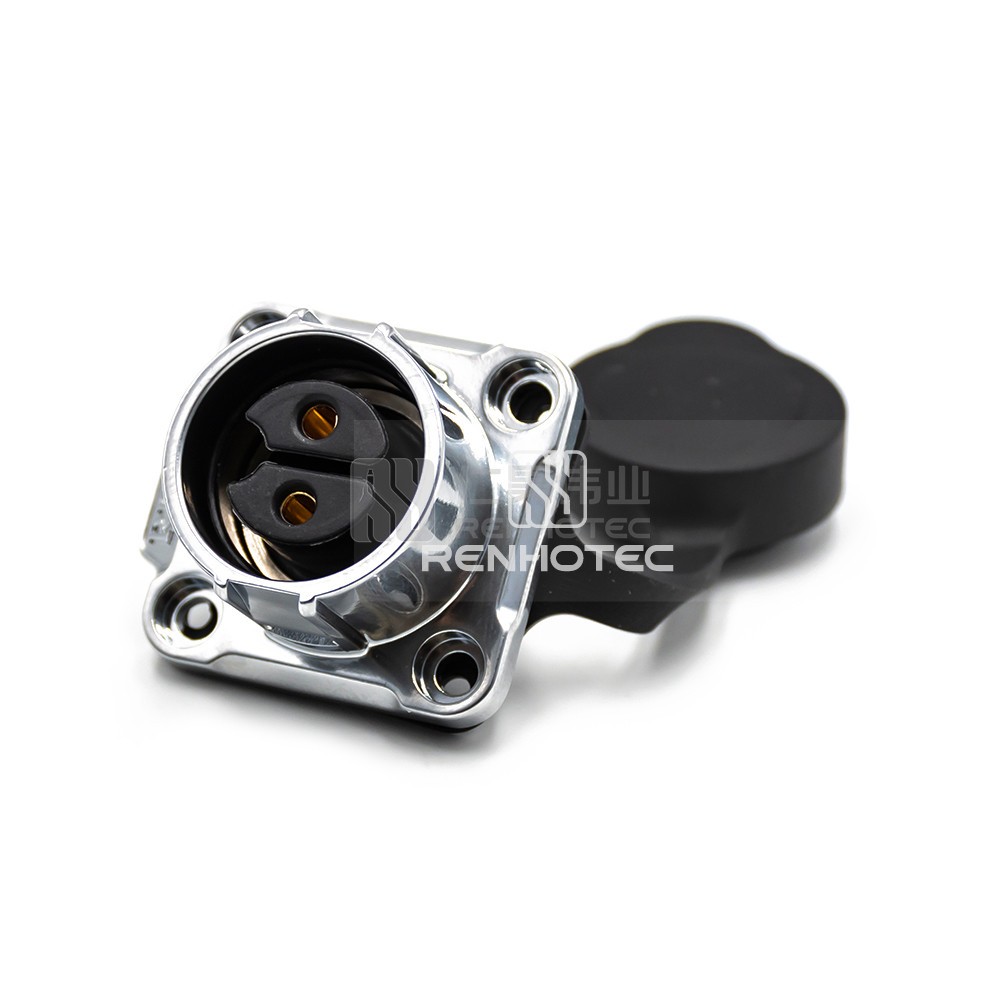

Durable waterproof connector featuring 2 pin receptacles for reliable power connections in various applications.
General
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 2 |
Contact Termination | Solder |
Mechanical
Fastening Type | Push-Pull |
Mounting Type | Panel Mount |
Wire Gauge or Range | 14-12AWG/2.5mm²-4.0mm² |
Material
Shell Material | Zinc Alloy |
Shell Finish | Chrome Plated |
Contact Material | Phosphor Bronze |
Contact Finish | Gold |
Insulating Material | PA66 |
Electrical
Rated Voltage | 500V |
Rated Current | 20A |
Environmental
Operating Temperature | -40°C ~ + 80°C |
