20 Series Full Metal Power Waterproof Connector 3 Pin Receptacle - RK-20-S-03-R-0
20 Series Full Metal Power Waterproof Connector 3 Pin Receptacle - RK-20-S-03-R-0

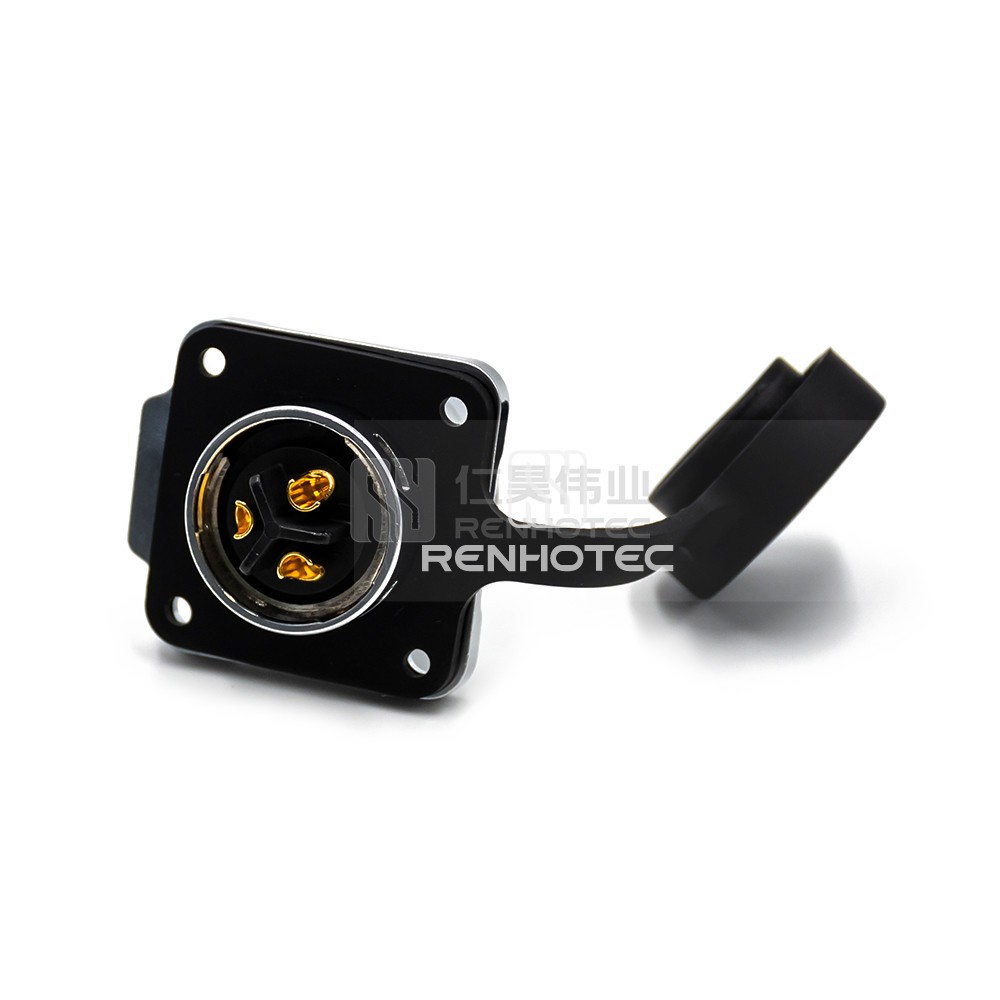

20 Series Full Metal Power Waterproof Connector 3 Pin Receptacle product image

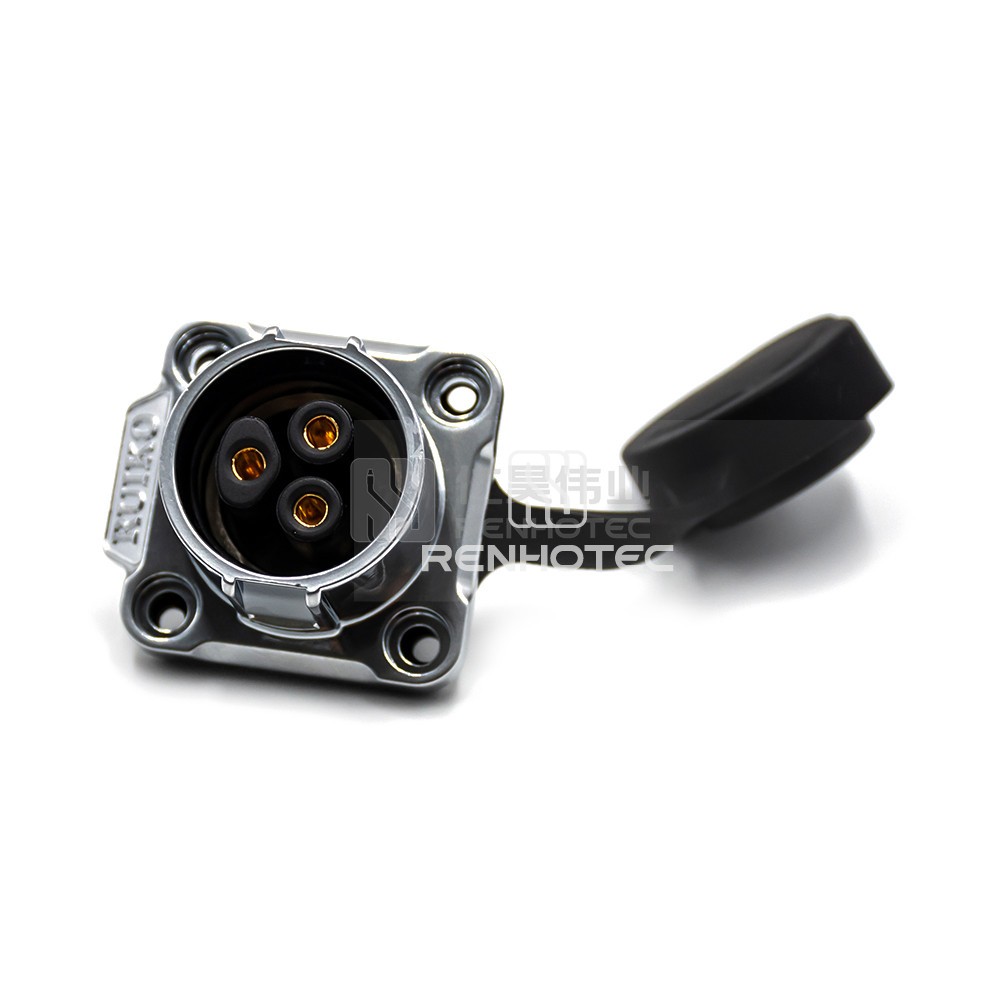

20 Series Full Metal Power Waterproof Connector 3 Pin Receptacle product image

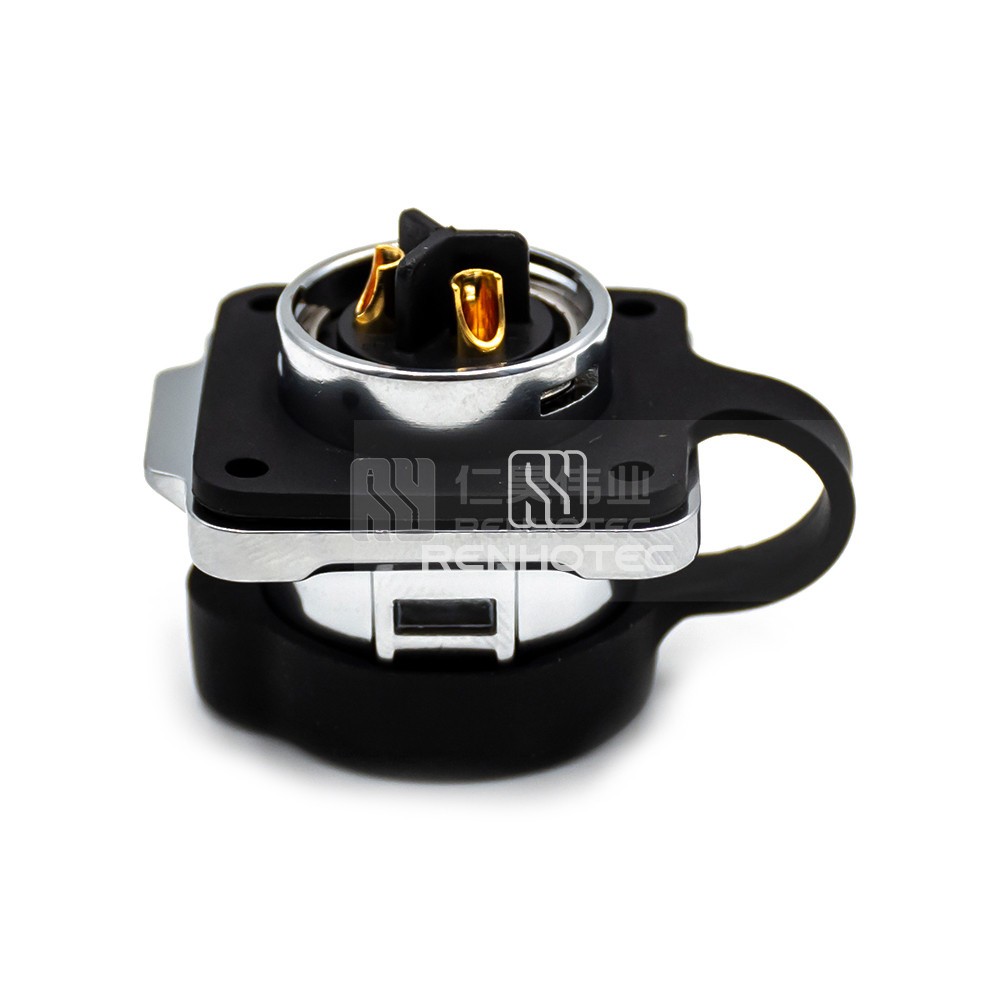

20 Series Full Metal Power Waterproof Connector 3 Pin Receptacle product image

RK-20-S-03-R-0

20 Series Full Metal Power Waterproof Connector 3 Pin Receptacle

Number of Positions:

2345791214

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Connector TypeReceptacle
    Number of Positions3
    Contact TypeFemale Pin
    OrientationStraight
    Mounting TypePanel Mount
    Fastening TypePush-Pull
    Contact TerminationSolder
    Wire Gauge or Range2.5mm²-4.0mm²/14-12AWG
    Materials
    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Insulating MaterialPA66
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Electrical
    Rated Voltage500V
    Rated Current20A
    Environmental
    Operating Temperature-40°C ~ + 80°C

    Product excerpt

    Durable and reliable 3 pin receptacle waterproof connector from the 20 Series.
